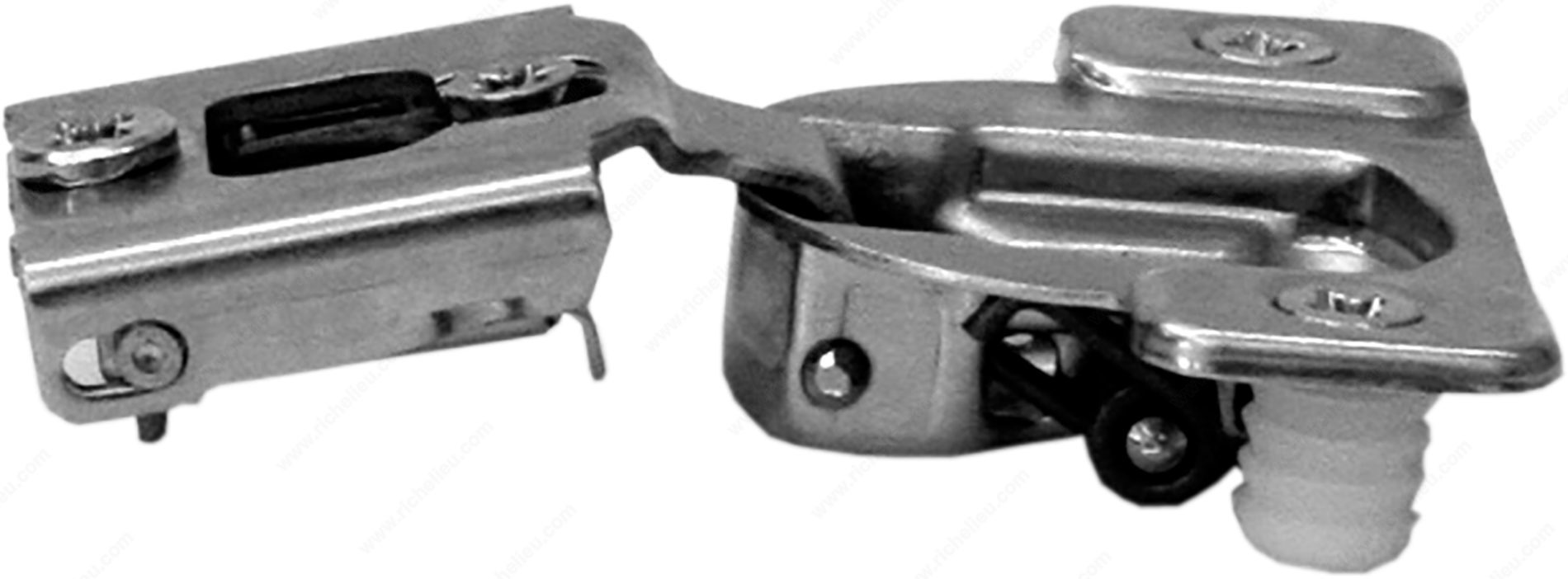

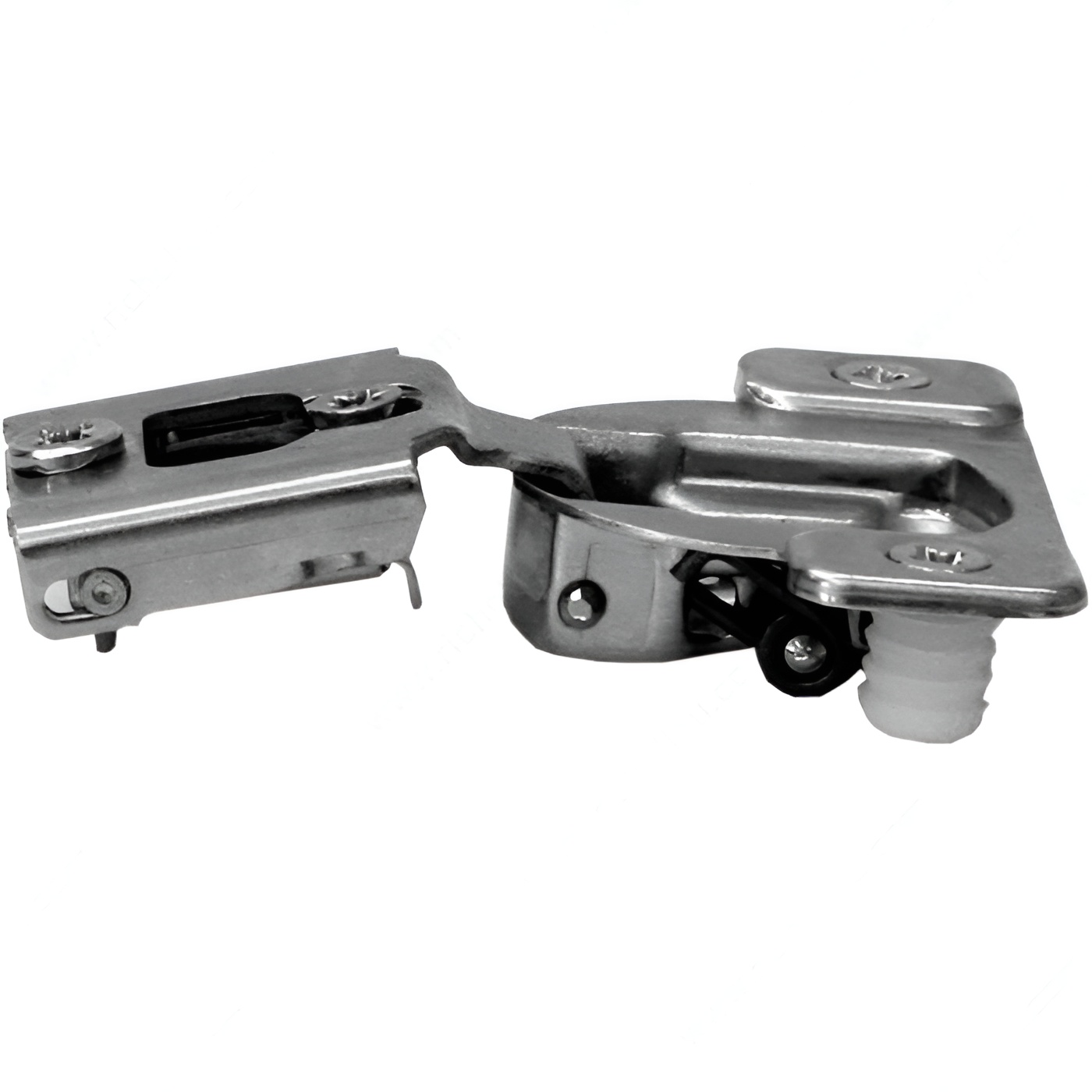

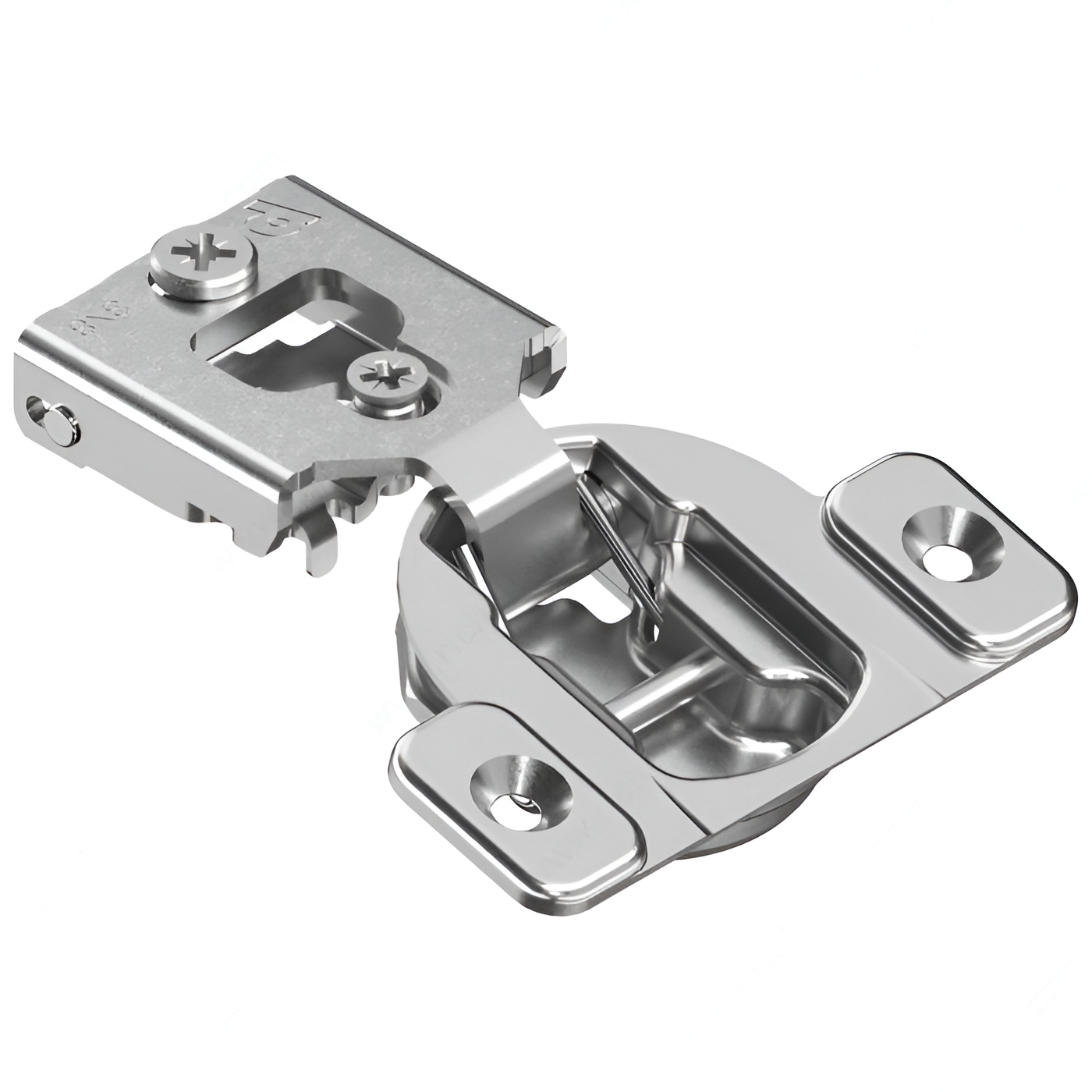

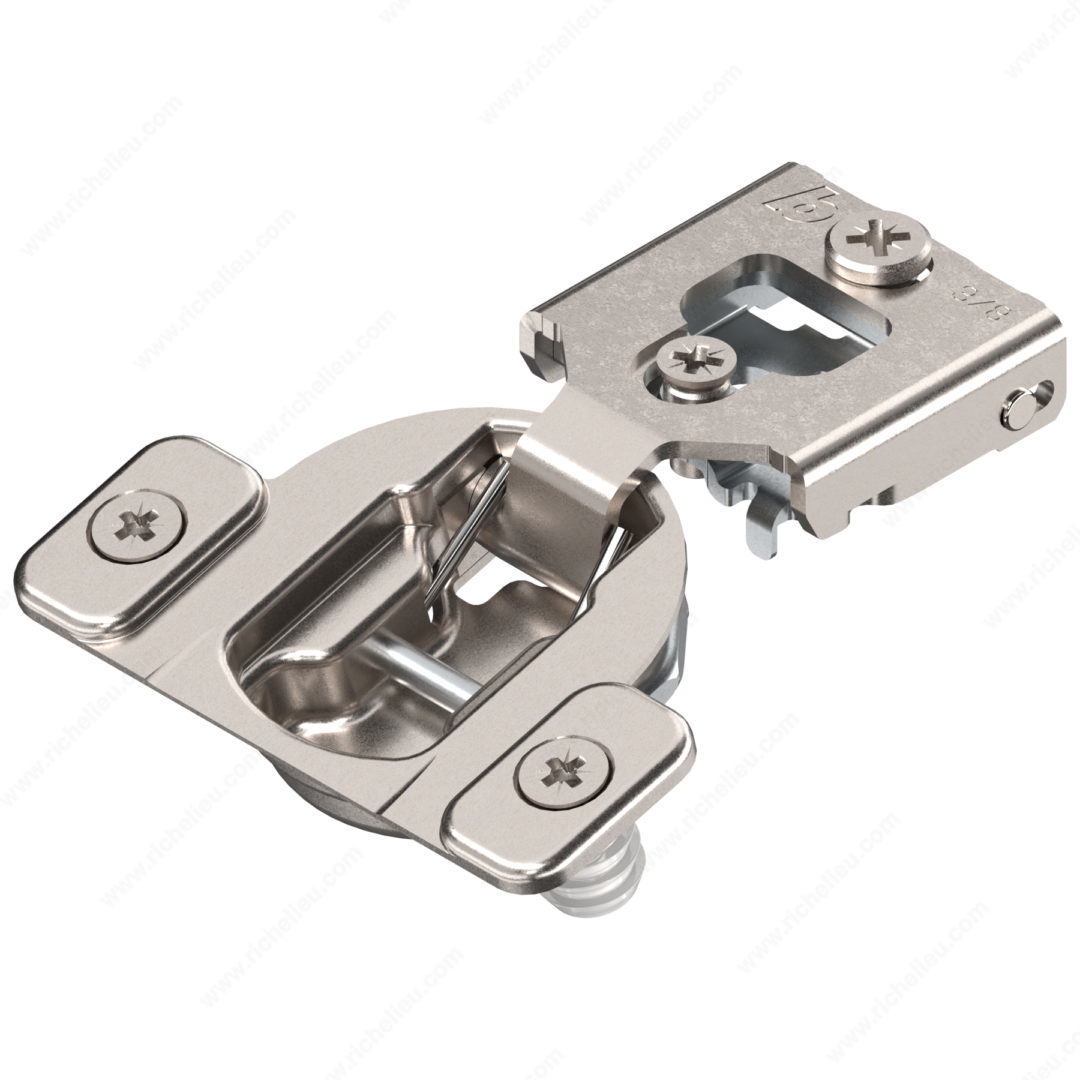

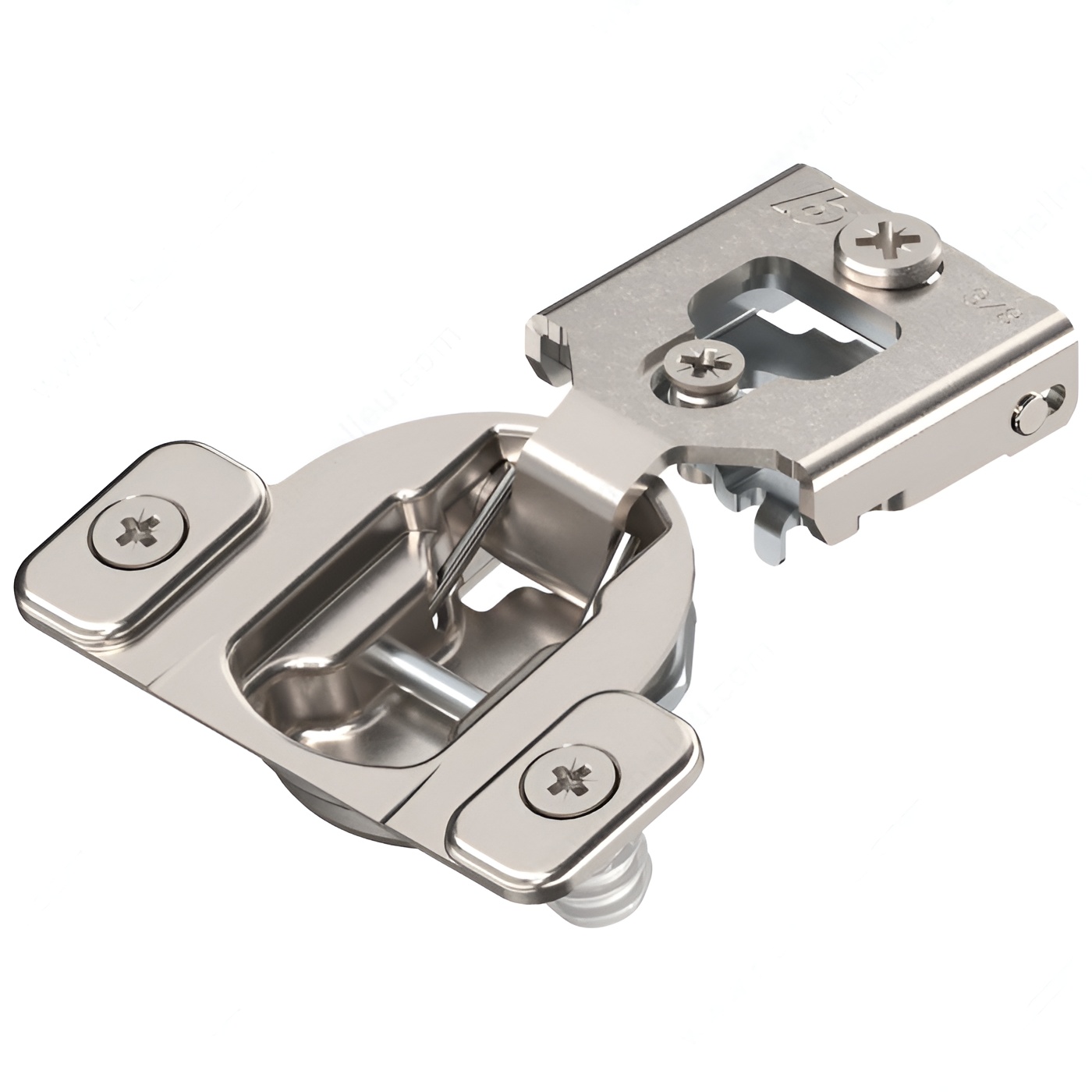

Richelieu 38N35806180 COMPACT 38N Hinge 105 offers a sophisticated solution for concealed hinge requirements in face frame cabinets. Designed with versatility in mind, these hinges are easily adjustable in side, height, and depth dimensions, accommodating various cabinet styles and door overlays, including both small and large options. Crafted from durable steel, the COMPACT hinge is built to last, ensuring reliable performance in standard door applications. With a hinge opening angle of +105°, it provides ample accessibility for cabinet interiors. This hinge is suitable for cabinet and door thicknesses up to 3/4 inch, making it a practical choice for a range of installations. The innovative wrap-around mounting type facilitates straightforward installation, while the included plate enhances stability. Although screws and nails are not included, the hinge employs a knock-in fixing type with an insertion ram for secure placement. Whether you're a building professional or a knowledgeable homeowner, Richelieu's COMPACT hinge simplifies cabinet assembly without compromising style or function. Its efficient design and compatibility with various face frame configurations make it an essential component for any cabinetry project. Enjoy ease of use and reliable performance with Richelieu’s 38N35806180 COMPACT hinge.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing
Milling Depth: 7/16 in
Milling Diameter: 35 mm

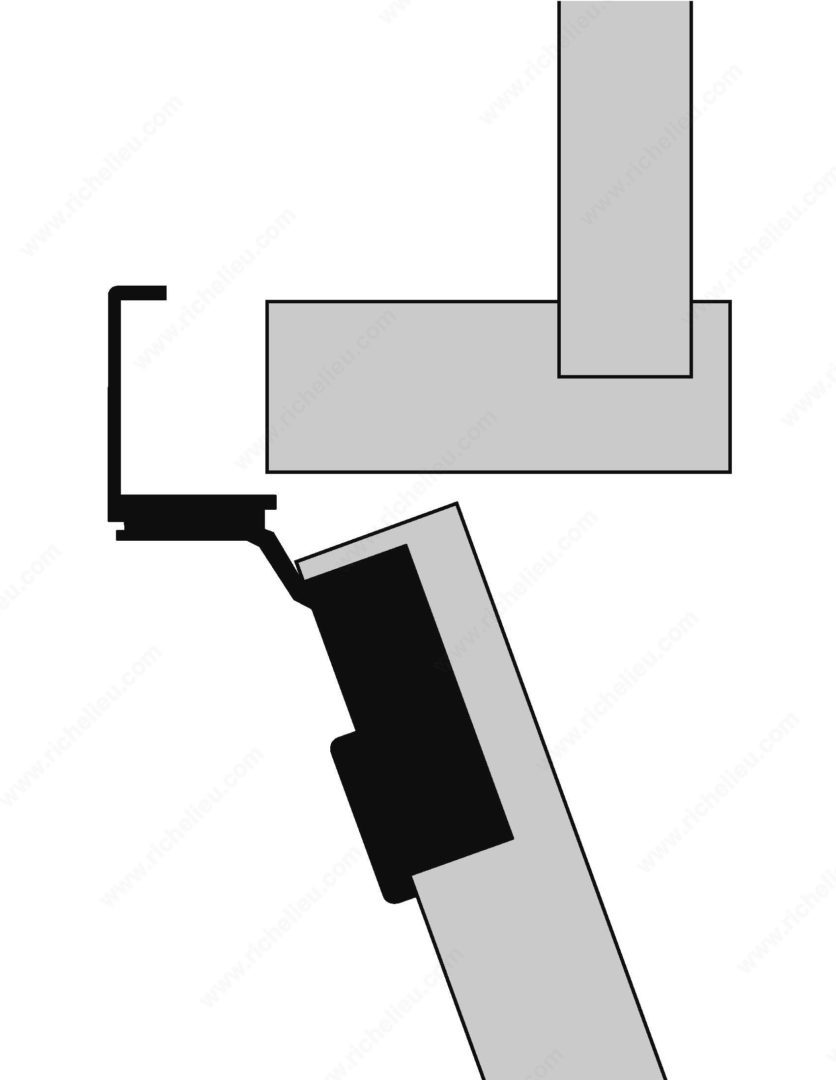

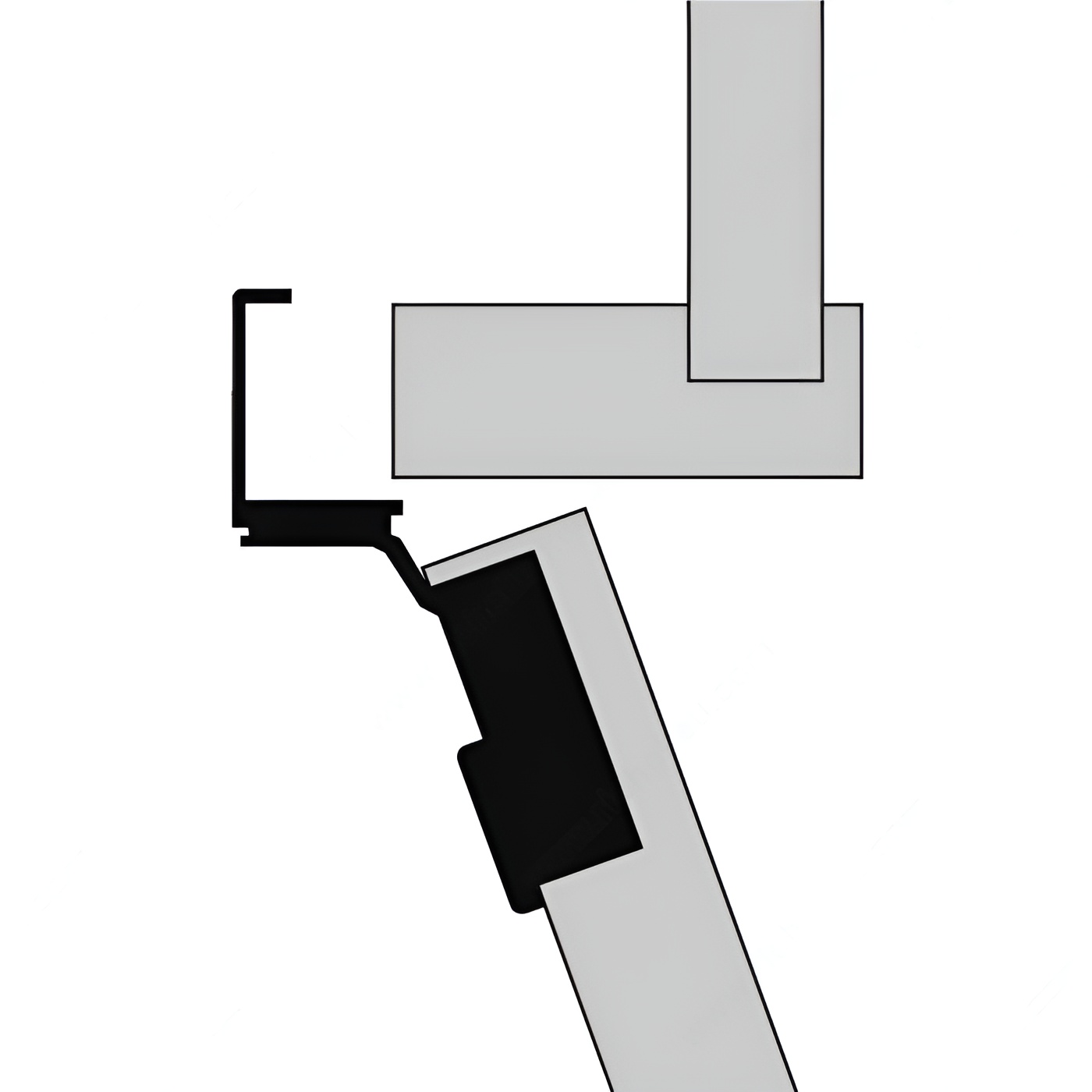

Mounting Type: Wrap-around Mount
Overlay: 3/8 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N35806180
Product number: 38N35806180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
