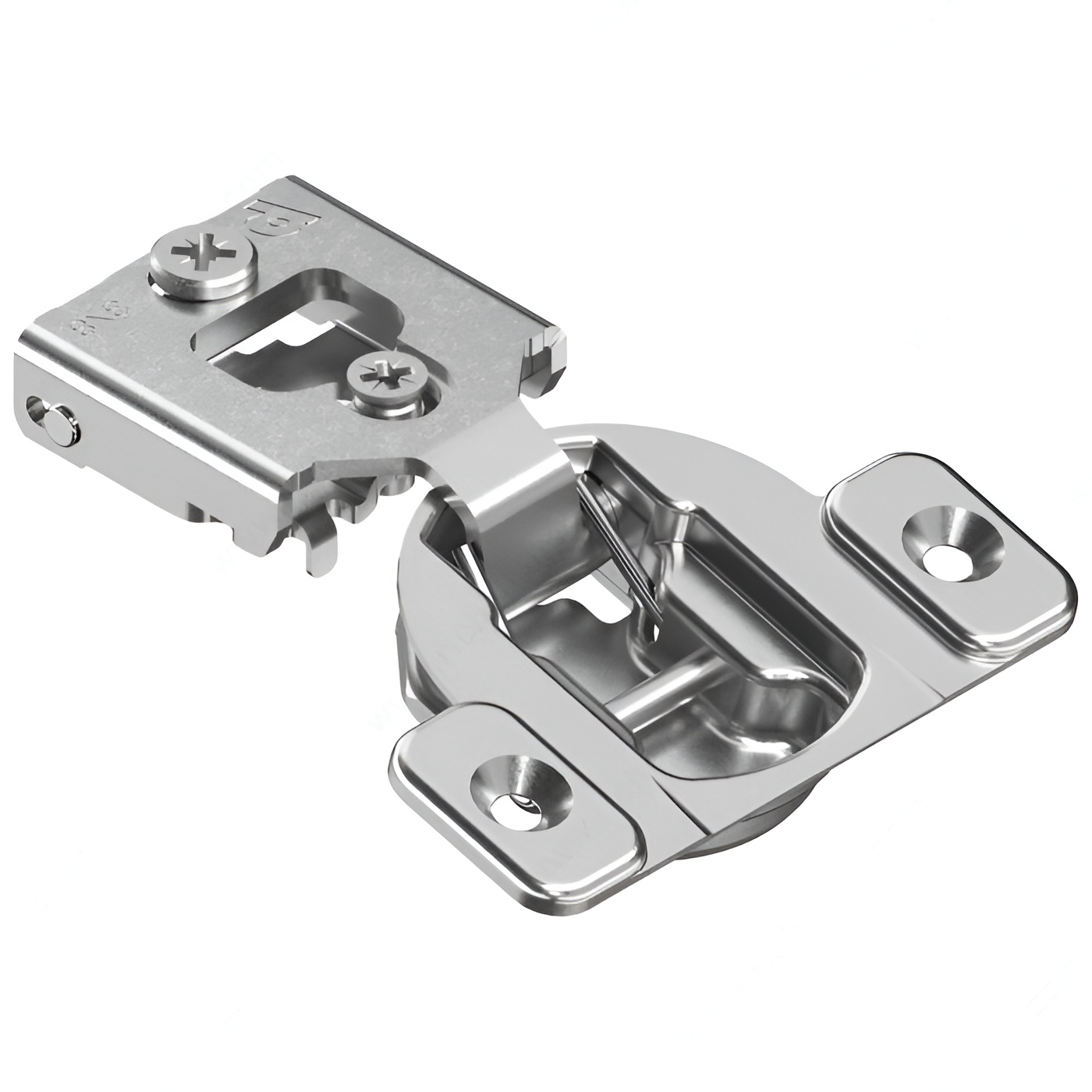

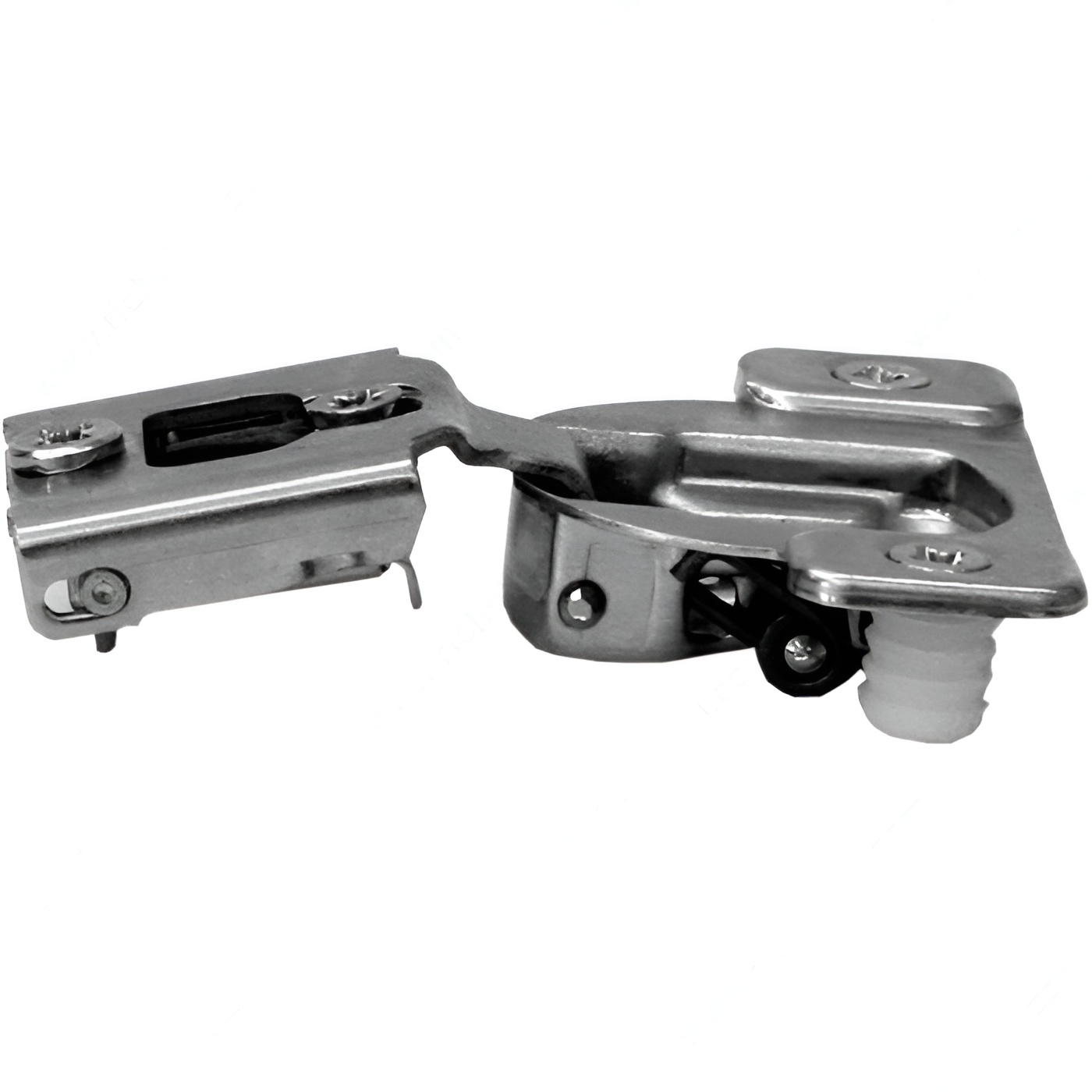

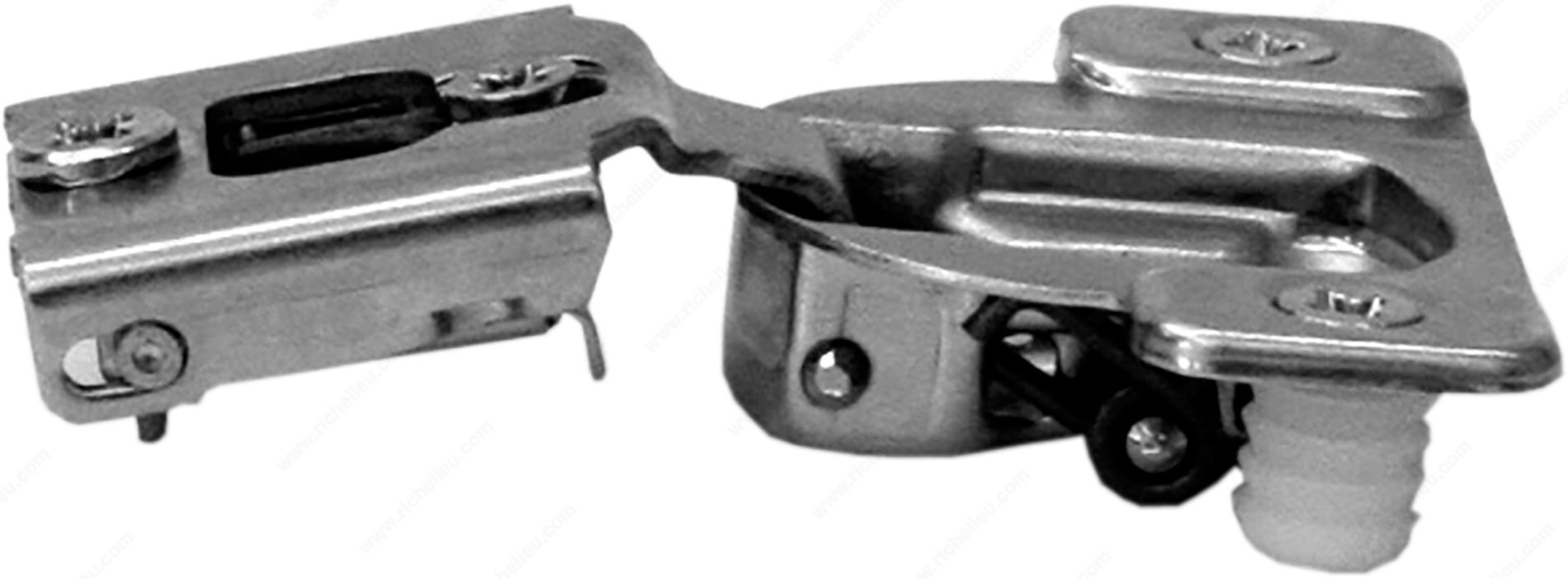

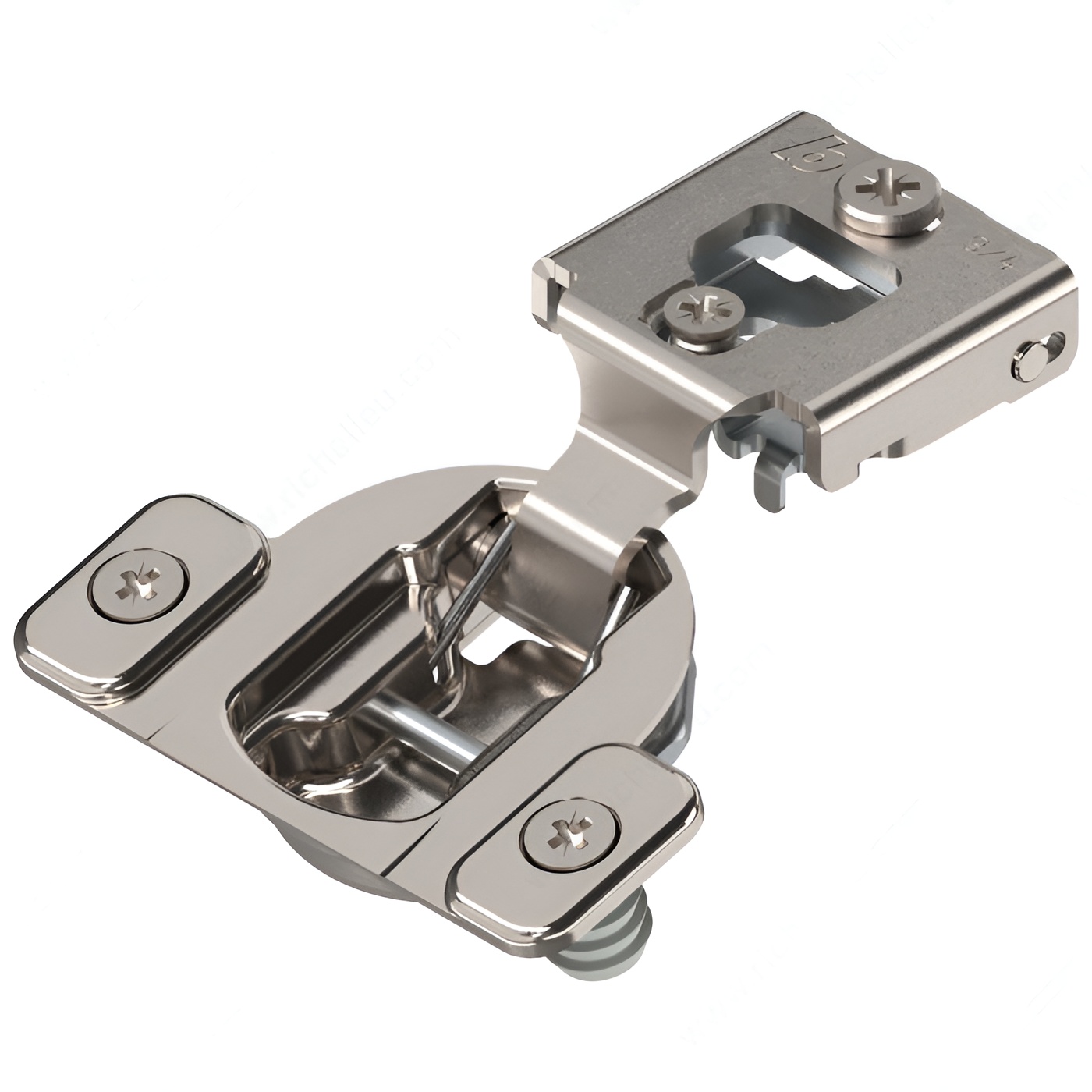

Richelieu 38N35812180 COMPACT 38N Hinge 105 offers an exceptional solution for concealed hinge applications in face frame cabinets. Designed for versatility, these hinges are adjustable in side, height, and depth dimensions, catering to various cabinet configurations. Whether your project requires small or large overlays, the COMPACT hinge conveniently adapts to your needs, making it ideal for a wide array of face frame applications. Crafted from durable steel, this hinge supports a maximum cabinet and door thickness of 3/4 inch, ensuring robust performance. The hinge opens to an impressive angle of +105°, providing ample clearance for effortless access. A unique spring closing mechanism enhances usability by ensuring doors gently close without slamming. Installation is straightforward with a wrap-around mount and knock-in fixing type, although screws or nails are not included. The milling depth and diameter specifications of 7/16 inch and 1 3/8 inch respectively, make it compatible with standard cabinet setups. Each hinge is shipped individually, and a plate is included for added convenience. Elevate your cabinetry with the reliable and adjustable Richelieu 38N35812180 COMPACT 38N Hinge, designed for both efficiency and aesthetic appeal.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in

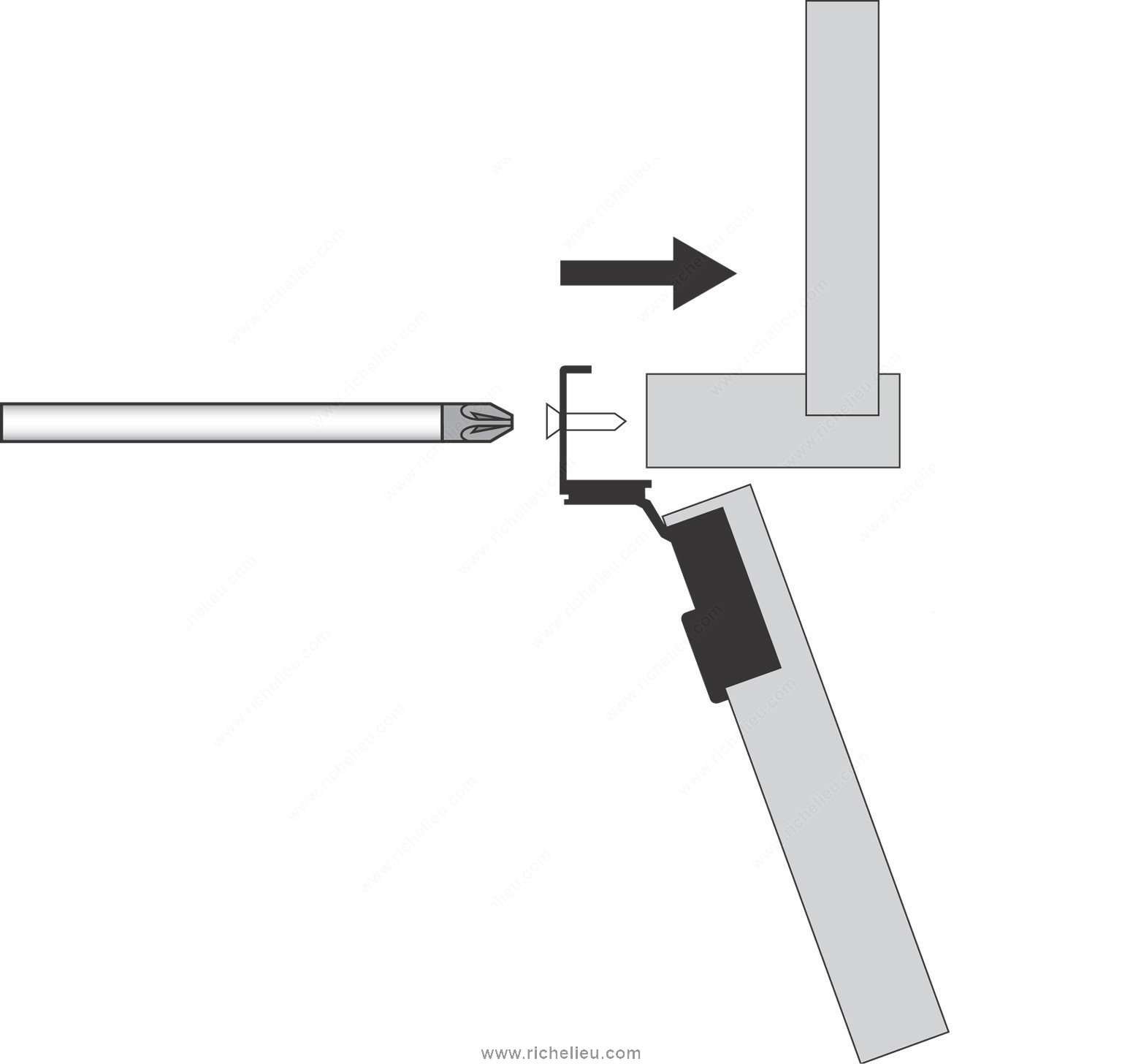

Fixing Type: Knock-In with Insertion Ram Only

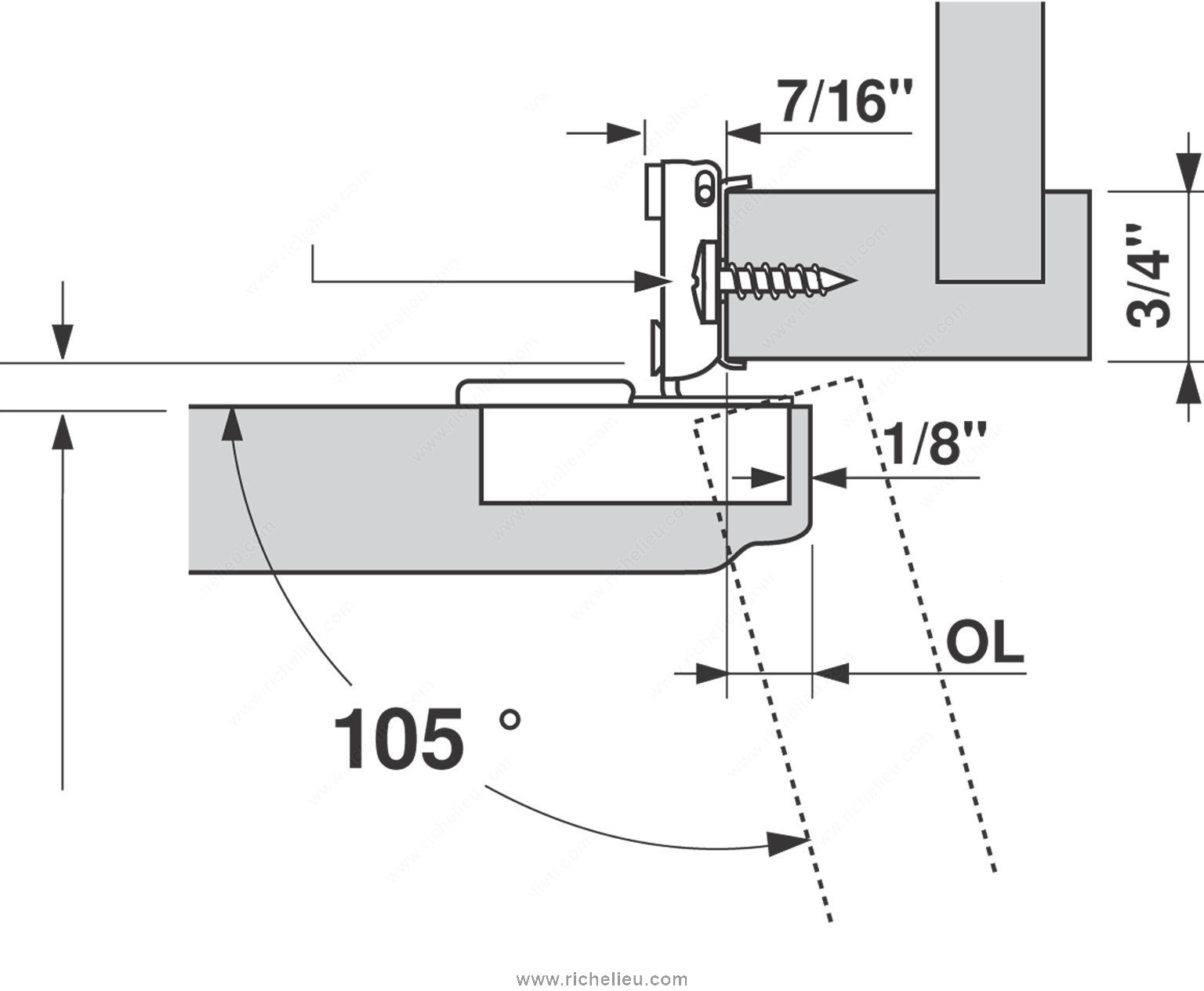

Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

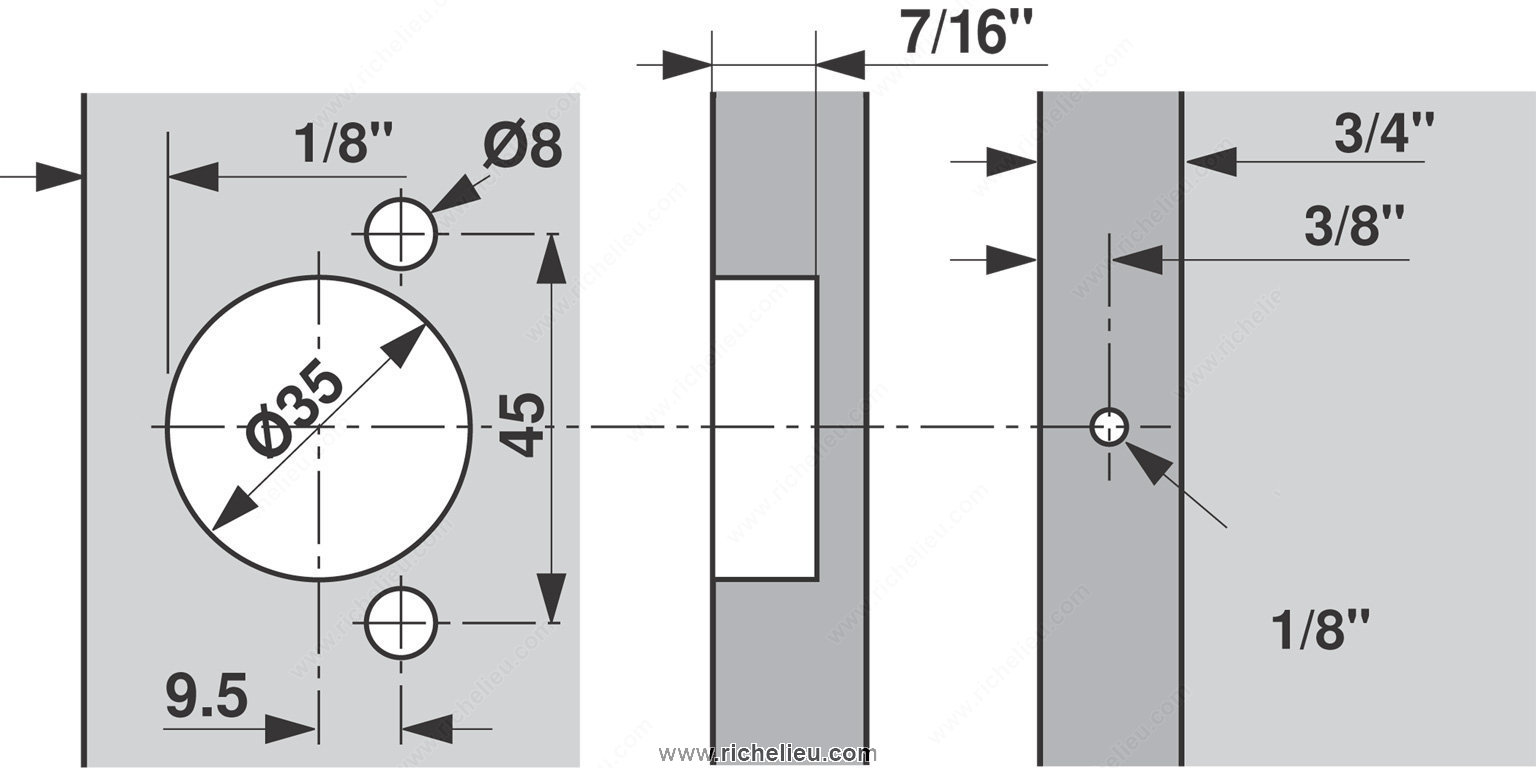

Milling Depth: 7/16 in
Milling Diameter: 35 mm

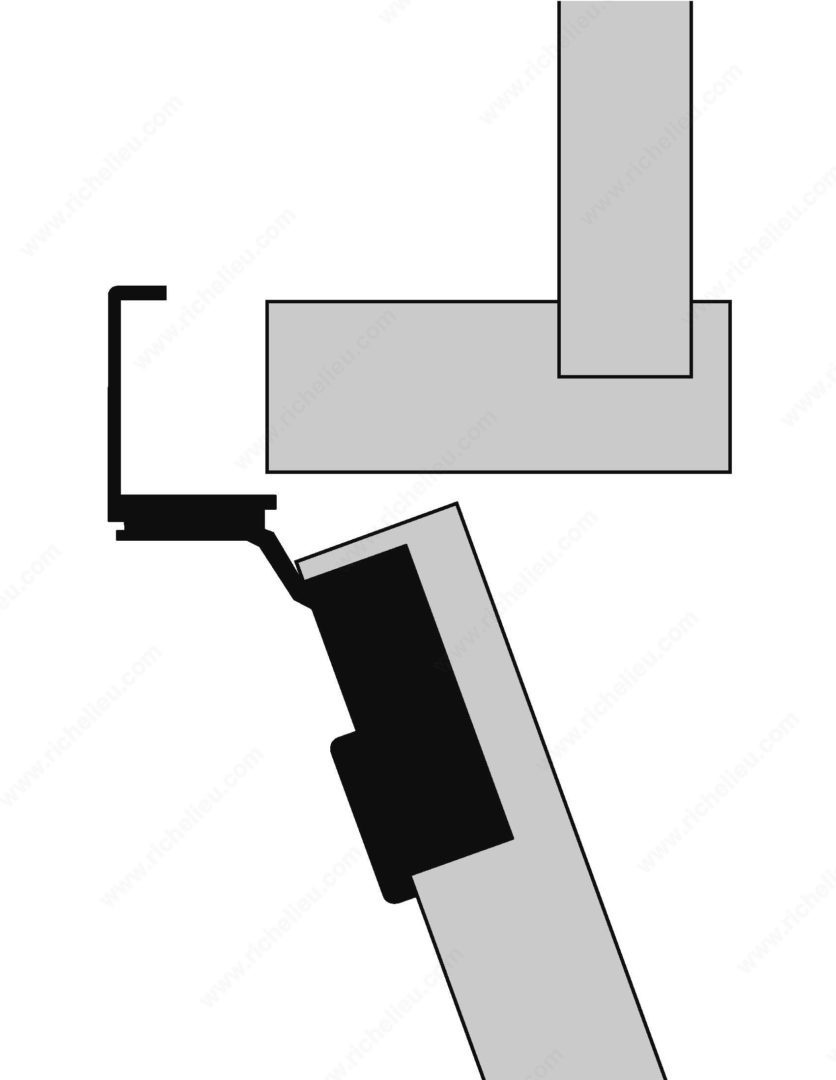

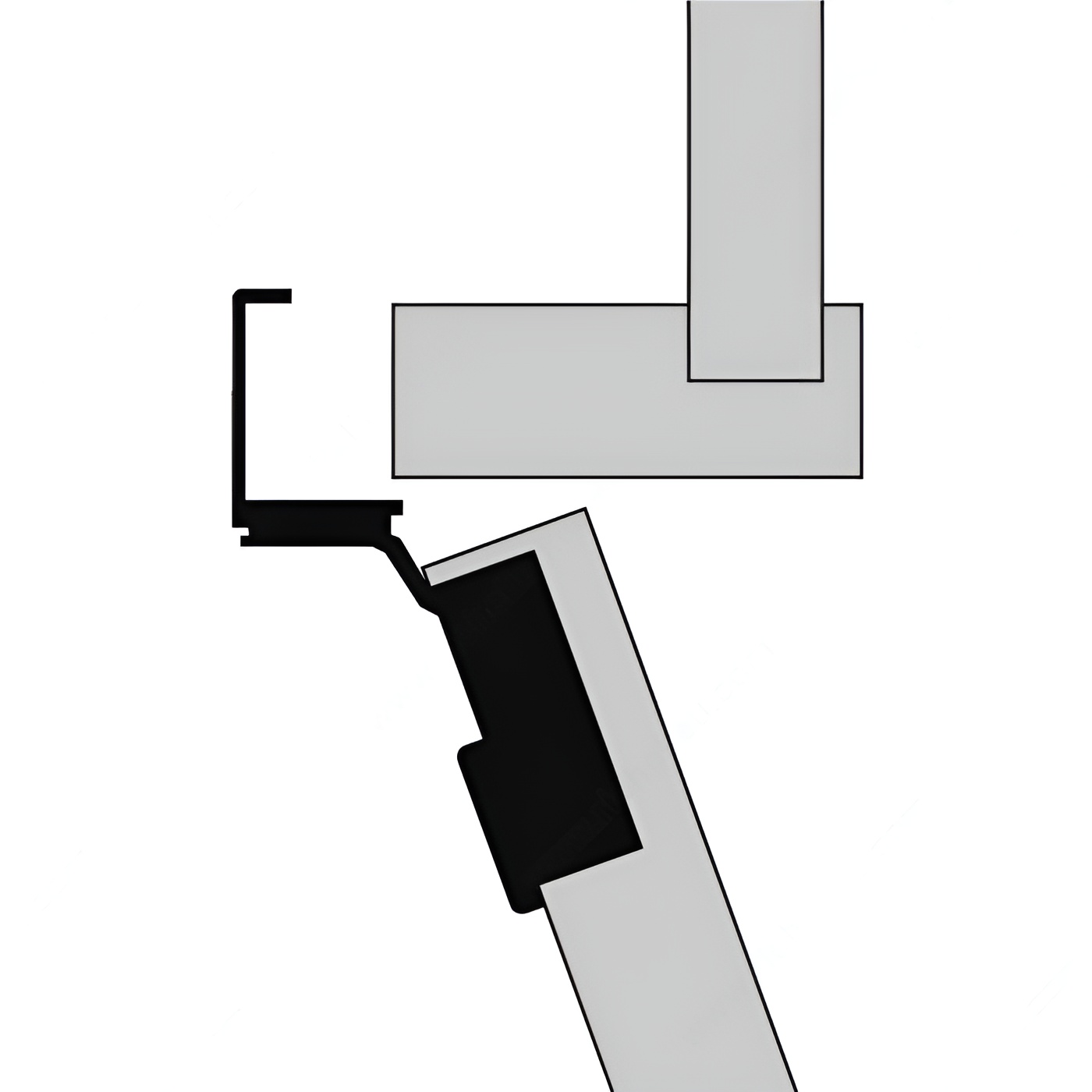

Mounting Type: Wrap-around Mount
Overlay: 3/4 in
Packaging format: Per unit
Plate Included: Yes
Product #: 38N35812180
Product number: 38N35812180
Required Frame Width: 19 mm
Screw/ Nail: Not included
Unit 1: case - 250
Use Type: Standard Door
