Richelieu 4119192210 T-ABLE XL III Table Extension Mechanism 4119 SeriesRichelieu 4119192210 T-ABLE XL III Table Extension Mechanism 4119 Series offers a seamless solution for enhancing your kitchen or workspace with a functional side table that is ready for use at a moment’s notice. This complete system is designed for customization, requiring only the top panel to be crafted by the client, allowing for perfect harmony with your existing counter. Constructed from durable aluminum, the T-ABLE XL III features a high-load capacity of 100 kg (200 lb) when evenly distributed, ensuring stability and strength for various tasks. The mechanism can be installed in place of a drawer, utilizing a hinged front panel that tilts back, enabling the table to fold neatly into the cabinet. With sturdy extendable and collapsible aluminum legs, this table is not only practical but also space-efficient. The table accommodates widths of up to 600 mm (23-5/8") and offers an impressive total extension of approximately 1,310 mm (51-9/16"). For effective installation, a minimum depth of 20 1/2 inches, height of 5 29/32 inches, and width between 22 to 22 1/2 inches are recommended. Finished in anodized aluminum, the T-ABLE XL III is not only functional but also aesthetically pleasing, making it an ideal addition to any modern kitchen.
T-ABLE XL III Table Extension Mechanism 4119 Series

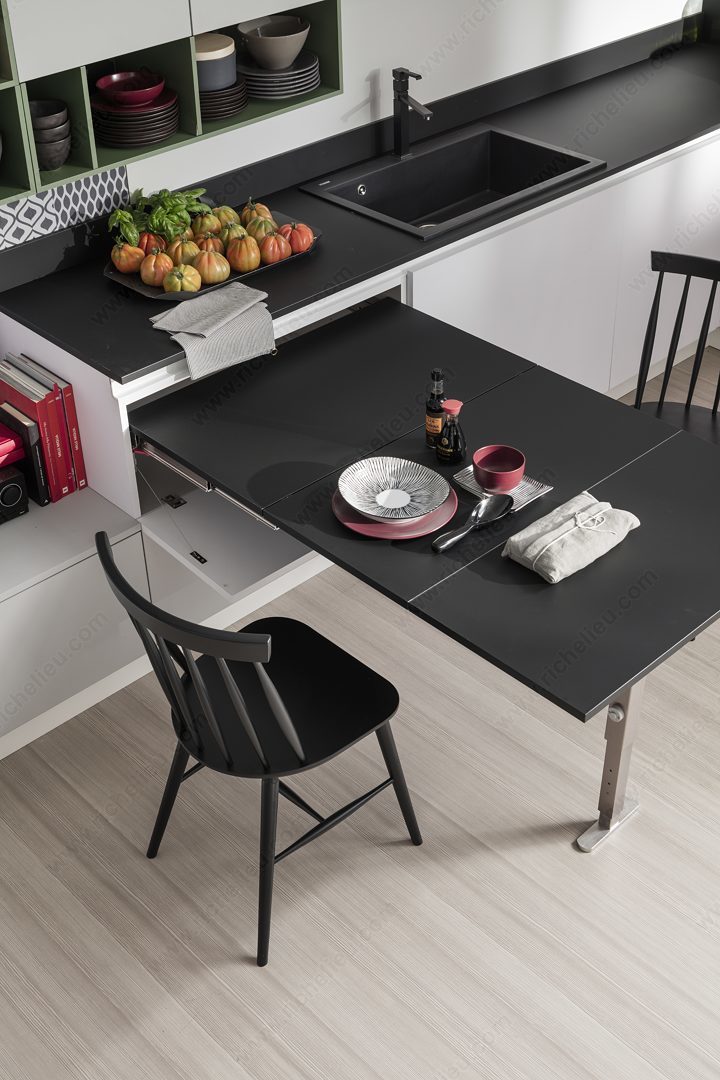

Functional side table, ready instantly
Application
Complete system, only the top panel must be made by the client, which enables harmonization with the counter.
Aluminum steel rail with high-load capacity of 100 kg (200 lb), evenly distributed.

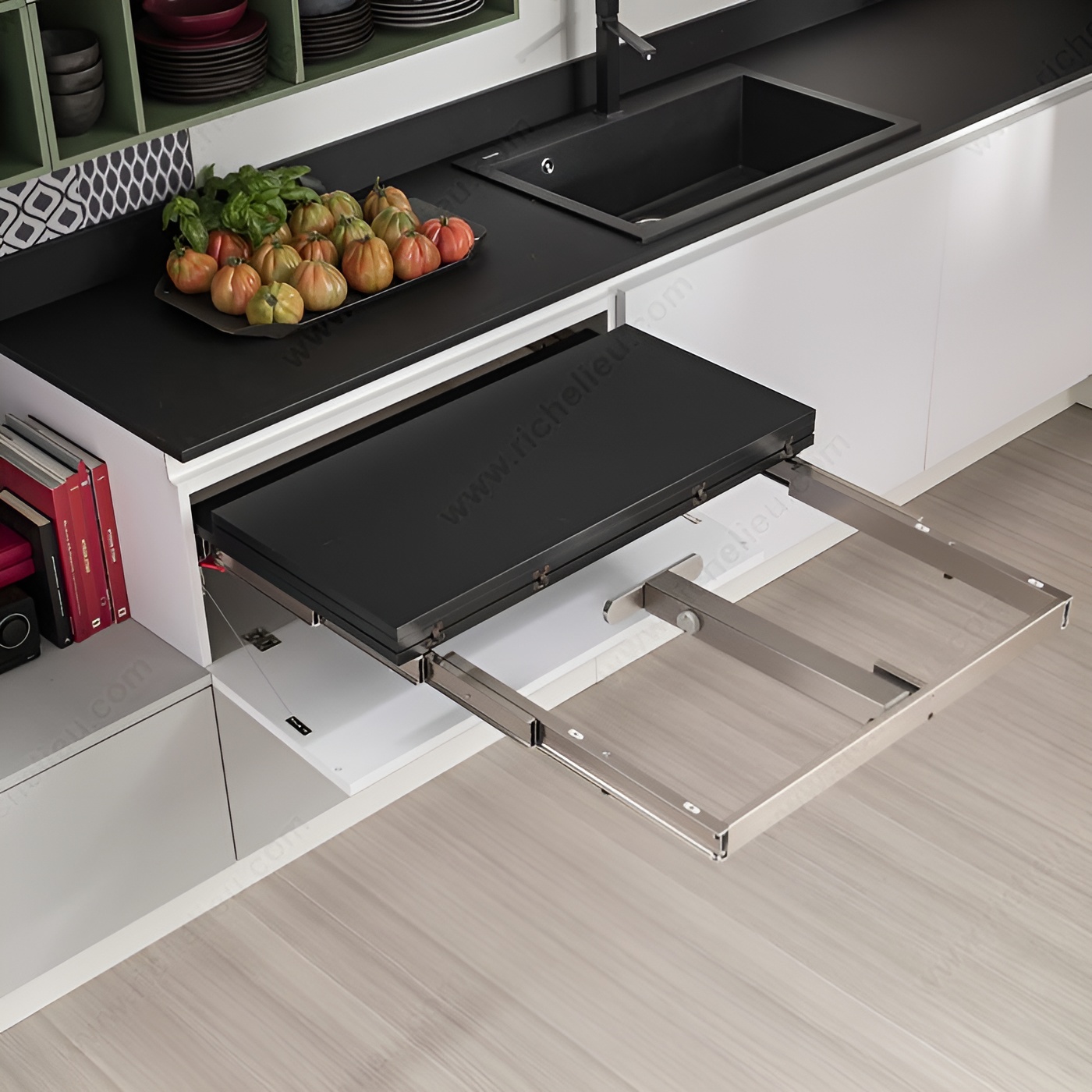

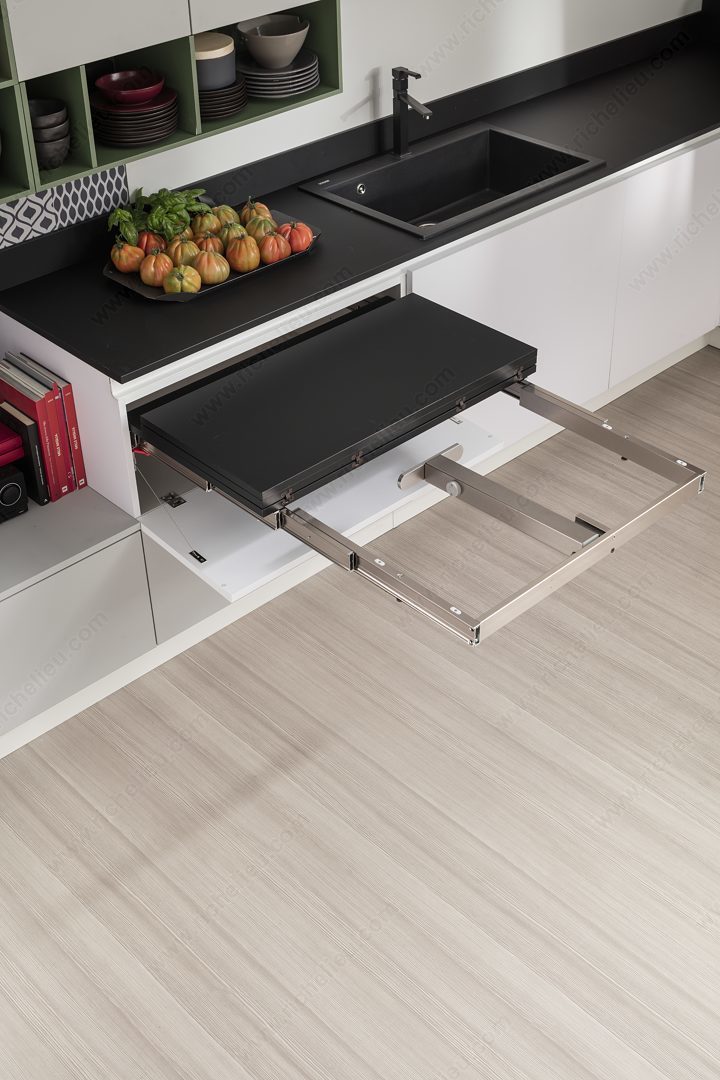

Can be installed in place of a drawer, behind the hinged front panel that tilts towards the back enabling the table to tilt towards the cabinet.

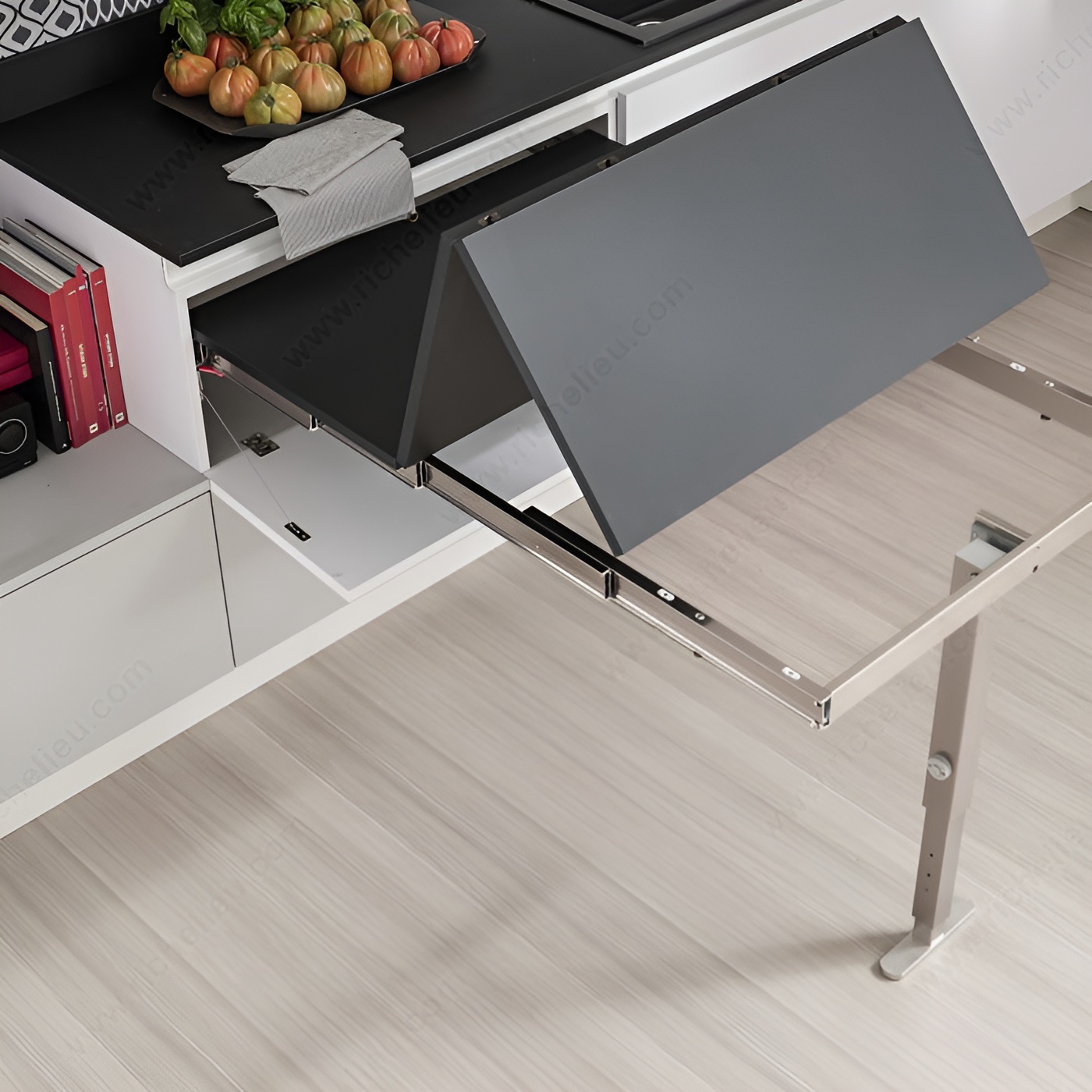

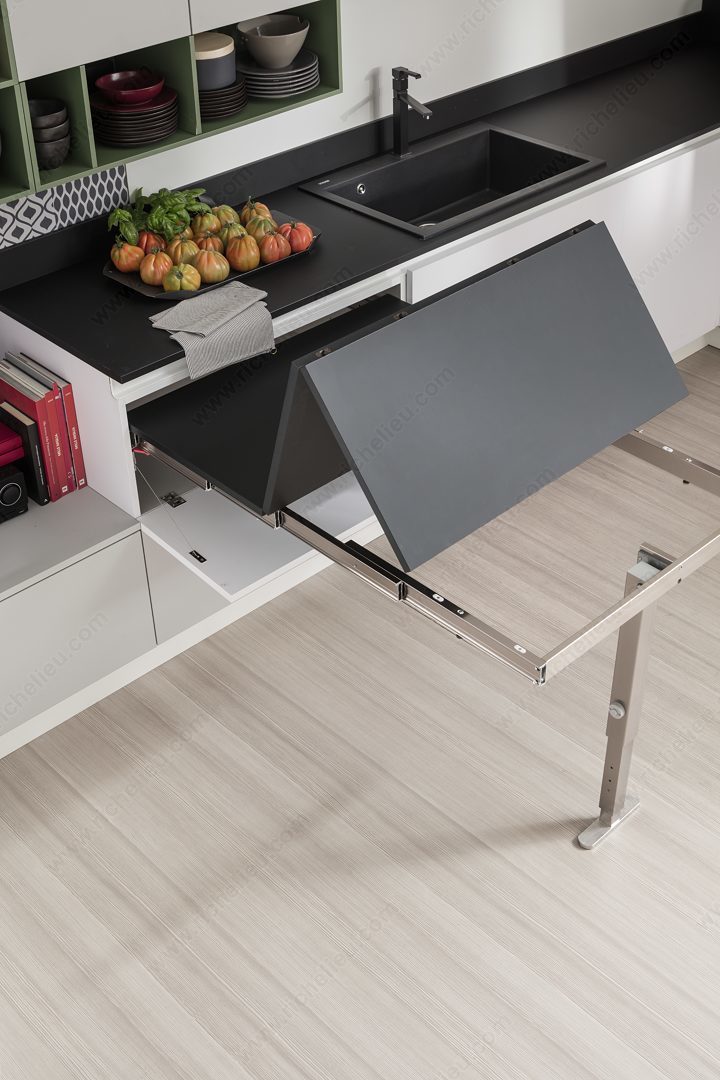

Sturdy, extendable and collapsible aluminum legs.
Top, front table panels insert into dowels that hold them firmly in place.
The back panel is fixed.
Suitable for widths of 600 mm (23-5/8").
Approximate total extension of the table: 1,310 mm (51-9/16").
Attributes
Area of Activity: Preparation, Cooking
Capacity: 100 kg
Extension: 1 310 mm
Finish: Anodized Aluminum
Interior Dim. Required - Depth: Min. 20 1/2 in*
Interior Dim. Required - Height: Min. 5 29/32 in*
Interior Dimensions Required - Depth: Min. 520 mm
Interior Dimensions Required - Height: Min. 150 mm
Interior Dimensions Required - Width: 560 to 570 mm
Load Capacity: 220 lb*
Material: Aluminum
Product #: 4119192210
Product number: 4119192210
Product №: 4119192210
Solutions: Countertops and Accessories
Unit: Box
