Richelieu 420203130 Concealed Steel Hinge - Model 203 delivers an exceptional blend of style and functionality, making it an ideal choice for both wood and metal doors. Designed for versatility, this reversible hinge offers a generous opening angle of +180°, ensuring smooth operation in a variety of applications. With a sleek brass finish, it enhances the aesthetics of any door while providing robust durability. Installation is straightforward, utilizing a mortise mounting type with screw-on fixing, allowing for secure placement. The hinge accommodates a minimum door thickness of 3/4 inch and features an inset of 1/8 inch to maintain a flush appearance. Its dimensions include a height of 23/32 inches and a width of 1/2 inch, ensuring compatibility with standard door setups. The hinge includes wood screws (#6 x 1") for easy installation and maintains a gap of 7/64 inches between the door and jamb. With a leaf body mortise length of 3/4 inch and a depth of 3/16 inch, it provides a seamless fit for various door configurations. The Richelieu Model 203 is an excellent choice for building professionals seeking reliable hardware that combines modern design with lasting performance.

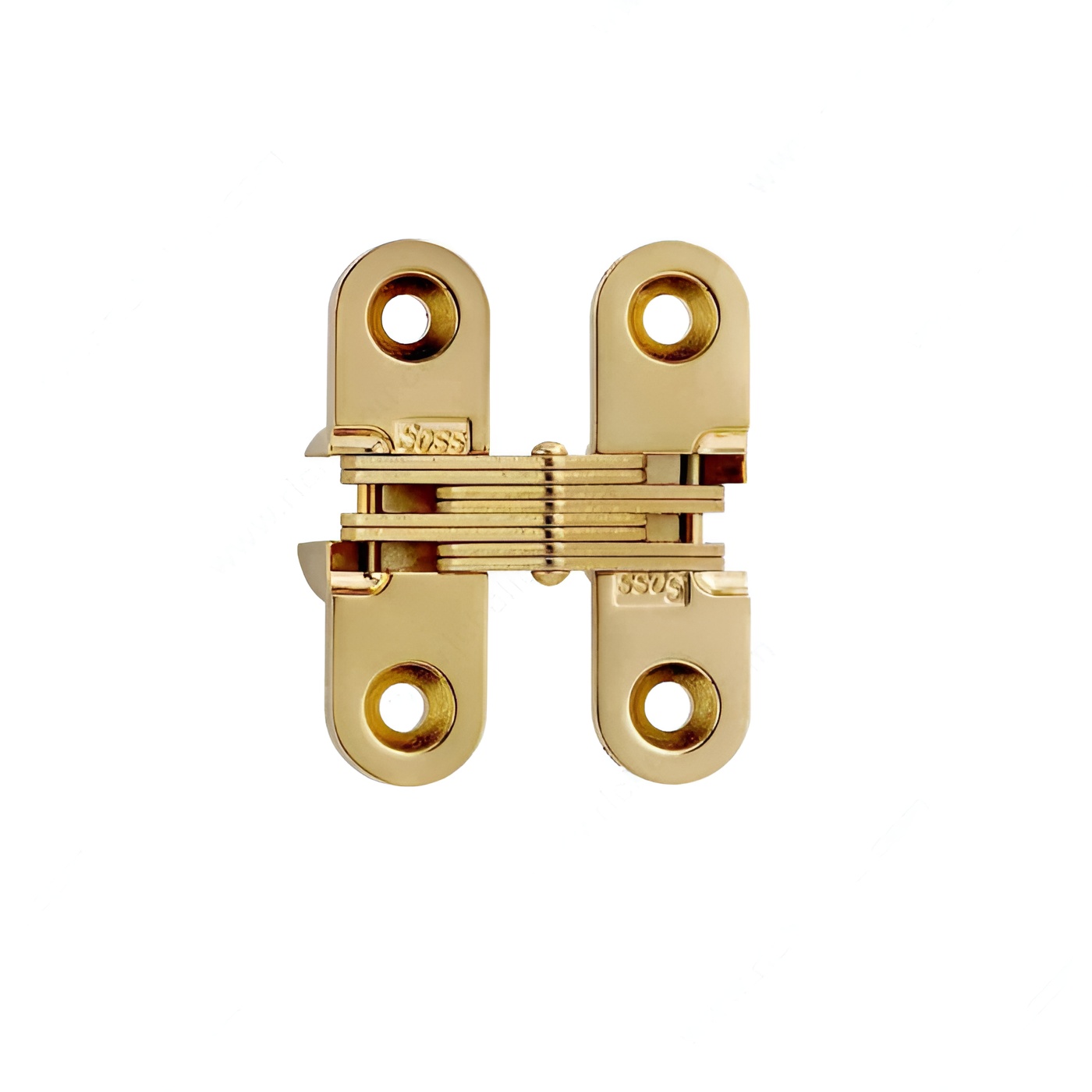

Concealed Steel Hinge - Model 203
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 1/4 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 1 3/4 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 3/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 3/16 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Brass
Fixing Type: Screw-On
For Hinge #: 203
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 3/16 in
Length: 1 3/4 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420203130
Product number: 420203130
Product №: 420203130
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #6 x 1" (3.5 mm x 25 mm)
