Richelieu 420204180 Concealed Steel Hinge - Model 204 seamlessly combines style and functionality, making it an ideal choice for both wood and metal doors. Designed to promote a clean and contemporary appearance, this hinge offers a sleek nickel finish that enhances any interior. Its innovative concealed design not only elevates aesthetics but also ensures superior durability, catering to a variety of applications. With a 180° hinge opening angle, the Richelieu Model 204 provides ample access and flexibility for door operation. The hinge is reversible, making it versatile for different configurations and easy to install. It features a mortise mounting type, requiring a minimum door thickness of 3/4 inch, while the 1/8 inch door/jamb inset ensures a snug fit. Constructed from high-quality steel, this hinge is built to withstand the rigors of everyday use. The included screws ensure a secure installation, while the dimensions-length of 2 3/8 inches and width of 1/2 inch-make it suitable for various door sizes. Additionally, with a leaf body mortise length of 1 1/4 inches and a leaf gap of 23/64 inches, this hinge promises both stability and aesthetic appeal. Elevate your projects with Richelieu's reliable and stylish concealed hinge solution.

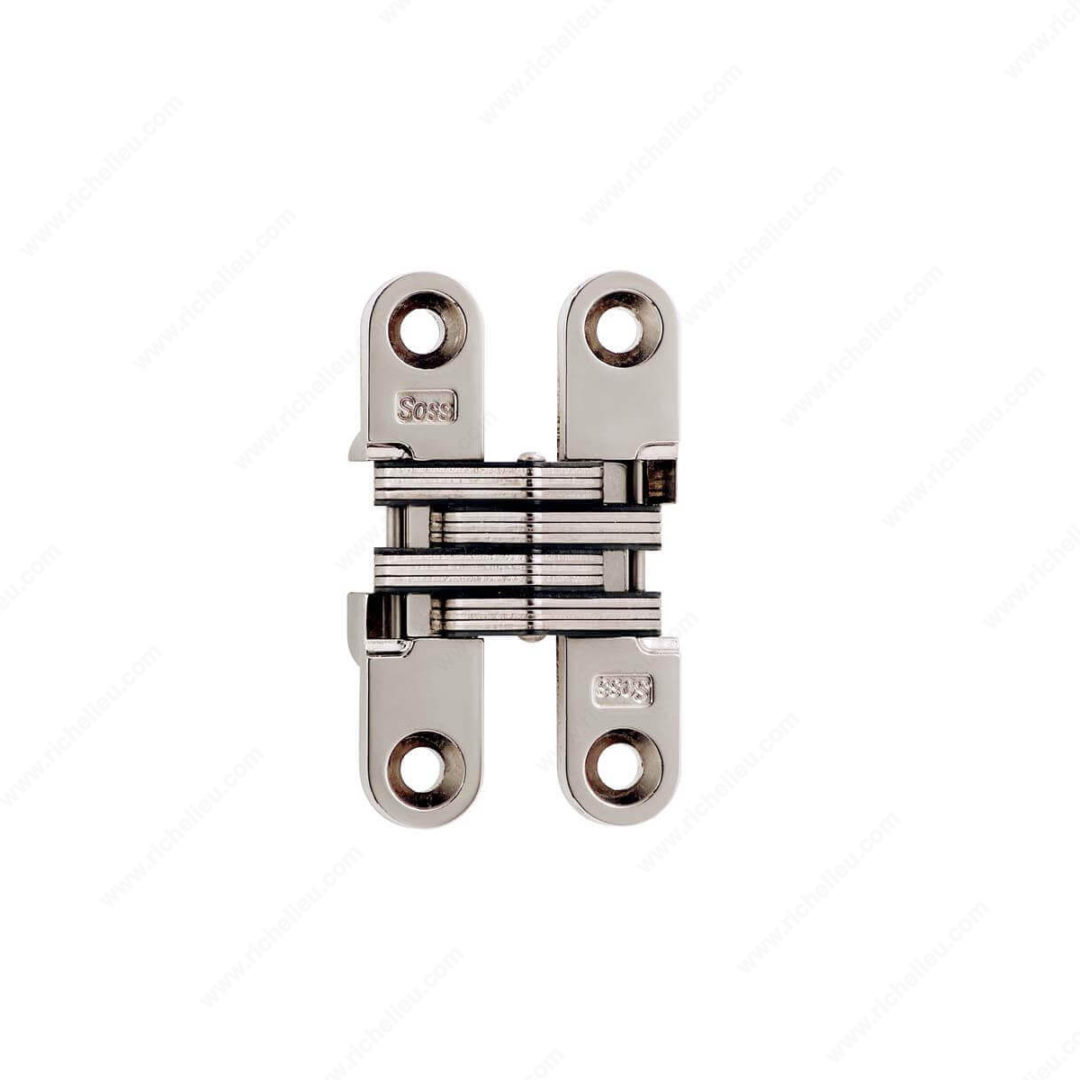

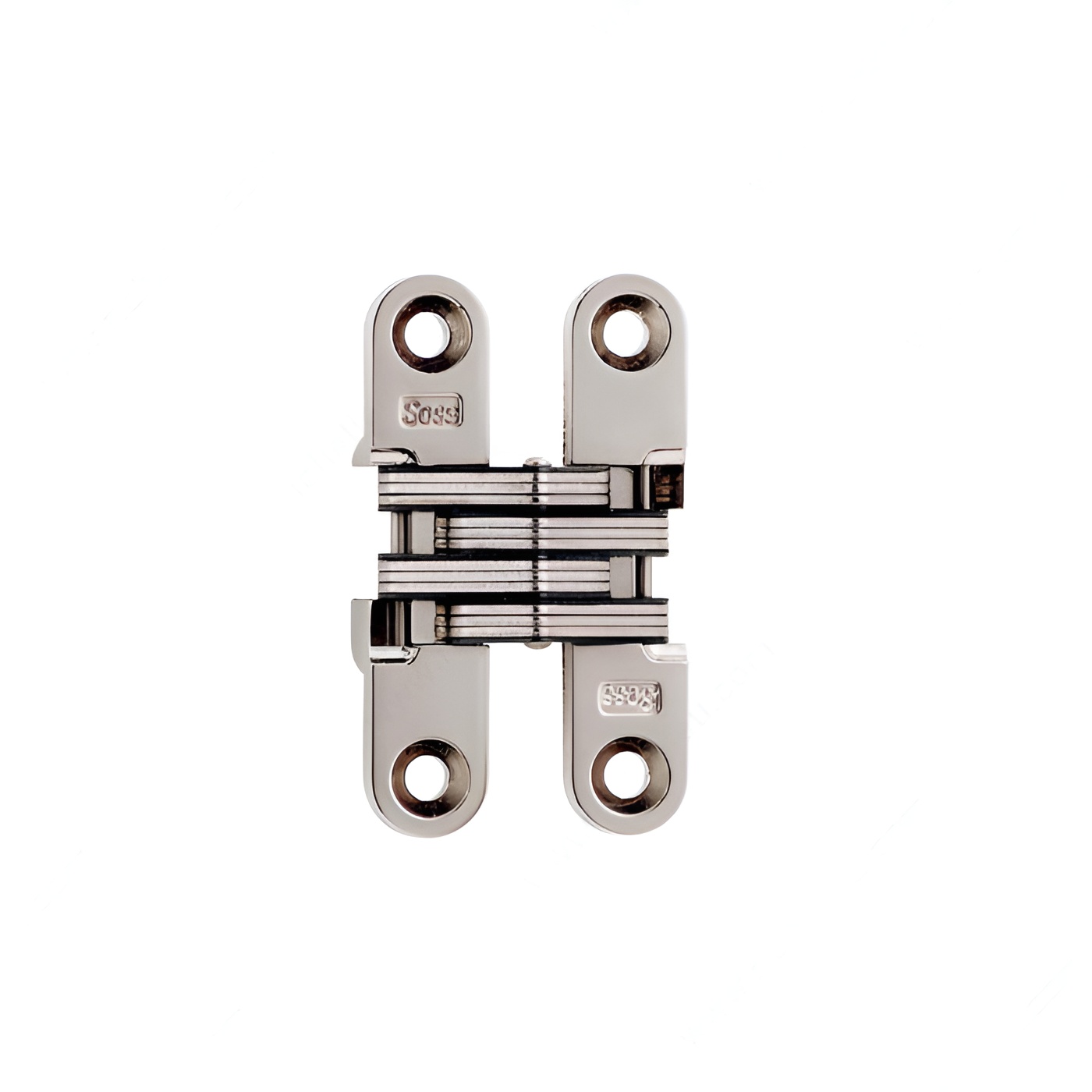

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in

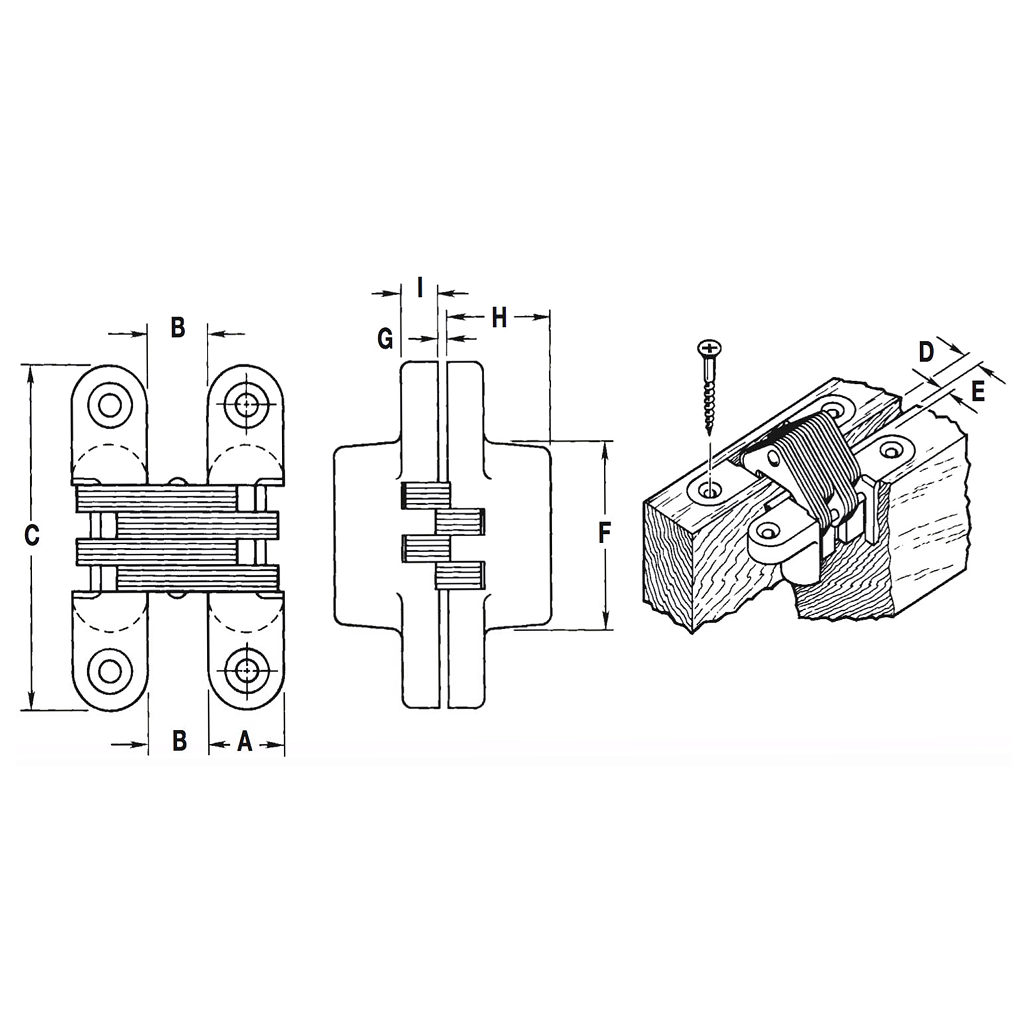

Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Nickel
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204180
Product number: 420204180
Product №: 420204180
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
