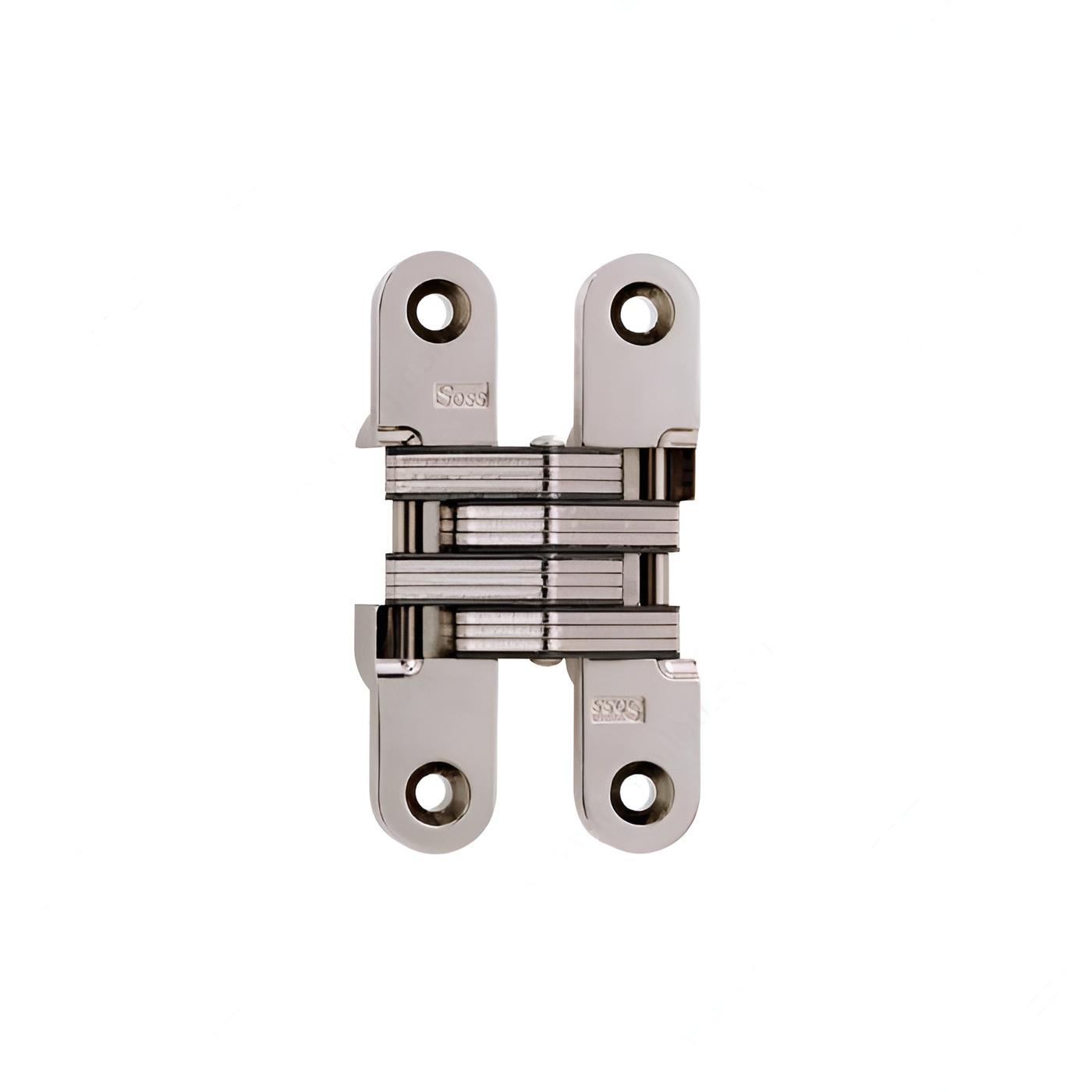

Richelieu 429212180 Concealed Steel Hinge - Model 212 offers a sleek and modern solution for your door hardware needs. Designed for durability and superior aesthetics, this hinge is perfect for both wood and metal doors, ensuring a seamless integration into various applications. The hinge features a remarkable 180° opening angle, allowing for maximum accessibility and convenience. Crafted from high-quality steel with a nickel finish, the hinge not only enhances the look of your doors but also guarantees long-lasting performance. With a height of 1 5/64 inches and a width of 3/4 inches, it is engineered to accommodate a minimum door thickness of 1 1/8 inches, providing versatility for different door styles. The mortise mounting type ensures a clean and unobtrusive installation, while the reversible handedness adds to its adaptability. The hinge's specifications include a leaf body mortise length of 2 1/16 inches and a leaf gap of 35/64 inches, ensuring precise fitting and function. With included screws for easy installation, the Richelieu Concealed Steel Hinge Model 212 is an ideal choice for professionals and homeowners seeking reliability and style in their door hardware.
Concealed Steel Hinge - Model 212
Cabinet Angle: 180°
Center to Center (mm): 3 in
Dimension A: 3/4 in
Dimension B: 35/64 in
Dimension C: 3 3/4 in
Dimension D: 11/64 in
Dimension E: 3/16 in
Dimension F: 2 1/16 in
Dimension G: 3/64 in
Dimension H: 1 5/64 in
Dimension I: 3/8 in
Door/ Jamb Gap: 11/64 in
Door/ Jamb Gap (mm): 5/32 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 3/16 in
Door/ Jamb Inset (mm): 17/32 in
Finish: Nickel
Fixing Type: Screw-On
For Hinge #: 212
Handedness: Reversible
Height: 1 5/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 1/16 in
Leaf Gap: 35/64 in
Leaf Mortise Depth: 3/8 in
Length: 3 3/4 in
Material: Steel
Minimum Door Thickness: 1 1/8 in
Mounting Type: Mortise
Product #: 429212180
Product number: 429212180
Product №: 429212180
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 3/4 in
Wood Screw Sizes: #10 x 1-1/4" (4.8 mm x 32 mm)
