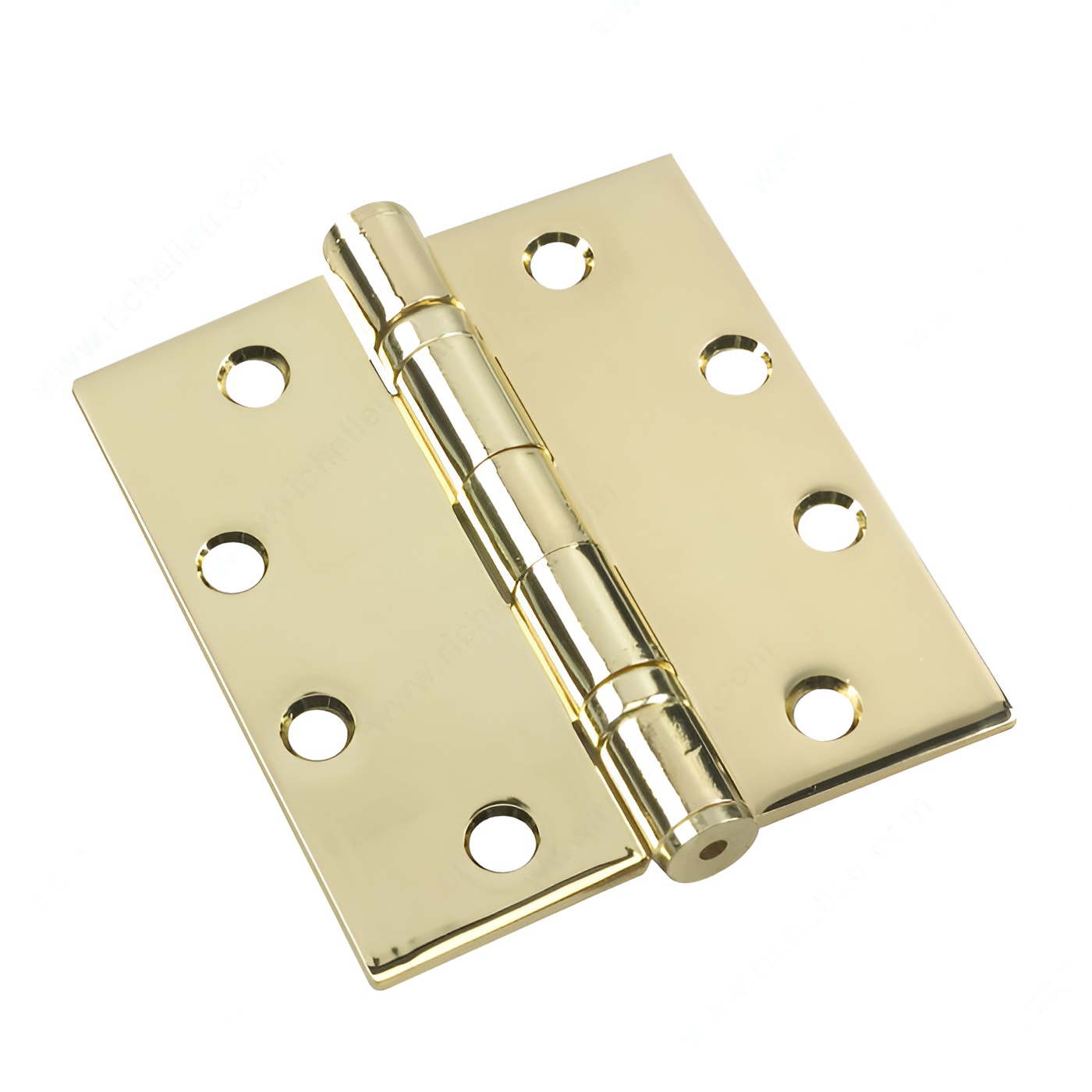

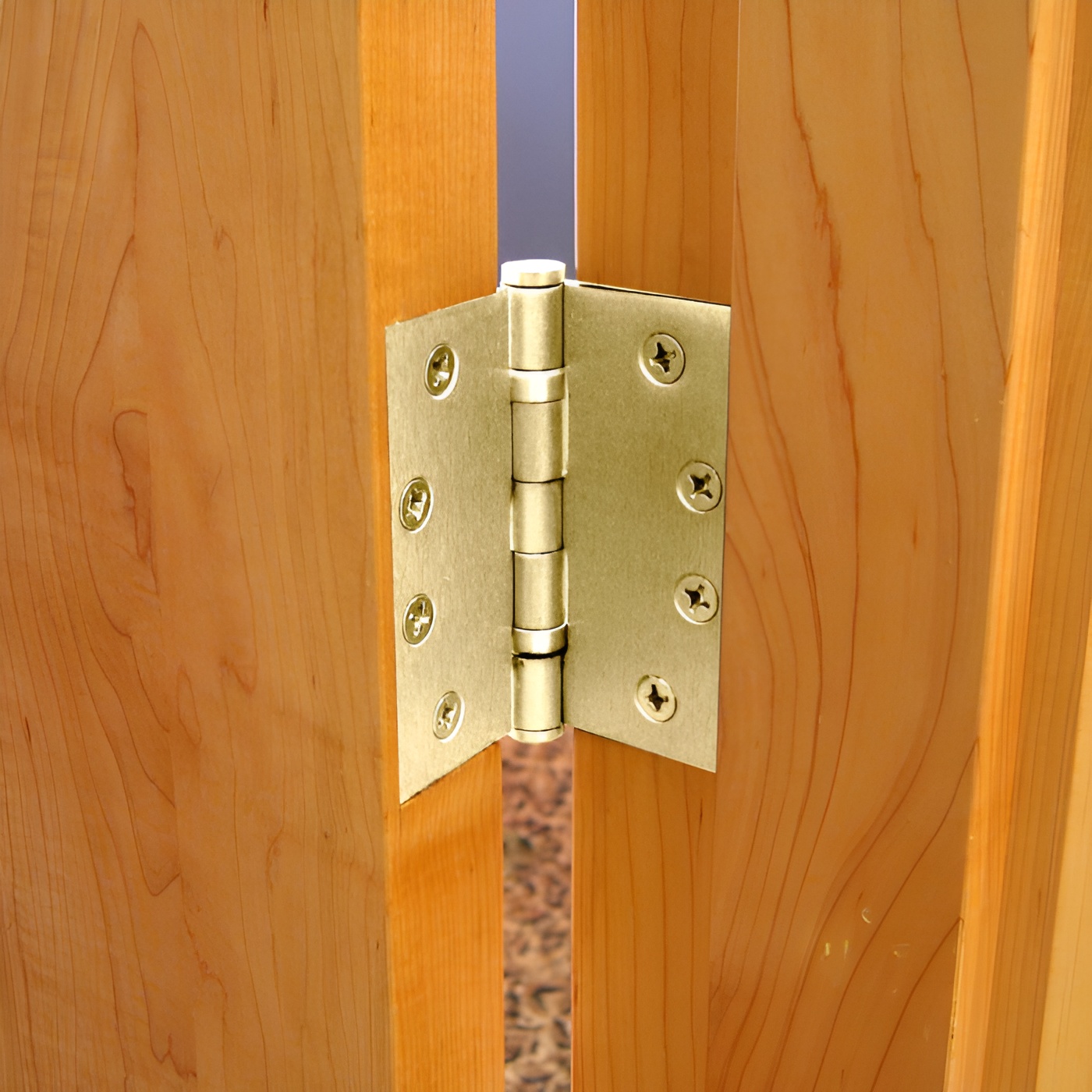

Richelieu 4823BBB 4 1/2" Full Mortise Ball Bearing Butt Hinge offers an exceptional blend of functionality and style, making it a perfect addition to any project. Crafted from durable steel, this hinge is designed for mortise installation, ensuring a seamless look in your cabinetry or doors. With a polished brass finish, it not only complements a variety of design aesthetics but also provides a touch of elegance. Equipped with ball bearings, the 4823BBB hinge significantly reduces friction and noise, allowing for smooth operation without the typical squeaking associated with traditional hinges. This feature is particularly beneficial in high-traffic areas, enhancing user experience. The hinge has a height of 4 1/2 inches and an overall width of 4 inches, with a thickness of 1/8 inch, making it suitable for doors with a maximum load of 150 lbs when using three hinges. The removable pin design allows for easy maintenance, while the included screws ensure a hassle-free installation process. This product meets ANSI Grade 2 standards, promising reliability and durability for both residential and commercial applications. Packaged in a box of three, the Richelieu 4823BBB hinge is a smart choice for professionals and discerning homeowners alike, providing both strength and style.
4 1/2" Full Mortise Ball Bearing Butt Hinge
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 3.4 mm
Color/ Finish: Polished Brass
Finish: Polished Brass
Height: 4 1/2 in
Material: Steel
Max. Load (3 Hinges): 150 lb
Mounting Type: Mortise
Packaging format: Box of 3
Pin: Removable Pin
Product #: 4823BBB
Product number: 4823BBB
Product №: 4823BBB
Recommended Usage: Ball Bearing Hinge
Screw/ Nail: Included
Standards and Certifications: ANSI Grade 2
Type of Corner: Square
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 3
Unit 1: case - 20
Unit 2: case - 20
Width - Overall Dimensions: 4 in
