Richelieu 515050130 Knife Pivot Hinge - Heavy Duty offers a sleek and functional solution for those seeking an unobtrusive hinge system. This innovative design ensures that only the pivot is visible when the door is closed, creating a clean and polished aesthetic. Crafted from durable brass, this hinge not only enhances the visual appeal of flush doors but also guarantees longevity and strength. With a load capacity of 70 lbs, this heavy-duty hinge is ideal for supporting doors with a thickness ranging from 1 1/8 to 1 3/8 inches. The overall dimensions of 4 3/8 inches in length and a knuckle size of 1 7/8 inches provide robust performance without sacrificing style. The hinge features removable pins, allowing for easy installation and maintenance. Finished in polished brass, the Richelieu Knife Pivot Hinge complements a variety of design schemes, making it a versatile choice for both residential and commercial applications. With a center line measurement of 3/8 inches and a thickness of 1/4 inches, this hinge is engineered for precision and reliability. Elevate your door hardware with the Richelieu 515050130 Knife Pivot Hinge, where functionality meets elegance.
Knife Pivot Hinge - Heavy Duty
Center Line: 3/8 in
Color/ Finish: Polished Brass
Door Thickness: 1 1/8 to 1 3/8 in
Door Type: Flush
Finish: Polished Brass
Knuckle: 1 7/8 in

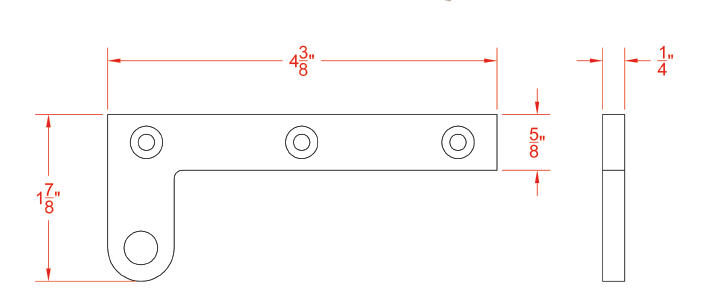

Length - Overall Dimensions: 4 3/8 in
Load Capacity: 70 lb
Material: Brass
Product #: 515050130
Product number: 515050130
Product №: 515050130
Thickness: 1/4 in
Type: Loose (removable) Pins
Unit: Pair
Unit 1: carton - 2
Unit 2: carton - 2
