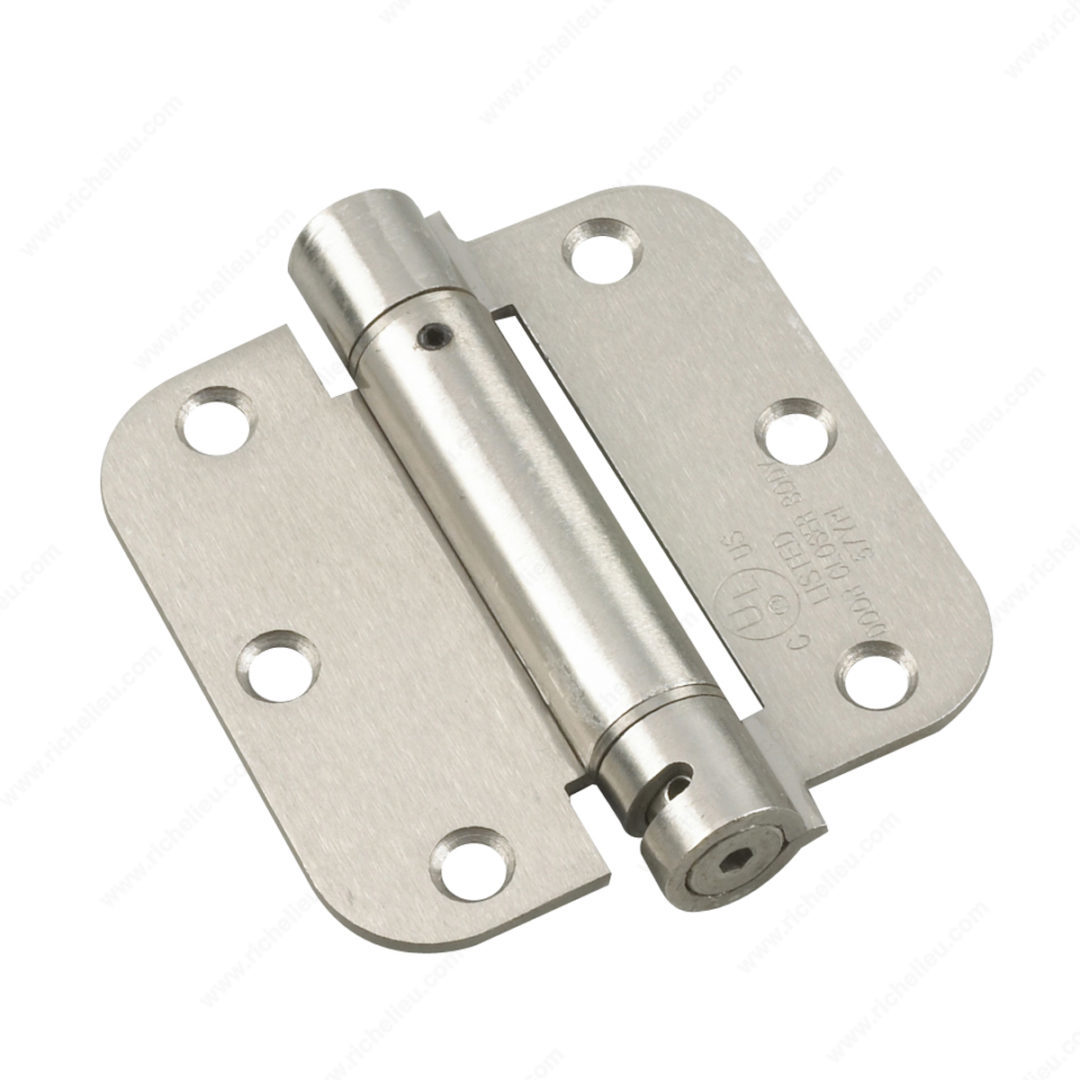

Richelieu 51821NBR 3 1/2" Full Mortise Adjustable Spring Hinge is designed to enhance both functionality and style in your projects. Crafted from durable steel with a brushed nickel finish, this hinge seamlessly integrates into various design aesthetics while providing robust support. Its adjustable spring mechanism allows for precise tension adjustments using the included pin, ensuring smooth operation for standard doors. With an overall height and width of 3 1/2 inches, this hinge is ideal for mortise mounting, making it a reliable choice for professional applications. It has a load capacity of 88 pounds when using three hinges, ensuring it can handle heavier doors with ease. The non-removable pin enhances security, while the 5/8'' radius corner and flat tip design ensure a polished finish. Included with the hinge are six wood screws (#10 x 1") and six machine screws (#10-24 x 1/2"), simplifying installation for builders and DIY enthusiasts alike. This product meets UL standards, assuring quality and safety. Whether you're upgrading existing hardware or embarking on a new project, the Richelieu 51821NBR hinge is an excellent choice for dependable performance and modern aesthetics.
3 1/2" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.7 mm
Color/ Finish: Brushed Nickel
Finish: Brushed Nickel
Grade: 1
Height: 3 1/2 in
Load Capacity: 30 lb
Load Capacity (3 Hinges): 30 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Blister
Pin: Non-Removable Pin
Product #: 51821NBR
Product number: 51821NBR
Product №: 51821NBR
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: 5/8'' Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Blister
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 3 1/2 in
