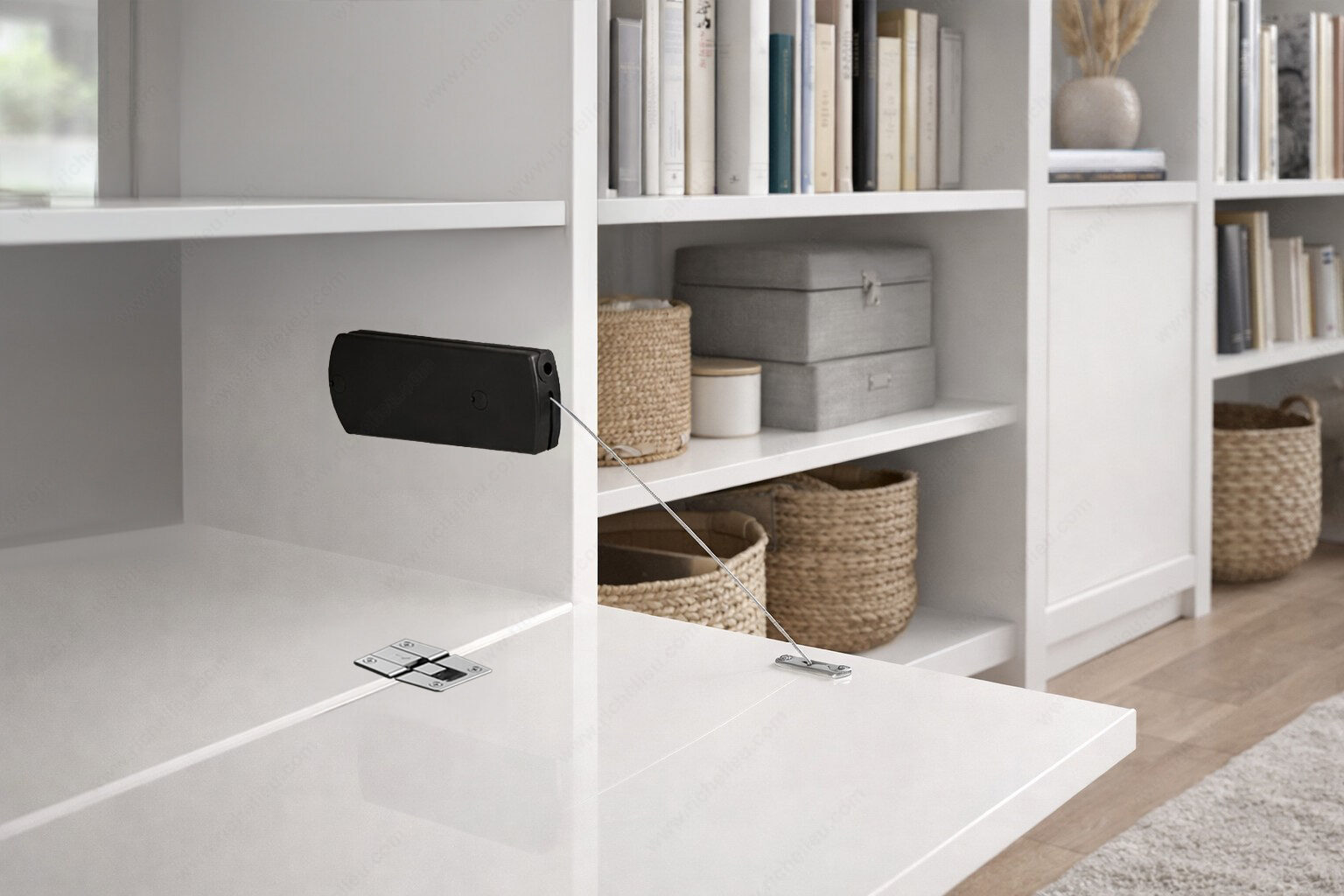

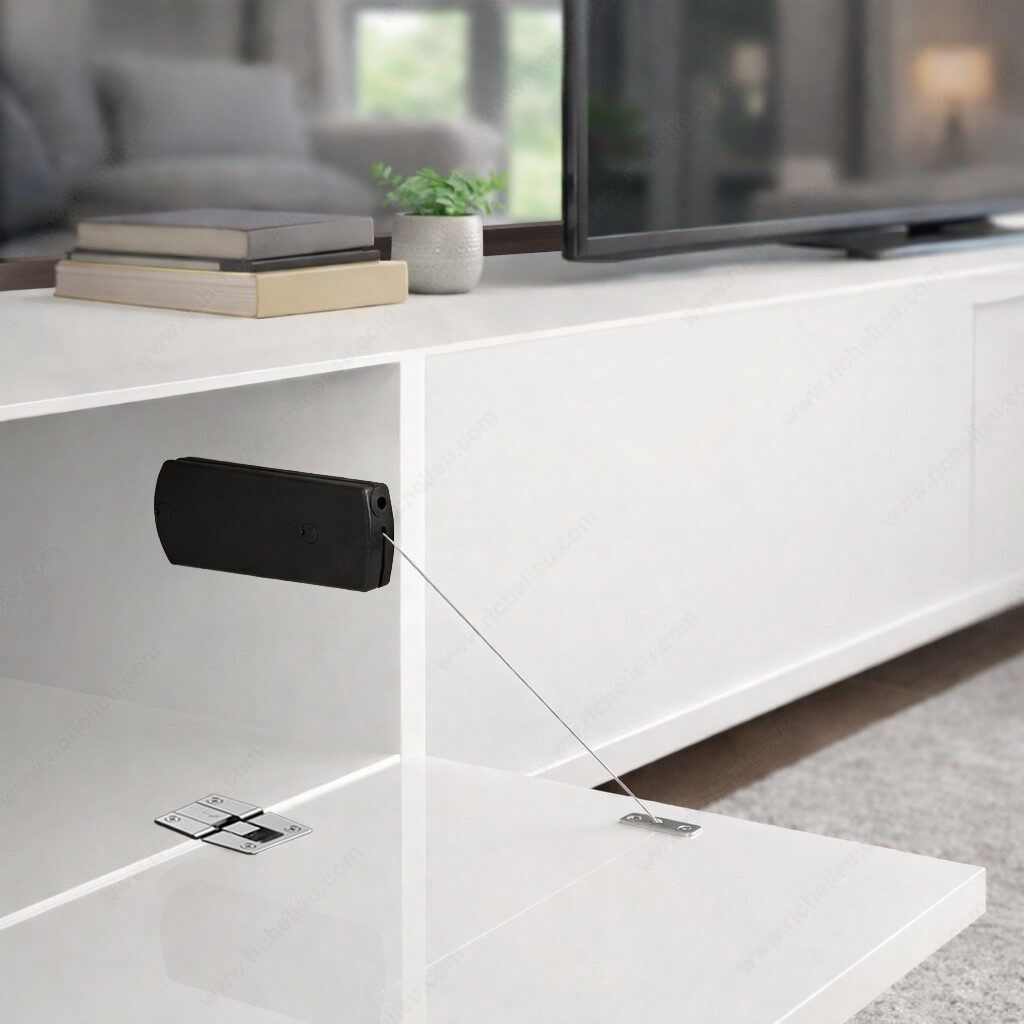

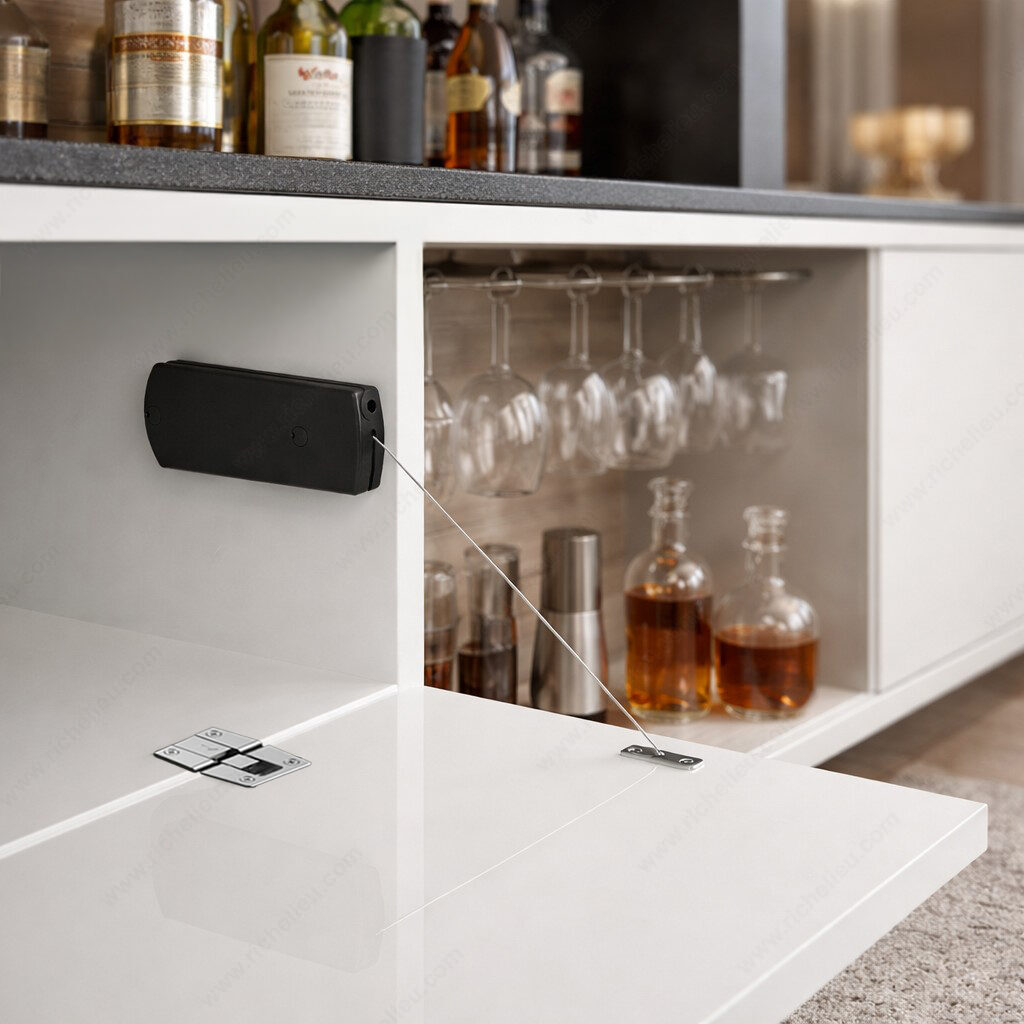

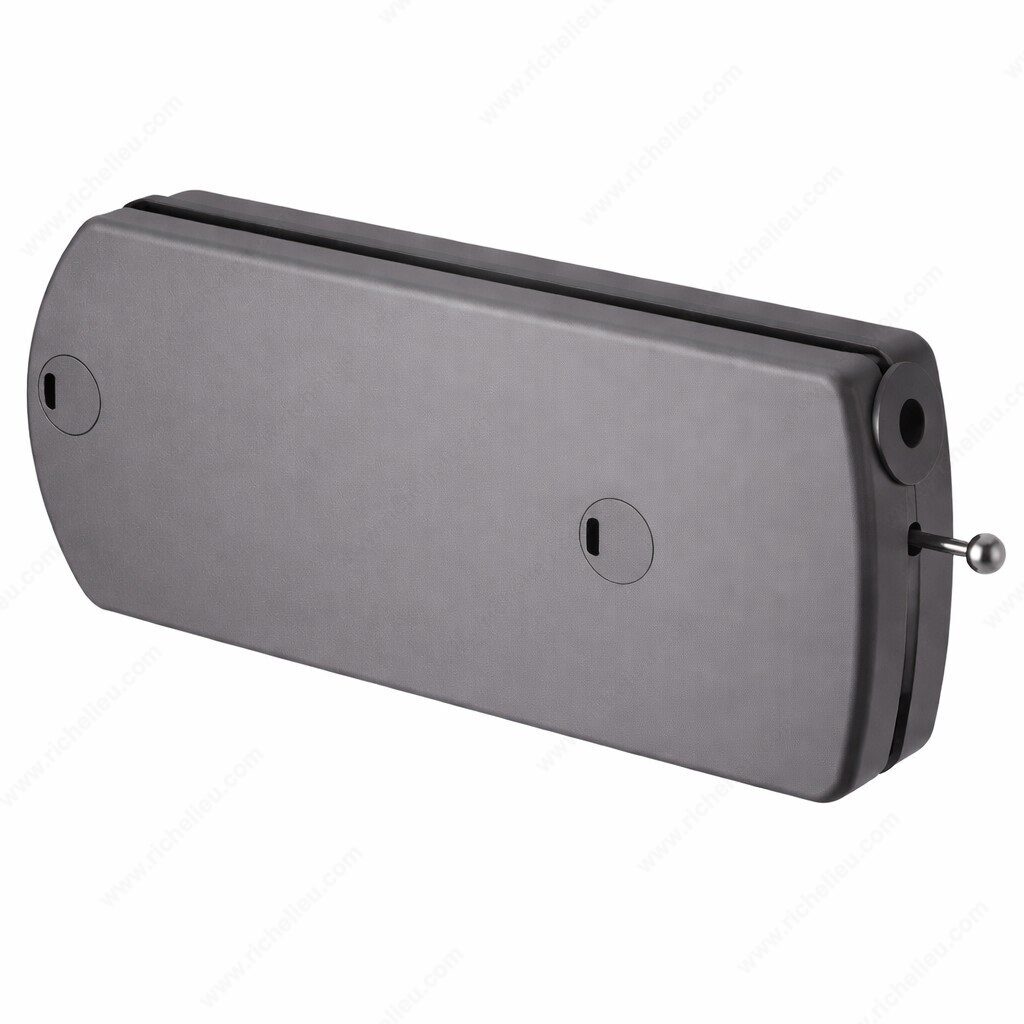

Richelieu 60MW04100 MicroWinch Drop Down Opening System is an innovative mechanism designed for drop-down, solid, and framed doors, providing exceptional versatility for various furniture applications. This symmetrical system can be mounted on either side of the cabinet, accommodating both horizontal and vertical installations, making it a perfect fit for diverse cabinetry needs. One of the standout features of the MicroWinch is its adjustable cable length and spring force, allowing for customization based on operational requirements. This flexibility ensures that users can tailor the system to their specific needs, enhancing functionality and ease of use. Additionally, the patented technology behind the MicroWinch significantly reduces the effort required to operate the door, as it effectively eliminates the weight of the sash when closing. Designed for doors with a height ranging from 8 9/32 to 18 7/8 inches and a maximum weight capacity of 19.8 pounds, the MicroWinch is compatible with enclosures that have a minimum internal depth of 3 7/32 inches. The soft-opening motion technology adds an extra layer of sophistication, ensuring a smooth and gentle operation. With its sleek anthracite finish, the Richelieu MicroWinch not only performs efficiently but also enhances the aesthetic appeal of any space.
MicroWinch Drop Down Opening System
Door Height: 8 9/32 to 18 7/8 in*
Finish: Anthracite
Max. Door Weight: 19.8 lb*
Minimum internal depth of the enclosure: 3 7/32 in*
Motion Technology: Soft-Opening
Opening Types: Drop-Down Opening
Product #: 60MW04100
Production Time: In Stock
System Type: 4
