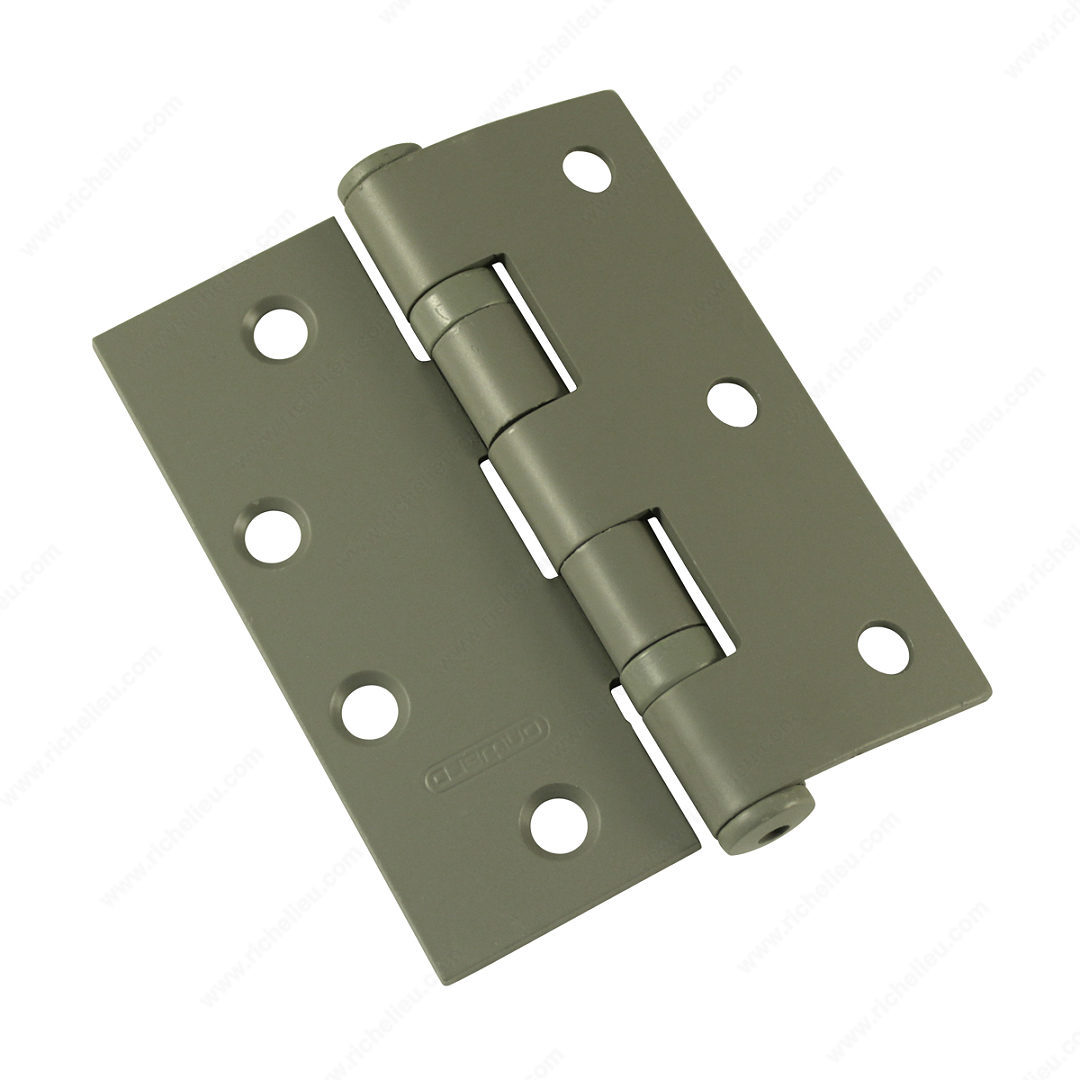

Richelieu 64823PMHBL 11.43 cm (4-1/2") Half Surface Hinge is designed to provide a robust solution for doors hung in channel iron jambs or when traditional hinge mounting points are not available. This hinge is overlaid on the door and mortised into the frame, ensuring a seamless and secure installation. With a height of 4-1/2 inches and a width of 1 21/32 inches, it accommodates a door thickness of 1-1/2 inches, making it a versatile choice for various applications. Constructed from durable steel, the hinge features an unremovable pin for added security and is finished in a primed coating, ready for painting to match your décor. The hinge allows for an impressive opening angle of +180°, providing maximum accessibility. It is screw-on fixed and includes screws for easy installation. Complying with ANSI A156.7 standards, this product ensures reliability and performance. Whether you are a building professional or a knowledgeable homeowner, the Richelieu 64823PMHBL Half Surface Hinge delivers both function and style. Its standard template makes installation straightforward, while the robust construction promises longevity, making it an essential component for your next project.
11.43 cm (4-1/2") Half-Mortise Hinge
Assembly: Assembled - Left Side Opening
Brand: Onward
Caliber/ Thickness: 1/8 in*
Door Thickness: 1-1/2"
Finish: Primed
Fixing Type: Screw-On
Height: 4 1/2 in
Hinge Opening Angle: +180°
Load Capacity: 176 lb
Material: Steel
Mounting Type: Half-Mortise
Pin: Unremovable
Product #: 64823PMHBL
Screw/ Nail: Included
Standards and Certifications: ANSI A156.7
Type of Tip: Flat Tip
Weight per 3 Hinges: 176 lb*
Width: 1 21/32 in*
