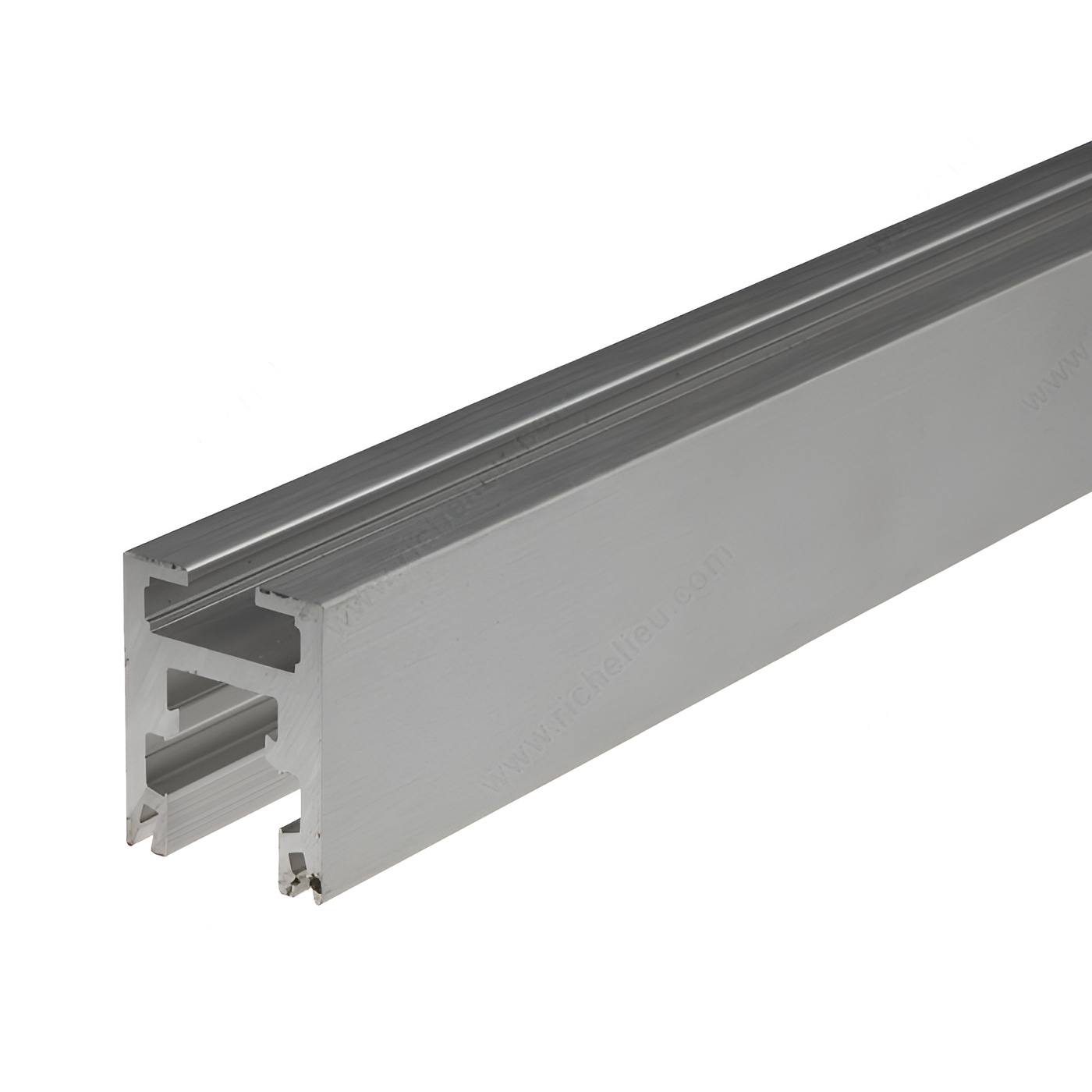

Richelieu 65914232H Multipurpose Suspension Profile offers a versatile solution for enhancing the functionality of movable wall systems. Designed specifically for the Hawa Variotec, Variofold, and Centerfold programs, this profile is ideal for both residential and commercial applications. The profile can be cut to size and is meant to be recessed mounted at the top of the door, providing robust support for upper trolleys, wheel sliding doors, and pivot bearings. Constructed from durable aluminum with a plain anodized finish, the profile ensures longevity and resistance to wear. It accommodates a door thickness ranging from 1 7/8 to 3 5/32 inches, making it suitable for various wood door types. With an overall height of 1 13/16 inches and a length of 51 1/8 inches, it seamlessly integrates into your design. The profile is also designed to accept brush seals, effectively closing the gap between the door and the track or floor, which enhances energy efficiency and sound insulation. Utilizing this multipurpose suspension profile not only streamlines door movement but also enhances aesthetic appeal, making it an essential component for any modern architectural project.
Multipurpose Suspension Profile
Application: Standard Access Door
Brand: Hawa
Compatible with: Hawa Variotec, Hawa Variofold and Centerfold
Detailed Door Movement: Single sliding, End folding, Center folding, Multi-Folding
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Thickness: 1 7/8 to 3 5/32 in*
Finish: Plain Anodized
Length: 1 300 mm
Length - Overall Dimensions: 51 1/8 in*
Manufacturing Material: Aluminum
Material: Aluminum

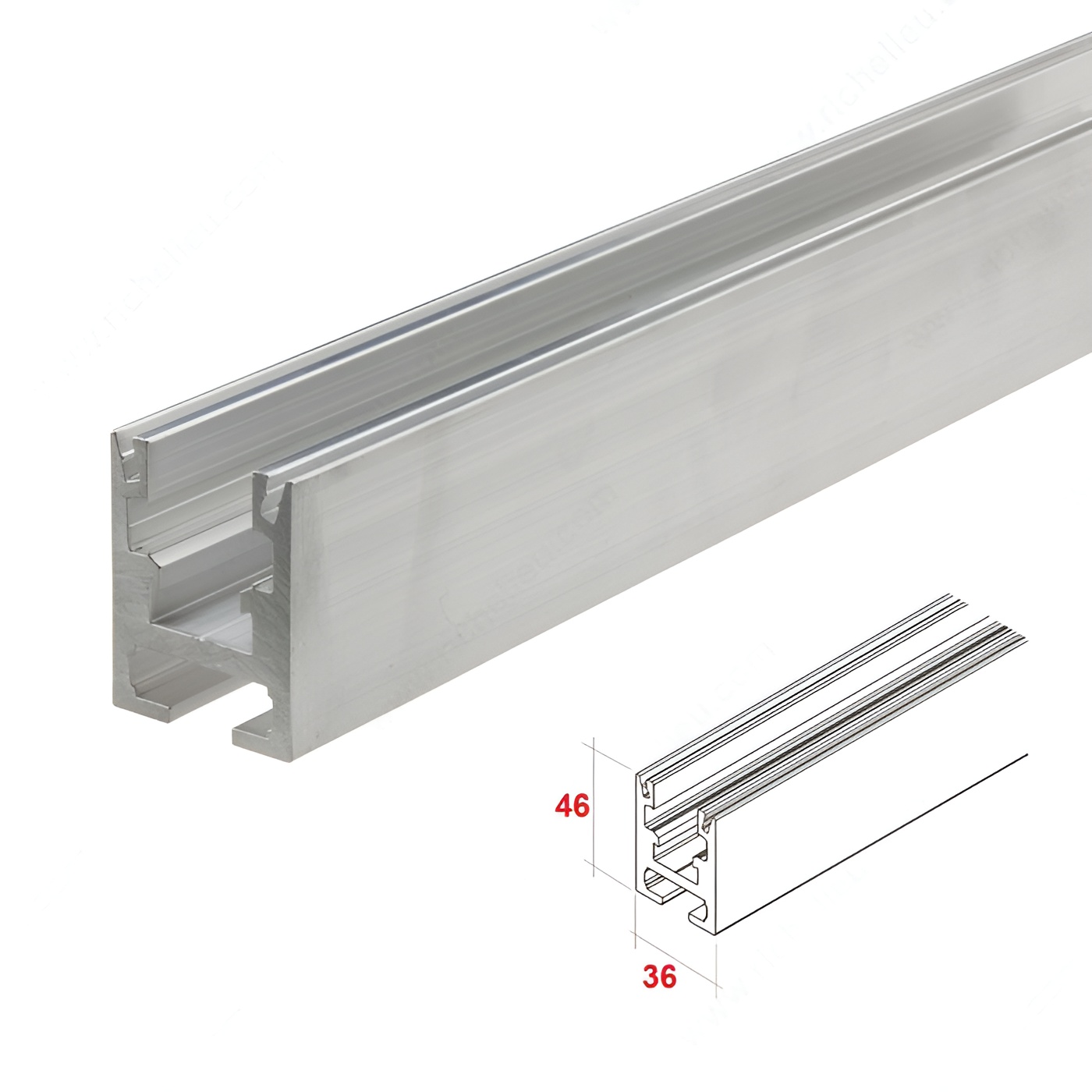

Overall Height: 1 13/16 in*
Overall Length: 51 1/8 in*
Packaging format: Length
Product #: 65914232H
Product type: Profile, Suspension
Product №: 65914232H
Roller Position: Upper
Track Material: Anodized Aluminum
Width: 1 13/32 in*
