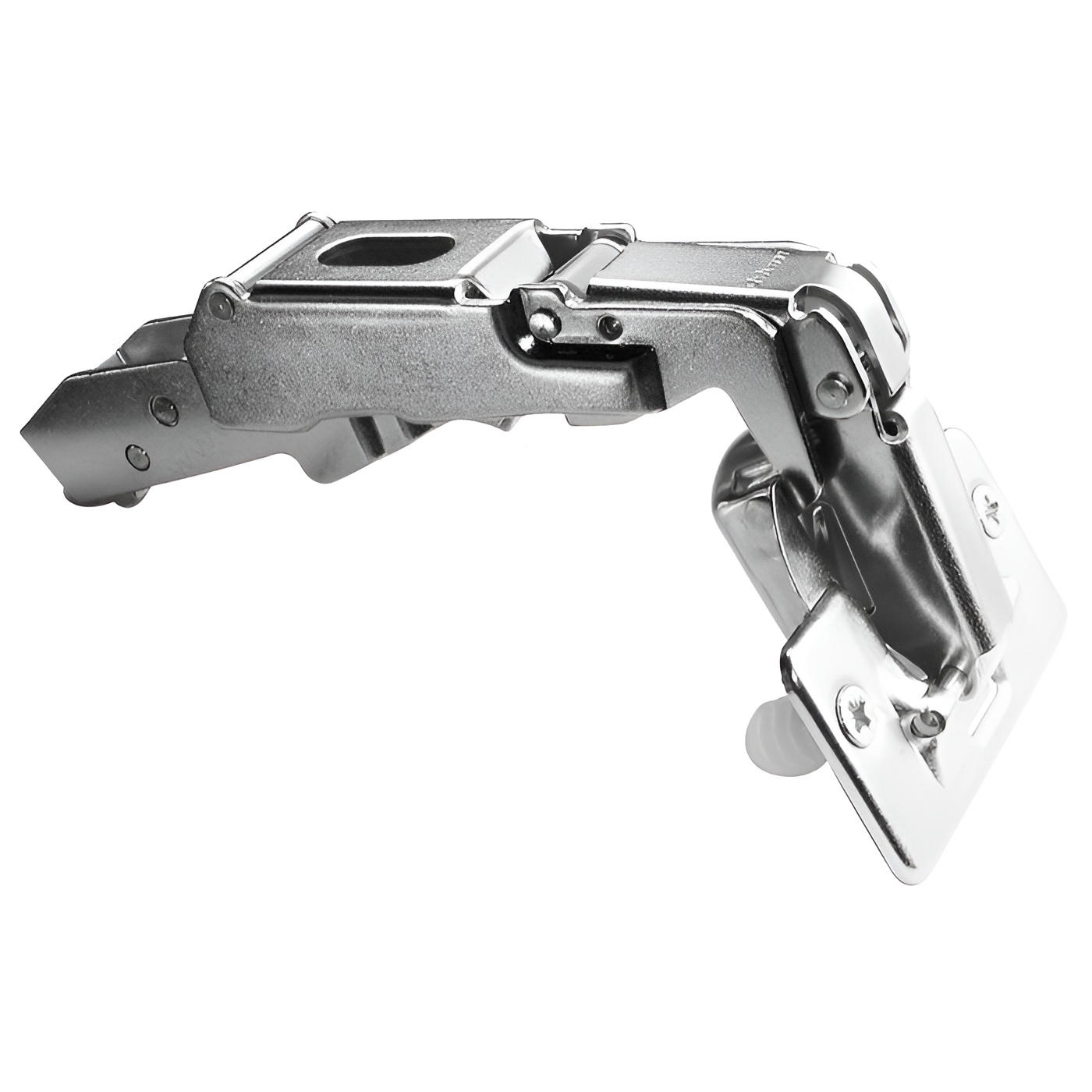

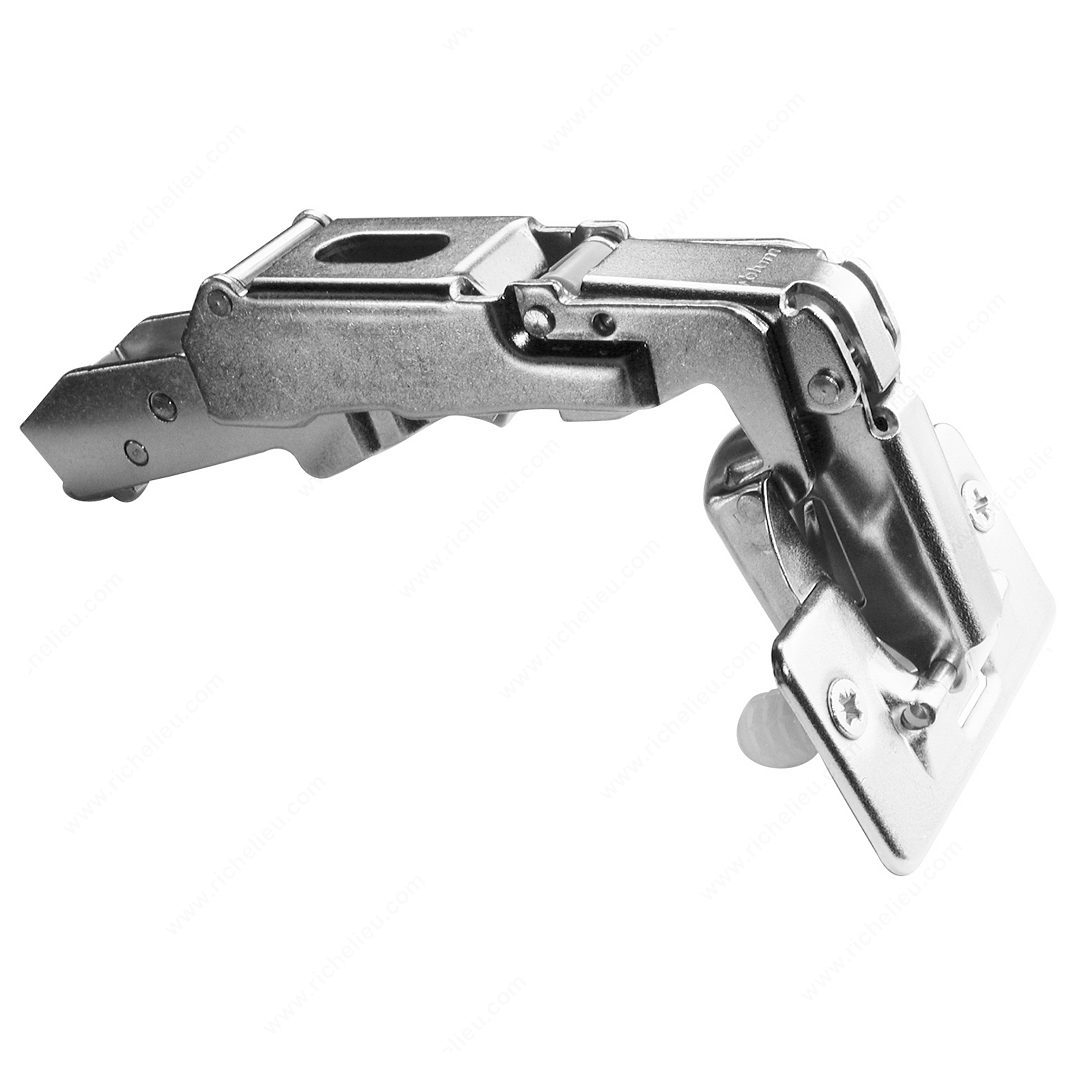

Richelieu 71T658180 CLIP top Hinge 170 offers a perfect blend of style and functionality for your cabinet door needs. Designed as concealed hinges, they remain hidden when the cabinet doors are closed, providing a sleek and clean aesthetic. These versatile Euro hinges are suitable for both frameless and face frame cabinets, making them an ideal choice for various installations. Featuring a hinge opening angle of +170°, the CLIP top hinges facilitate easy access and enhanced usability. The hinges accommodate a minimum cabinet and door thickness of 5/8 inch, ensuring compatibility with standard cabinetry. They utilize dowel fixing type for secure installation and can be easily upgraded with soft-closing BLUMOTION technology, adding an extra layer of convenience and sophistication to your cabinetry. Constructed from durable steel and Zamac, these hinges promise longevity and reliable performance. The milling depth of 13/32 inch and diameter of 1 3/8 inch make installation straightforward, while the spring closing mechanism ensures a smooth and secure closure every time. Packaged individually, the Richelieu 71T658180 CLIP top Hinge 170 is a flexible, reliable option for any bi-fold door application, ideal for builders and homeowners seeking quality and ease of use in their cabinetry solutions.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

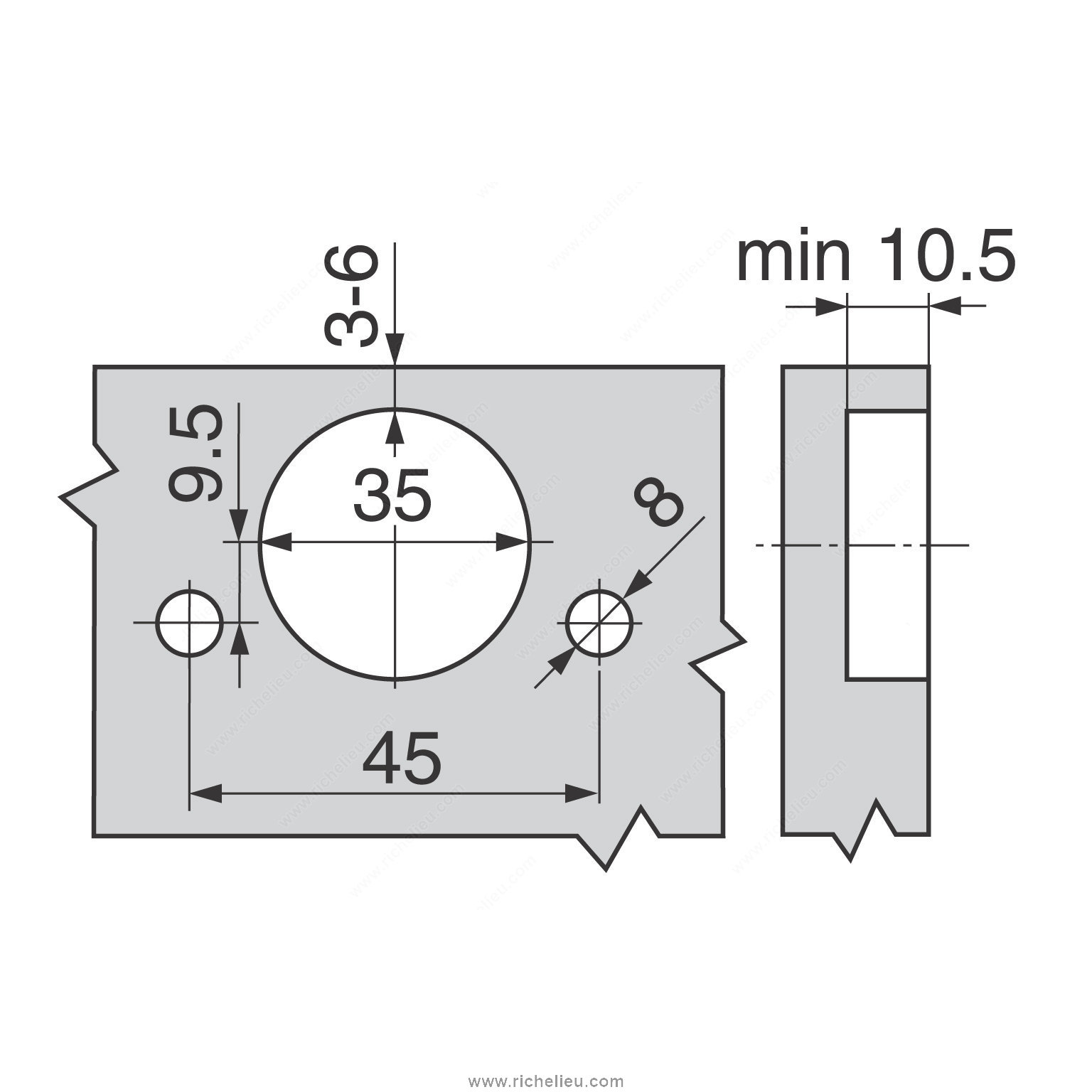

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T658180
Product number: 71T658180
Unit 1: case - 125
Use Type: Bi-Fold Door
