Richelieu 71T664180 CLIP top Hinge 170 is the ideal solution for modern cabinetry, featuring a concealed design that enhances the aesthetics of any kitchen or storage space. These Euro hinges are crafted for both frameless and face frame cabinets, ensuring versatility in various applications. With a hinge opening angle of +170°, they provide exceptional access, making it easier to reach items stored behind cabinet doors. Designed to accommodate cabinet and door thicknesses as low as 5/8 inches, the CLIP top hinge offers a seamless installation process thanks to its wide variety of available mounting plates. The Inserta fixing type simplifies setup, while the spring-closing mechanism ensures that doors close gently and securely. Upgrade your cabinetry with the optional soft-closing BLUMOTION feature, which provides an added layer of convenience and sophistication. Constructed from durable steel and Zamac, this hinge is built to withstand daily use, ensuring long-lasting performance. Each unit is packaged individually and can be conveniently shipped via UPS, making it a practical choice for both building professionals and knowledgeable homeowners. Enhance your cabinet design with the Richelieu 71T664180 CLIP top Hinge 170-where functionality meets elegance.

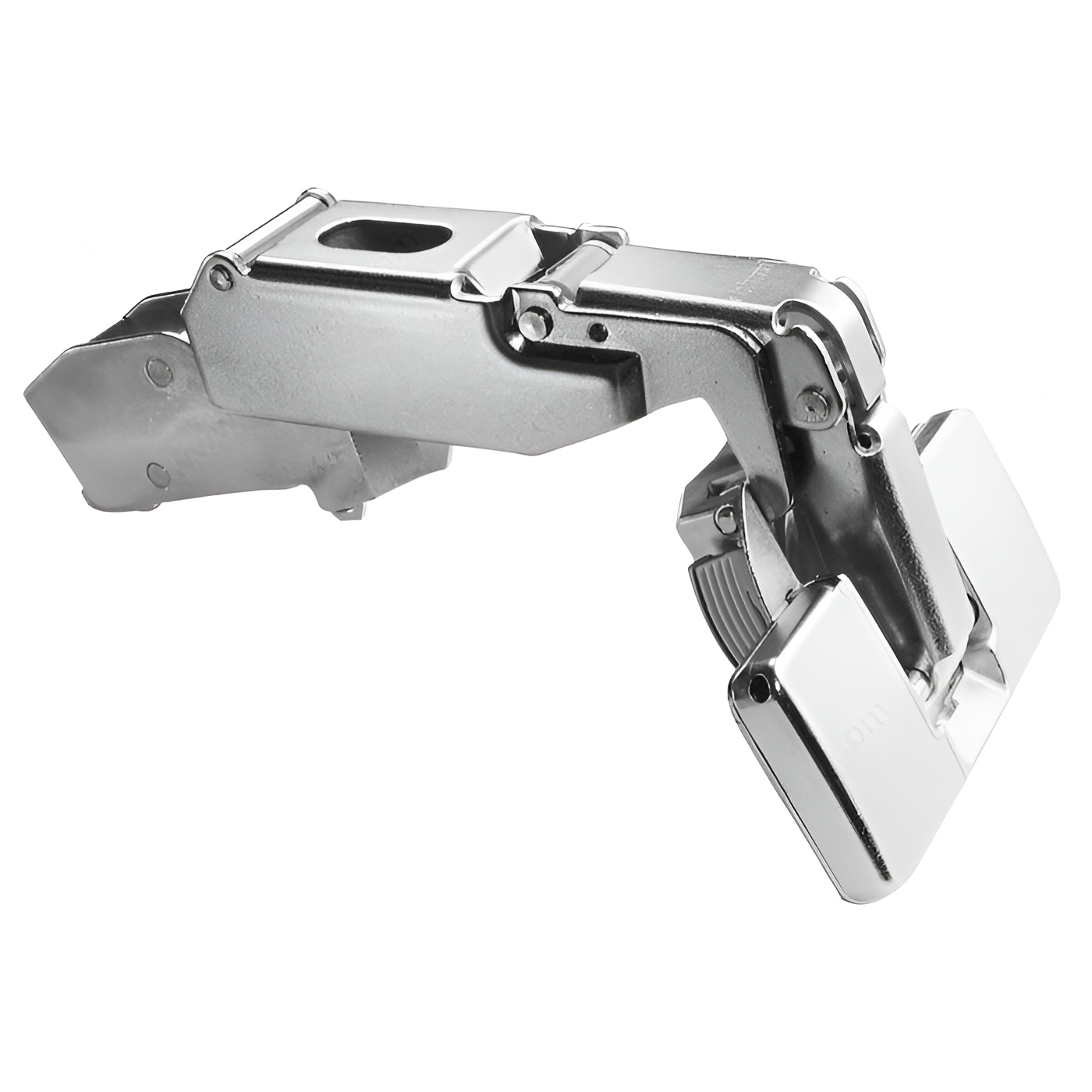

CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Spring Closing

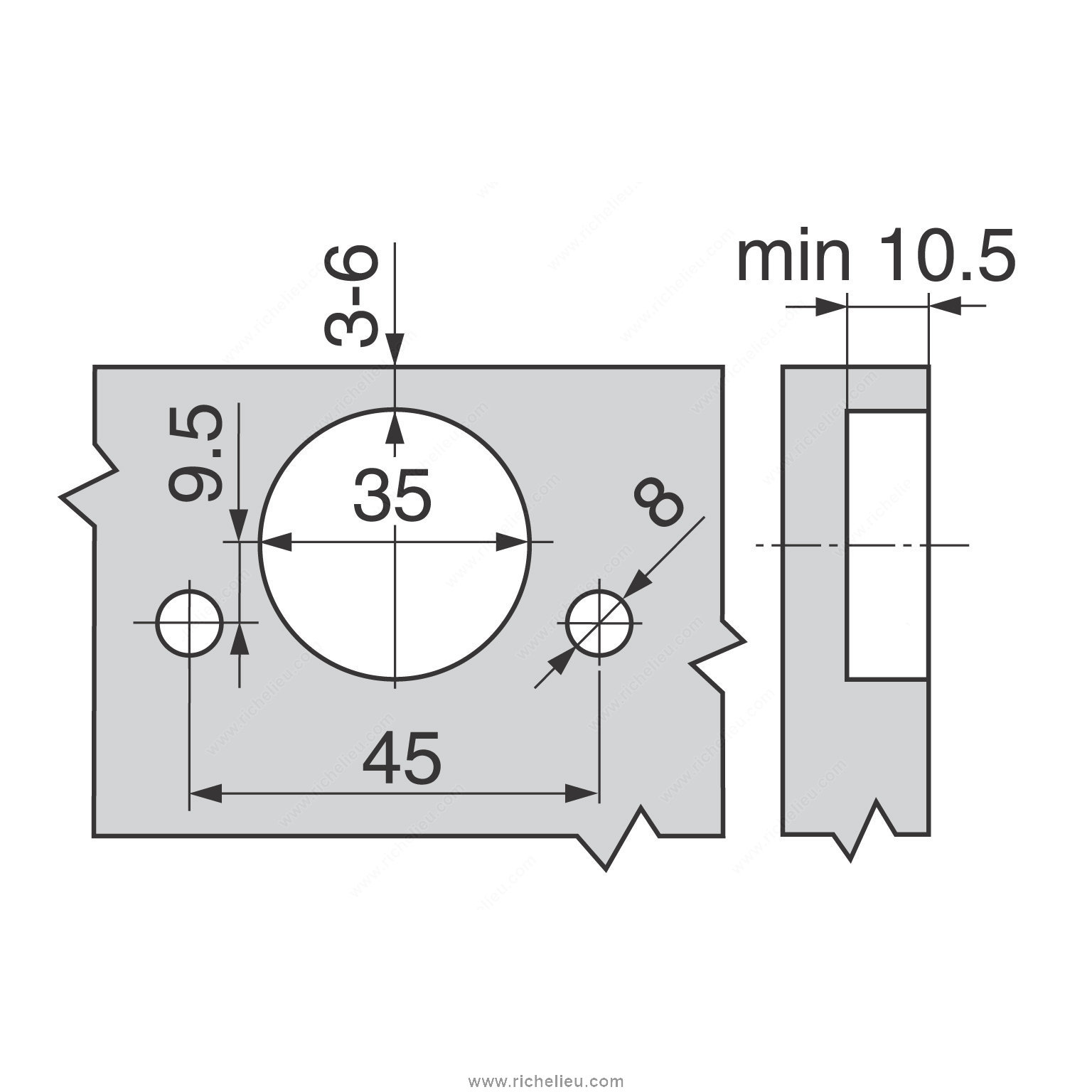

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 71T664180
Product number: 71T664180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
