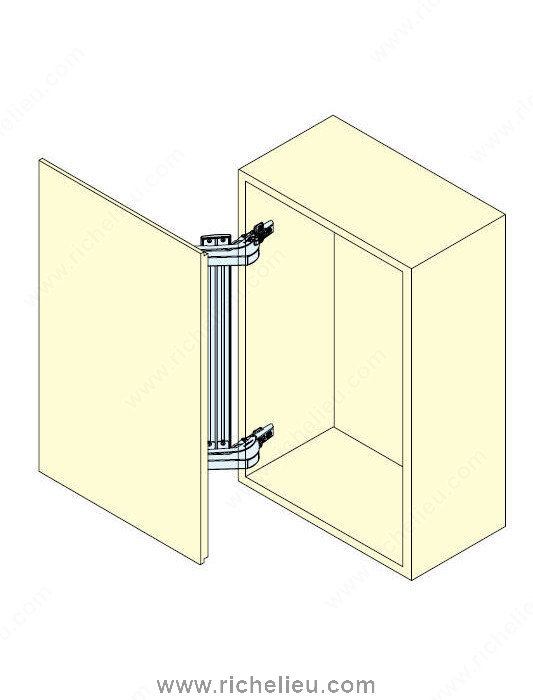

Richelieu 756600 MonoFlat LIN-X600 offers an innovative lateral swing mechanism, making it an exceptional choice for tight spaces. This basic standard kit allows doors to swing out laterally in a small radius, perfect for wall and base cabinets as well as corner applications. Its design enables easy access, allowing the door to be opened from various points, which adds to its versatility. This product is suitable for wood doors, with a height range of 23 5/8 to 35 3/8 inches and a width of 21 5/8 to 25 5/8 inches, accommodating door thicknesses between 19/32 and 15/16 inches. The finish in nickel not only enhances durability but also provides a sleek appearance that complements modern cabinetry. With a maximum load capacity of 19.8 lbs, this system is robust enough for everyday use. The MonoFlat LIN-X600 features a soft-close one-way operation for a gentle and quiet closing action, enhancing the overall user experience. Whether outfitting a residential kitchen or a commercial space, this product serves as a reliable solution for enhancing accessibility without sacrificing style. Richelieu remains a trusted name in functional hardware, ensuring quality and performance with every installation.
MonoFlat LIN-X600
Application: Furniture, Cabinet, Storage
Brand: Sugatsune/Lamp
Door Height: 600 to 900 mm
Door Material: Wood
Door Position: Full Overlay
Door Thickness: 15 to 24 mm
Door Width: 550 to 650 mm
Finish: Nickel
Load Capacity: Max. 19.8 lb*
Number of Doors: 1
Overlay: 19 mm
Product #: 756600
Product number: 756600
Product №: 756600
Soft- Close Type: One-Way Operation
Unit: Set
Unit 1: box - 4
Unit 2: box - 4
Weight Capacity per Door: Max. 9 kg
