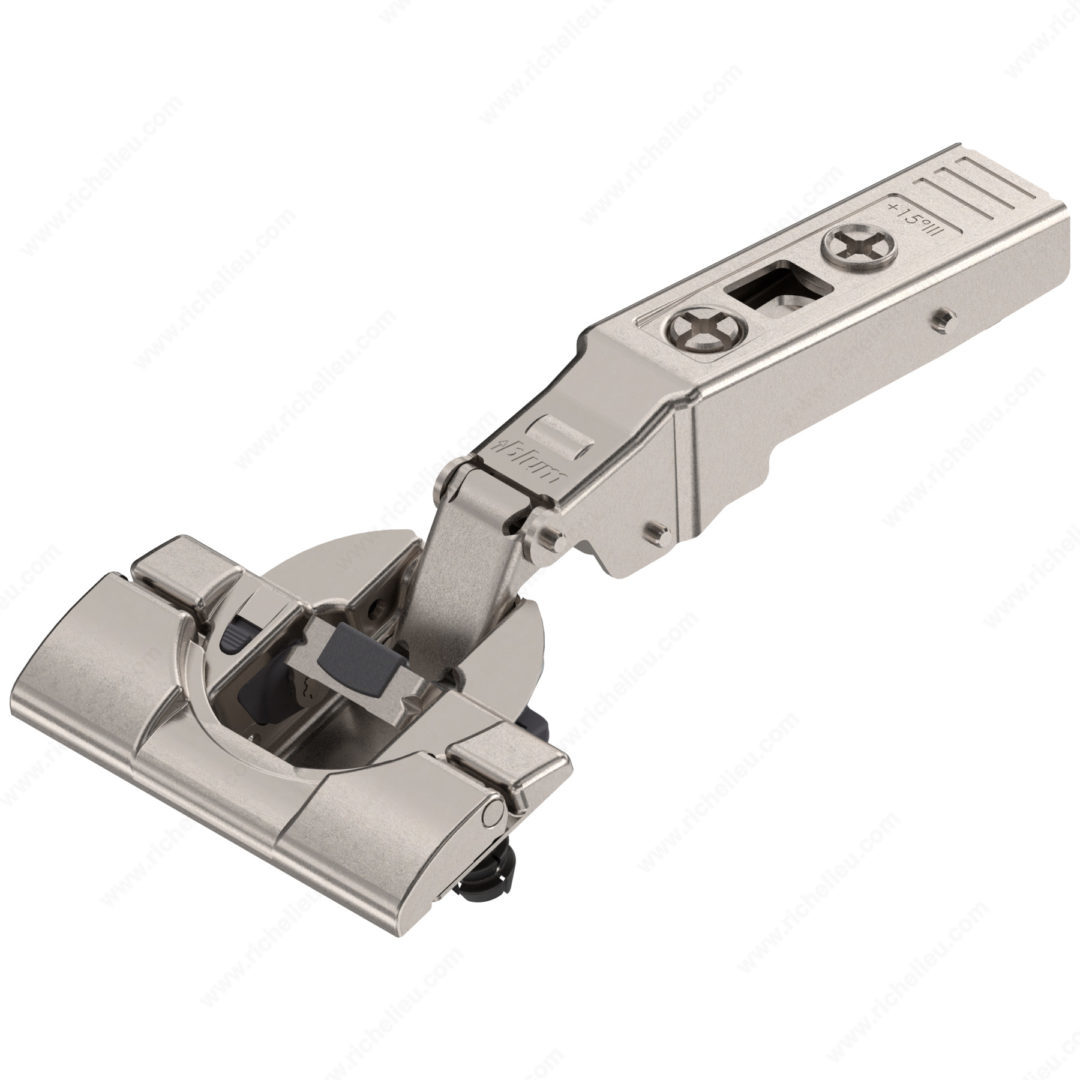

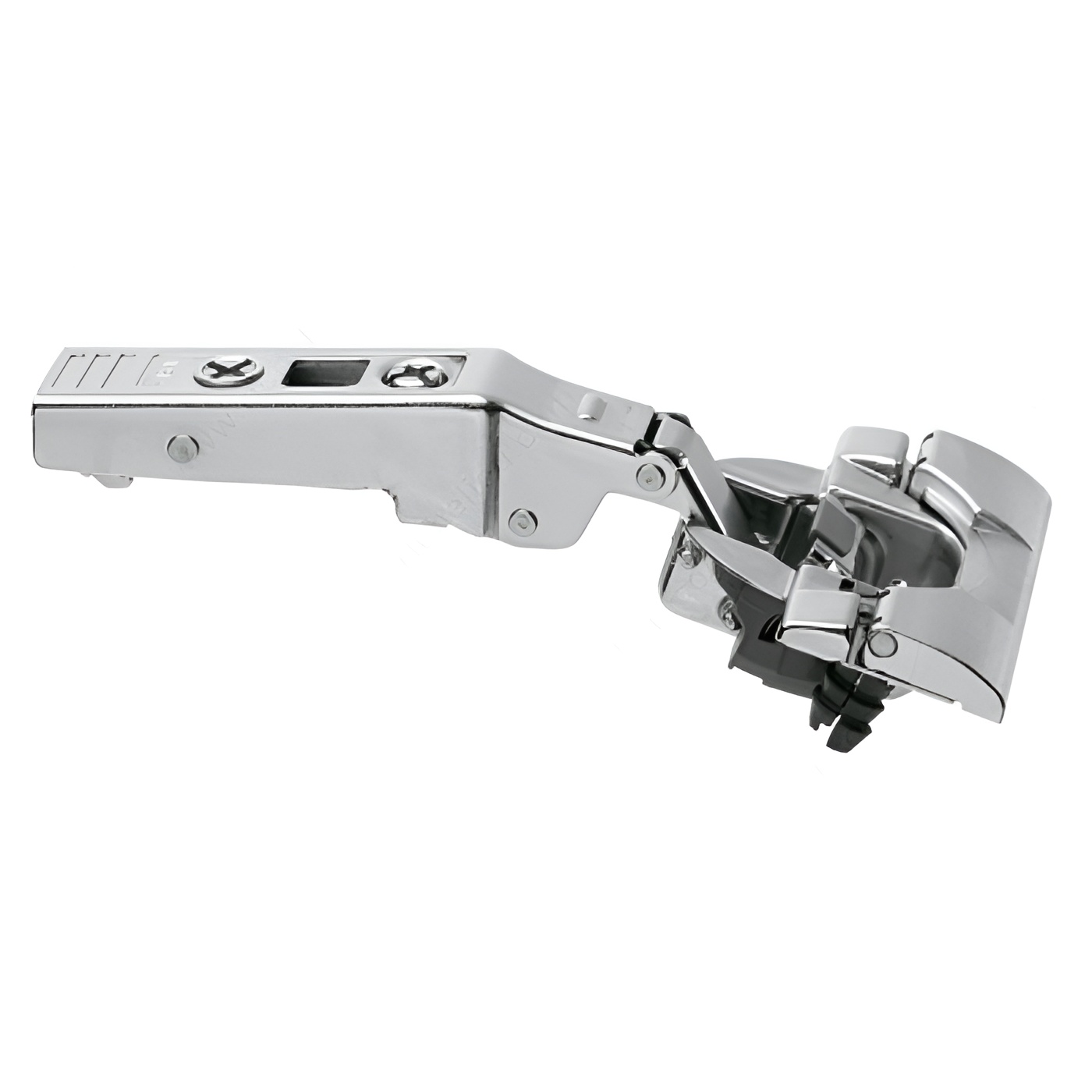

Richelieu 79B9494180 Angled application +15 III CLIP top BLUMOTION Hinge offers a masterful blend of functionality and elegance for your cabinetry needs. This hinge incorporates integrated BLUMOTION technology, ensuring that your furniture doors close silently and effortlessly. Engineered to withstand an impressive 200,000 cycles, it promises reliable performance throughout the lifetime of the furniture. Designed for frameless cabinets, this hinge supports a cabinet thickness of 5/8 to 3/4 inches and accommodates various door positions, including Angled Max. Overlay, Angled Overlay, and Inset Angle. With a hinge opening angle of +95°, it provides ample access and convenience. The soft-closing mechanism enhances user experience by adding a touch of sophistication to everyday tasks. Crafted in a sleek nickel finish, the hinge not only performs remarkably but also complements modern design aesthetics. The milling depth of 1/2 inch and diameter of 1 3/8 inches allow for easy installation, while the Inserta fixing type ensures a solid fit. Ideal for angle cabinets, the Richelieu 79B9494180 hinge is a technical masterpiece that elevates both functionality and style in any space.
Angled application +15 III CLIP top BLUMOTION Hinge
Brand: Blum
Cabinet Angle: +20°, +15°, +10°
Cabinet Thickness: 16 to 19 mm
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Angled Max. Overlay, Angled Overlay, Angled Half Overlay, Inset Angle
Door Thickness: Min. 19 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +95°
Hinge Type: CLIP top BLUMOTION
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Product #: 79B9494180
Product number: 79B9494180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Angle Cabinet
