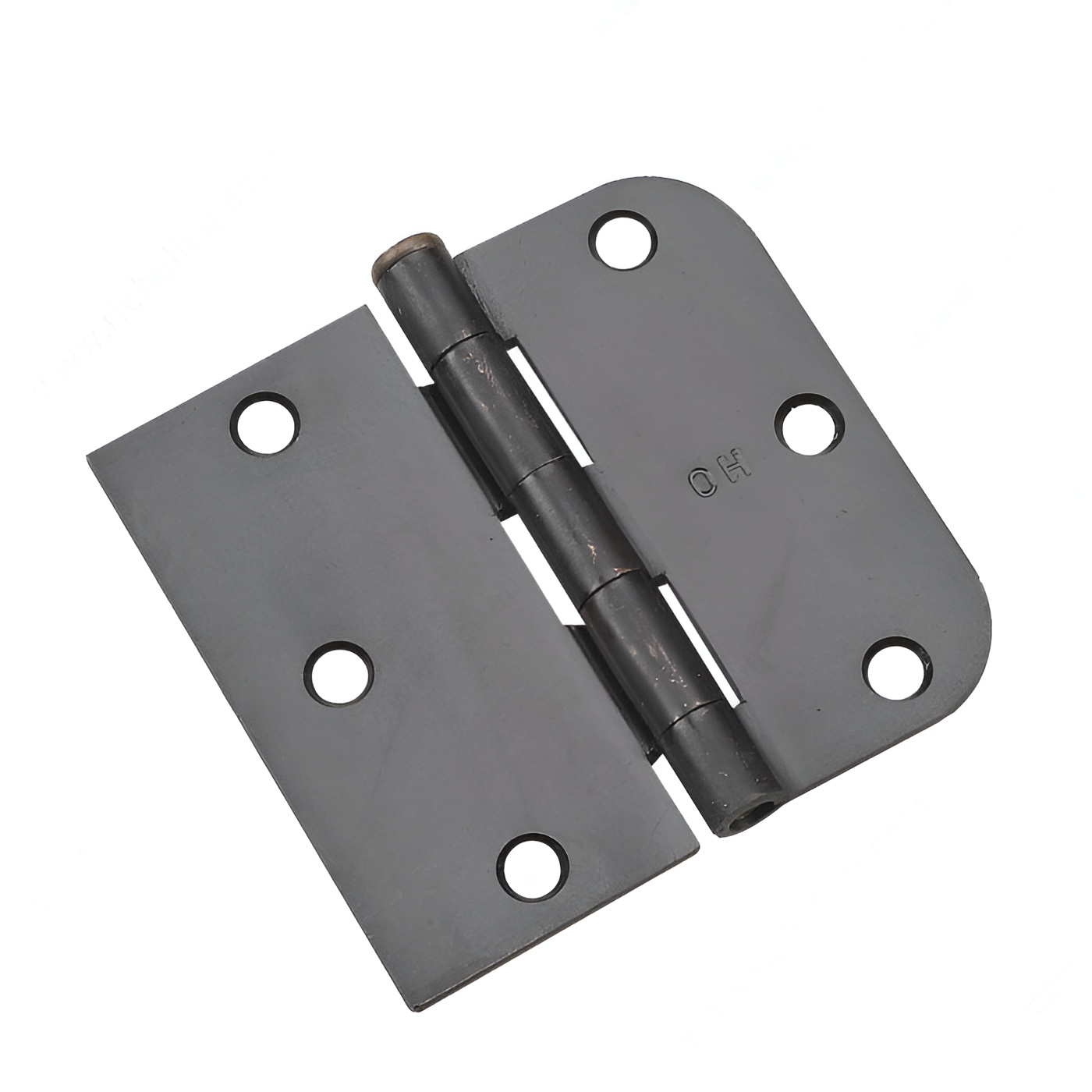

Richelieu 81821ORBB 3 1/2" Full Mortise Combination Butt Hinge - 5/8 Radius offers a perfect blend of style and functionality for your architectural projects. Crafted from durable steel, this hinge features an elegant oil-rubbed bronze finish that complements a wide range of design aesthetics. Measuring 3 1/2 inches in height and 3 11/16 inches in width, it is designed for mortise mounting, ensuring a seamless and secure fit for doors. The removable pin allows for easy installation and quick removal of the door, making maintenance a breeze. With a maximum load capacity of 45 pounds when using three hinges, this product is suitable for various door types while ensuring reliable performance. It features a 1/16-inch gap and a flat tip, providing a clean, professional appearance. Included with the hinge are screws for straightforward installation, allowing you to complete your project efficiently. The square, 5/8" radius corner design adds a touch of sophistication to any setting, making it an ideal choice for both building professionals and discerning homeowners. Elevate your door hardware with the Richelieu 81821ORBB hinge, where quality meets contemporary style.

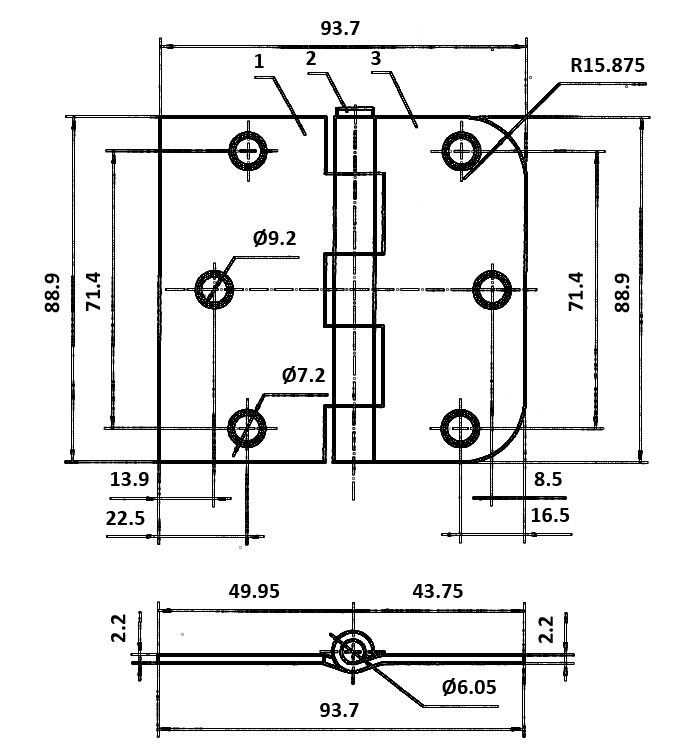

3 1/2" Full Mortise Combination Butt Hinge - 5/8 Radius
Assembly: Assembled
Caliber/ Thickness: 2.2 mm
Color/ Finish: Oil-Rubbed Bronze
Finish: Oil-Rubbed Bronze
Gap: 1/16"
Height: 3 1/2 in
Load Capacity: 45 lb
Material: Steel
Max. Load (3 Hinges): 45 lb
Max. load (3 hinges): 45 lb
Mounting Type: Mortise
Packaging format: Box of 2
Pin: Included
Product #: 81821ORBB
Product number: 81821ORBB
Product №: 81821ORBB
Screw/ Nail: Included
Type of Corner: Square, 5/8" Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 2
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 50
Width - Overall Dimensions: 3 11/16 in
