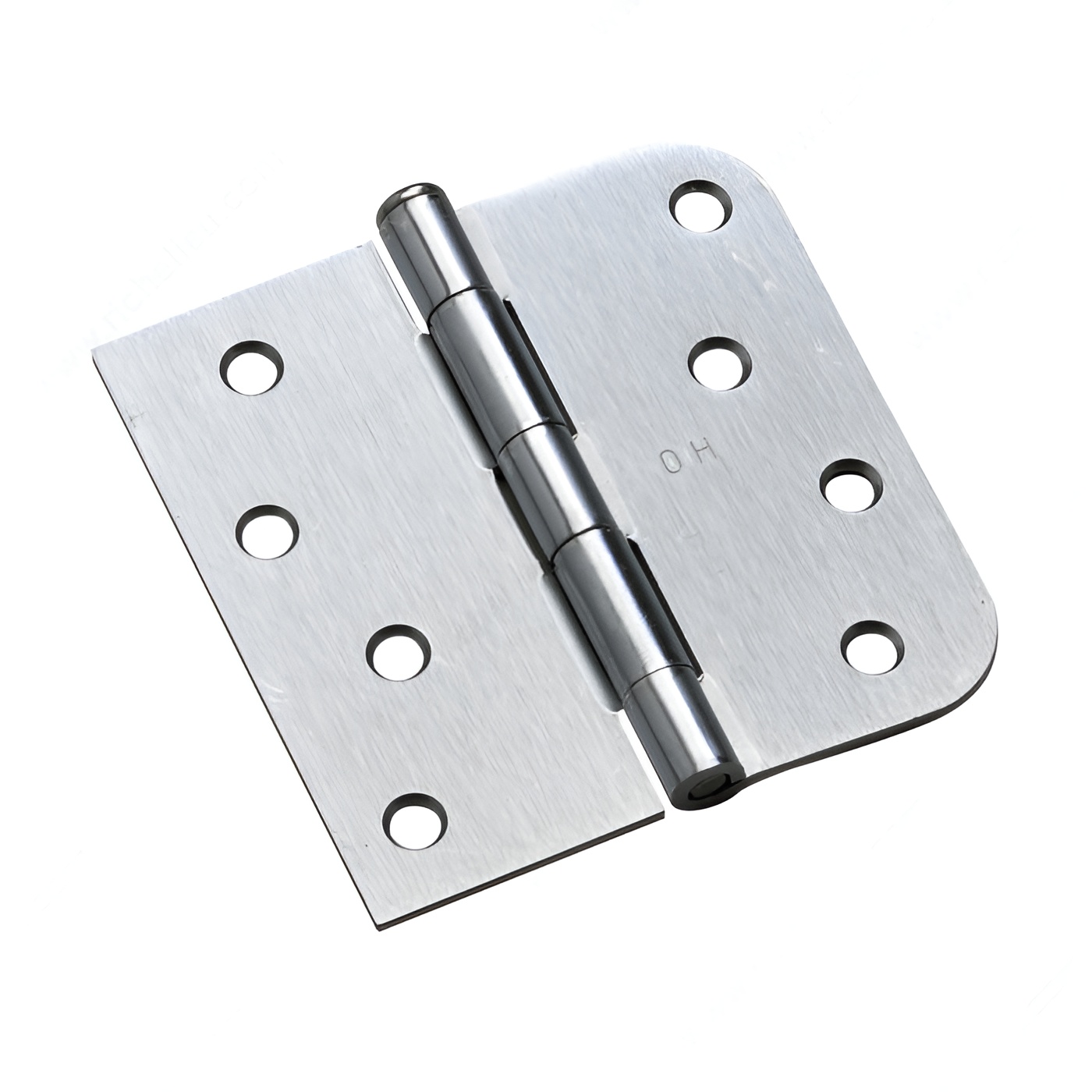

Richelieu 81822BCB 4" Full Mortise Combination Butt Hinge - 5/8" Radius is the perfect addition for any architectural project requiring quality and style. Crafted from durable steel and finished in sleek brushed chrome, this hinge not only enhances aesthetics but ensures long-lasting performance. With a height of 4 inches and a width of 4 inches, it accommodates standard doors with a maximum load capacity of 55 pounds when three hinges are used. Designed for light-use applications, the hinge features a removable pin that simplifies both installation and removal, making it an ideal choice for professionals and homeowners alike. Its reversible design allows for versatile installation options, accommodating various door configurations. The hinge is engineered for mortise mounting, featuring a square corner with a 5/8" radius, ensuring a seamless fit in your project. Included with the hinge are necessary screws, facilitating a straightforward setup. With an overall gap of 1/8", it provides a precise alignment that enhances the door's closing capabilities. Whether you're looking to update existing fixtures or complete new installations, the Richelieu 81822BCB hinge combines functionality with modern design, making it an essential component for any door application.
4" Full Mortise Combination Butt Hinge - 5/8" Radius
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.5 mm
Color/ Finish: Brushed Chrome
Features: Reversible
Finish: Brushed Chrome
Gap: 1/8"
Height: 4 in
Load Capacity: 55 lb
Material: Steel
Max. Load (3 Hinges): 55 lb
Max. load (3 hinges): 60 lb
Mounting Type: Mortise
Pin: Included
Product #: 81822BCB
Product number: 81822BCB
Product №: 81822BCB
Recommended Usage: Light Use
Screw/ Nail: Included
Type of Corner: Square, 5/8" Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 3
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 4 in
