Richelieu 8400ZP10 8400 Series Full Extension Drawer Slide - 100 lb Capacity
Images may not represent actual product and finish

Richelieu 8400ZP10 8400 Series Full Extension Drawer Slide - 100 lb Capacity

Your Price: $20.25
Richelieu 8400 Series full-extension drawer slide supports 100 lbs, featuring "Hold-In" technology and easy lever release for removal.
Part Number : RIC_8400ZP10
Availability: 15176151 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Richelieu 8400ZP10 8400 Series Full Extension Drawer Slide - 100 lb Capacity

Richelieu 8400ZP10 8400 Series Full Extension Box or File Drawer Slide offers a robust solution for your drawer needs, with an impressive load capacity of 100 lb (45 kg). Designed for both face frame and frameless applications, this slide features innovative "Hold-In" technology, ensuring that your drawers stay securely closed and preventing accidental openings. The full-extension design allows for complete drawer access, making it easier to reach items stored at the back. Its ergonomic push-in lever release mechanism simplifies drawer removal when necessary, enhancing user convenience. Additionally, the reversed flex tabs are engineered for improved performance, allowing for side clearance tolerance adjustments. Constructed from high-quality steel and finished in Anochrome, the 8400 model boasts durability and strength. Its unhanded design and traditional 32 mm (1.26") hole pattern meet industry standards, making installation straightforward. It supports a recommended maximum drawer width of 24" (61 cm) and features a side-mounted installation. Certified by BHMA, ANSI, KCMA, and BIFMA, the Richelieu 8400ZP10 assures reliability and quality for any cabinetry project. Elevate your drawer systems with this dependable slide, designed to withstand the demands of everyday use while maintaining a sleek, professional appearance.

8400 Series Full Extension Box or File Drawer Slide - 100 lb (45 kg) Load Capacity

8400 Series Slide features "Hold-In" technology to keep your drawers from opening accidently while supporting up to 100 lb (45 kg).

Full-extension drawer slide features an ergonomic design with push-in lever release for easy drawer removal. The reversed flex tabs make for improved slide performance with side clearance tolerance adjustments. The 8400 model is an unhanded design with a traditional 32 mm (1.26") hole pattern that respects industry standards. Recommended maximum drawer width of 24" (61 cm).

Attributes

Application: Face Frame, Frameless

Bearing Type: Ball Bearing

Brand: Knape & Vogt

Disconnect: Lever

Features: Quick Disconnect, Hold-In

Finish: Anochrome

Height: 1 25/32 in*

Length: 10 in

Load Capacity: 100 lb

Material: Steel

Motion Technology: Without Soft-Close

Product #: 8400ZP10

Screw/ Nail: Not Included

Side: Unhanded

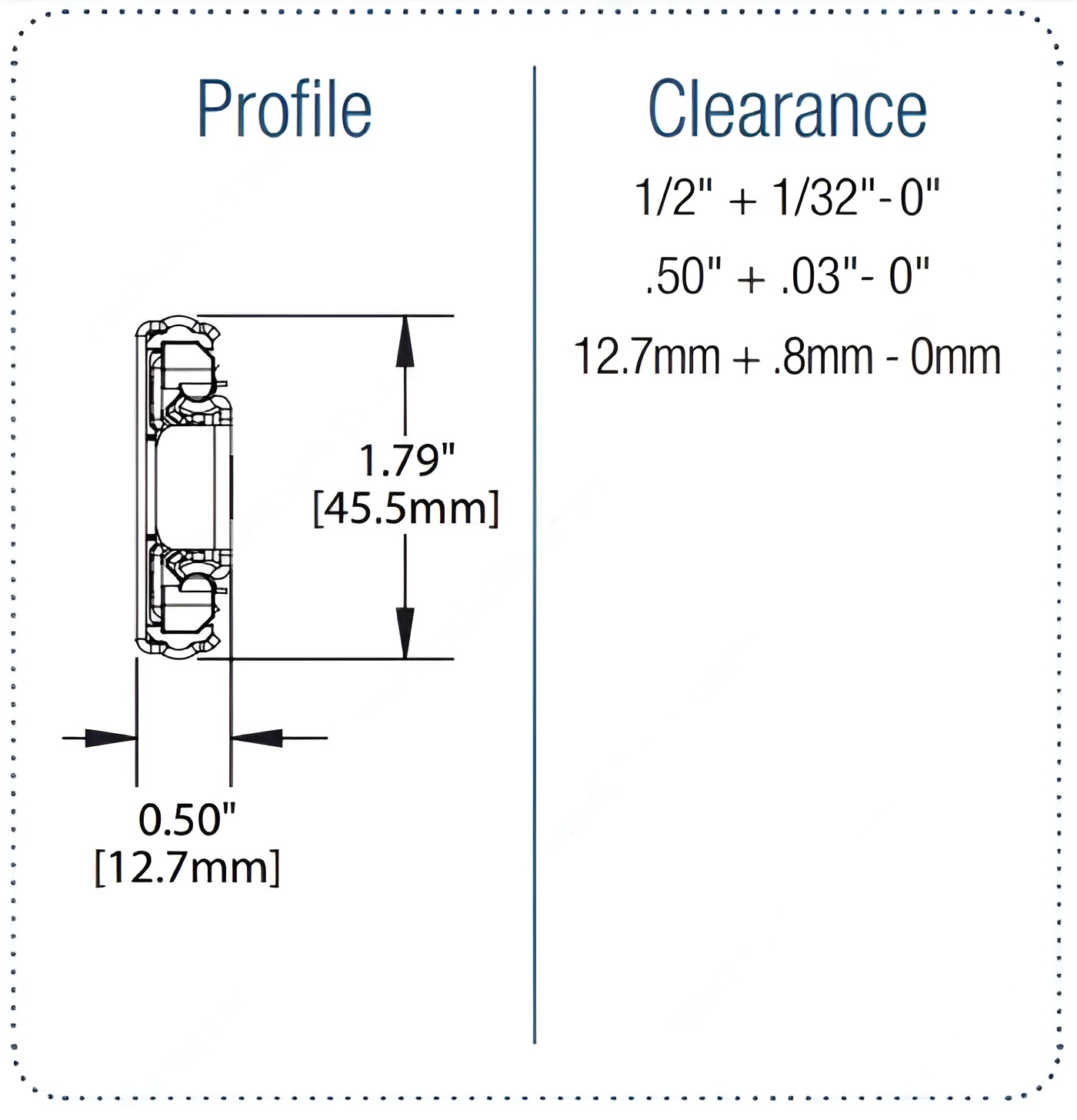

Side Clearance: 0.5 in

Slide Extension: Full Extension

Slide Mounted: Side Mounted

Standards and Certifications: BHMA, ANSI, KCMA, BIFMA
