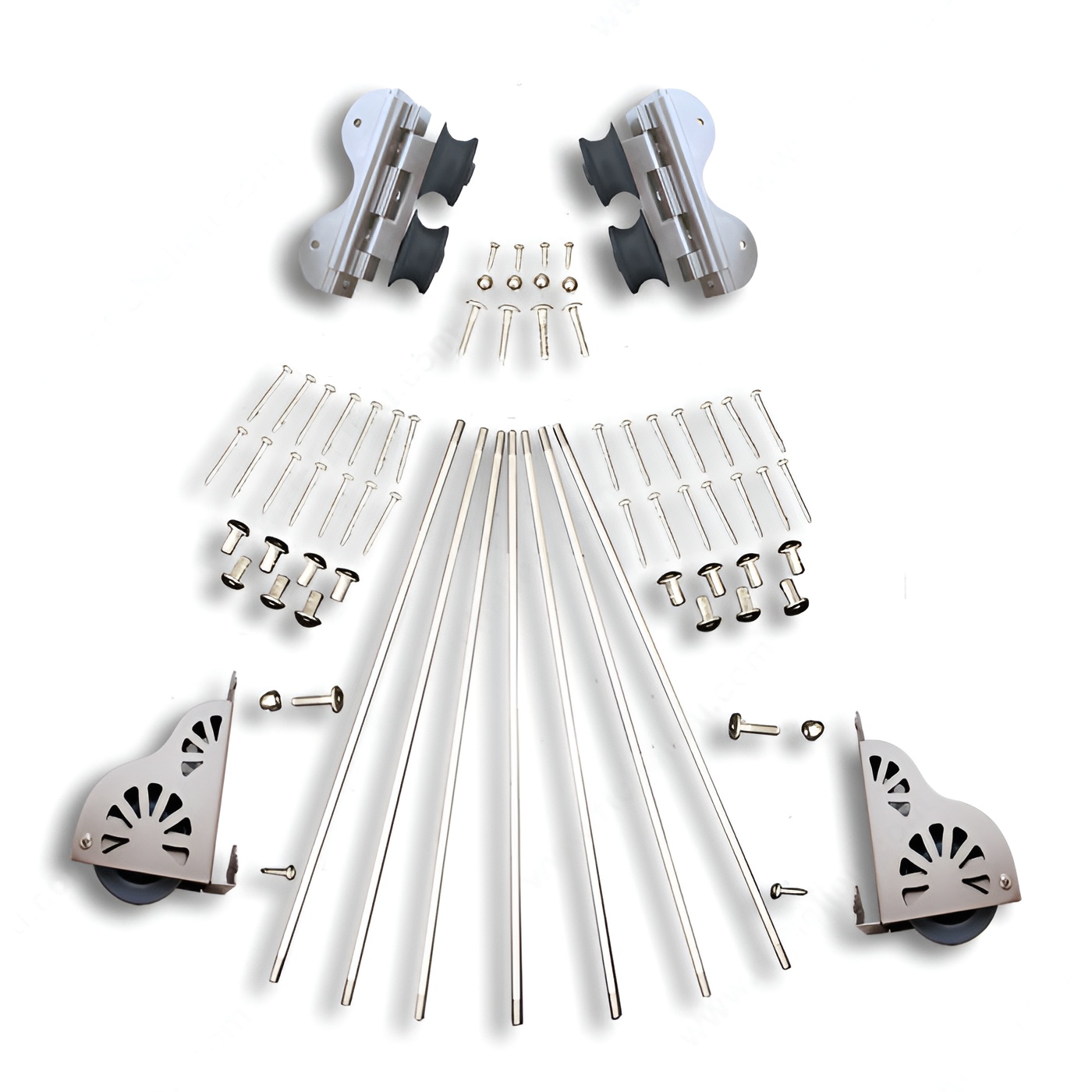

Richelieu 88QG710185 Swivel Rolling Ladder Hardware Set with Brake WheelsRichelieu 88QG710185 Swivel Rolling Ladder Hardware set with brake wheels offers a robust solution for your vertical access needs. Designed specifically for a seven-step wooden ladder, this hardware set ensures safety and functionality while enhancing your space. The upper swivel double rollers allow the ladder to navigate around curved tracks smoothly. The telescopic design of the upper rollers enables the ladder to be stored vertically against cabinets or walls, saving valuable space. Safety is paramount with the bottom brake wheels that automatically engage when weight is applied, providing stability while in use. Horizontal support rods are included to further stabilize the ladder, which is compatible with wood ladders measuring 16 inches wide and 96 inches long, sold separately. This set boasts a weight capacity of 300 lbs (136 kg), making it suitable for various applications, including libraries and other commercial settings. Available in two finishes-black and painted satin nickel-this hardware set seamlessly integrates into any design aesthetic. Please note that tracks, brackets, and other accessories are sold separately, allowing for a customizable fit. Elevate your ladder functionality with the Richelieu 88QG710185, a blend of quality engineering and thoughtful design.
Swivel Rolling Ladder Hardware set with brake wheels
Swivel Rolling Ladder Hardware set with brake wheels for a seven-step ladder.
Features:
- Hardware only
- Upper swivel double rollers secure the ladder to travel around curved track
- Upper rollers telescopic so that the ladder may be stored vertically against the cabinet or wall
- Bottom Brake wheels automatically stop when a person stands on the ladder
- Horizontal support rods for under the steps to stabilize the wood ladder
- For wood ladders 16 in wide X 96 in long, sold separately
- Weight capacity of 300 lb (136 kg)
- Available in two finishes black and painted satin nickel
- Tracks, brackets, and other accessories are sold separately
Attributes
Ship via: No UPS - Common Carrier Only
Application: Library
Bottom Wheel Type: Brake Wheels
Brand: Quiet Glide
Door Movement: Straight Sliding
Finish: Satin Finish Nickel
Ladder Hook- On Height: 88 1/4 to 89 1/4 in*
Ladder Length: 96 in*
Ladder Width: 16 in*
Length - Overall Dimensions: 96 in
Load Capacity: 300 lb
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 18 in*
Product #: 88QG710185
Product №: 88QG710185
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Bracket
Upper Roller Type: Swivel Roller
Weight Capacity per Ladder: 300 lb*
