Richelieu 891006 RO 82 Hardware Set Series InstructionsRichelieu 891006 RO 82 Hardware Set Series offers a robust solution for sliding wood doors with weight capacities ranging from 40 kg (88 lb) to an impressive 100 kg (220 lb). Designed for versatility, this hardware set accommodates a minimum door width of 650 mm (25 1/2 in) when utilizing the dual soft close mechanism, ensuring smooth and silent operation. The series features multiple installation options, including a top mount suspension plate with standard stops, a rear mount suspension plate, and a top mount option with a dual soft close mechanism. All hardware sets operate seamlessly on the same tracks, allowing for simple and flexible direct mount installation. The door thickness ranges from 23/32 to 1 13/32 in, and door widths span from 23 5/8 to 60 in, making it suitable for various applications, including closets and walk-in closets. Richelieu emphasizes accuracy during installation, advising the use of metric dimensions for enhanced precision. The hardware set is designed for top-hung doors, supporting single sliding, bypassing, or biparting movements. With upper roller positioning and durable ball bearing rollers, the 891006 RO 82 set combines functionality with reliability, making it a smart choice for modern spaces.

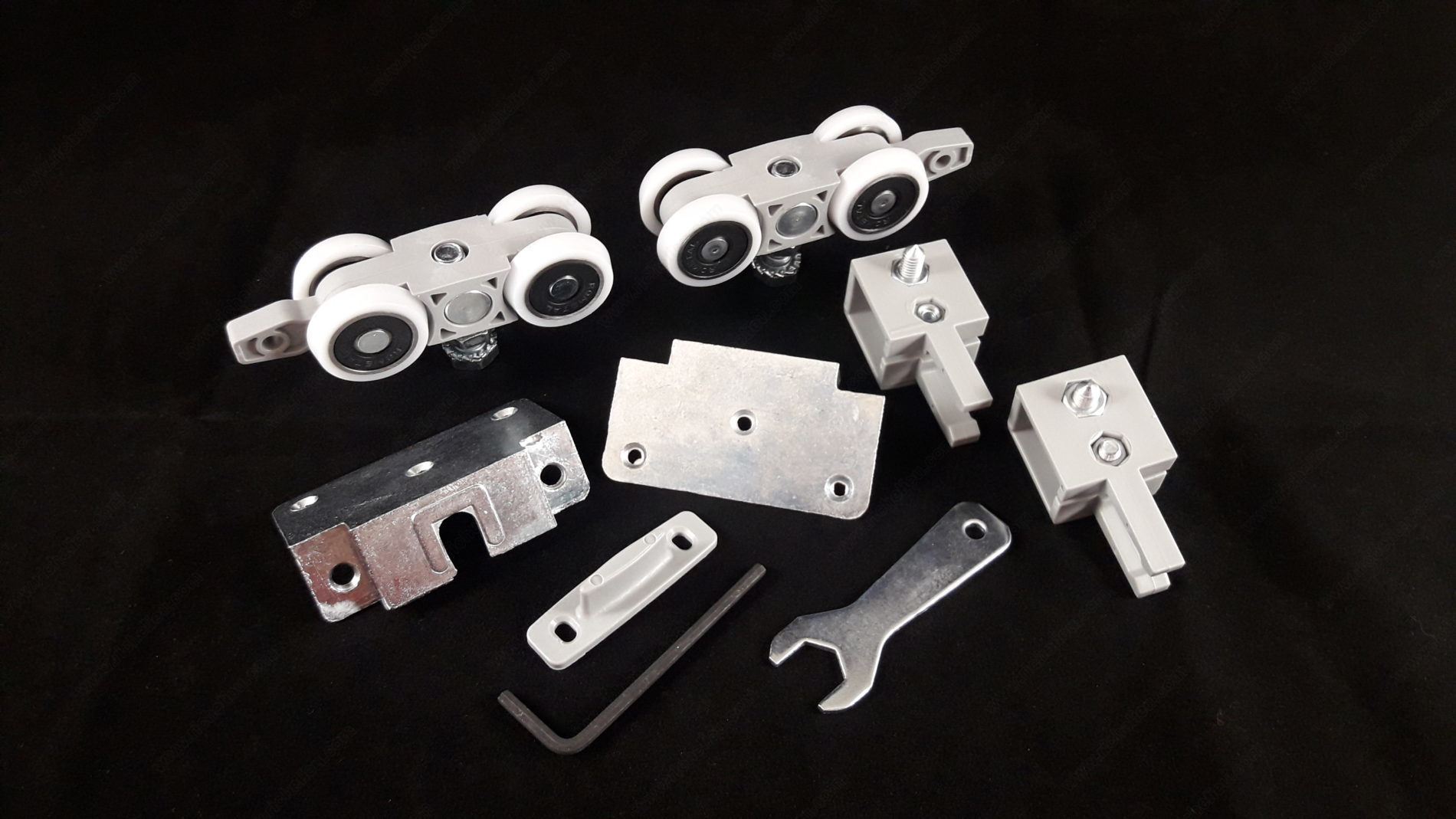

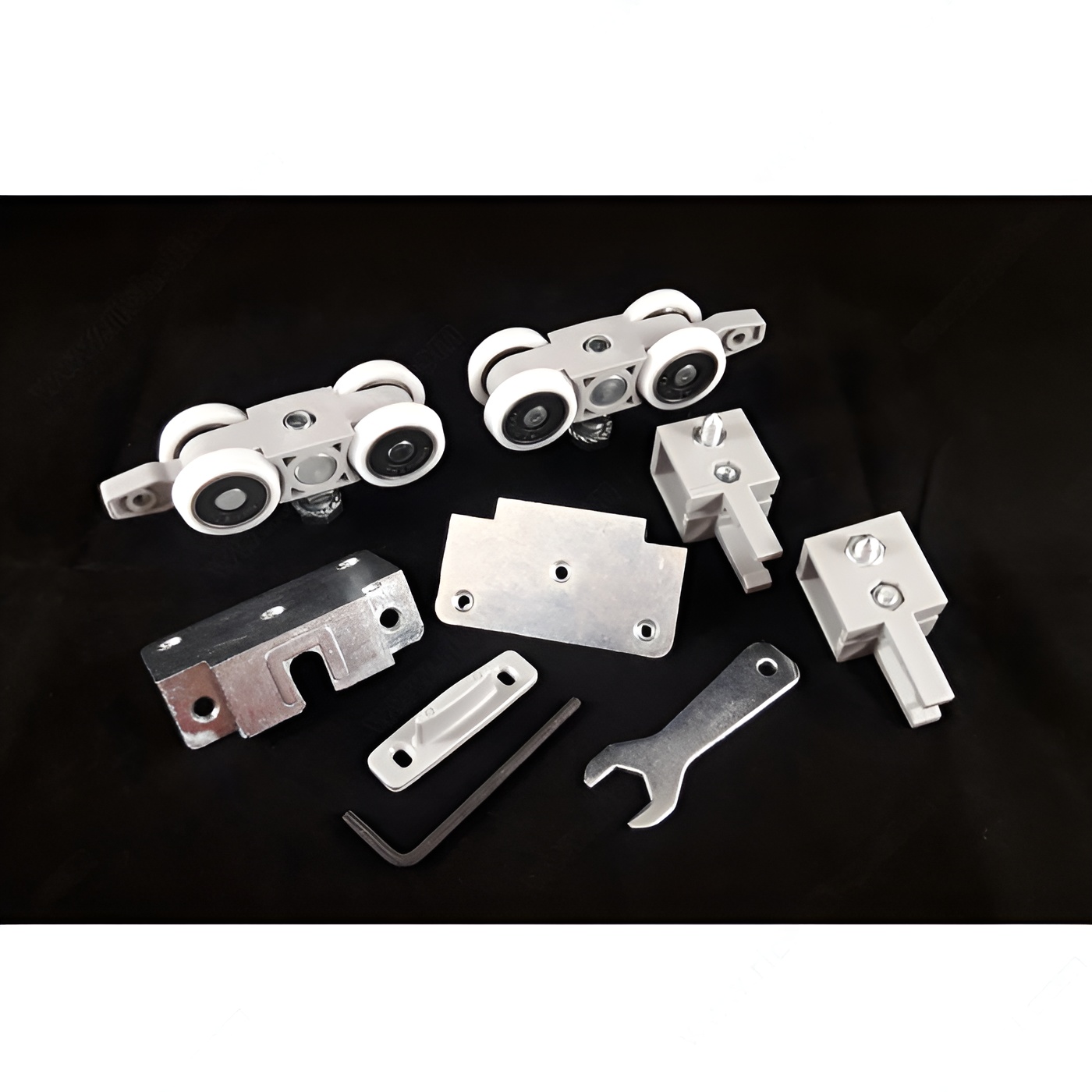

RO 82 Hardware Set Series
The RO 82 hardware sets series for one wood door for door weight capacities of 40 kg (88 lb), 80 kg (176 lb), and 100 kg (220 lb) each.
Features:
- Surface mount suspension plate
- Select from different hardware types
a) top mount suspension plate with standard stops
b) rear mount suspension plate with standard stops
c) top mount suspension plate with dual soft close mechanism for three different weight capacities
- Minimum door width 650 mm (25 1/2 in) for soft close mechanism
- All hardware sets operate on the same tracks
- Simple and Flexible direct mount installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 x 12 mm (3/8 x 1/2 in) for the plastic floor guide or 12 x 12 mm (1/2 x ½ in) for the floor roller guide.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Detailed Door Movement: Single sliding, Bypassing, Biparting
Door Height: 35 3/8 to 108 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 18 to 36 mm
Door Width: 600 to 1 524 mm
Load Capacity: 33.1 to 176 lb*
Number of Doors: 1
Product #: 891006
Product type: Hardware Set
Product №: 891006
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Weight Capacity per Door: 15 to 80 kg
Resources
