Richelieu 8912695140 EVO Hardware SetRichelieu 8912695140 EVO Hardware Sets offer a versatile solution for both residential and commercial applications, accommodating wood and glass doors with varying weight capacities of 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg). Designed for wood doors with thicknesses ranging from 3/4 inch (19 mm) to 1 3/8 inches (36 mm) and glass doors between 5/16 inch (8 mm) to 1/2 inch (13 mm), these sets ensure compatibility across a range of installations. Available in four stylish finishes-black, chrome, champagne, and titanium-these hardware sets not only enhance the aesthetic of any space but also include two adjustable soft-close mechanisms for a smooth and quiet operation. The top-hung design allows for single sliding movement with a maximum door height of 8 feet 6 inches, making it perfect for closets, pantries, and access doors in washrooms, bedrooms, and offices. Constructed from durable aluminum, the Richelieu EVO Hardware Sets feature ball-bearing rollers for reliable performance, with a door projection of 3 5/32 inches and a mounting system that is simple and cost-effective. The wall-mounted track system and bracket fixing ensure easy installation, making it an ideal choice for professionals and homeowners alike.

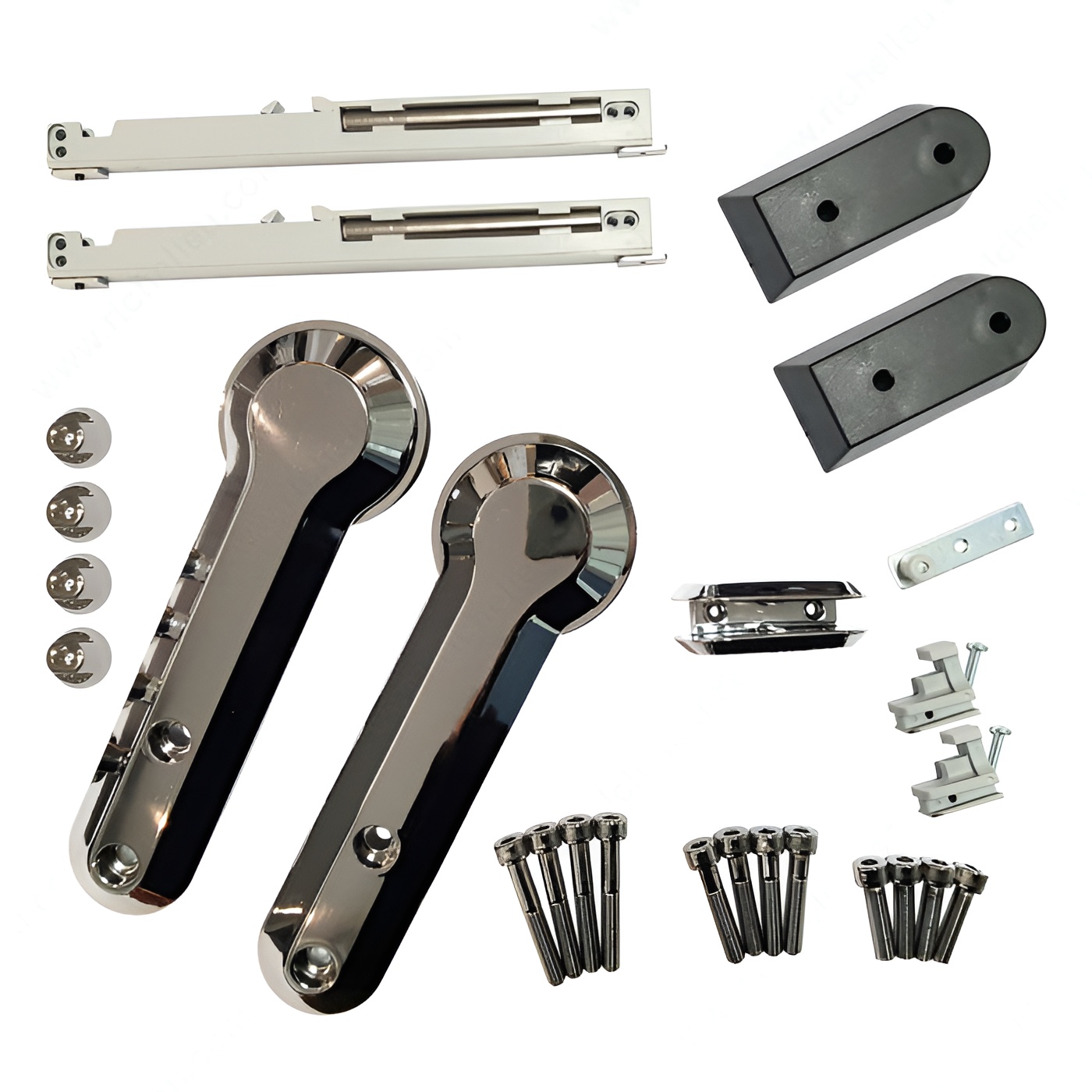

EVO Hardware Sets
The EVO barn door style hardware sets for wood and glass doors for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg).
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 1/2 in (13 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Includes two soft-close mechanisms, can be adjusted to different positions
- Smooth operating
- Simple, flexible, and low-cost installation
Ideal solution for residential and commercial applications for thin and thick doors, closets and pantries, and access doors for washrooms, bedrooms, and offices.
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Single sliding, Barn door
Door Height: Max. 2 600 mm
Door Installation: Top Hung
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Projection: 80 mm
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Chrome (140)
Height Clearance: 191 mm
Load Capacity: 88.2 to 132 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 1
Packaging Format: Box
Product #: 8912695140
Product number: 8912695140
Product type: Hardware Set
Product №: 8912695140
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Mounting: Wall Mount
Unit: Set
Weight Capacity per Door: 40 to 60 kg
