Richelieu 8912699CHBRZ EVO Hardware SetRichelieu 8912699CHBRZ EVO Hardware Sets offer a sophisticated solution for both residential and commercial sliding door applications. Designed to accommodate wood doors ranging from 3/4 inch (19 mm) to 1 3/8 inch (36 mm) thick and glass doors from 5/16 inch (8 mm) to 1/2 inch (13 mm) thick, these hardware sets cater to a variety of needs. They are available in four elegant finishes: black, chrome, champagne, and titanium, allowing you to match your decor seamlessly. With three distinct weight capacity options-88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg)-these sets provide versatility for various door sizes up to a maximum height of 8 ft 6 in. The installation process is straightforward and cost-effective, making it suitable for closets, pantries, and access doors in washrooms, bedrooms, and offices. Each set includes two adjustable soft-close mechanisms, ensuring smooth and silent operation, while the upper roller type with ball bearings enhances performance. The wall-mounted track system and a 3 5/32 inch door projection ensure a sleek profile. Elevate your interior spaces with the reliability and design of Richelieu's EVO Hardware Sets.
EVO Hardware Sets

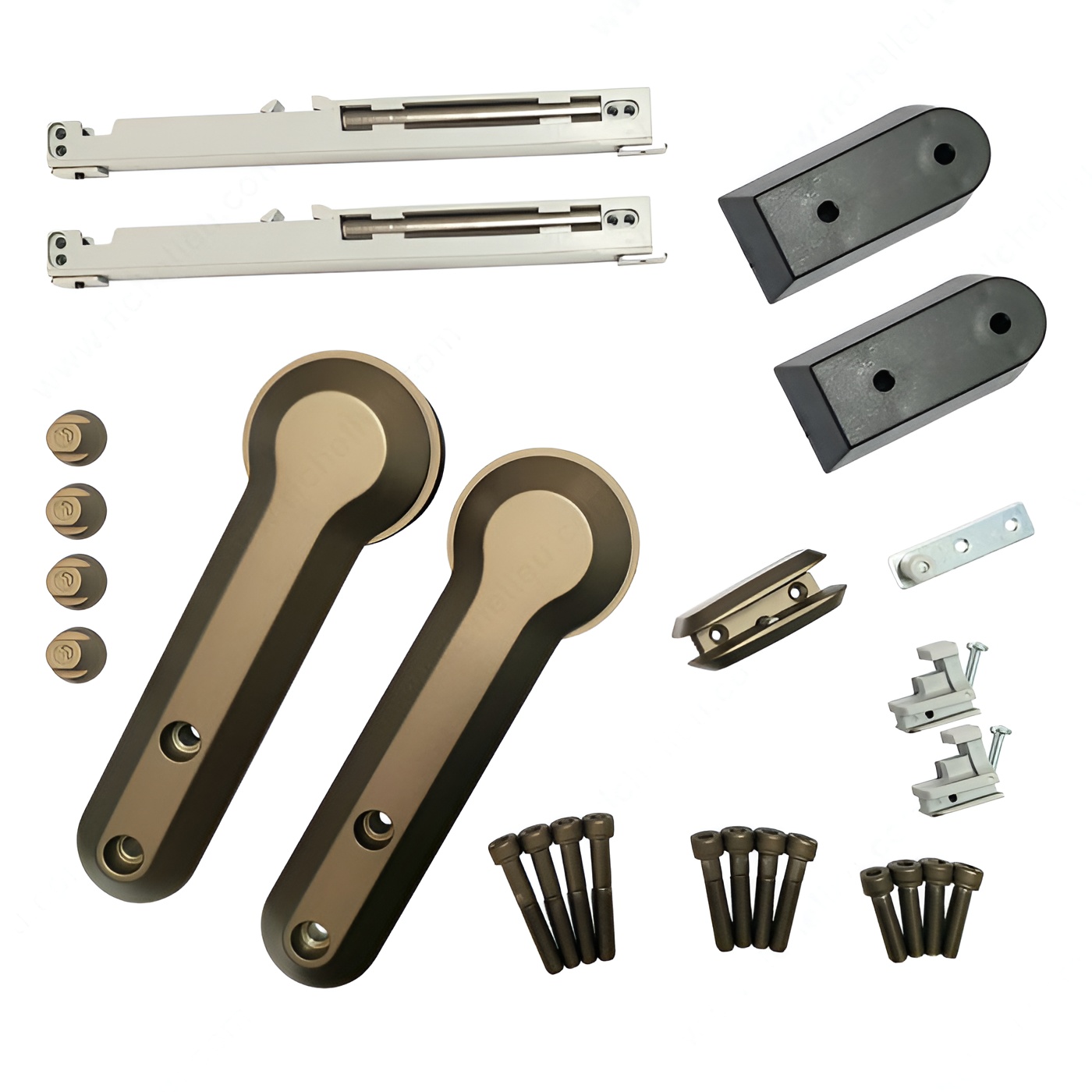

The EVO barn door style hardware sets for wood and glass doors for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg).
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 1/2 in (13 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Includes two soft-close mechanisms, can be adjusted to different positions
- Smooth operating
- Simple, flexible, and low-cost installation
Ideal solution for residential and commercial applications for thin and thick doors, closets and pantries, and access doors for washrooms, bedrooms, and offices.
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Single sliding, Barn door
Door Height: Max. 2 600 mm
Door Installation: Top Hung
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Projection: 80 mm
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Champagne
Height Clearance: 191 mm
Load Capacity: 88.2 to 132 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 1
Packaging Format: Box
Product #: 8912699CHBRZ
Product number: 8912699CHBRZ
Product type: Hardware Set
Product №: 8912699CHBRZ
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Mounting: Wall Mount
Unit: Set
Weight Capacity per Door: 40 to 60 kg
