Richelieu 89127210188 EVO Track SetRichelieu 89127210188 EVO Track Set is engineered to provide superior functionality and style for sliding door applications. This versatile system accommodates wood doors ranging from 3/4 inch (19 mm) to 1 3/8 inches (36 mm) thick, as well as glass doors measuring between 5/16 inch (8 mm) and 3/8 inch (10 mm) thick. With a robust load capacity of up to 176 lb (80 kg), it is available in three weight categories-88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg)-ensuring reliability for various installations. Choose from four elegant finishes: black, chrome, champagne, and titanium, allowing you to match the track set to your design needs. The EVO Track Set comes in three lengths-78 3/4 inches (2 m), 118 inches (3 m), and 156 inches (4 m)-to fit your space perfectly. It features adjustable bracket mounts for easy installation and concealed soft-close mechanisms that enhance user experience by providing smooth, quiet operation. Designed for side-mounted applications, the track is made of durable aluminum and has a maximum door height clearance of 8 ft 6 in. Elevate your interior with this contemporary and functional sliding door solution from Richelieu, the trusted name in specialty hardware.

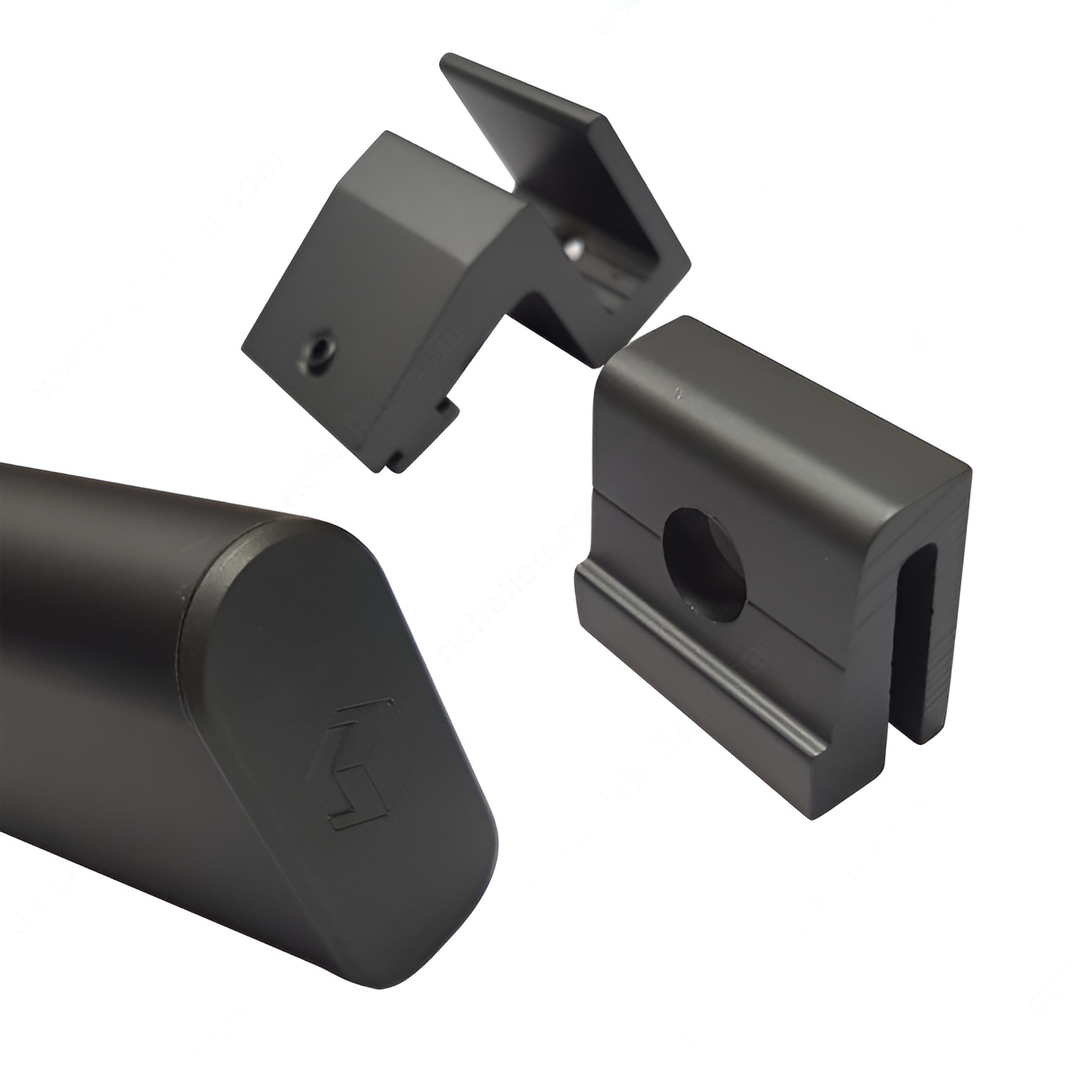

EVO Track Set
The EVO Track Set with bracket mounts for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg) each.
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 3/8 in (10 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Available in three different lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m)
- For concealed soft-close mechanisms that can be adjusted to different positions
- Bracket mounts can be adjusted to different positions behind the track
- Smooth operating
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Barn door
Door Height: Max. 2 600 mm
Door Installation: Side Mount
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 000 mm
Finish: Titanium
Height Clearance: 191 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: Max. 176 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 2 000 mm
Packaging Format: Bag
Product #: 89127210188
Product number: 89127210188
Product type: Running and Guiding Tracks
Product №: 89127210188
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Contemporary
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Flat oval
Unit: Set
Weight Capacity per Door: Max. 80 kg
Weight Capacity per Panel: 15 to 80 kg
