Richelieu 89127310188 EVO Track SetRichelieu 89127310188 EVO Track Set offers a versatile solution for sliding door applications, accommodating wood doors from 3/4 in (19 mm) to 1 3/8 in (36 mm) thick and glass doors measuring 5/16 in (8 mm) to 3/8 in (10 mm) thick. Designed with practicality in mind, this track set supports three weight capacities-88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg)-ensuring a robust performance for various door styles. Available in four elegant finishes-black, chrome, champagne, and titanium-the EVO Track Set enhances any contemporary interior. It comes in three lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m), allowing for customized installations to fit your specific needs. The concealed soft-close mechanism is adjustable, providing a smooth and silent operation, while the bracket mounts can be repositioned for optimal installation behind the track. With a maximum door height of 8 ft 6 in and accommodating door widths from 27 1/2 in to 48 in, this track set is crafted from durable aluminum for lasting use. Whether you’re a building professional or a knowledgeable homeowner, the Richelieu EVO Track Set combines functionality and style for your sliding door projects.

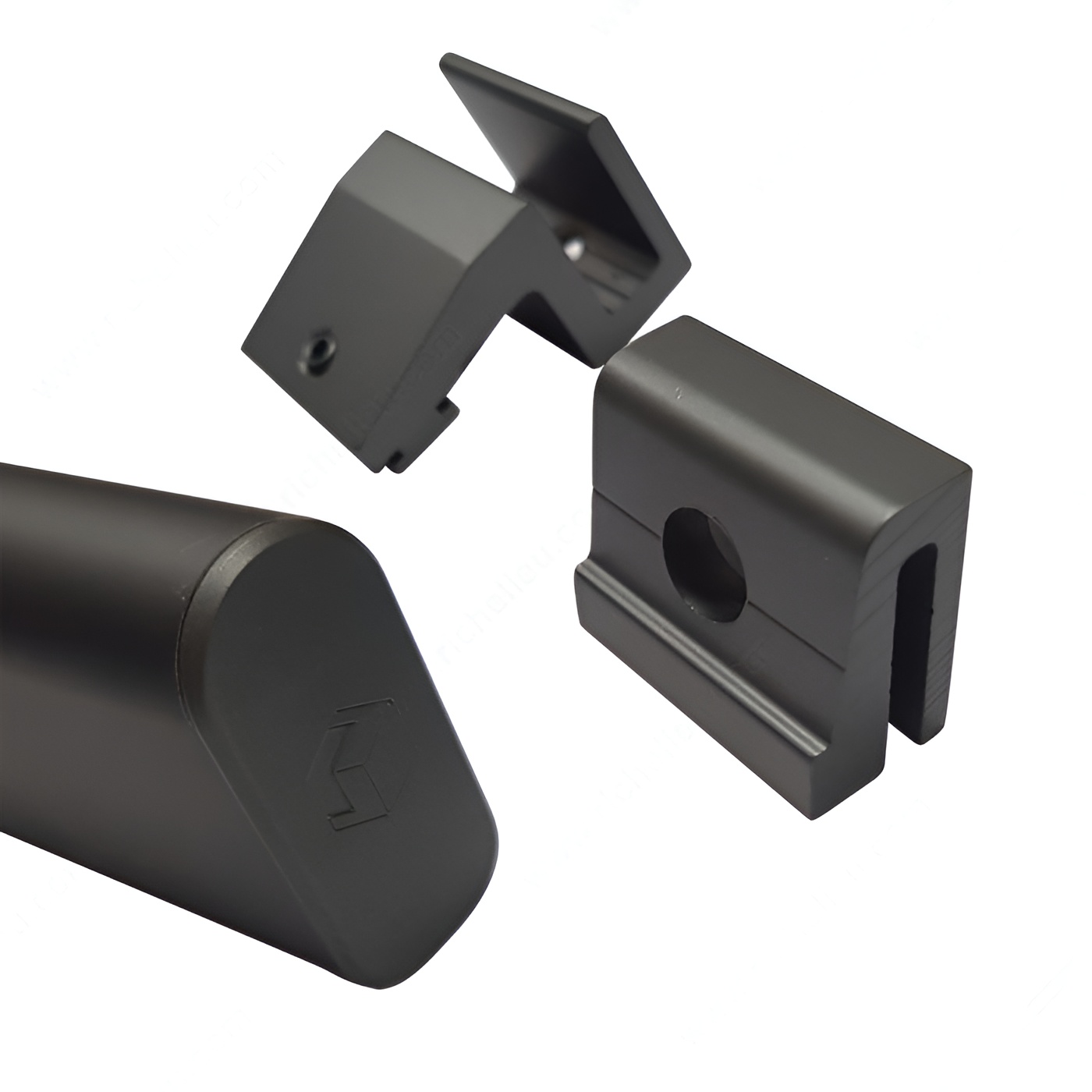

EVO Track Set
The EVO Track Set with bracket mounts for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg) each.
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 3/8 in (10 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Available in three different lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m)
- For concealed soft-close mechanisms that can be adjusted to different positions
- Bracket mounts can be adjusted to different positions behind the track
- Smooth operating
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Barn door
Door Height: Max. 2 600 mm
Door Installation: Side Mount
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Titanium
Height Clearance: 191 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: Max. 176 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 3 000 mm
Packaging Format: Bag
Product #: 89127310188
Product number: 89127310188
Product type: Running and Guiding Tracks
Product №: 89127310188
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Contemporary
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Flat oval
Unit: Set
Weight Capacity per Door: Max. 80 kg
Weight Capacity per Panel: 15 to 80 kg
