Richelieu 89127410188 EVO Track SetRichelieu 89127410188 EVO Track Set provides a versatile and stylish solution for sliding door systems. Designed to support three distinct weight capacities-88 lb (40 kg), 132 lb (60 kg), and a robust 176 lb (80 kg)-this track set accommodates both wood and glass doors, making it an excellent choice for various applications. It is suitable for wood doors with thicknesses ranging from 3/4 in (19 mm) to 1 3/8 in (36 mm) and glass doors from 5/16 in (8 mm) to 3/8 in (10 mm). Available in four elegant finishes-black, chrome, champagne, and titanium-this track set enhances any contemporary space. It comes in three lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m), offering flexibility for different installations. The concealed soft-close mechanism can be adjusted to various positions, ensuring smooth operation and enhanced user experience. The adjustable bracket mounts allow for customized positioning behind the track, promoting a clean aesthetic. With a maximum door height of 8 ft 6 in and suitable for side-mounted installations, the EVO Track Set is a reliable choice for straight sliding door movements. Made from durable aluminum, it combines functionality with modern design, making it a perfect fit for professionals and discerning homeowners alike.

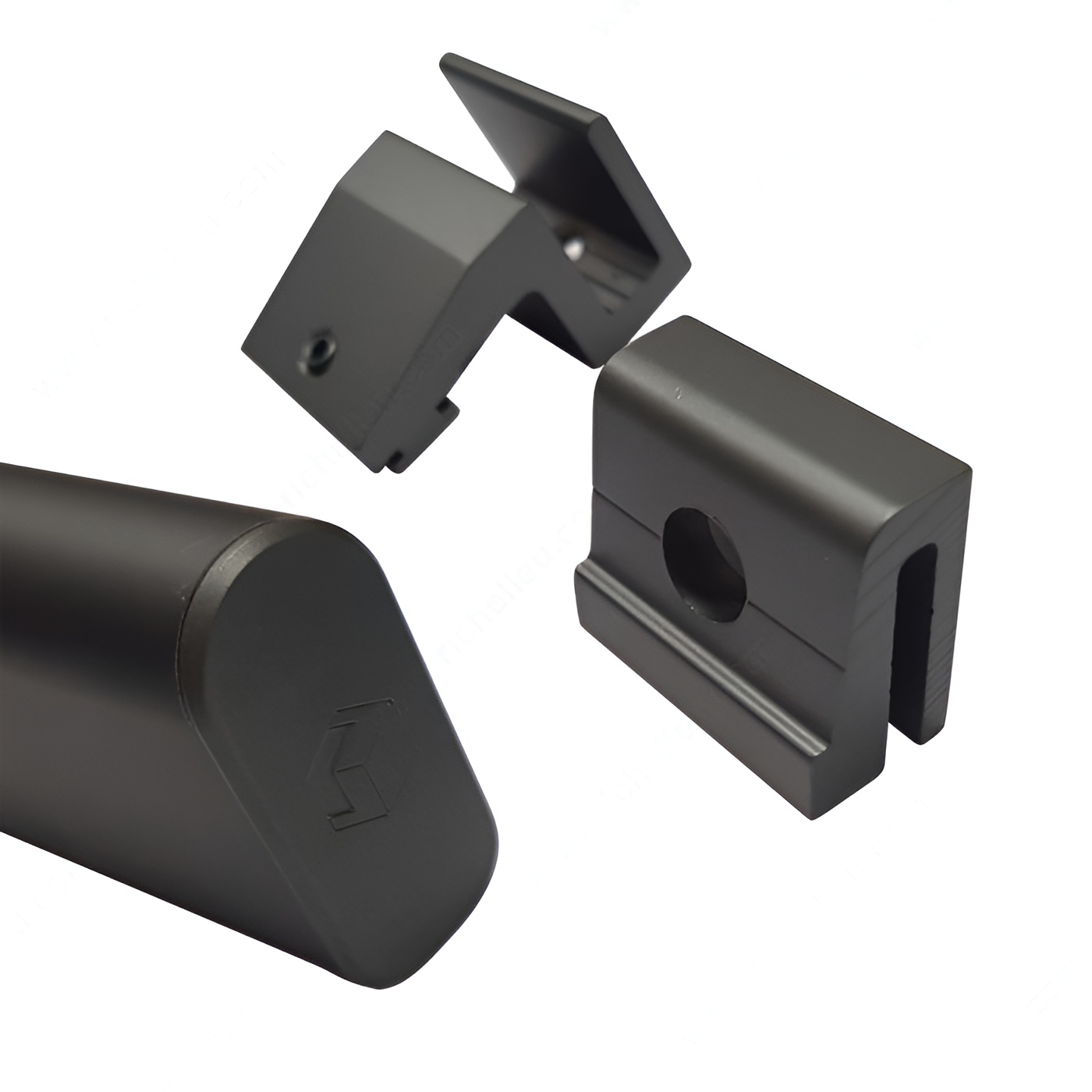

EVO Track Set
The EVO Track Set with bracket mounts for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg) each.
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 3/8 in (10 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Available in three different lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m)
- For concealed soft-close mechanisms that can be adjusted to different positions
- Bracket mounts can be adjusted to different positions behind the track
- Smooth operating
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Barn door
Door Height: Max. 2 600 mm
Door Installation: Side Mount
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Titanium
Height Clearance: 191 mm
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: Max. 176 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 4 000 mm
Packaging Format: Bag
Product #: 89127410188
Product number: 89127410188
Product type: Running and Guiding Tracks
Product №: 89127410188
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Contemporary
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Flat oval
Unit: Set
Weight Capacity per Door: Max. 80 kg
Weight Capacity per Panel: 15 to 80 kg
