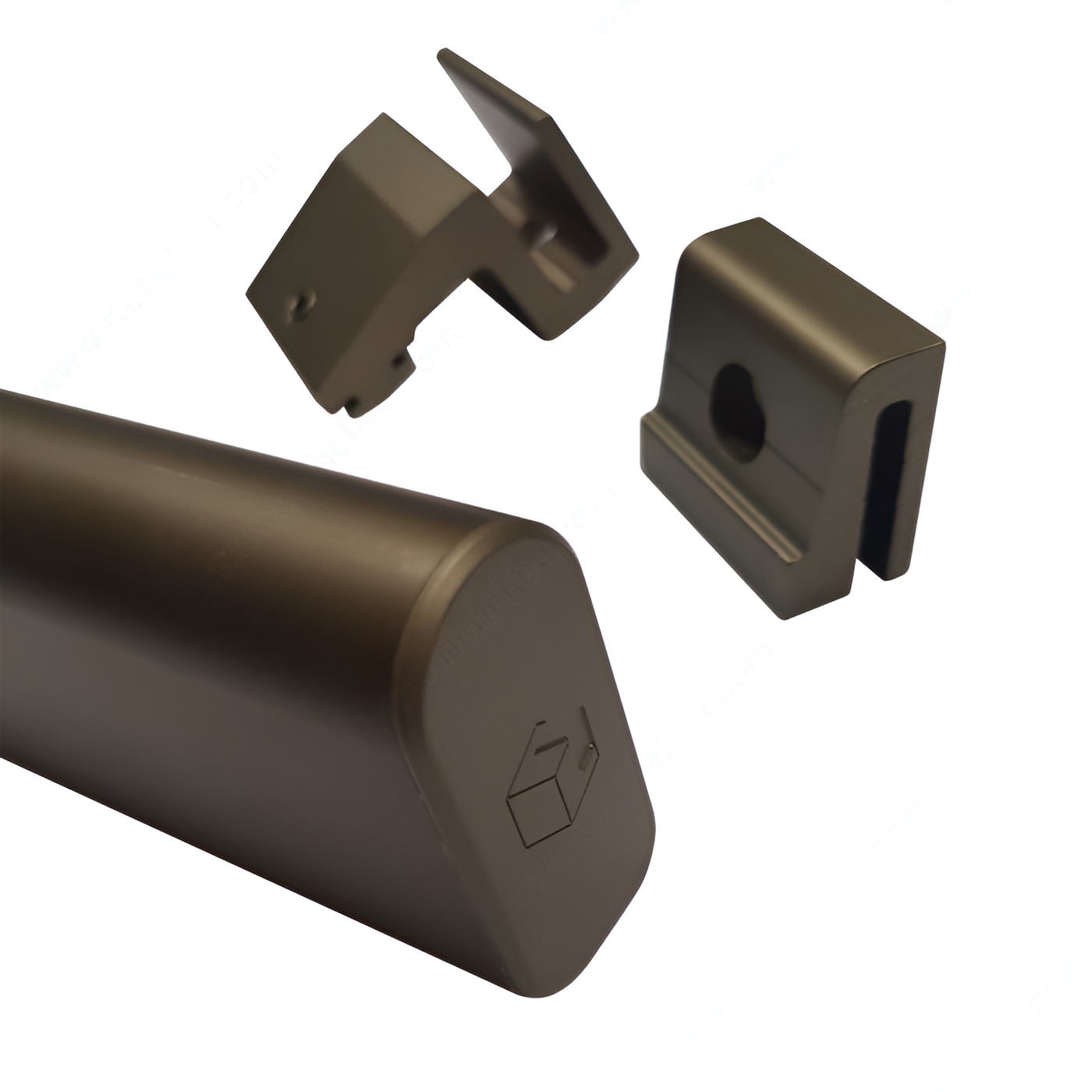

Richelieu 89127C410CHBRZ EVO Track SetRichelieu 89127C410CHBRZ EVO Track Set offers a versatile and robust solution for sliding doors, accommodating various material types with ease. Designed for wood doors with thicknesses ranging from 3/4 in (19 mm) to 1 3/8 in (36 mm) and glass doors between 5/16 in (8 mm) and 3/8 in (10 mm), this track set ensures smooth operation with a maximum load capacity of 176 lb (80 kg). Available in four elegant finishes-black, chrome, champagne, and titanium-and three lengths (78 3/4 in / 2 m, 118 in / 3 m, and 156 in / 4 m), it seamlessly integrates into any contemporary design. The bracket mounts are adjustable, providing flexibility for installation behind the track, while the concealed soft-close mechanisms enhance user experience by allowing for customizable closing positions. The EVO Track Set is engineered for straight sliding door movement, with a maximum door height of 8 ft 6 in, making it ideal for a range of residential and commercial applications. Constructed from durable aluminum, it promises longevity and reliability. Enhance your space with Richelieu's sophisticated track set, where functionality meets modern aesthetics.
EVO Track Set
The EVO Track Set with bracket mounts for three different weight capacity categories: 88 lb (40 kg), 132 lb (60 kg), and 176 lb (80 kg) each.
Features:
- For wood doors 3/4 in (19 mm) to 1 3/8 in (36 mm) thick
- For glass doors 5/16 in (8 mm) to 3/8 in (10 mm) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Available in three different lengths: 78 3/4 in (2 m), 118 in (3 m), and 156 in (4 m)
- For concealed soft-close mechanisms that can be adjusted to different positions
- Bracket mounts can be adjusted to different positions behind the track
- Smooth operating
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Barn door
Door Height: Max. 2 600 mm
Door Installation: Side Mount
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Champagne
Height Clearance: 191 mm
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: Max. 176 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 4 000 mm
Packaging Format: Bag
Product #: 89127C410CHBRZ
Product number: 89127C410CHBRZ
Product type: Running and Guiding Tracks
Product №: 89127C410CHBRZ
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Contemporary
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Flat oval
Unit: Set
Weight Capacity per Door: Max. 80 kg
Weight Capacity per Panel: 15 to 80 kg
