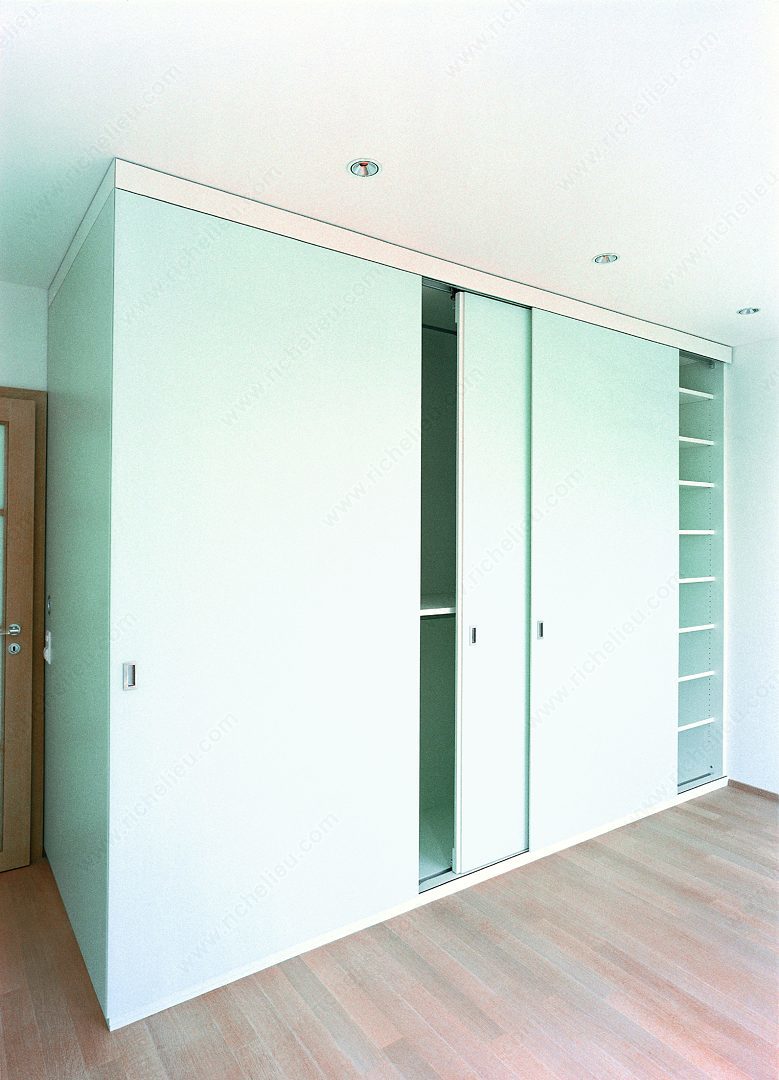

Richelieu 8913233 HAWA-220 Planfront System for Sliding Cabinet Doors with Flush Mounting offers versatile solutions for modern interior spaces. Designed for a seamless look, this system allows sliding elements to be mounted flush against paneling or cabinets, making it ideal for concealing projection screens or creating media walls. The coplanar door movement enables smooth operation, allowing sliding doors to effortlessly glide behind a fixed front. Constructed from durable aluminum with a satin finish, this system is both stylish and robust, supporting a maximum load capacity of 154 lbs. The adjustable design accommodates doors with a thickness range of 3/4 to 1 25/32 inches and widths from 15 3/4 to 59 inches, making it suitable for a variety of applications, including closets, walk-in closets, wardrobes, pantries, and storage cabinets. The upper roller position, featuring ball bearing roller type, ensures a quiet and reliable sliding action. Additionally, the right-hand opening and ceiling mount track installation provide further flexibility. For added security, the doors can be locked using a standard bar bolt lock. With the HAWA-220 Planfront System, you can achieve a sleek and organized aesthetic without compromising functionality.
HAWA-220 Planfront System for Sliding Cabinet Doors with Flush Mounting
Adjustable: Yes
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage, Pocket Door
Brand: Hawa
Door Material: Wood

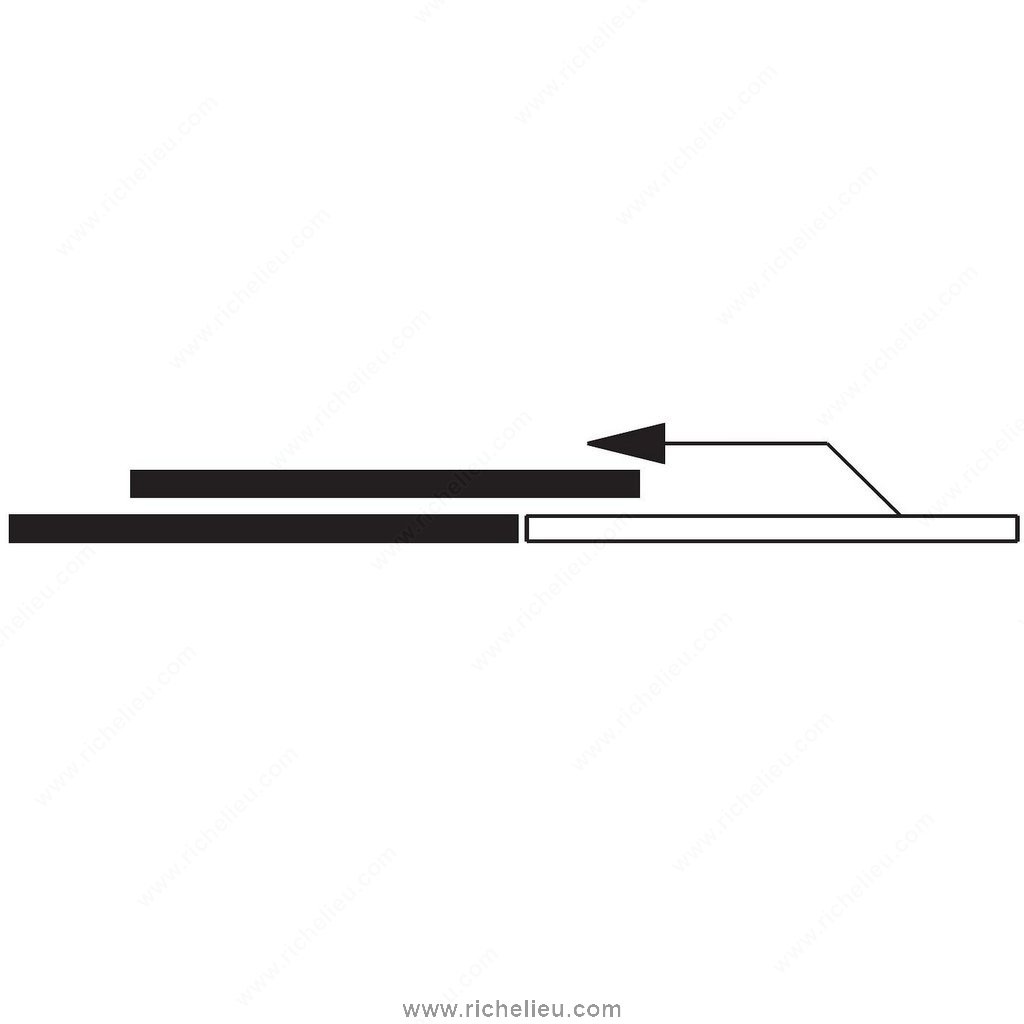

Door Movement: Coplanar
Door Position: Inset/Inlay
Door Thickness: 19 to 45 mm
Door Width: 400 to 1 500 mm
Finish: Satin Aluminum
Length - Overall Dimensions: 59 in*
Load Capacity: Max. 154 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Opening: Right-Hand Opening
Overall Length: 1 500 mm
Product #: 8913233
Product number: 8913233
Product №: 8913233
Roller Position: Upper
Roller Type: Ball Bearing
Track Finish: Satin Aluminum
Track Length: 1 500 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Unit: Box
Weight Capacity per Door: Max. 70 kg
