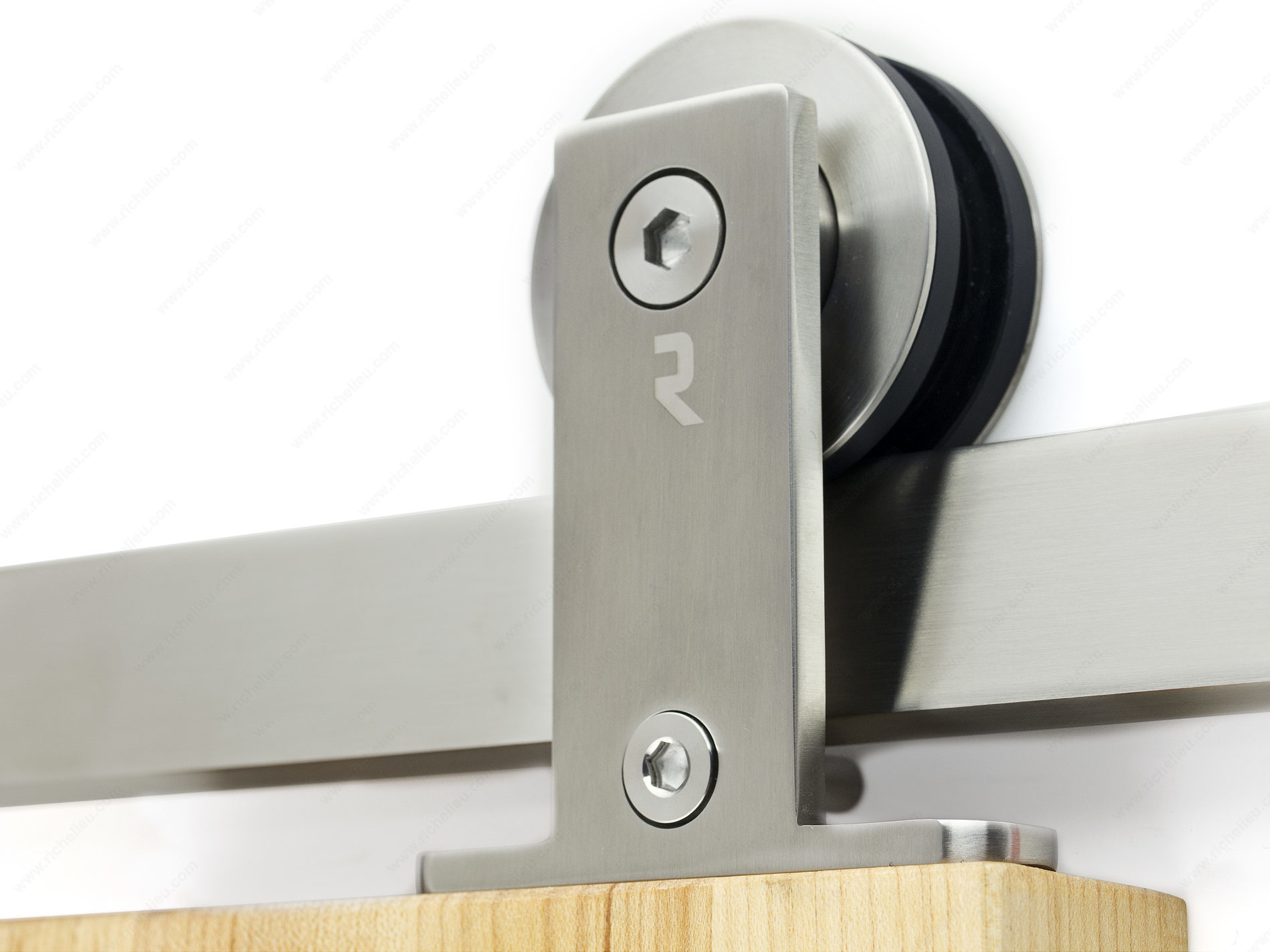

Richelieu 8916603170 Integrail Sliding Door System offers a sophisticated and efficient solution for your residential sliding door needs. This top-mounted hardware system features a flat bar running rail designed with Z-design connecting ends, ensuring a near-seamless operation that enhances both functionality and aesthetics. Installation is a breeze, thanks to pre-drilled fixation points on the running rail set at 16 inches (406.4 mm) centers, allowing for quick and secure mounting. This system is suitable for wood doors with a thickness ranging from 1 3/8 to 1 25/32 inches and accommodates door widths between 28 to 34 inches. With a maximum load capacity of 176 pounds, it is robust enough for a variety of applications, including standard access and barn doors. The contemporary style of the Integrail system, finished in elegant stainless steel, blends seamlessly into modern interiors while the upper roller position and ball bearing roller type ensure smooth operation. Designed for wall mounting, this system requires a groove for the guiding mechanism, offering a discreet solution that prioritizes both security and ease of use. Transform your space with the Richelieu Integrail Sliding Door System-a perfect combination of style, strength, and simplicity.
Integrail Sliding Door System
Application: Standard Access Door, Barn Door
Brand: Richelieu
Displayed in These Showrooms: Montreal
Door Material: Wood
Door Position: In Front of Wall
Door Thickness: 35 to 45 mm
Door Width: 28 to 34 in
Finish: Stainless Steel (170)
Groove Needed for Guiding System: Yes
Length - Overall Dimensions: 67 7/8 in
Load Capacity: Max. 176 lb*
Manufacturing Material: Stainless Steel
Number of Doors: 1
Overall Length: 67 7/8 in
Product #: 8916603170
Product number: 8916603170
Product №: 8916603170
Roller Position: Upper
Roller Type: Ball Bearing
Soft- Closing: No
Style: Contemporary
Track Finish: Stainless Steel
Track Length: 67 7/8 in
Track Material: Stainless Steel
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Box
Unit 1: case - 4
Unit 2: case - 4
Weight Capacity per Door: Max. 80 kg
