Richelieu 891959A210 RO 82 Track Series InstructionsRichelieu 891959A210 RO 82 Track Series offers a robust solution for ceiling and wall mounting of doors weighing up to 100 kg (220 lb) each. This versatile system is designed for easy installation and flexibility, making it ideal for closets and walk-in spaces. The RO 82 Track Series features a clip-on fascia and is available in three convenient lengths: 2000 mm (78 3/4 in), 3000 mm (118 in), and 4000 mm (157 in). With three bracket sizes available for wall mounting, the system accommodates door thicknesses up to 45 mm (1 3/4 in), sold separately. The spacer profile allows for single tracks to be assembled as double or triple tracks, enhancing its adaptability. Notable for its anodized aluminum finish, this track not only delivers strength but also blends seamlessly with modern interiors. Designed for top-hung door installations, the track supports various door movements including single sliding, bypassing, and biparting, providing efficient space management. With a load capacity ranging from 33.1 to 220 lb*, the Richelieu RO 82 Track Series combines durability with performance, making it a dependable choice for any professional-grade glazing project.
RO 82 Track Series

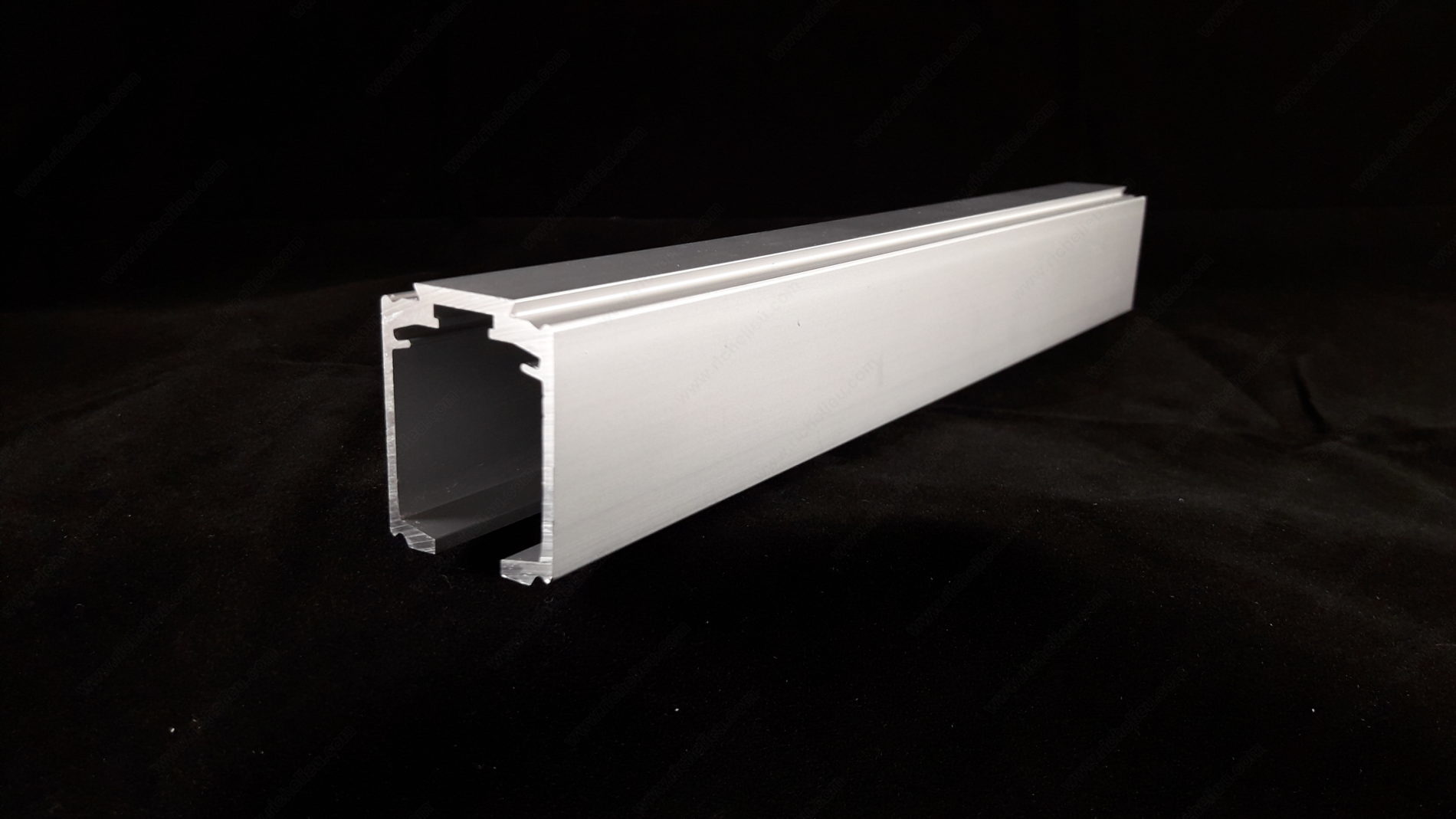

The RO 82 Track Series for mounting to the ceiling and wall for doors weighing up to 100 kg (220 lb) each.
Features:

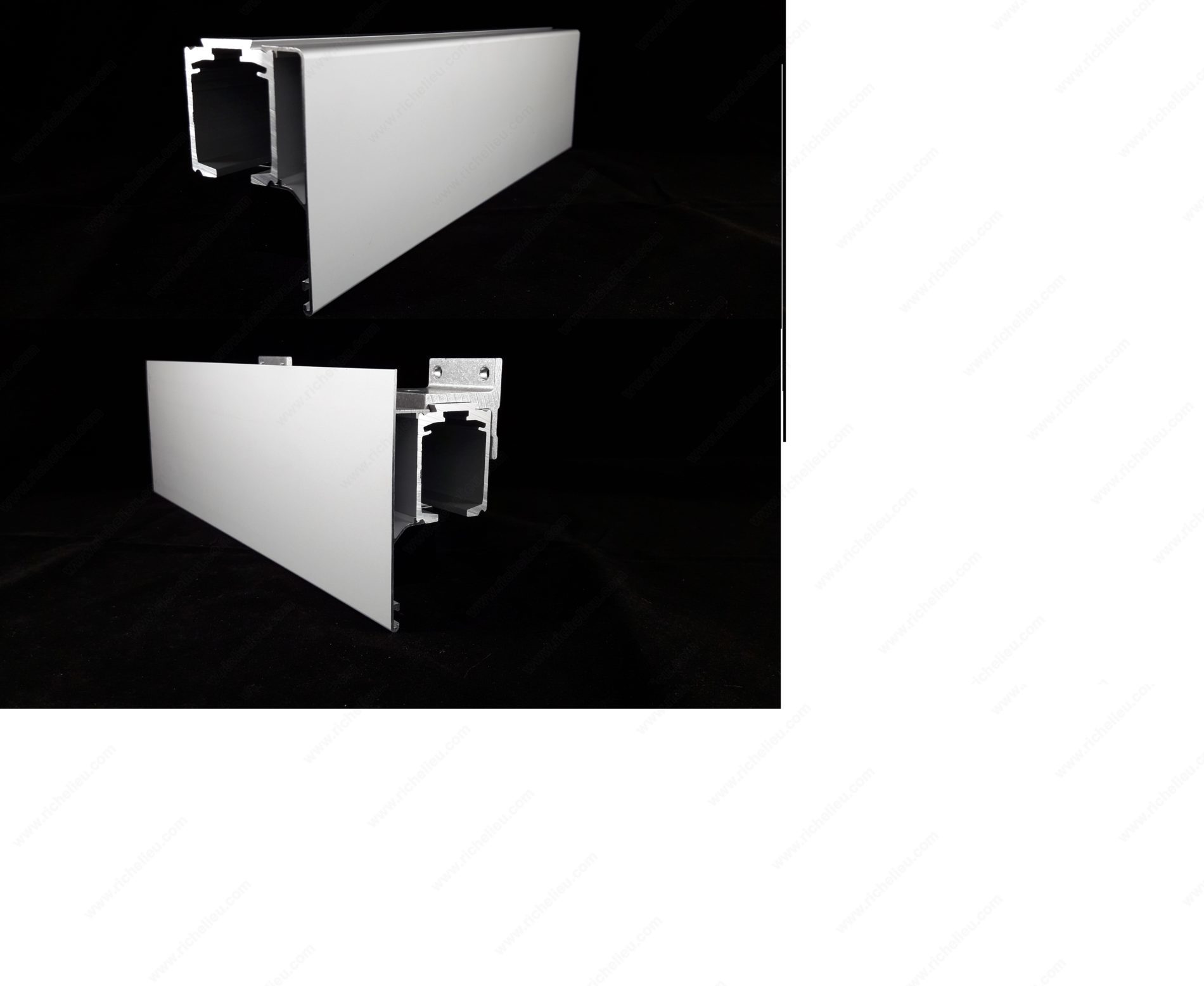

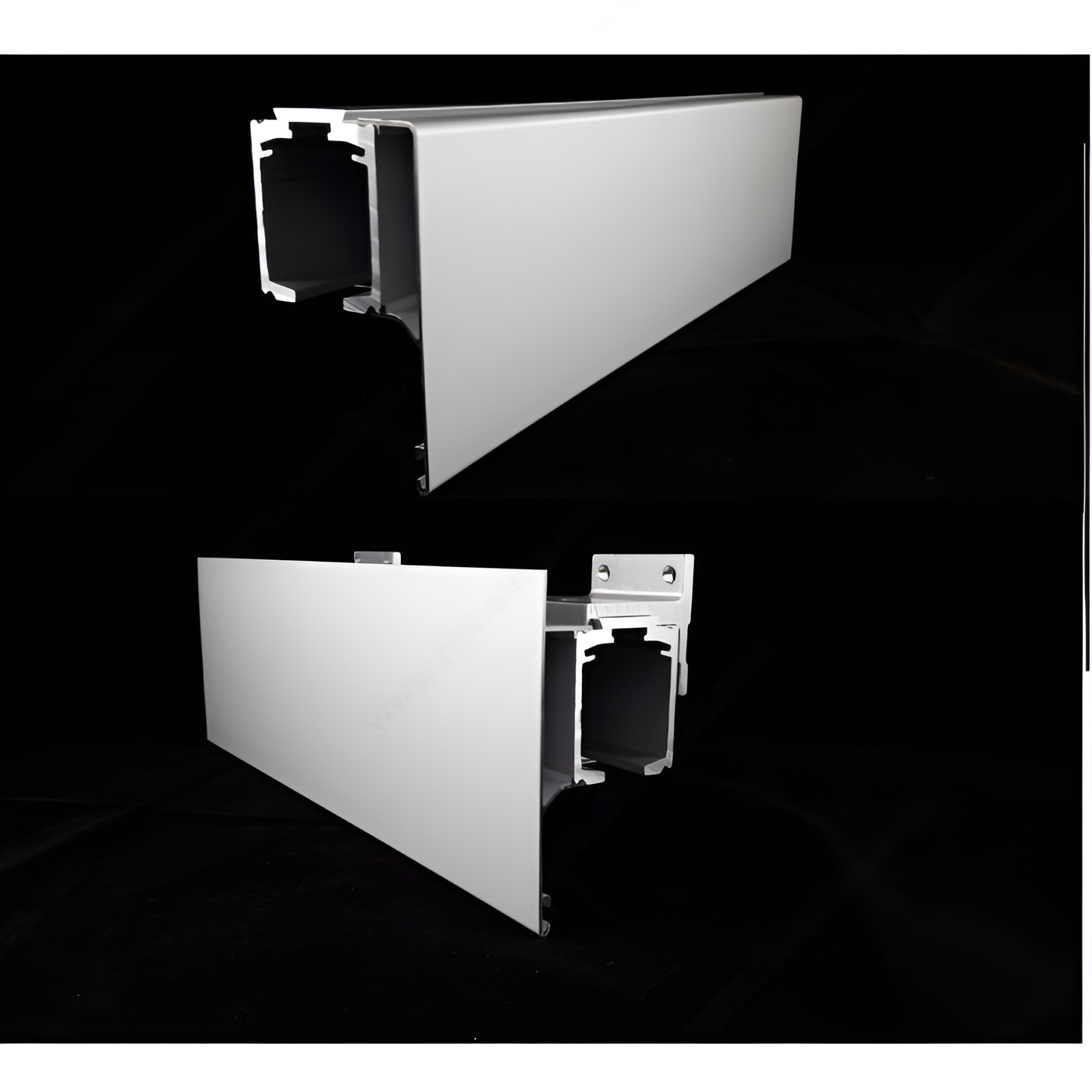

- Designed for clip-on fascia
- Choose from 3 track lengths:
o 2000 mm (78 3/4 in)
o 3000 mm (118 in)
o 4000 mm (157 in)
- Three bracket sizes to wall mount tracks, for maximum door thickness 45 mm (1 3/4 in) sold separately
- Spacer profile for single tracks to assemble as double and triple tracks
- Simple and Flexible installations
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Application: Closet and Walk-In Closet, Standard Access Door
Compatible with: RO 82
Detailed Door Movement: Single sliding, Bypassing, Biparting
Door Installation: Top Hung
Door Movement: Straight Sliding, Movable Wall
Door Thickness: 23/32 to 1 25/32 in*
Finish: Anodized Aluminum
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Overall Height: 1 11/16 in*
Overall Length: 2 000 mm
Product #: 891959A210
Product type: Track
Product №: 891959A210
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 33.1 to 220 lb*
Width: 1 11/32 in*
