Richelieu 891959A310 RO 82 Track Series InstructionsRichelieu 891959A310 RO 82 Track Series is expertly designed for mounting doors weighing up to 100 kg (220 lb) on both ceilings and walls, making it an ideal choice for various applications, including closets and walk-in spaces. This robust system accommodates a range of door thicknesses from 23/32 to 1 25/32 inches and features a sleek anodized aluminum finish that ensures durability and aesthetic appeal. Available in three track lengths-2000 mm (78 3/4 in), 3000 mm (118 in), and 4000 mm (157 in)-the RO 82 Track Series provides flexibility to suit different installations. Its clip-on fascia design enhances visual appeal, while the option to use spacer profiles allows for single tracks to be configured as double or triple tracks. Installation is straightforward, with three bracket sizes available for wall mounting tracks, accommodating a maximum door thickness of 45 mm (1 3/4 in). The upper roller position and box track type ensure smooth operation for single sliding, bypassing, and biparting door movements. Crafted from high-quality aluminum, the overall height is 1 11/16 inches, and the width measures 1 11/32 inches, making it a versatile choice for modern architectural needs. For optimal results, metric dimensions are recommended during installation.

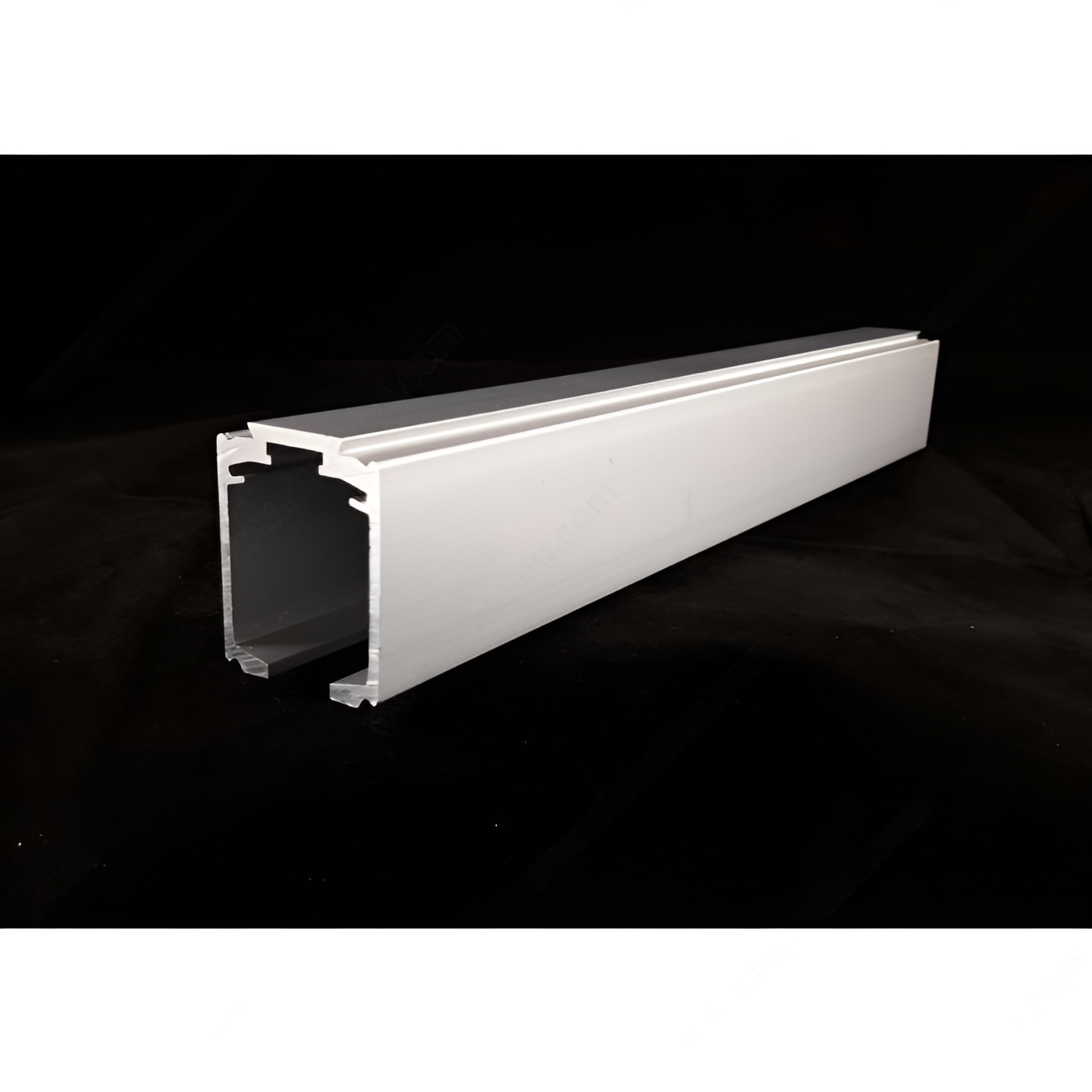

RO 82 Track Series
The RO 82 Track Series for mounting to the ceiling and wall for doors weighing up to 100 kg (220 lb) each.
Features:
- Designed for clip-on fascia
- Choose from 3 track lengths:
o 2000 mm (78 3/4 in)
o 3000 mm (118 in)
o 4000 mm (157 in)
- Three bracket sizes to wall mount tracks, for maximum door thickness 45 mm (1 3/4 in) sold separately
- Spacer profile for single tracks to assemble as double and triple tracks
- Simple and Flexible installations
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Compatible with: RO 82
Detailed Door Movement: Single sliding, Bypassing, Biparting
Door Installation: Top Hung
Door Movement: Straight Sliding, Movable Wall
Door Thickness: 23/32 to 1 25/32 in*
Finish: Anodized Aluminum
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Overall Height: 1 11/16 in*
Overall Length: 3 000 mm
Product #: 891959A310
Product type: Track
Product №: 891959A310
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 33.1 to 220 lb*
Width: 1 11/32 in*
