Richelieu 892138 RO 82 Wall Brackets for Upper Track provide a robust solution for wall mounting upper door tracks, ensuring a secure installation for a variety of sliding door applications. These brackets are available in two sizes, allowing you to choose the optimal fit based on your door thickness and the desired wall projection. Sold in convenient bags of 10, they are designed for efficient installation. The RO 82 brackets accommodate door thicknesses ranging from 23/32 to 1 9/16 inches and support a substantial load capacity of up to 220 pounds. Ideal for top-hung door systems, these brackets are compatible specifically with the RO 82 track system, making them a versatile choice for single sliding and biparting door movements. For proper installation, the maximum mount spacing varies with track lengths: 257 mm (10 1/8 in) for 2.0m (78 in) and 4.0m (157 in) tracks, and 311 mm (12 1/4 in) for the 3.0m (118 in) track. Made from durable aluminum, these wall brackets combine strength and reliability, making them an essential component for any professional-grade glazing project. Elevate your door installations with Richelieu’s dependable RO 82 Wall Brackets.

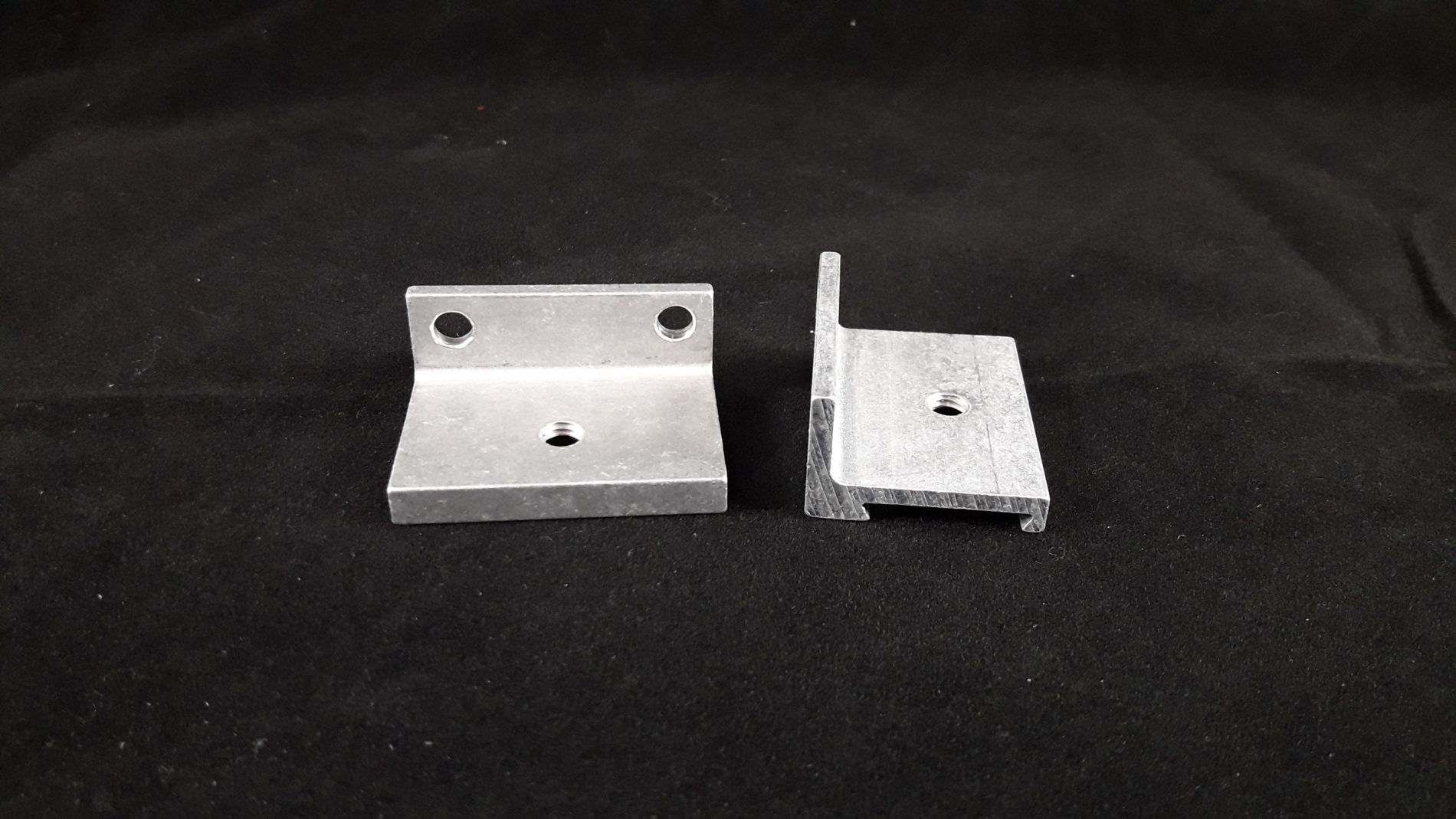

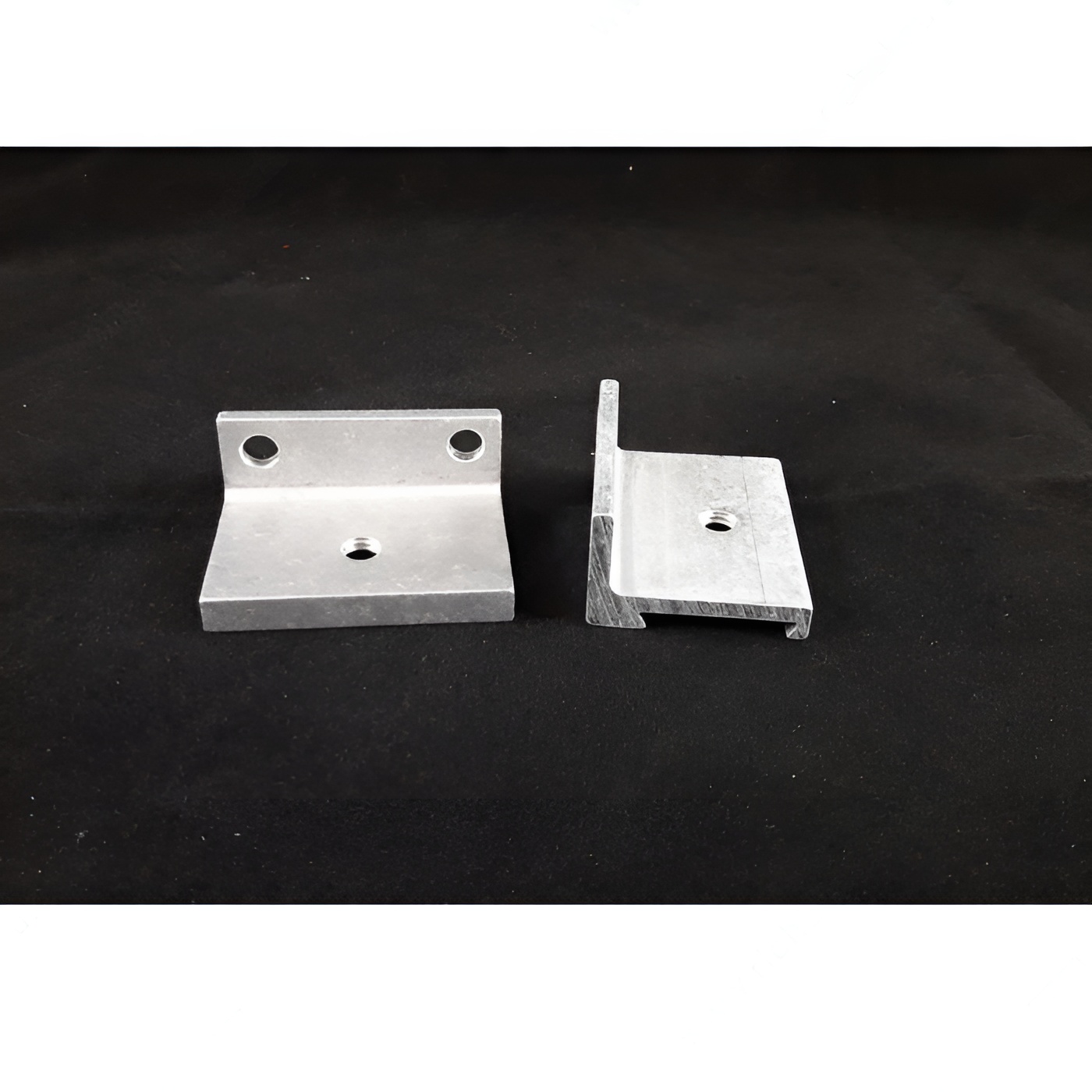

RO 82 Wall Brackets for Upper Track
Application: Standard Access Door, Barn Door
Compatible with: RO 82
Detailed Door Movement: Single sliding, Biparting
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 23/32 to 1 9/16 in*
Length: 3 15/16 in*
Length - Overall Dimensions: 3 15/16 in*
Load Capacity: 220 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 3 15/16 in*
Product #: 892138
Product type: Bracket
Product №: 892138
Roller Position: Upper
Running Track Fixing: Bracket
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Weight Capacity per Door: 220 lb*
