Richelieu 8925441 HAWA JUNIOR Removable Track Series InstructionsRichelieu 8925441 HAWA JUNIOR Removable Track Series is expertly crafted for sliding pocket doors, accommodating weights of up to 264 lb (120 kg) each. This versatile track system is designed for use with a range of sliding systems, including HAWA JUNIOR 80/Z, 80/B mod., 100/Z, 100/B, 120/A, and 120/B, ensuring compatibility in various applications. Key features include a design that allows for clip-on cover panels, making it simple to achieve a polished finish. The removable nature of this track facilitates easy installation and adjustment during different construction phases, enhancing flexibility on the job site. Available in two lengths-78 3/4 in (2 m) and 118 in (3 m)-the track caters to diverse project needs. With a load capacity ranging from 176 to 220 lb, this system is well-suited for wood doors with thicknesses between 1 3/8 in and 1 9/16 in, and widths from 23 7/8 in to 59 in. The overall height of the track is 2 1/16 in, and it is designed for recessed mounting inside the ceiling, providing a clean aesthetic. Soft-close mechanisms can be added separately, enhancing the user experience and ensuring quiet operation.

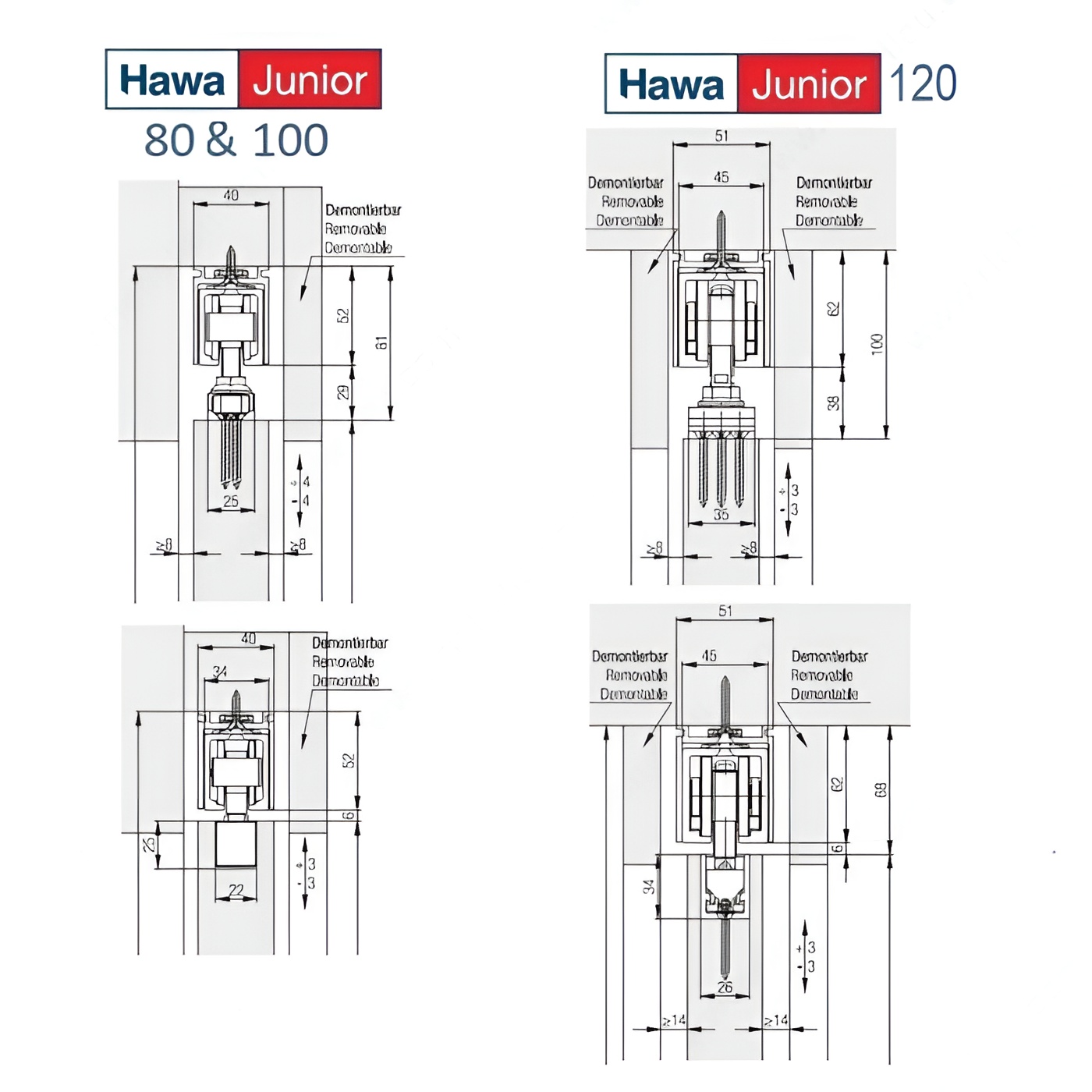

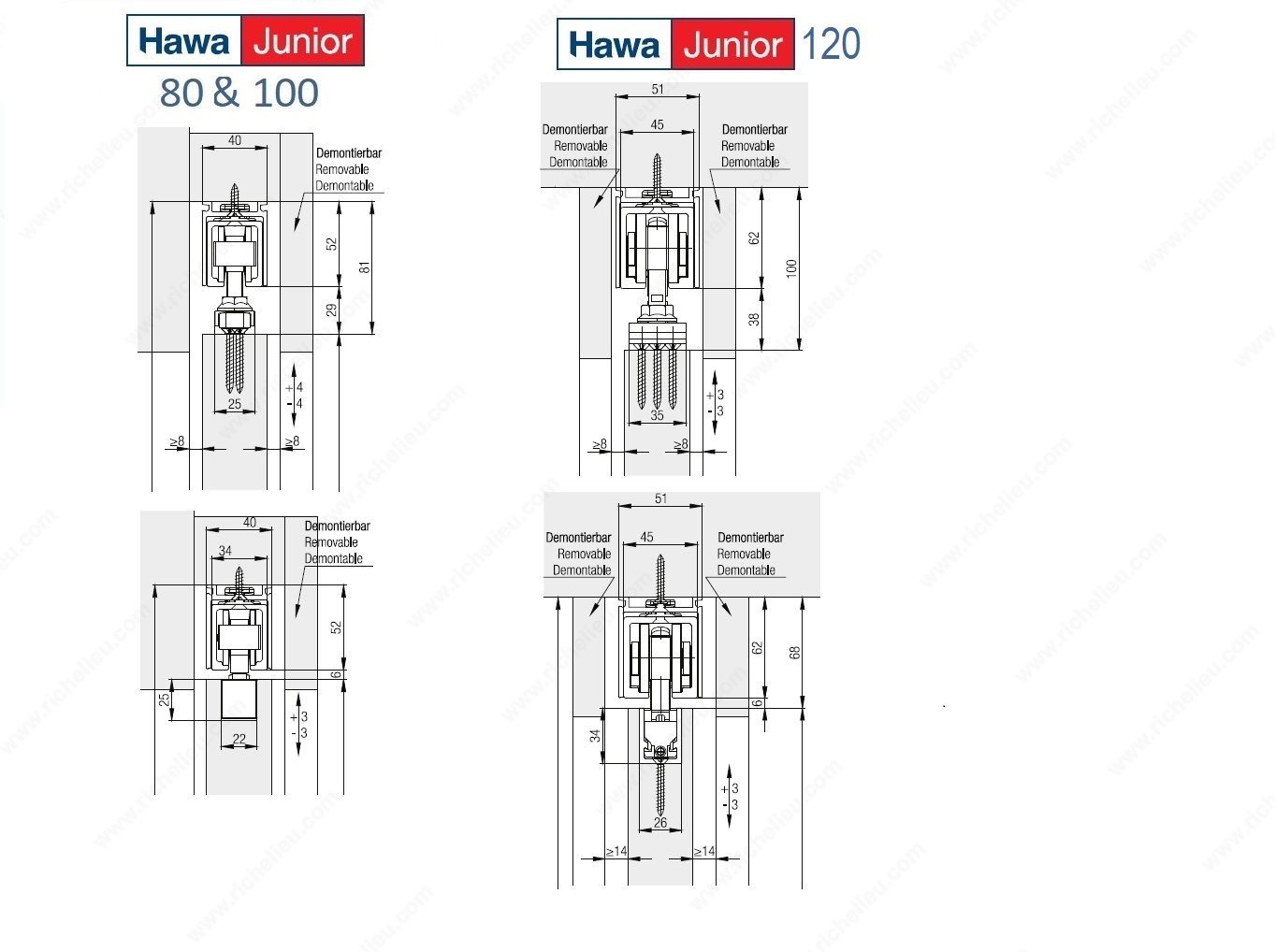

HAWA JUNIOR Removable Track Series
The HAWA JUNIOR Removable Track Series is designed for sliding pocket doors weighing up to 264 lb (120 kg) each.
Features:
- For sliding systems HAWA JUNIOR 80/Z, 80/B mod., 100/Z, 100/B, 120/A, and 120/B
- Designed for clip-on cover panels
- Can be easily removed for various stages of installation during construction
- Available in 78 3/4 in (2 m) and 118 in (3 m) lengths
- Soft-close mechanisms available (sold separately)
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Pocket Door
Detailed Door Movement: Single sliding
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 40 mm
Door Width: 608 to 1 500 mm
Height: 2 1/16 in*
Length: 3 035 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 176 to 220 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 2 1/16 in*
Overall Length: 3 000 mm
Product #: 8925441
Product type: Running and Guiding Tracks
Product №: 8925441
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Recessed
Weight Capacity per Door: 80 to 100 kg
