Richelieu 8927672 HAWA JUNIOR 80/100 Track Series InstructionsRichelieu 8927672 HAWA JUNIOR 80/100 Track Series offers a robust solution for sliding door systems, accommodating doors weighing up to 220 lb (100 kg). This versatile track series is designed for both ceiling and wall mounts, ensuring flexibility in various applications. It supports sliding systems including HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B, making it an ideal choice for standard access doors. Available in three lengths-78 3/4 in (2 m), 98 3/8 in (2.5 m), and 118 in (3 m)-this track series allows for tailored installations to meet your specific needs. The wall mount tracks install directly onto the wall, and an optional spacer profile is available for enhanced clearance. Additionally, the installation process is straightforward and adaptable, facilitating a seamless setup. Constructed from durable aluminum, the HAWA JUNIOR track series ensures long-lasting performance. It is designed for single sliding doors, with maximum door thickness of 1 3/16 in and width ranging from 23 7/8 to 59 in. For added convenience, soft-close mechanisms can be purchased separately, enhancing the user experience. Remember to use metric dimensions for optimal accuracy during installation.

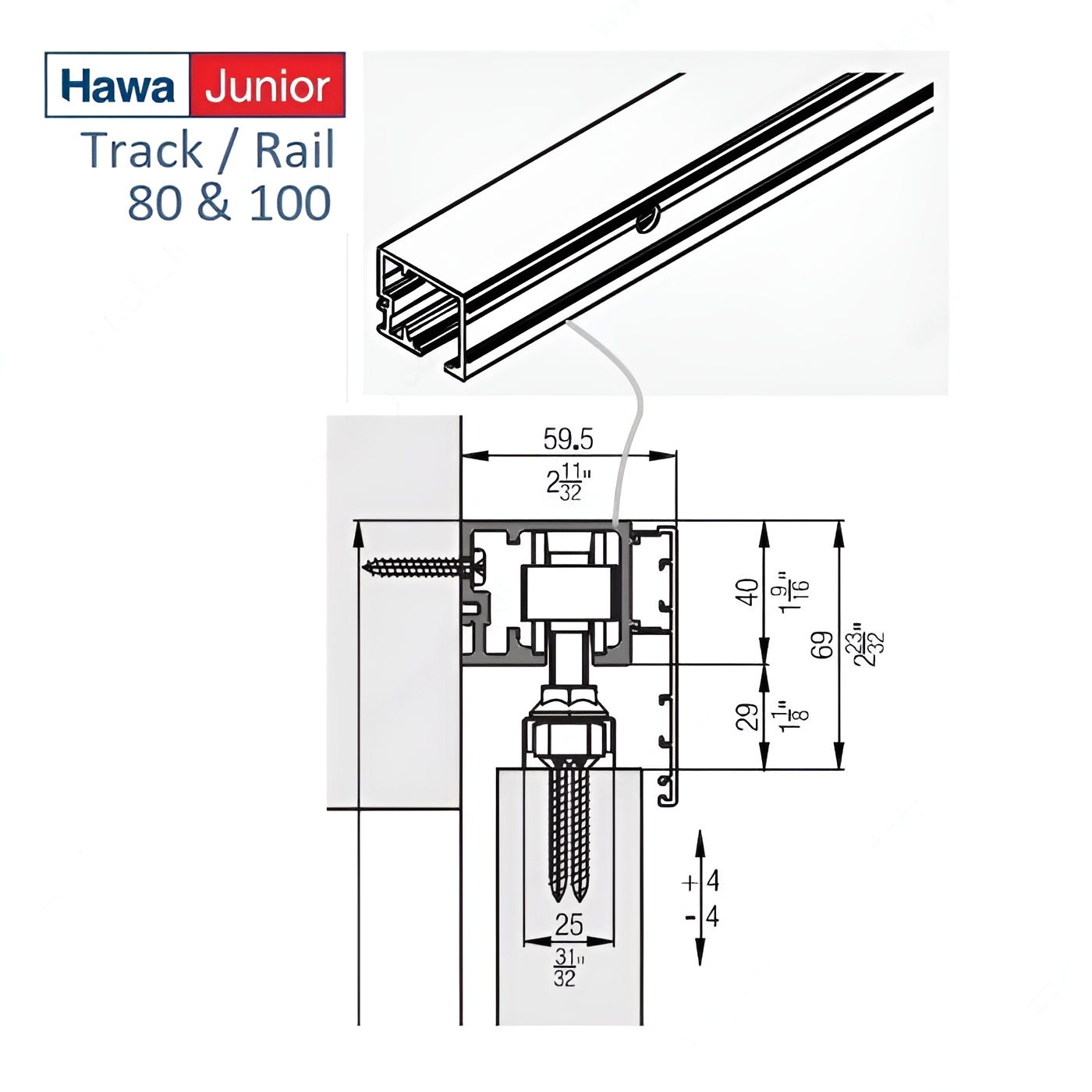

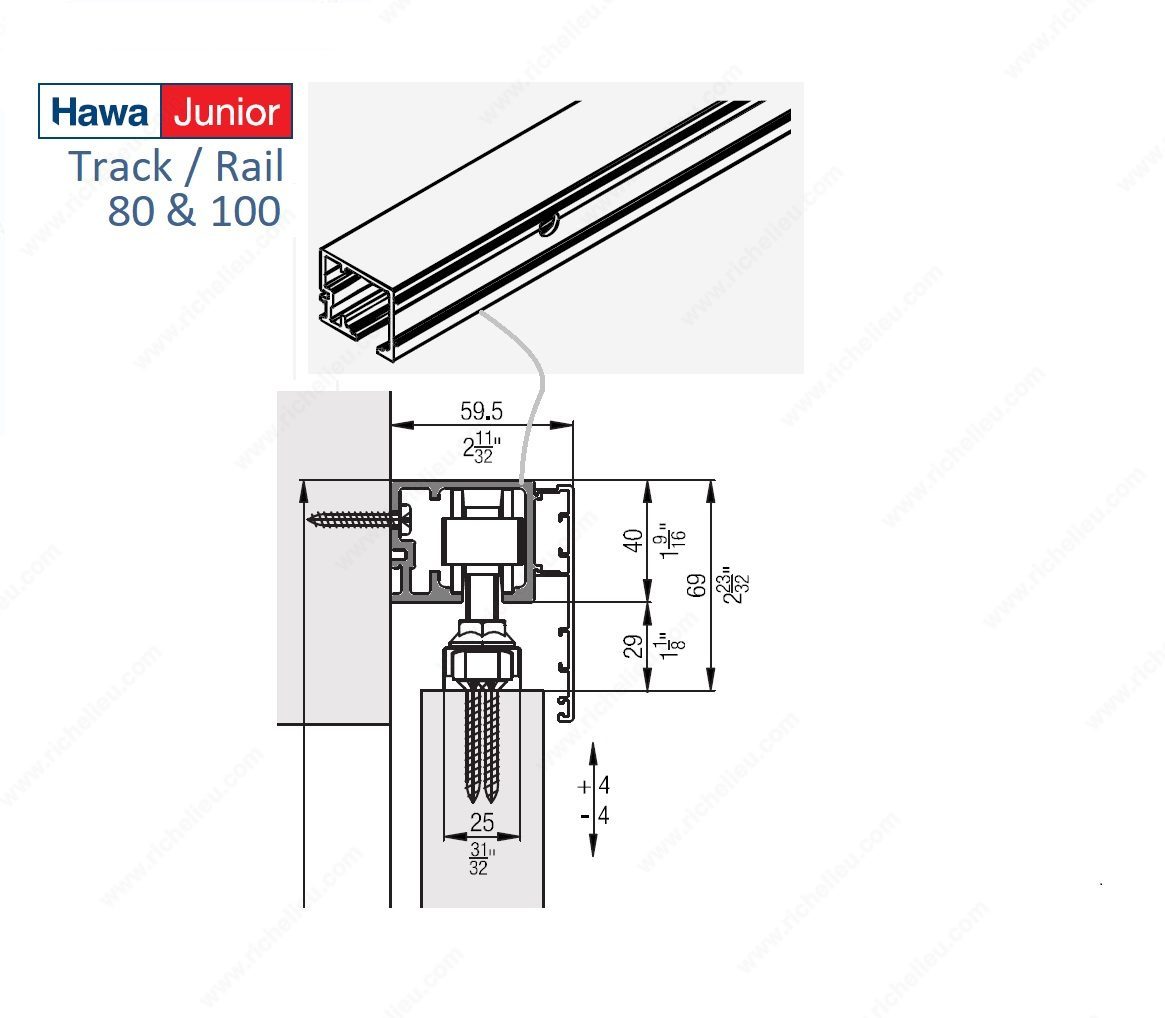

HAWA JUNIOR 80/100 Track Series
The HAWA JUNIOR 80/100 Track Series is designed for ceiling and wall mount doors weighing up to 220 lb (100 kg) each.
Features:
- For sliding systems HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B
- Surface and Recessed mount tracks
- Wall mount tracks are mounted directly to the wall; a spacer profile is available (sold separately) for greater clearance
- Available in 78 3/4 in (2 m), 98 3/8 in (2.5 m) and 118 in (3 m) lengths
- Soft-close mechanisms available (sold separately)
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Single sliding
Door Height: 4 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Max. 30 mm
Door Width: 608 to 1 500 mm
Height: 40 mm
Length: 3 000 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 220 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 1 9/16 in*
Overall Length: 3 000 mm
Product #: 8927672
Product number: 8927672
Product type: Running and Guiding Tracks
Product №: 8927672
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Wall Mount
Unit: Length
Weight Capacity per Panel: 100 kg
Width: 49.5 mm
