Richelieu 8927673 HAWA JUNIOR 80/100 Track Series InstructionsRichelieu 8927673 HAWA JUNIOR 80/100 Track Series offers a robust solution for ceiling and wall mount sliding doors, accommodating weights of up to 220 lb (100 kg) per door. This versatile track series is compatible with various sliding systems, including HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B, ensuring flexibility in design and application. Available in three convenient lengths-78 3/4 in (2 m), 98 3/8 in (2.5 m), and 118 in (3 m)-the HAWA JUNIOR tracks can be installed as surface or recessed mount options. Wall mount tracks attach directly to the wall, with an optional spacer profile available for enhanced clearance. The installation process is straightforward, allowing for efficient setup in both professional and residential settings. Designed for single sliding movement, this track series is suitable for doors with a maximum height of 13 ft 1 in and thickness of up to 1 3/16 in. The door width can range from 23 7/8 to 39 3/8 in, while the overall height of the track measures 1 9/16 in, with a width of 1 15/16 in. Enhance your space with the reliability and stylish functionality of the Richelieu HAWA JUNIOR 80/100 Track Series.
HAWA JUNIOR 80/100 Track Series
The HAWA JUNIOR 80/100 Track Series is designed for ceiling and wall mount doors weighing up to 220 lb (100 kg) each.
Features:
- For sliding systems HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B
- Surface and Recessed mount tracks

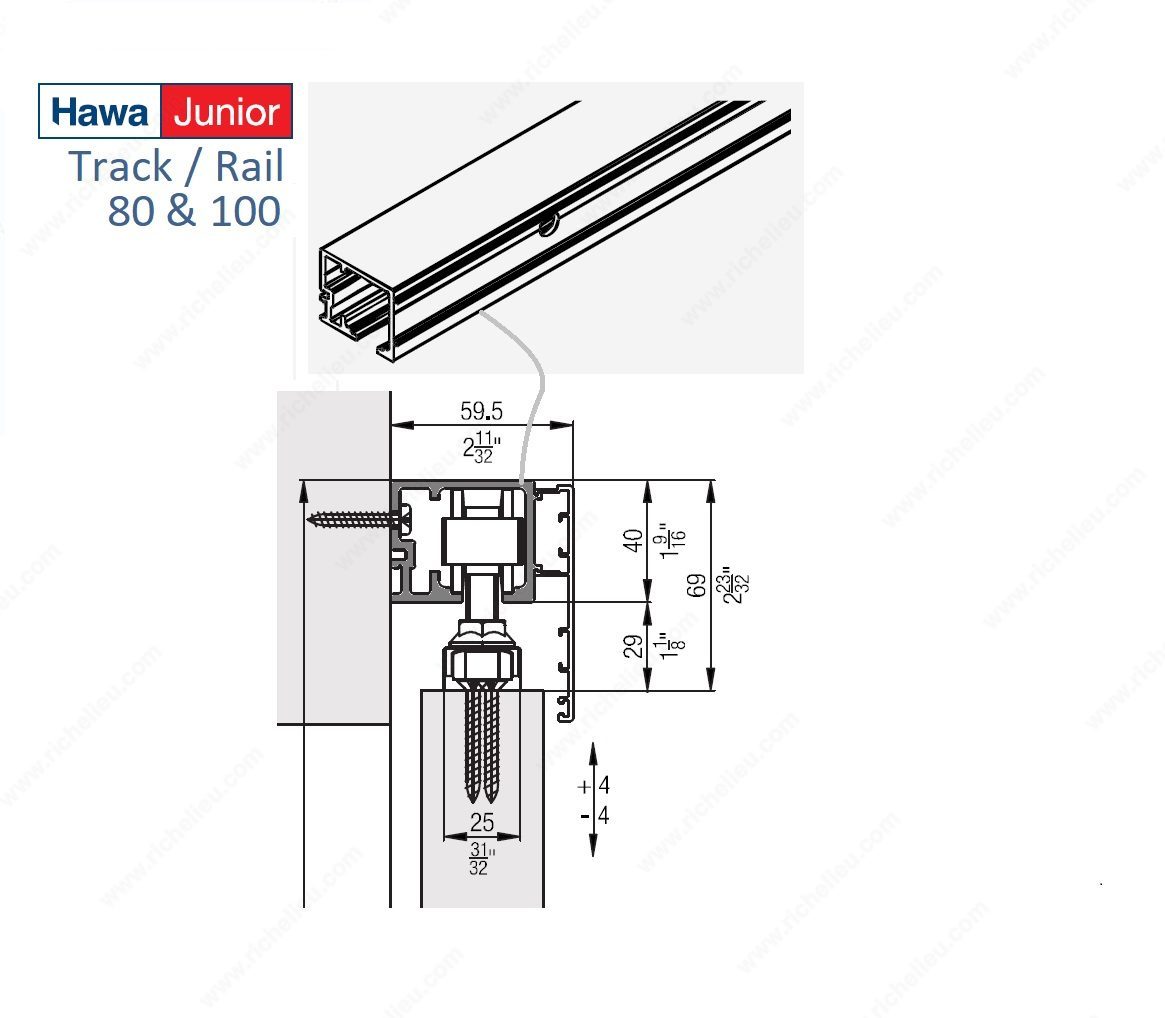

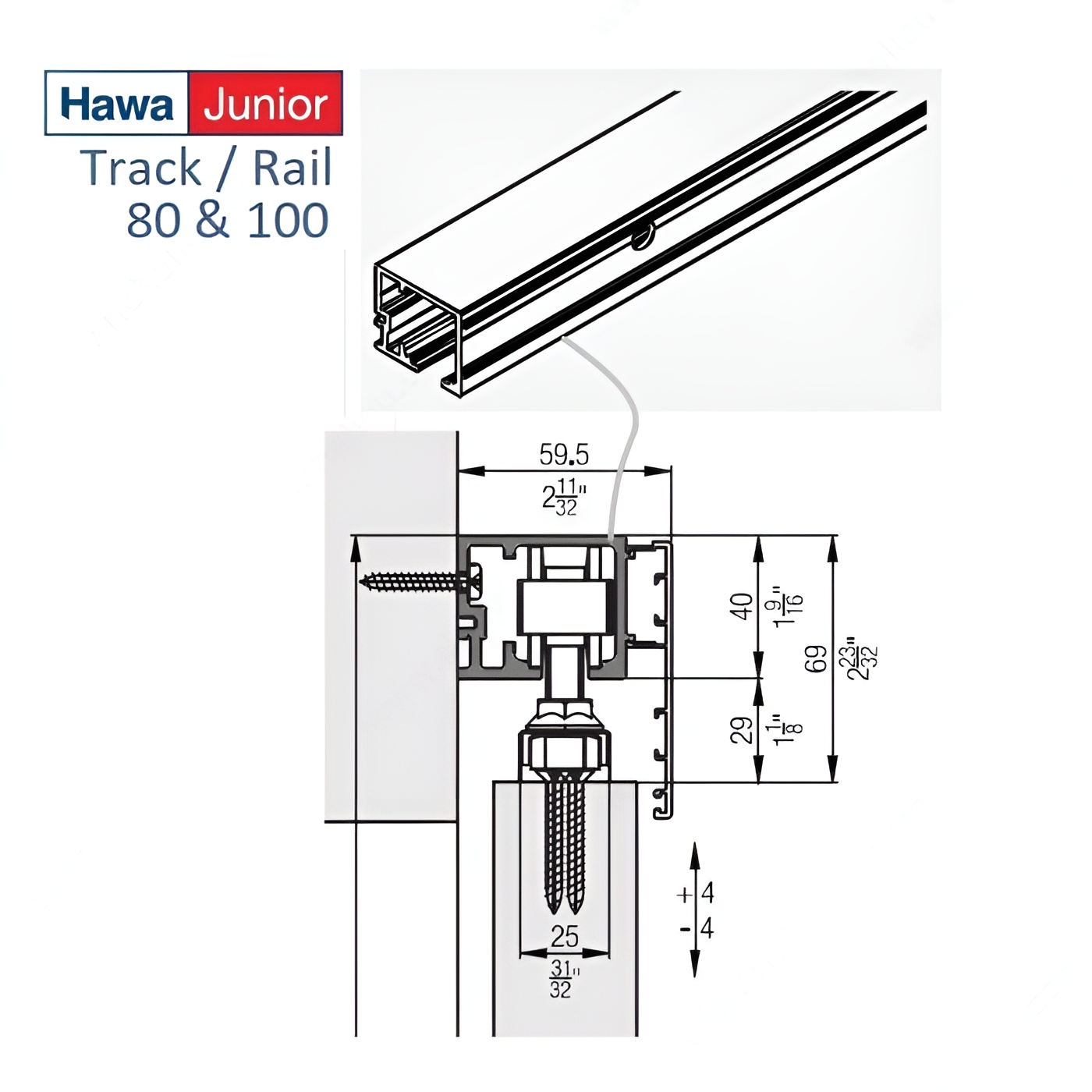

- Wall mount tracks are mounted directly to the wall; a spacer profile is available (sold separately) for greater clearance
- Available in 78 3/4 in (2 m), 98 3/8 in (2.5 m) and 118 in (3 m) lengths
- Soft-close mechanisms available (sold separately)
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Single sliding
Door Height: 4 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Max. 30 mm
Door Width: 608 to 1 000 mm
Height: 40 mm
Length: 2 000 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 220 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 1 9/16 in*
Overall Length: 2 000 mm
Product #: 8927673
Product number: 8927673
Product type: Running and Guiding Tracks
Product №: 8927673
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Wall Mount
Unit: Length
Weight Capacity per Panel: 100 kg
Width: 49.5 mm
