Richelieu 8927676 HAWA Junior 80/100 Track Series InstructionsRichelieu 8927676 HAWA JUNIOR 80/100 Track Series delivers a robust solution for heavy-duty sliding doors, accommodating weights of up to 220 lb (100 kg). This track series is perfect for both ceiling and wall-mounted applications, making it versatile for various spaces. It supports sliding systems including the HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B, ensuring compatibility with a range of door styles. Available in lengths of 78 3/4 in (2 m), 98 3/8 in (2.5 m), and 118 in (3 m), this track system allows for customization based on your project needs. The tracks can be surface or recessed mounted, and wall-mounted tracks can be installed directly to the wall; for added clearance, a spacer profile is available (sold separately). With a simple and flexible installation process, the HAWA JUNIOR 80/100 Track Series is designed for efficient door movement, supporting single sliding operations with doors up to 13 ft 1 in in height and a maximum thickness of 1 3/16 in. Crafted from durable aluminum, this track system combines functionality and strength, making it an ideal choice for standard access doors in residential or commercial settings.

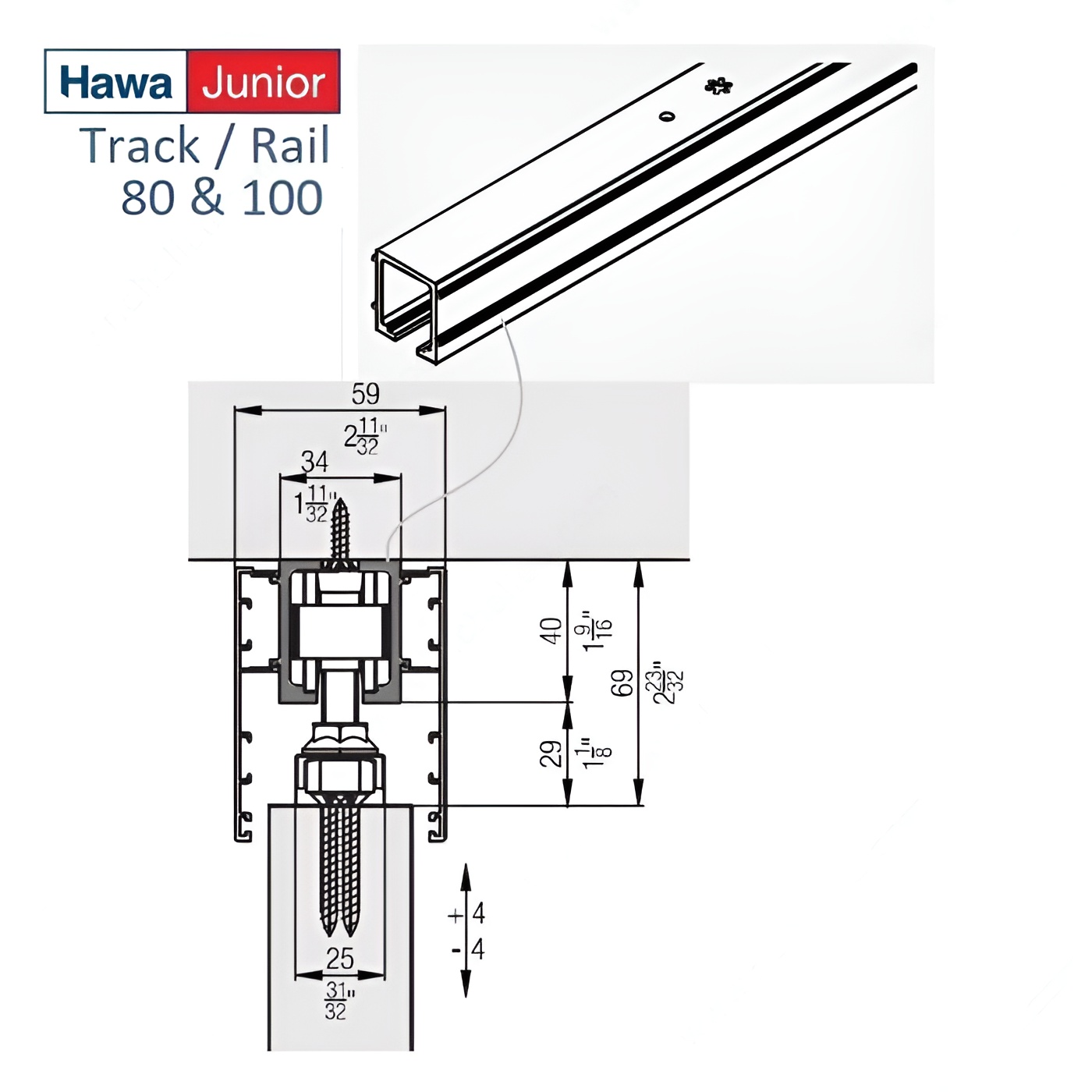

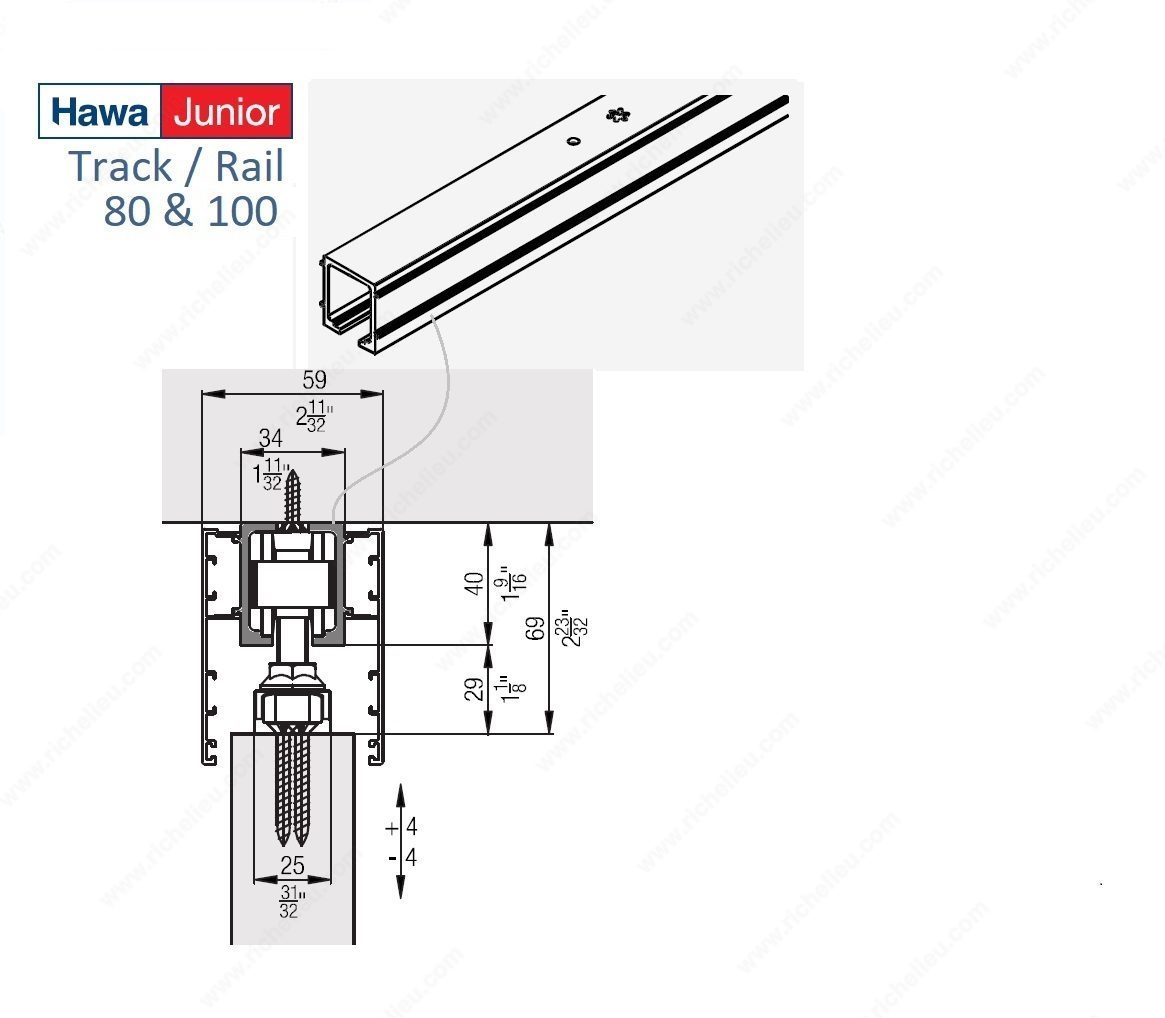

HAWA JUNIOR 80/100 Track Series
The HAWA JUNIOR 80/100 Track Series is designed for ceiling and wall mount doors weighing up to 220 lb (100 kg) each.
Features:
- For sliding systems HAWA JUNIOR 80/Z, 80/B mod., 100/Z, and 100/B
- Surface and Recessed mount tracks
- Wall mount tracks are mounted directly to the wall; a spacer profile is available (sold separately) for greater clearance
- Available in 78 3/4 in (2 m), 98 3/8 in (2.5 m) and 118 in (3 m) lengths
- Soft-close mechanisms available (sold separately)
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Single sliding
Door Height: 4 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Max. 30 mm
Door Width: 608 to 1 500 mm
Height: 40 mm
Length: 3 000 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 220 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 1 9/16 in*
Overall Length: 3 000 mm
Product #: 8927676
Product number: 8927676
Product type: Running and Guiding Tracks
Product №: 8927676
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Unit: Length
Weight Capacity per Panel: 100 kg
Width: 39 mm
