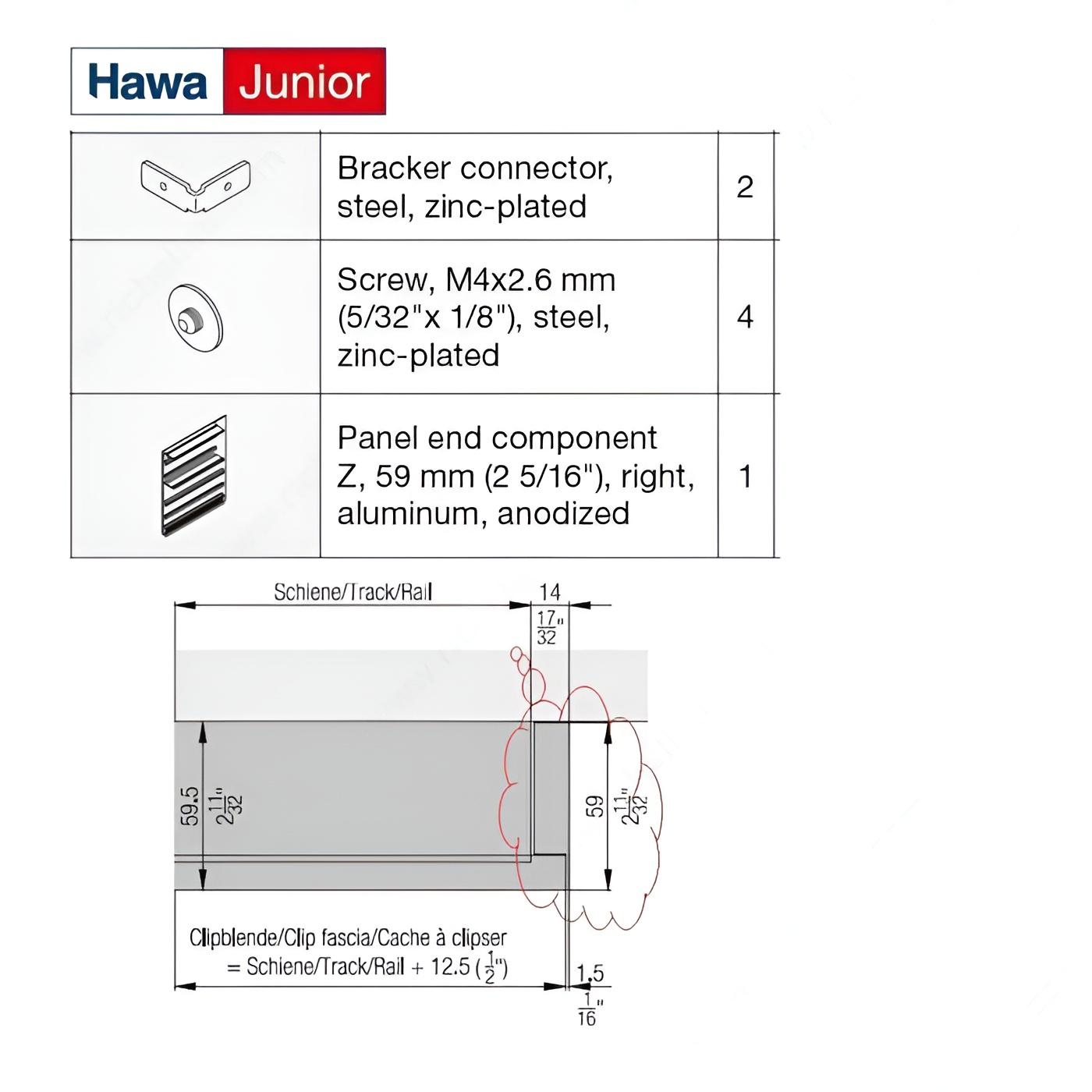

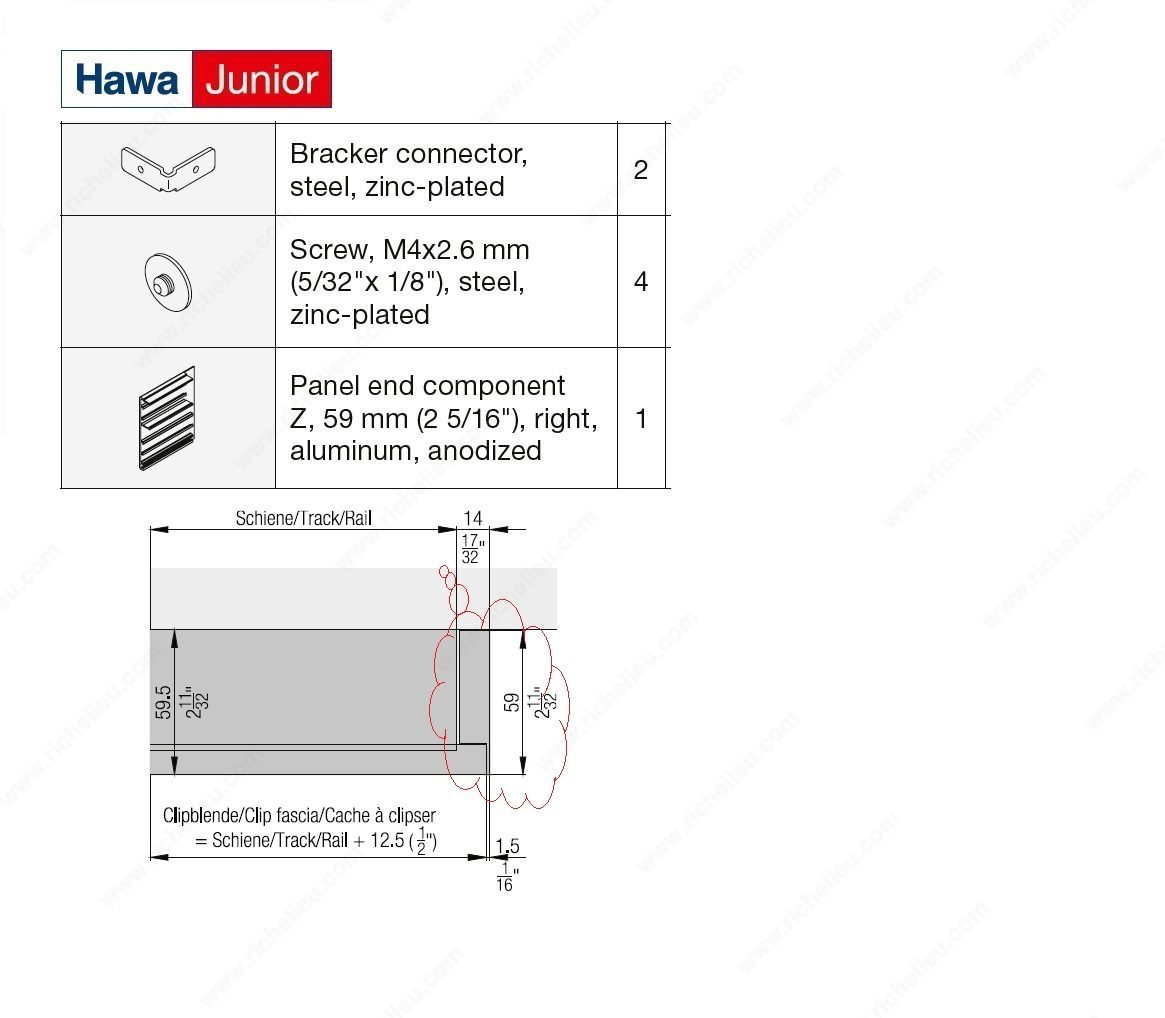

Richelieu 8930142 HAWA JUNIOR End Caps are expertly crafted to complement ceiling and wall-mounted HAWA JUNIOR 80 and 100 tracks with fascia. With a sleek aluminum finish, these end caps not only enhance the aesthetic appeal of your sliding door system but also ensure a seamless integration with your design. Designed for standard access doors, each package includes one end cap, two brackets, and four set screws, providing everything you need for straightforward installation. It’s essential to use metric dimensions for enhanced accuracy during the setup process. The HAWA JUNIOR End Caps support single sliding doors made of glass, ensuring smooth and efficient operation. With a maximum door thickness of 1 3/16 inches and a door projection of 2 5/16 inches, these end caps provide the right balance of functionality and style. The overall dimensions are practical, with an overall height of 2 23/32 inches and a width of 3 1/32 inches. Compatible with Hawa Junior 80/100 Z models, these end caps are perfect for creating a polished look in residential or commercial spaces. Trust in Richelieu’s quality to elevate your sliding door systems effortlessly.
HAWA JUNIOR End Caps
Included products
Application: Standard Access Door
Brand: Junior 80/100
Brand Model: Hawa Junior 80/100
Compatible with: Hawa Junior 80/100 Z
Detailed Door Movement: Single sliding
Door Installation: Right Cap
Door Material: Glass
Door Movement: Straight Sliding
Door Projection: 49 mm
Door Thickness: Max. 30 mm
Height: 59 mm
Length: 14 mm
Length - Overall Dimensions: 9/16 in*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 2 23/32 in*
Overall Length: 9/16 in*
Packaging format: Per unit
Product #: 8930142
Product number: 8930142
Product type: Running and Guiding Tracks
Product №: 8930142
Track Mounting: Ceiling Mount
Width: 77 mm
