Richelieu 8930144 HAWA JUNIOR End Caps are expertly crafted to enhance the functionality and aesthetics of HAWA JUNIOR 80 and 100 tracks, designed for both ceiling and wall mounting. These end caps feature a matching aluminum finish that seamlessly integrates with your installation, ensuring a polished and professional appearance. Included with each unit are essential components for installation: one end cap, two brackets, and four set screws, providing everything you need for a complete setup. The end caps support standard access doors with single sliding movement, specifically designed for glass doors with a maximum thickness of 1 3/16 inches. With a door projection of 2 19/32 inches, they facilitate smooth operation while maintaining a clean look. Measuring 2 23/32 inches in height and 3 1/32 inches in width, these end caps are compact yet robust. They are compatible with the HAWA JUNIOR 80/100 Z models, making them an excellent choice for various applications. For greater accuracy during installation, it is important to utilize metric dimensions. Richelieu’s commitment to quality ensures that these end caps not only meet but exceed industry standards, making them a reliable choice for building professionals and discerning homeowners alike.
HAWA JUNIOR End Caps

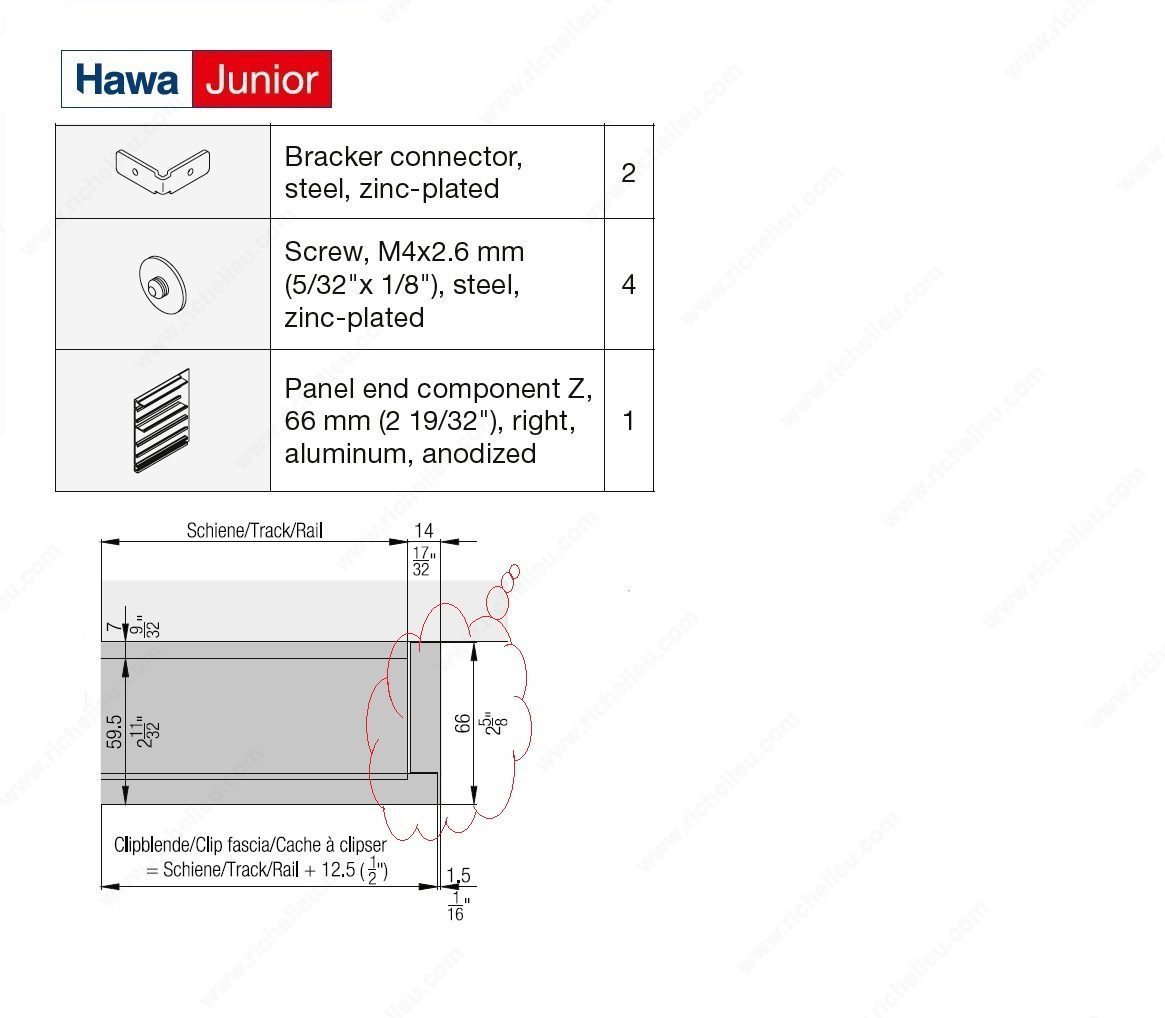

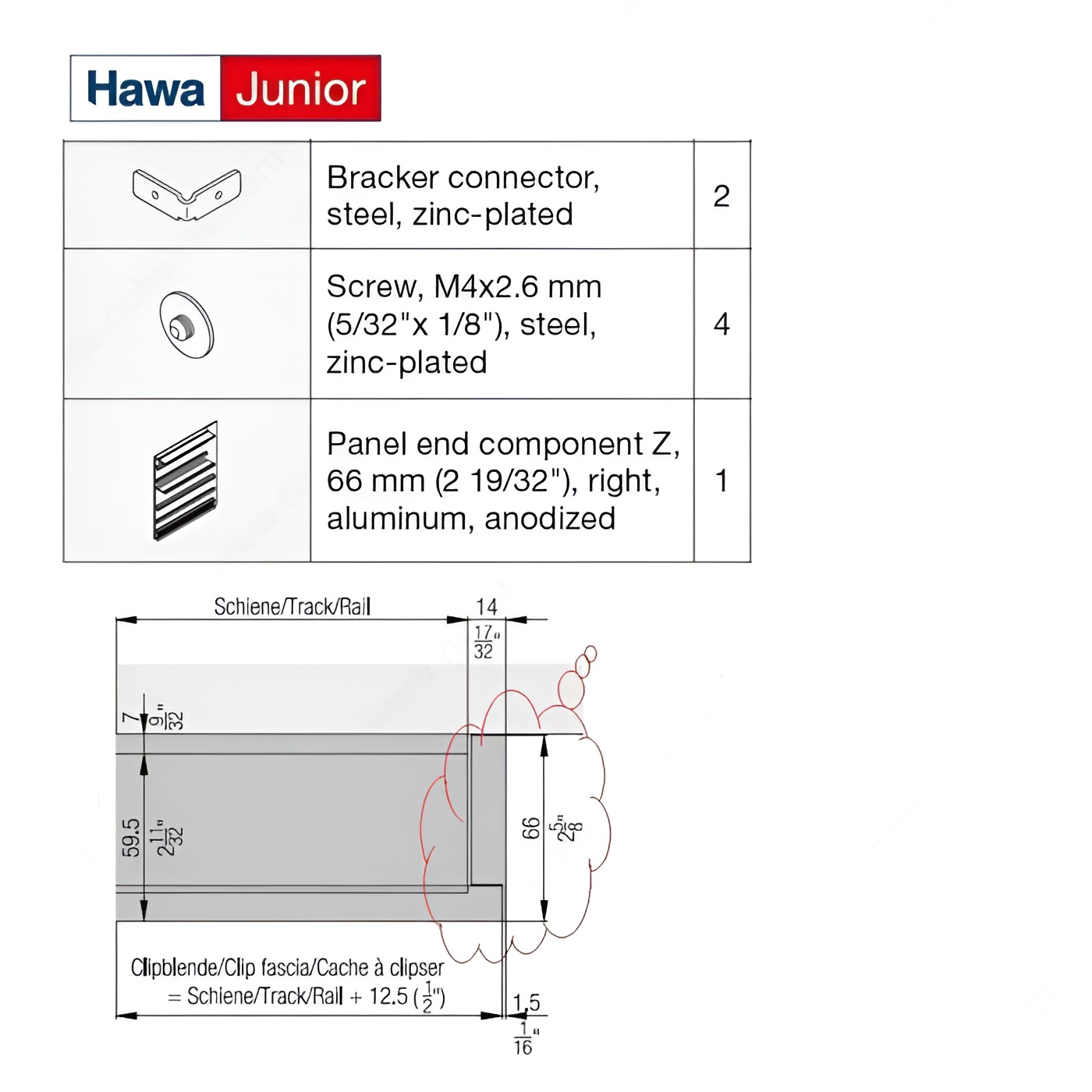

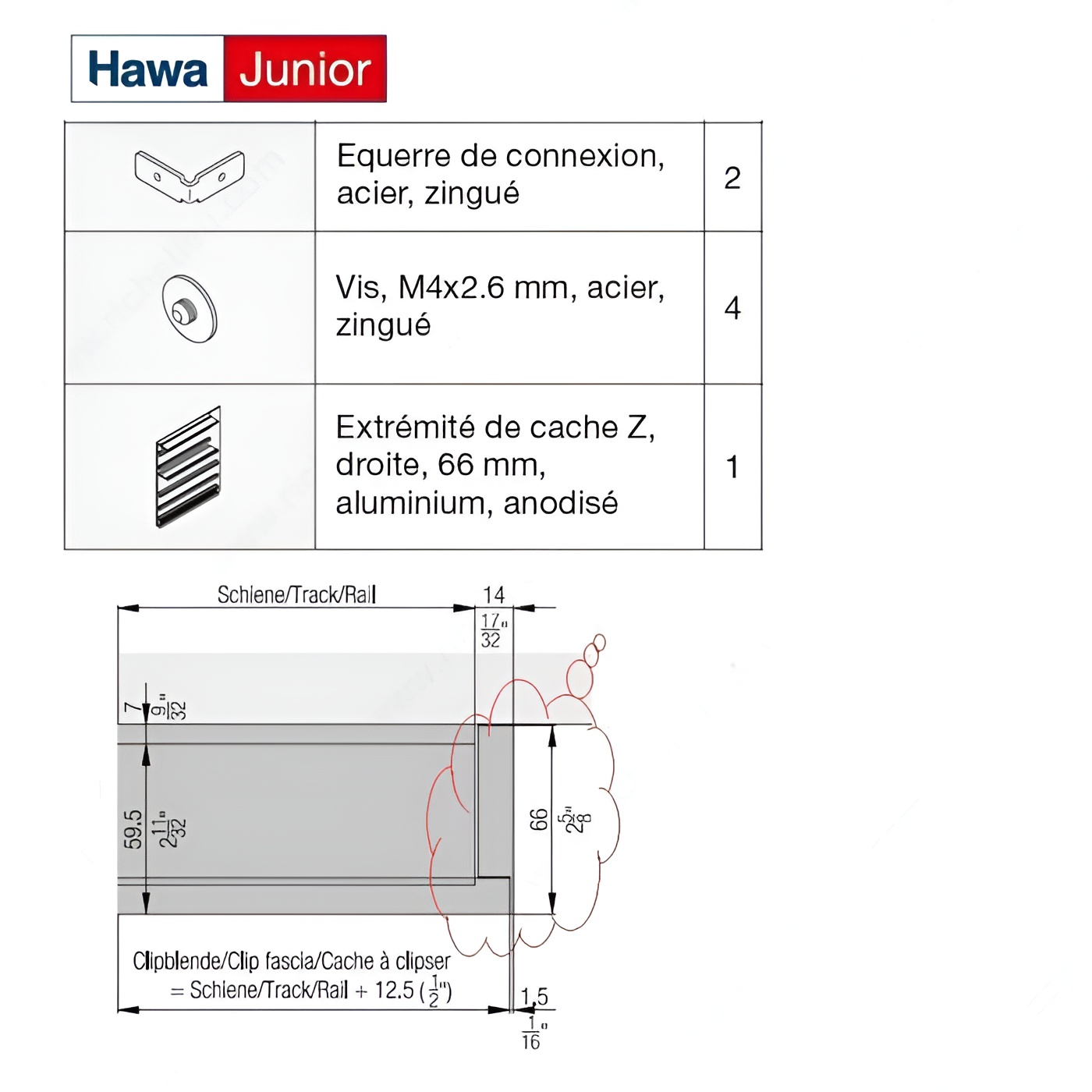

Included products
Application: Standard Access Door
Brand: Junior 80/100
Brand Model: Hawa Junior 80/100
Compatible with: Hawa Junior 80/100 Z
Detailed Door Movement: Single sliding
Door Installation: Right Cap
Door Material: Glass
Door Movement: Straight Sliding
Door Projection: 56 mm
Door Thickness: Max. 30 mm
Height: 66 mm
Length: 14 mm
Length - Overall Dimensions: 9/16 in*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 2 23/32 in*
Overall Length: 9/16 in*
Packaging format: Per unit
Product #: 8930144
Product number: 8930144
Product type: Running and Guiding Tracks
Product №: 8930144
Track Mounting: Wall Mount
Width: 77 mm
