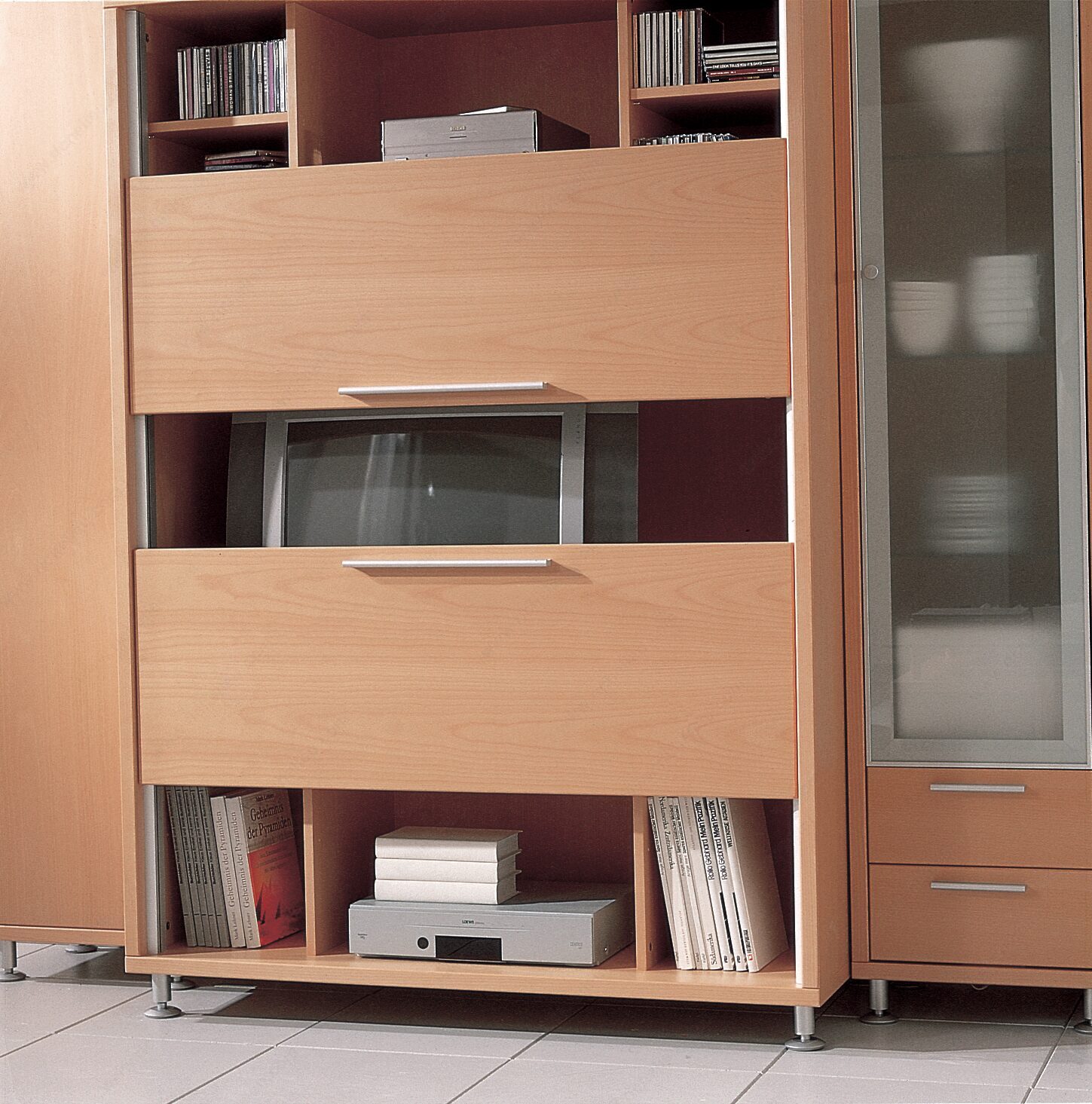

Richelieu 893015074 EKU LIBRA 20 H Synchro IS/FS Hardware Set offers an innovative solution for seamlessly integrating cabinet doors with its advanced cable and pulley system. This hardware set allows two doors to slide open simultaneously, utilizing a vertically biparting motion that enhances both functionality and aesthetics. Ideal for both inset (IS) and overlay (FS) applications, it ensures that each door acts as a counterweight, providing stability and ease of use. Designed for maximum efficiency, the EKU LIBRA accommodates cabinet widths up to 63 inches and door heights reaching 39 3/8 inches. It supports a load capacity of up to 44.1 pounds, making it a robust choice for various wood door materials. The set is compatible with door thicknesses between 5/8 and 31/32 inches, and it features a minimum frame size of 50 mm for aluminum profiles. With a versatile application for furniture and cabinetry, this hardware set is perfect for professionals seeking reliable, high-quality solutions. The aluminum construction ensures durability and longevity, while the thoughtful design simplifies installation and operation. Whether you're outfitting a new kitchen or upgrading existing cabinetry, the Richelieu EKU LIBRA 20 H hardware set is an exceptional choice for enhancing your space.
EKU LIBRA 20 H Synchro IS/FS Hardware Set
Application: Furniture, Cabinet
Brand: Hawa, EKU
Cabinet Width: Max. 1 600 mm
Detailed Door Movement: Synchronized Biparting
Door Height: Max. 1 000 mm
Door Material: Wood
Door Movement: Vertical
Door Position: Full Overlay, Inset/Inlay
Door Thickness: 16 to 25 mm
Door Width: Max. 1 600 mm
Load Capacity: Max. 44.1 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Product #: 893015074
Product number: 893015074
Product type: Hardware Set
Product №: 893015074
Track Material: Anodized Aluminum
Unit: Box
Usable with an Aluminum Profile: Minimum Frame Size: 50 mm
Weight Capacity per Door: Max. 20 kg
