Richelieu 8930151 HAWA JUNIOR 100 Basic Hardware SetRichelieu 8930151 HAWA JUNIOR 100 Basic Hardware Set is an essential solution for wood doors weighing up to 100 kg. This versatile set offers two installation options: the Junior 100 / Z surface mount suspension plate and the Junior 100 / B mortise/rebate suspension plate, catering to diverse design preferences. The inclusion of a floor mount rattle-free guide ensures smooth and quiet operation, enhancing user experience. Designed for single sliding applications, this hardware set accommodates door heights ranging from 72 7/8 to 157 inches and door widths between 25 5/8 and 59 inches. With a load capacity of 179 to 220 pounds, it is robust enough for various heavy-duty applications. The adjustable features of the set ensure a perfect fit, while the top-hung installation allows for seamless movement. Flexibility is key, as the HAWA JUNIOR 100 is compatible with different types of stops, including standard stops, SoftStop stoppers, Spring Stops, and Soft Close mechanisms, which can be ordered separately. The required upper trolleys (wheels) must also be purchased separately. Ensure accurate installation by using metric dimensions for optimal results. This hardware set is an excellent choice for building professionals and knowledgeable homeowners seeking reliability and quality.
HAWA JUNIOR 100 Basic Hardware Set

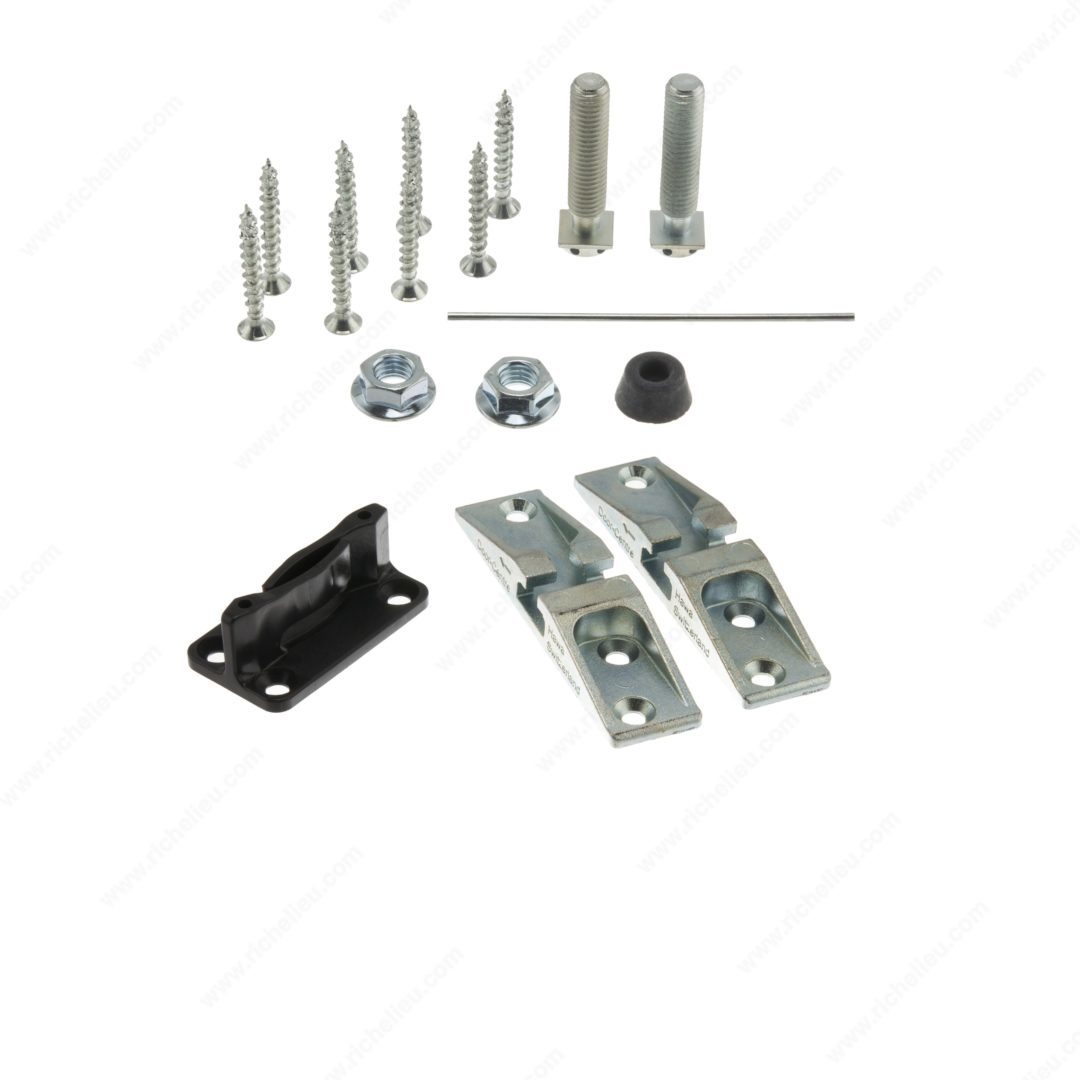

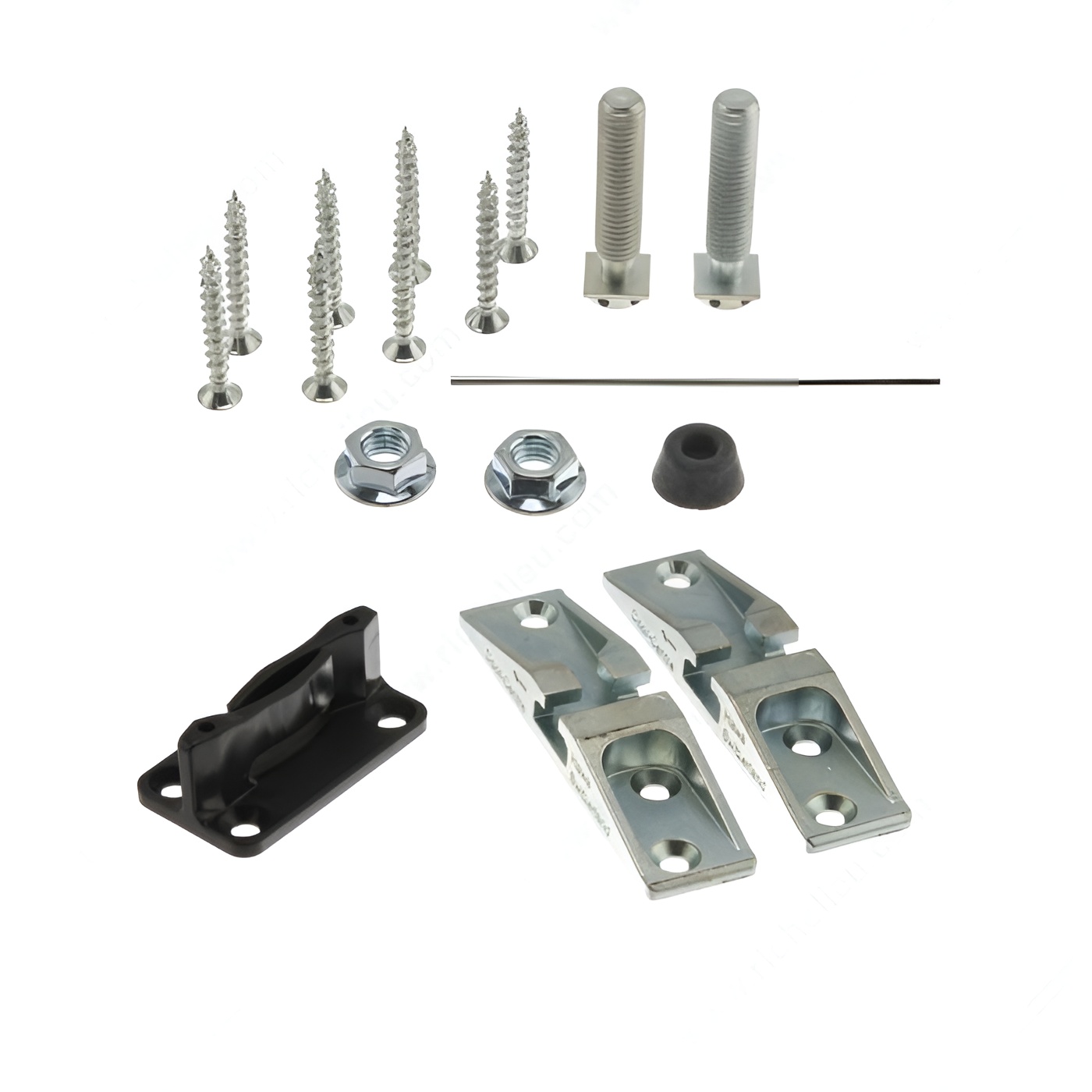

Hawa Junior 100 Basic hardware set for wood doors weighing up to 100 kg each.
Select from two types sets:
1) Junior 100 / Z surface mount suspension plate
2) Junior 100 / B mortise/rebate suspension plate
Includes floor mount rattle-free guide.
Compatible with various types of stops, standard stop, SoftStop stopper, Spring Stop and Soft Close mechanisms.
IMPORTANT: Upper trolleys (wheels) and type of stopper or soft close mechanism must be ordered separately.
Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Compatible with: Junior 100 / Z
Detailed Door Movement: Single sliding
Door Height: 1 850 to 4 000 mm
Door Installation: Top Hung
Door Movement: Straight Sliding
Door Thickness: 35 to 80 mm
Door Width: 650 to 1 500 mm
Load Capacity: 179 to 220 lb*
Number of Doors: 1
Product #: 8930151
Product type: Hardware Set
Product №: 8930151
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Stopper: None
Unit: Set
Weight Capacity per Door: 81 to 100 kg
