Richelieu 8930152 HAWA JUNIOR 100 Basic Hardware SetRichelieu 8930152 HAWA JUNIOR 100 Basic Hardware Set offers a robust solution for wood doors weighing up to 100 kg each, ensuring smooth and reliable operation in any space. This versatile set provides two mounting options: the Junior 100 / Z surface mount suspension plate and the Junior 100 / B mortise/rebate suspension plate, allowing for flexible installation to meet your specific needs. Designed for single sliding doors with a height range of 72 7/8 to 157 inches and a thickness of 1 3/8 to 3 5/32 inches, this hardware set accommodates door widths from 25 5/8 to 59 inches. The load capacity supports doors weighing between 179 to 220 lbs, making it ideal for various applications. Each set includes a floor mount rattle-free guide and is compatible with various stop options, such as the standard stop, SoftStop stopper, Spring Stop, and Soft Close mechanisms, although these must be ordered separately. The adjustable design and upper roller position enhance usability, while the top-hung installation ensures a clean aesthetic. For professionals and discerning homeowners alike, the HAWA JUNIOR 100 Basic Hardware Set stands out as a reliable choice for high-quality door solutions.
HAWA JUNIOR 100 Basic Hardware Set
Hawa Junior 100 Basic hardware set for wood doors weighing up to 100 kg each.
Select from two types sets:
1) Junior 100 / Z surface mount suspension plate
2) Junior 100 / B mortise/rebate suspension plate

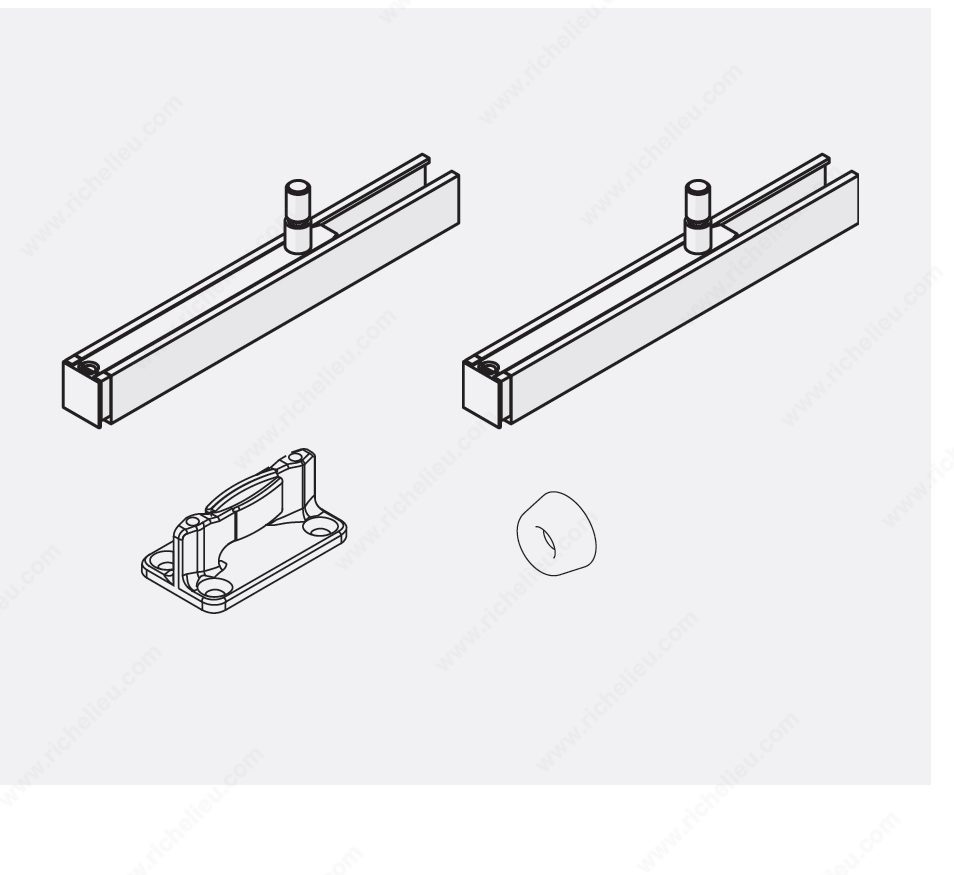

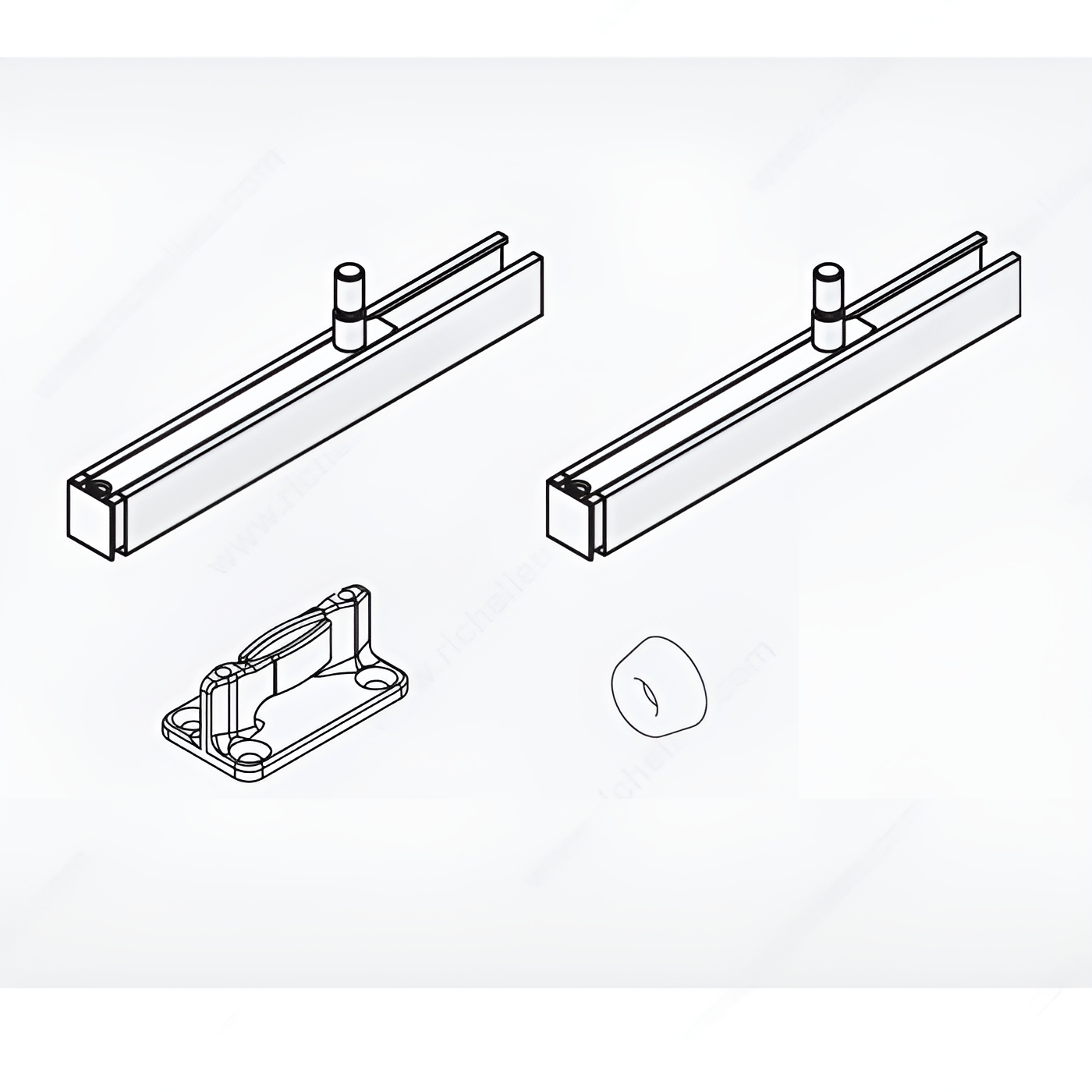

Includes floor mount rattle-free guide.
Compatible with various types of stops, standard stop, SoftStop stopper, Spring Stop and Soft Close mechanisms.
IMPORTANT: Upper trolleys (wheels) and type of stopper or soft close mechanism must be ordered separately.
Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Compatible with: Junior 100 / B
Detailed Door Movement: Single sliding
Door Height: 1 850 to 4 000 mm
Door Installation: Top Hung
Door Movement: Straight Sliding
Door Thickness: 35 to 80 mm
Door Width: 650 to 1 500 mm
Load Capacity: 179 to 220 lb*
Number of Doors: 1
Product #: 8930152
Product type: Hardware Set
Product №: 8930152
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Stopper: None
Unit: Set
Weight Capacity per Door: 81 to 100 kg
