Richelieu 8930720 HAWA JUNIOR 100 GP Hardware SetRichelieu 8930720 HAWA JUNIOR 100 GP Hardware Sets are designed to facilitate the seamless operation of a single glass door weighing up to 100 kg (220 lb). This top-hung system supports multi-layered glass panels securely with a clamp patch fitting, ensuring stability and elegance. The hardware set features quiet-running ball bearing wheels, providing smooth and silent door movement. Two distinct options are available to suit your needs: the Basic hardware set includes SoftStop stoppers equipped with damper pistons and a retention spring, while the SoftMove hardware set offers two magnetic soft-closing mechanisms, requiring a minimal pull force of just 22N to operate the door. Choose from round or square cover caps for the clamp patch fittings to enhance the aesthetic appeal. It is crucial to use metric dimensions for precise installation, and a floor guide is sold separately. The glass must be drilled according to the installation instructions provided. Compatible with the Hawa Junior 100, this hardware set is ideal for standard access and pocket doors, accommodating door heights from 47 1/4 to 118 inches, thicknesses of 5/16 to 1/2 inch, and widths ranging from 25 5/8 to 59 inches. Constructed from durable aluminum, the HAWA JUNIOR 100 GP ensures both functionality and style for your interior spaces.
HAWA JUNIOR 100 GP Hardware Sets

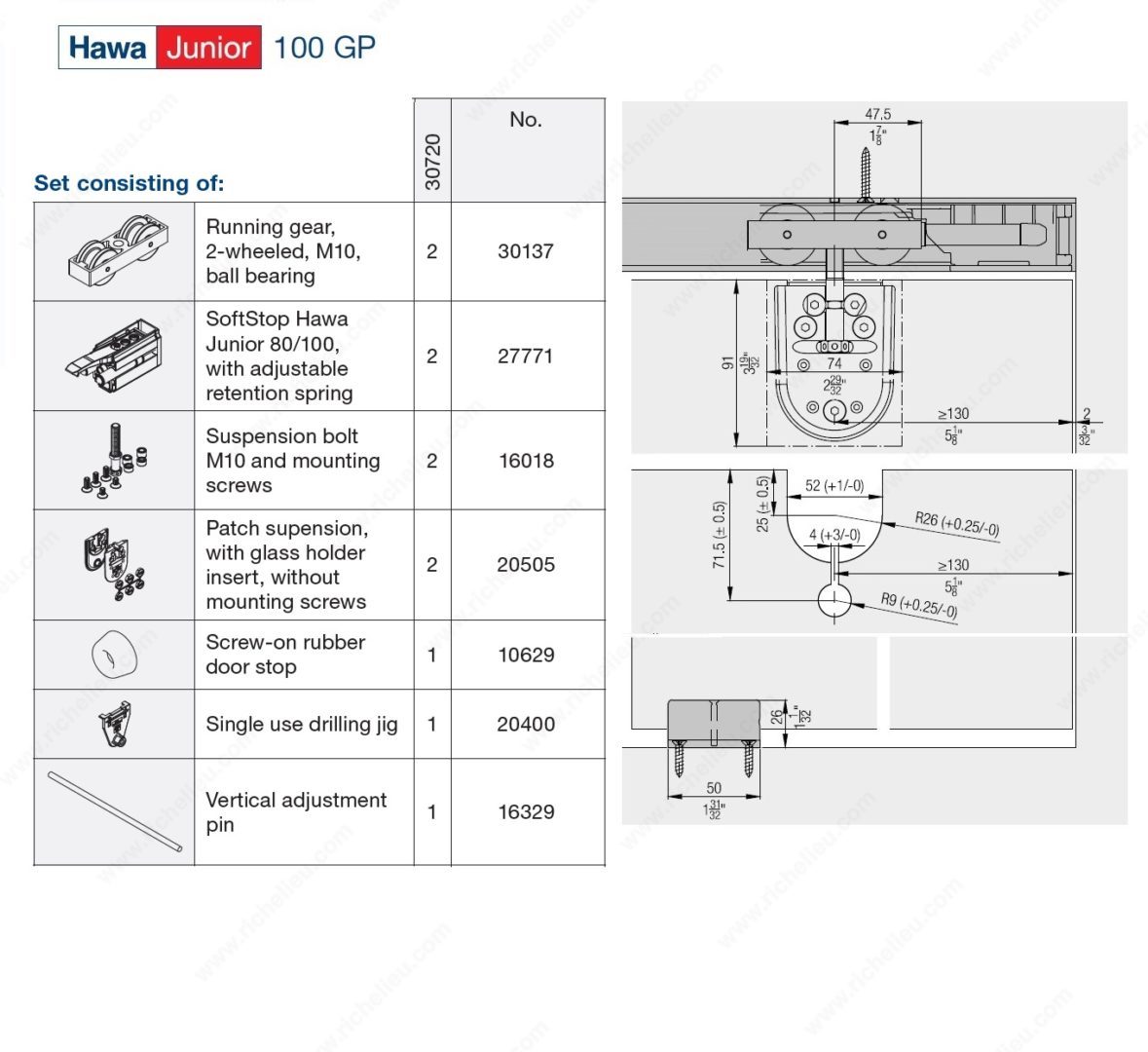

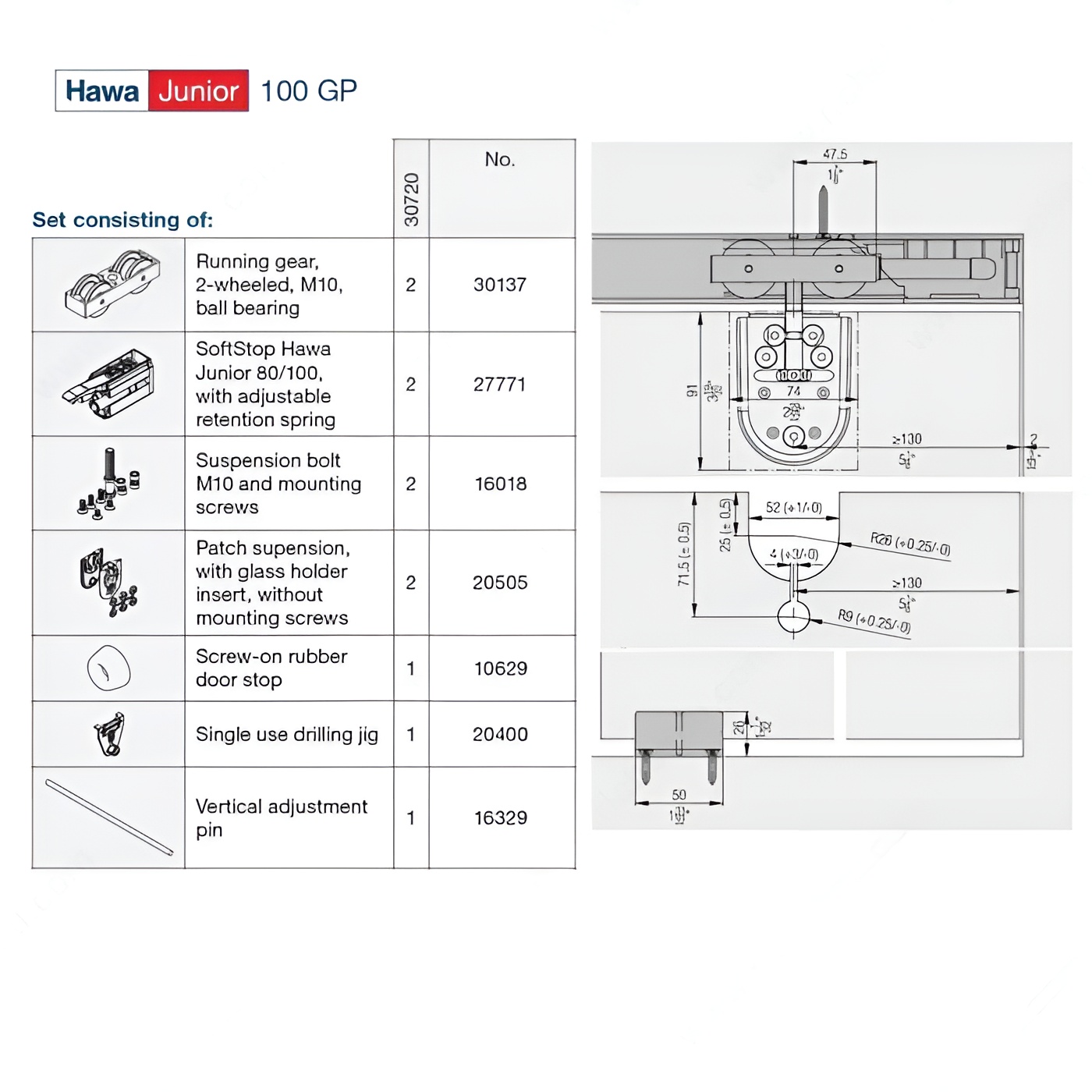

The HAWA JUNIOR 100 GP Hardware set is for one glass door weighing up to 100 kg (220 lb). The glass is supported from the top with a clamp patch fitting suitable for multi layered glass panels. Features quiet-running ball bearing wheels.
Select from two types of sets:
A) Basic hardware set with SoftStop stoppers featuring damper pistons and a retention spring
B) SoftMove hardware set with 2 magnetic soft closing mechanisms. Very low pull force (max. 22N) required to operate the door.
Choice of round or square cover caps for the clamp patch fittings.
Important: Use metric dimensions for greater accuracy during installation.
Floor guide sold separately.
Glass must be drilled for the clamp patch fittings; see instructions.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Pocket Door
Brand: Junior
Brand Model: Hawa Junior
Compatible with: Hawa Junior 100
Detailed Door Movement: Single sliding
Door Height: 47 1/4 to 118 in*
Door Installation: Top Hung
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 5/16 to 1/2 in*
Door Width: 25 5/8 to 59 in*
Load Capacity: 88.2 to 220 lb*
Manufacturing Material: Aluminum
Product #: 8930720
Product type: Hardware Set
Product №: 8930720
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Material: Anodized Aluminum
Track type: Box Track
Weight Capacity per Door: 88.2 to 220 lb*
