Richelieu 893133071 HAWA PORTA 100 HM Hardware SetRichelieu 893133071 HAWA PORTA 100 HM Hardware Set is expertly crafted for a seamless and efficient sliding door experience. This hardware set accommodates a single wood door, supporting weights from 88.2 to 220 lb (40 to 100 kg), making it suitable for a variety of applications. Key features include a concealed rebate mount suspension plate that enhances aesthetics, along with adjustable track stoppers equipped with a retaining device to ensure optimal door placement. Engineered for smooth operation, the HAWA PORTA 100 HM includes a floor-mounted guide wheel, providing stability and ease of movement. For added convenience, optional soft-close mechanisms are available, specifically designed for doors weighing between 133 lb (61 kg) and 220 lb (100 kg), sold separately. Installation is straightforward and flexible, allowing for a top-hung configuration that suits door dimensions ranging from 39 3/8 to 106 inches in height and 23 5/8 to 63 inches in width. When preparing for installation, remember to utilize metric dimensions for accuracy, and be sure to cut a groove measuring 1/2 in (12 mm) x 5/8 in (16 mm) at the bottom of the door for the bottom guide. The HAWA PORTA 100 HM Hardware Set is a reliable choice for both building professionals and discerning homeowners.

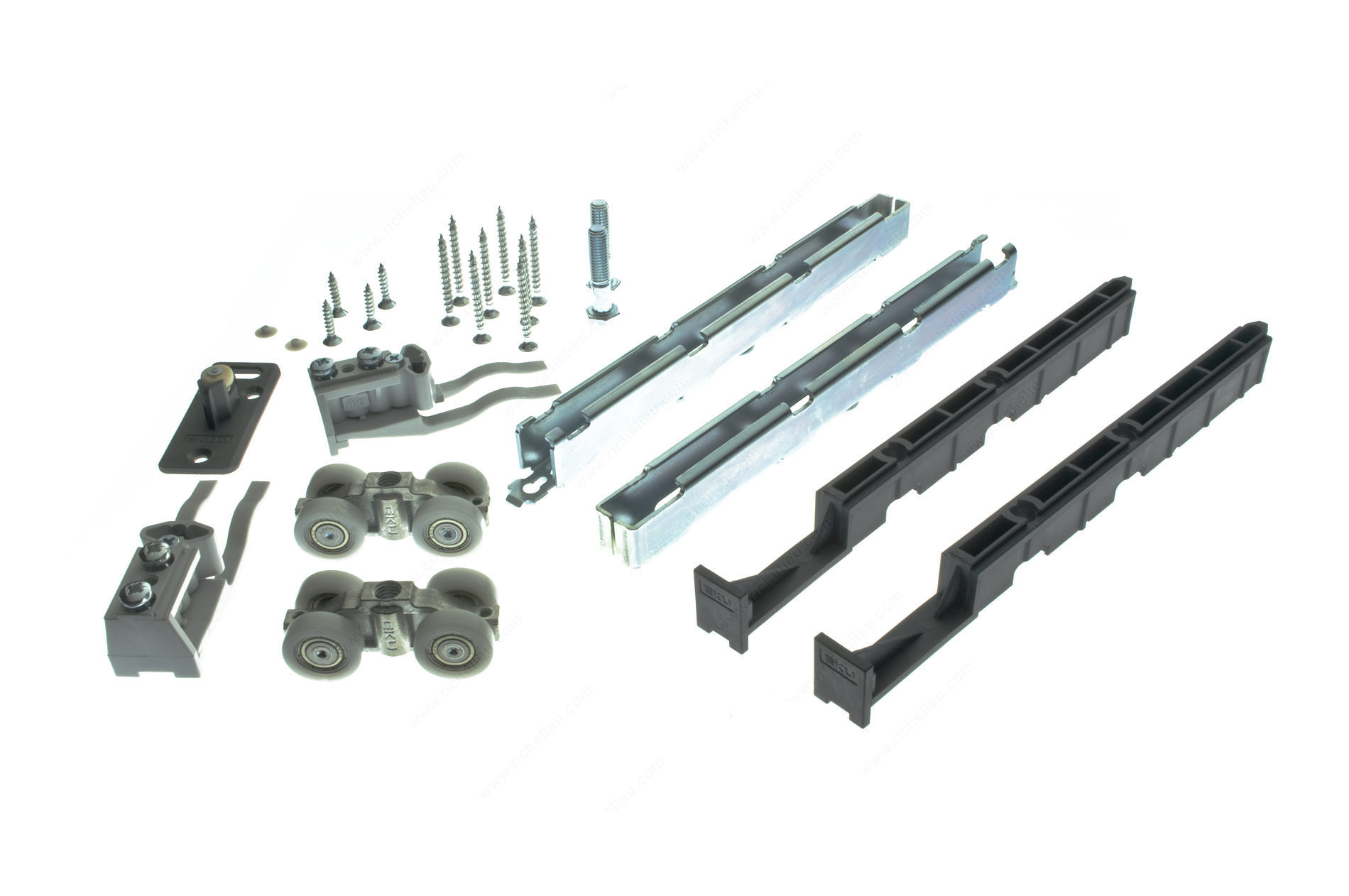

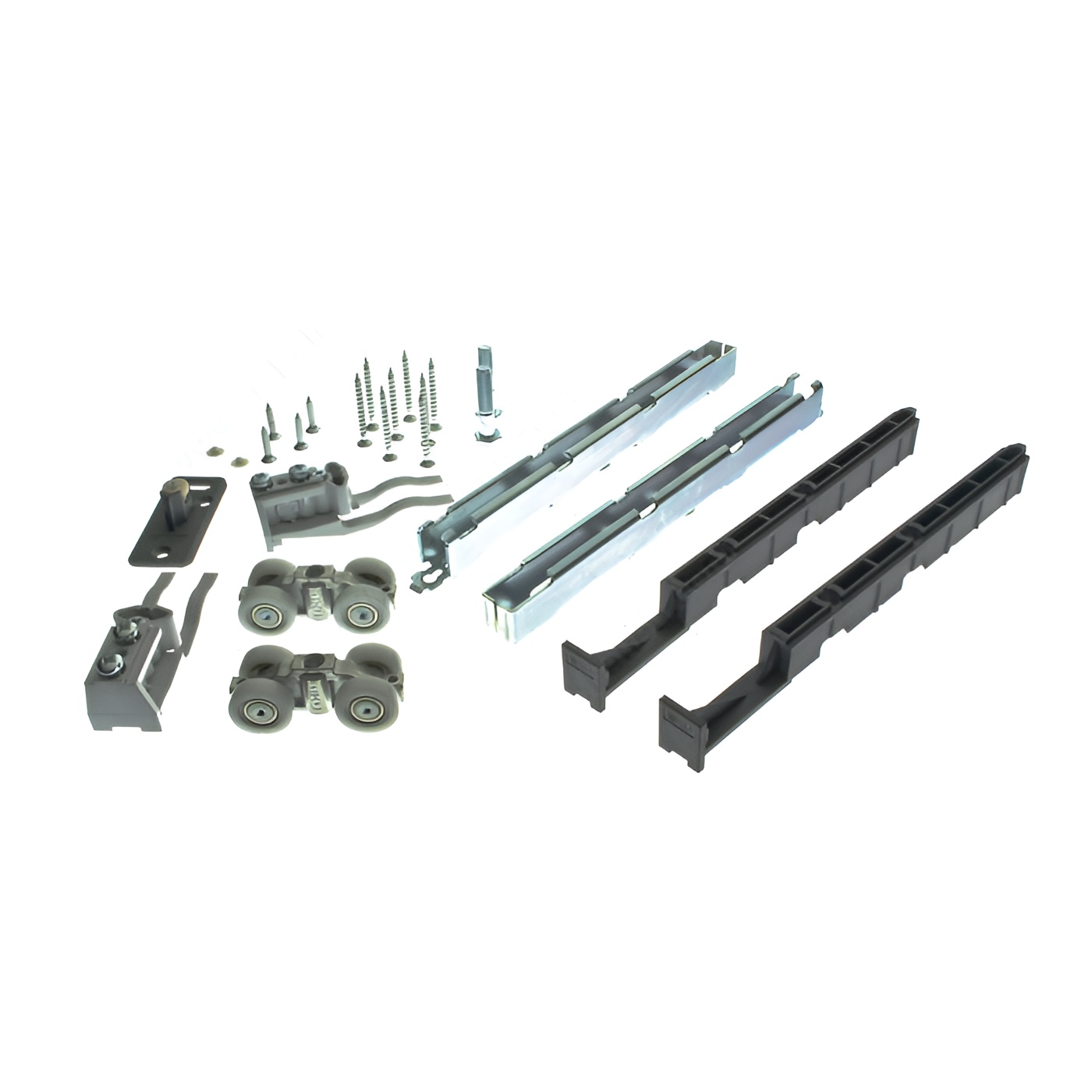

HAWA PORTA 100 HM Hardware Set

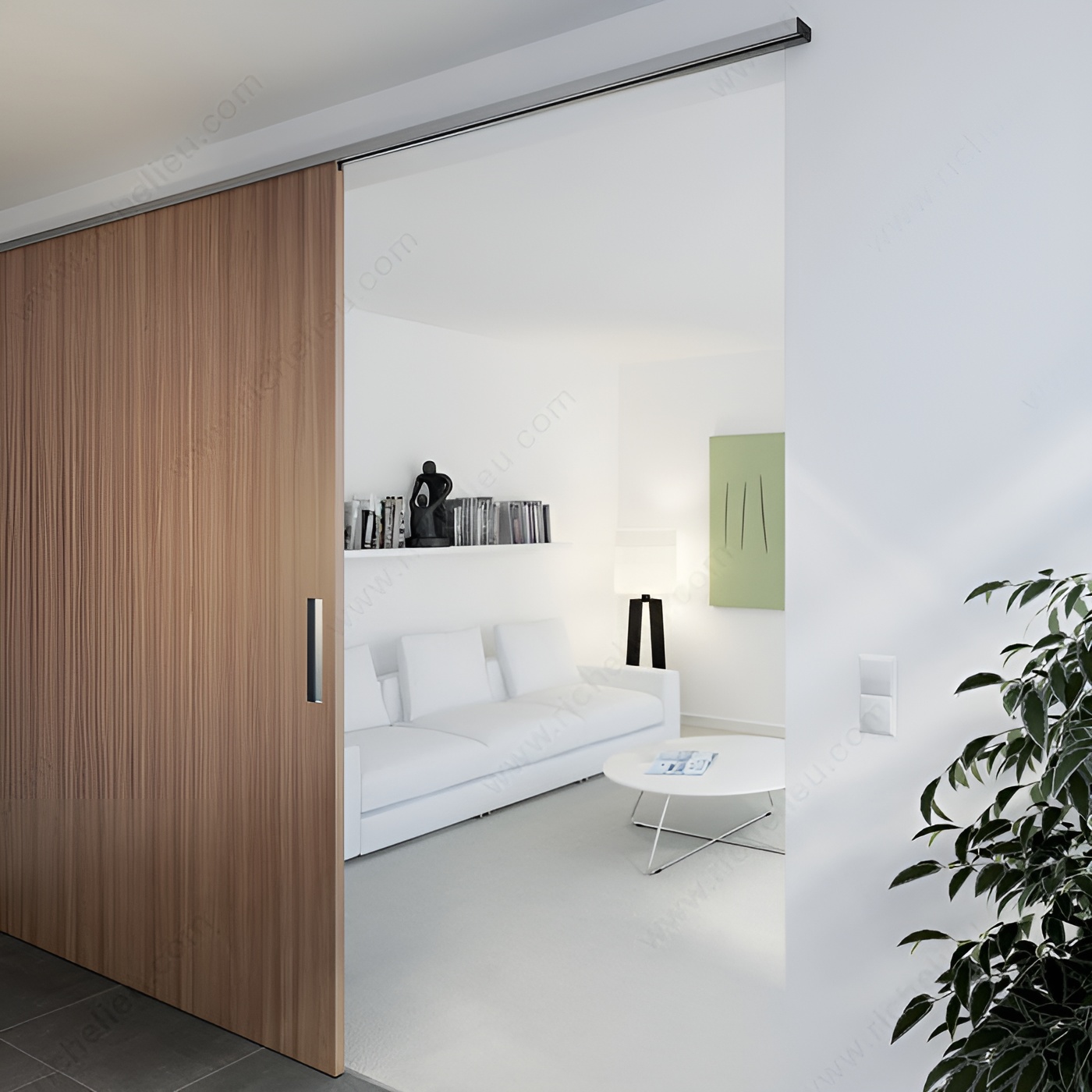

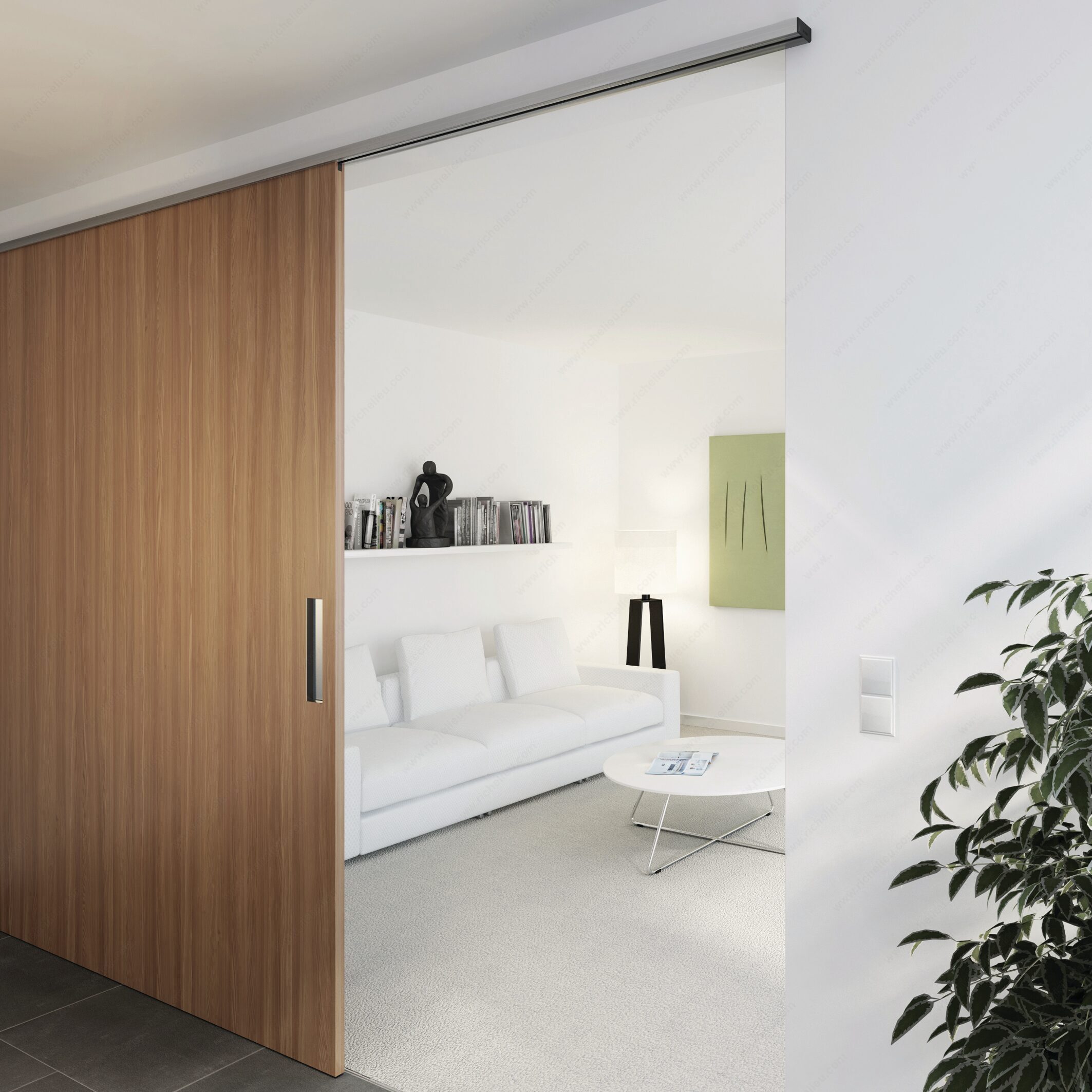

The HAWA PORTA 100 HM Hardware Set is designed for a single sliding wood door with a weight capacity of up to 220 lb (100 kg).
Features:

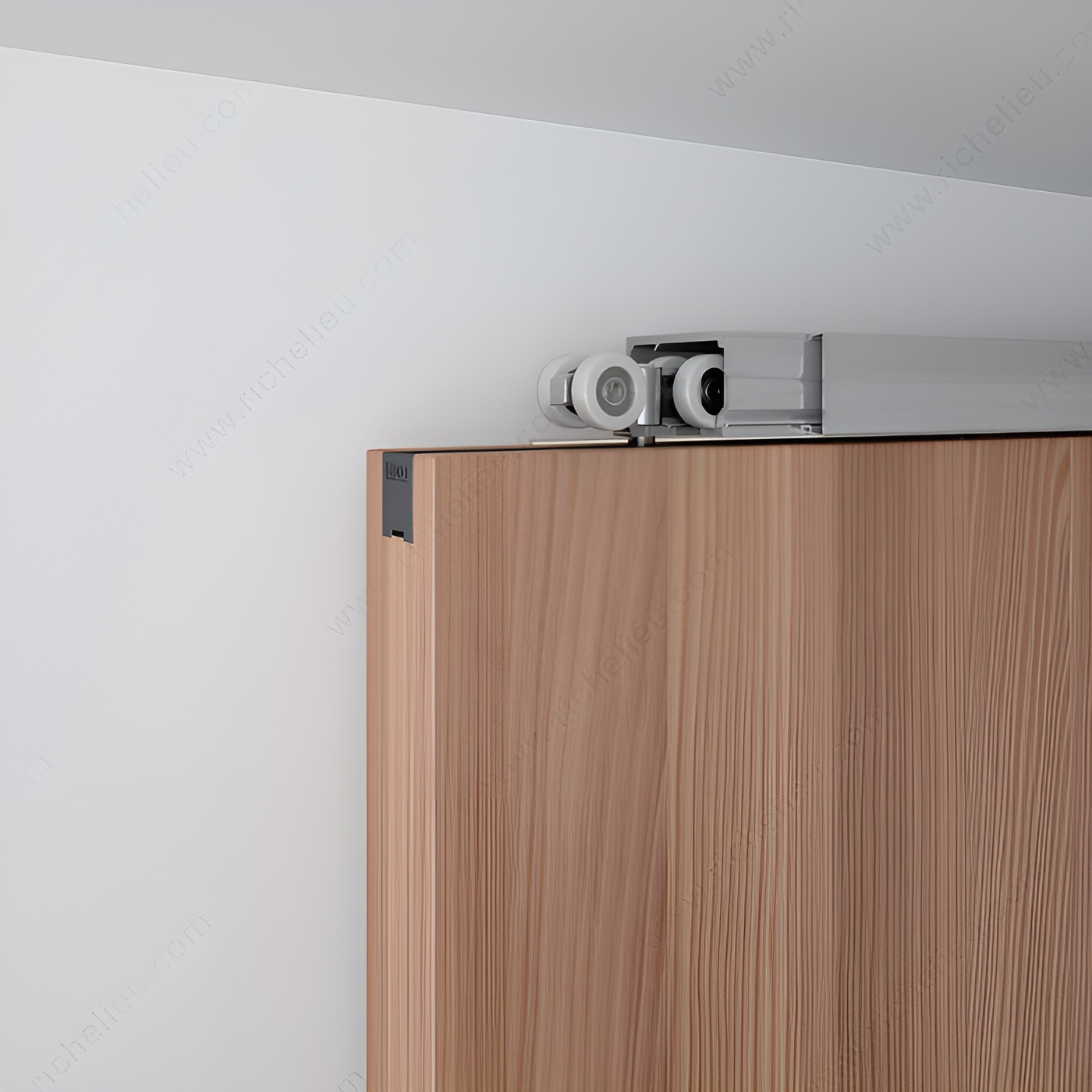

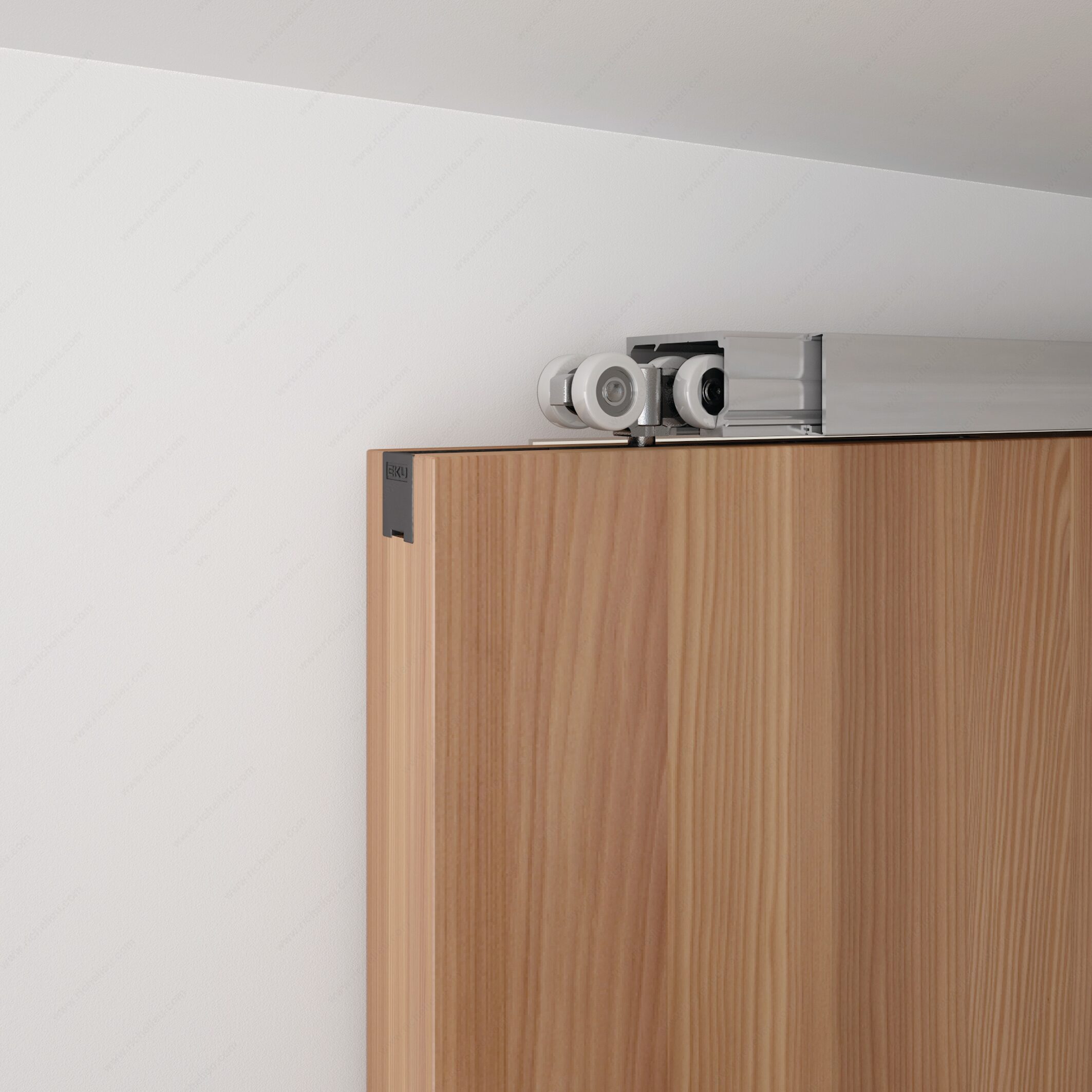

- Concealed rebate mount suspension plate
- Track stoppers with adjustable retaining device
- Floor mounted guide wheel
- Optional soft-close mechanisms available for doors 133 lb (61 kg) to 220 lb (100 kg), sold separately
- Simple and flexible installation
- Smooth operation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 1/2 in (12 mm) x 5/8 in (16 mm) at the bottom of the door for bottom guide.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Hawa
Depth: 23 mm
Detailed Door Movement: Single sliding
Door Height: 1 000 to 2 700 mm
Door Installation: Top Hung
Door Material: Wood
Door Position: Full Overlay
Door Thickness: 40 mm
Door Width: 600 to 1 600 mm
Drilling: 18 mm
Drilling Depth: 23/32 in*
Load Capacity: 88.2 to 220 lb*
Number of Doors: 1
Product #: 893133071
Product number: 893133071
Product type: Hardware Set
Product №: 893133071
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stopper: Two
Unit: Box
Weight Capacity per Door: Max. 100 kg
