HAWA PORTA 100 H/HC/HMT KIT Series

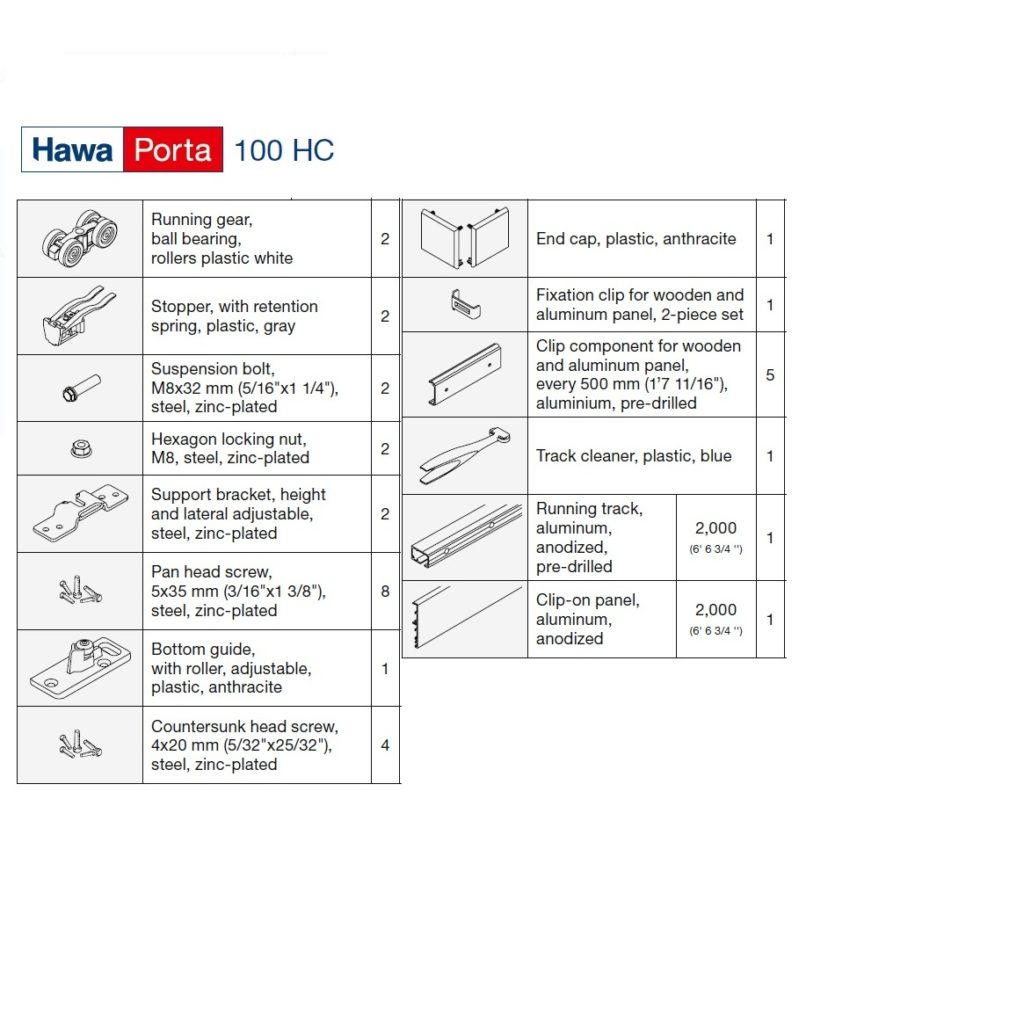

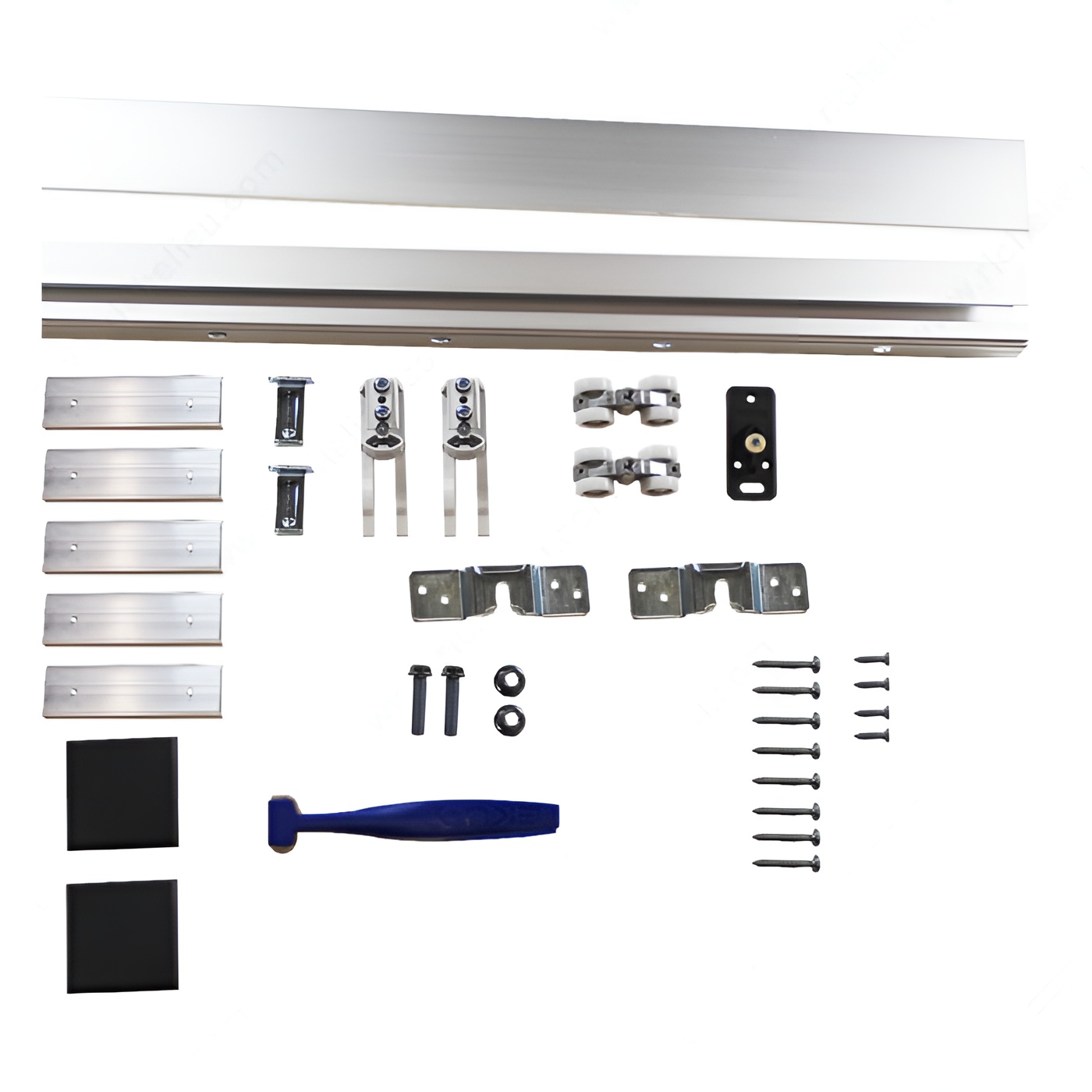

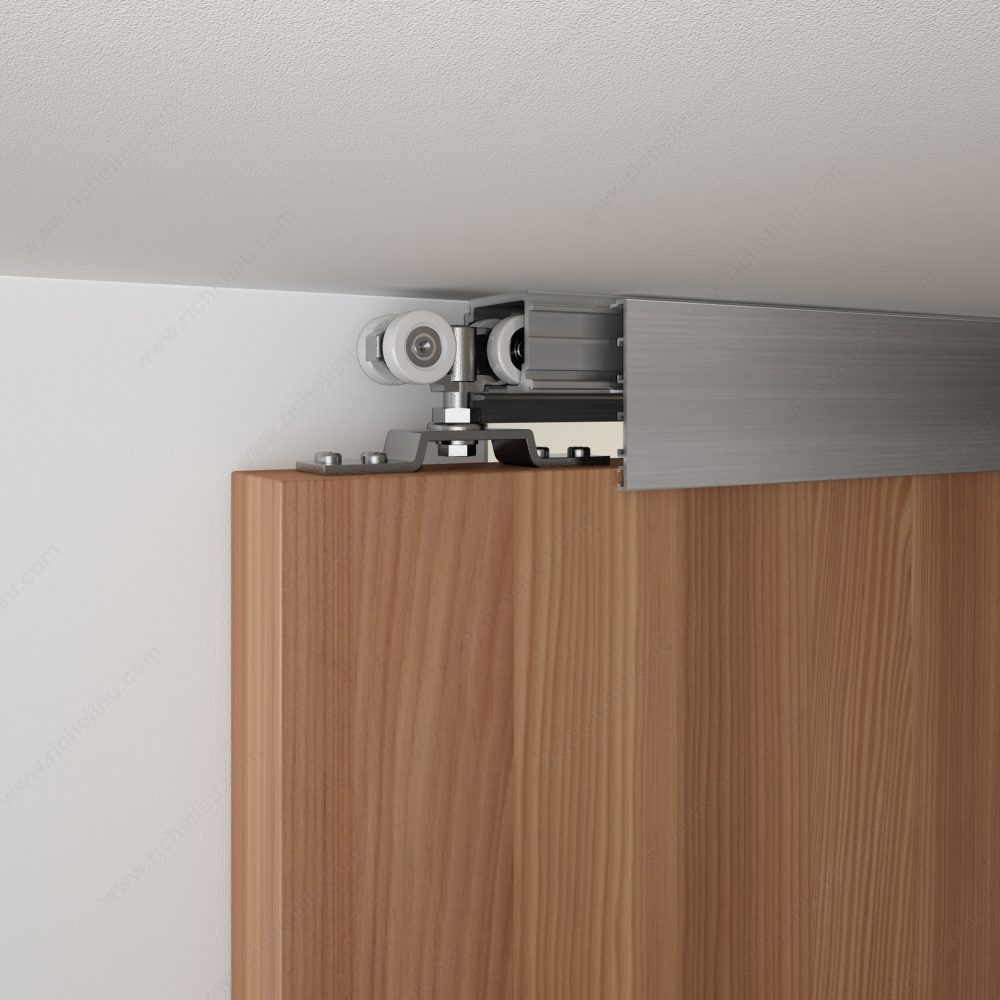

The HAWA PORTA 100 H/HC/HMT KIT Series is a collection of sliding wood door systems engineered for a wide variety of installations. Each kit is made for single wood door with a capacity of up to 100 kg (220 lbs) including hardware set, track and unique components to enhance performance.
Select from the following:

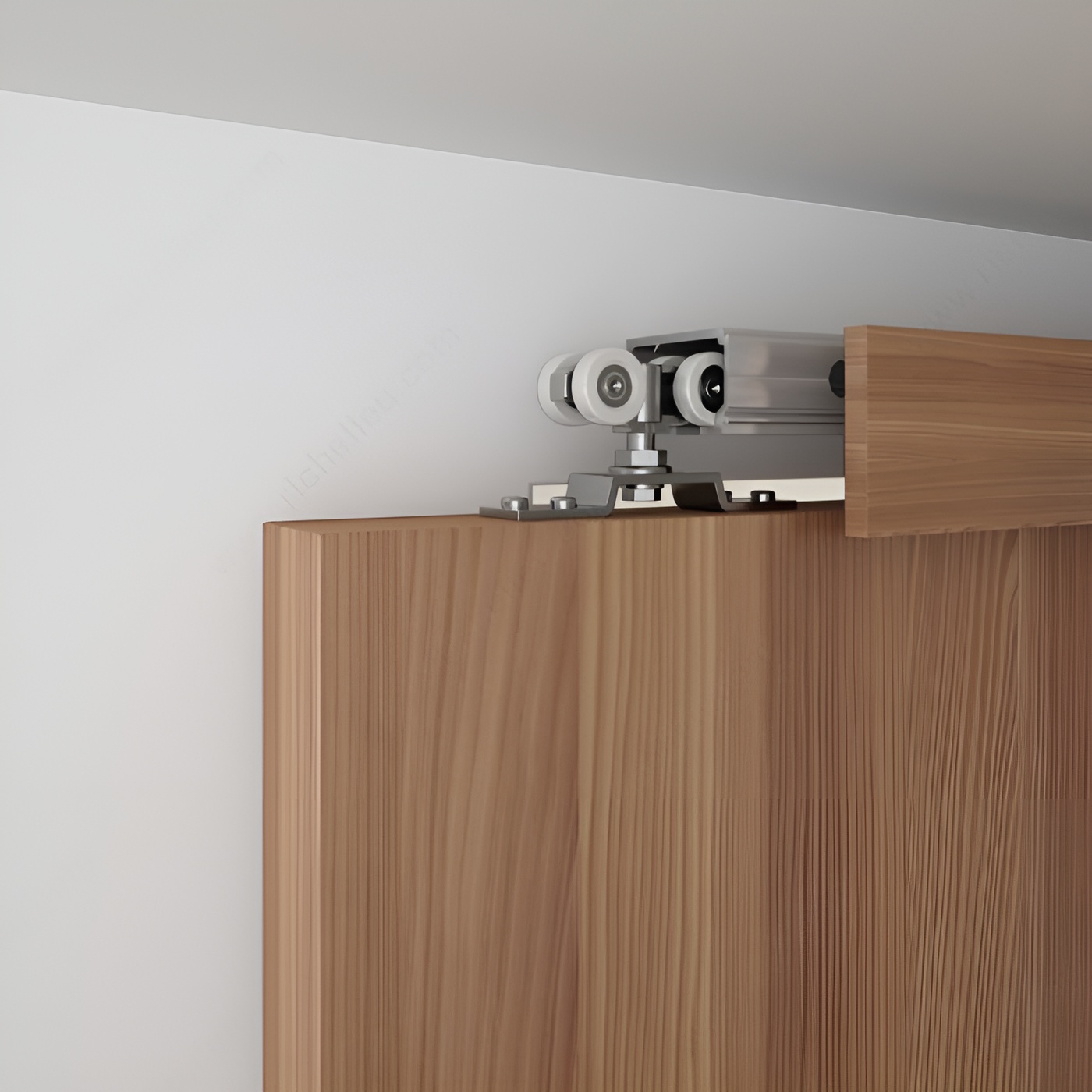

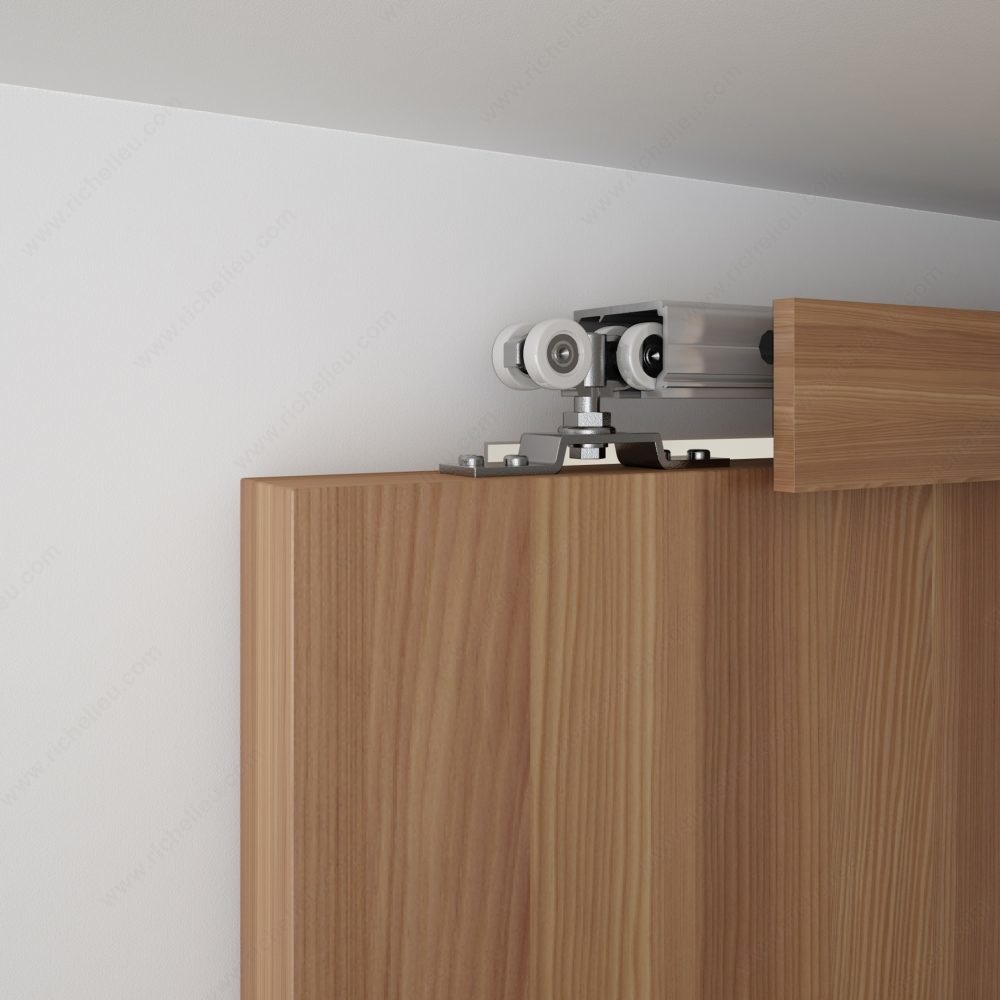

- System H for basic ceiling mount

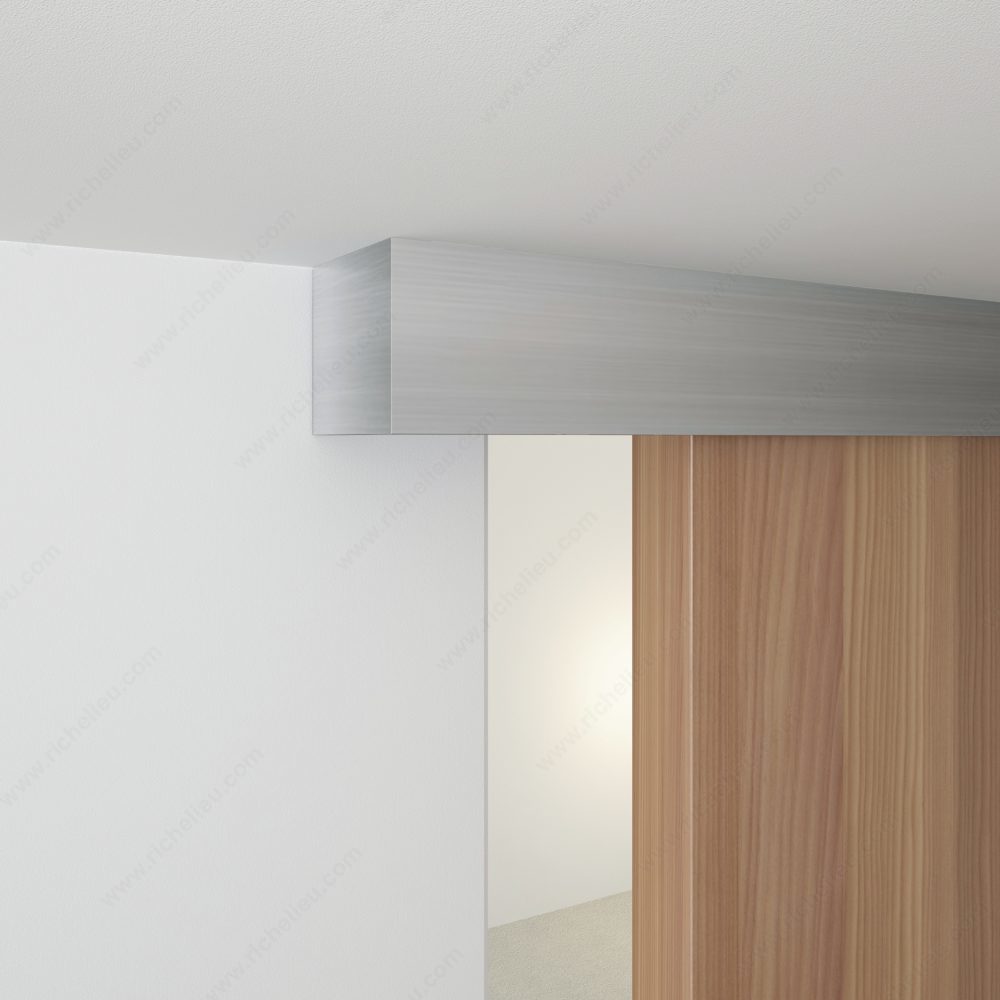

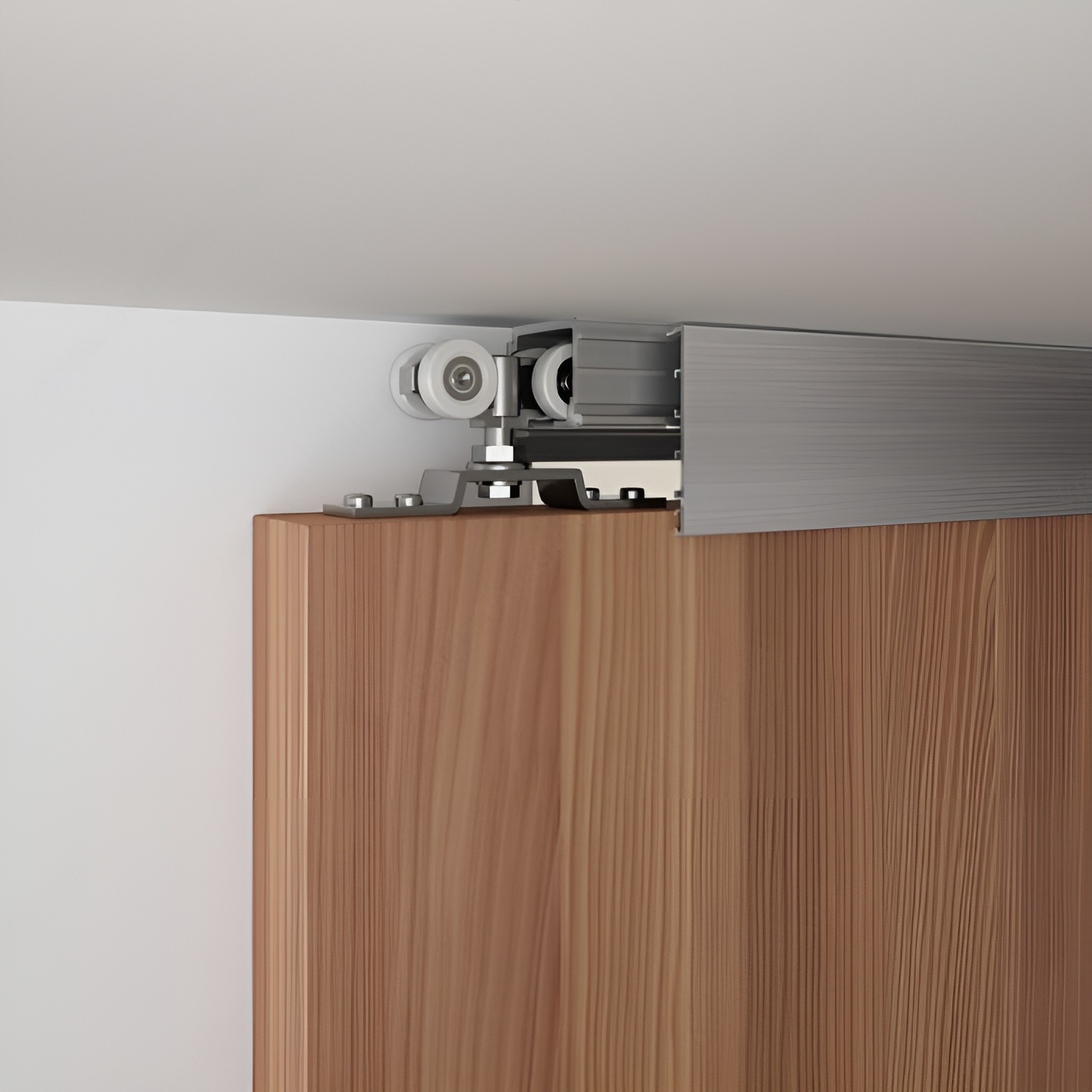

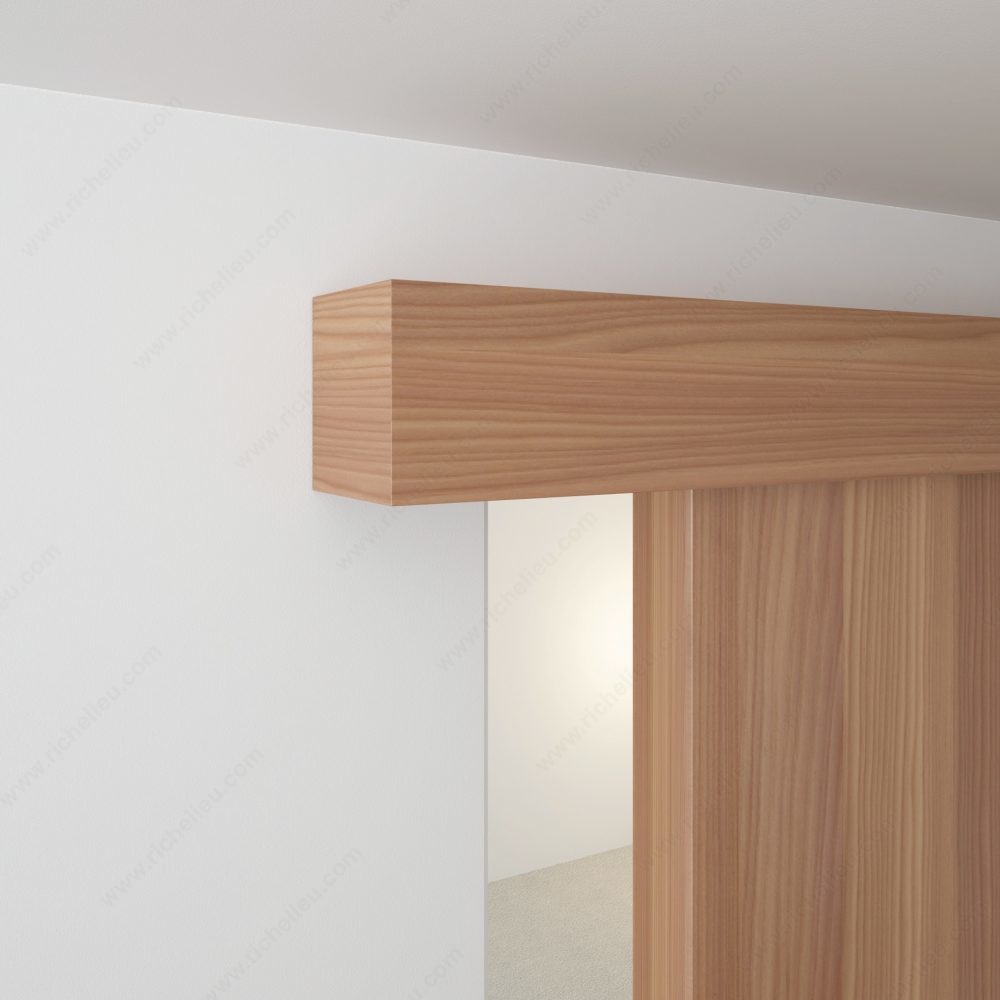

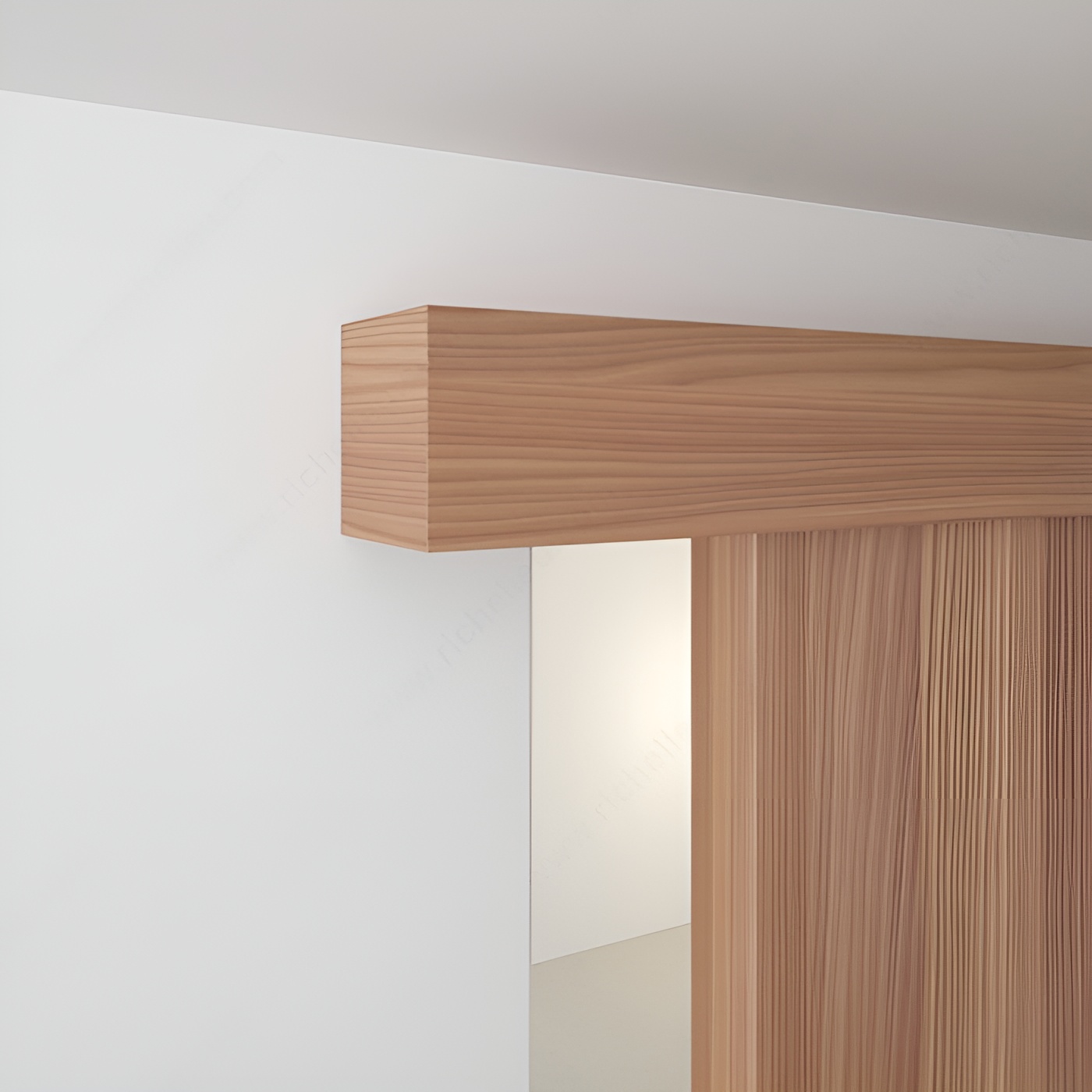

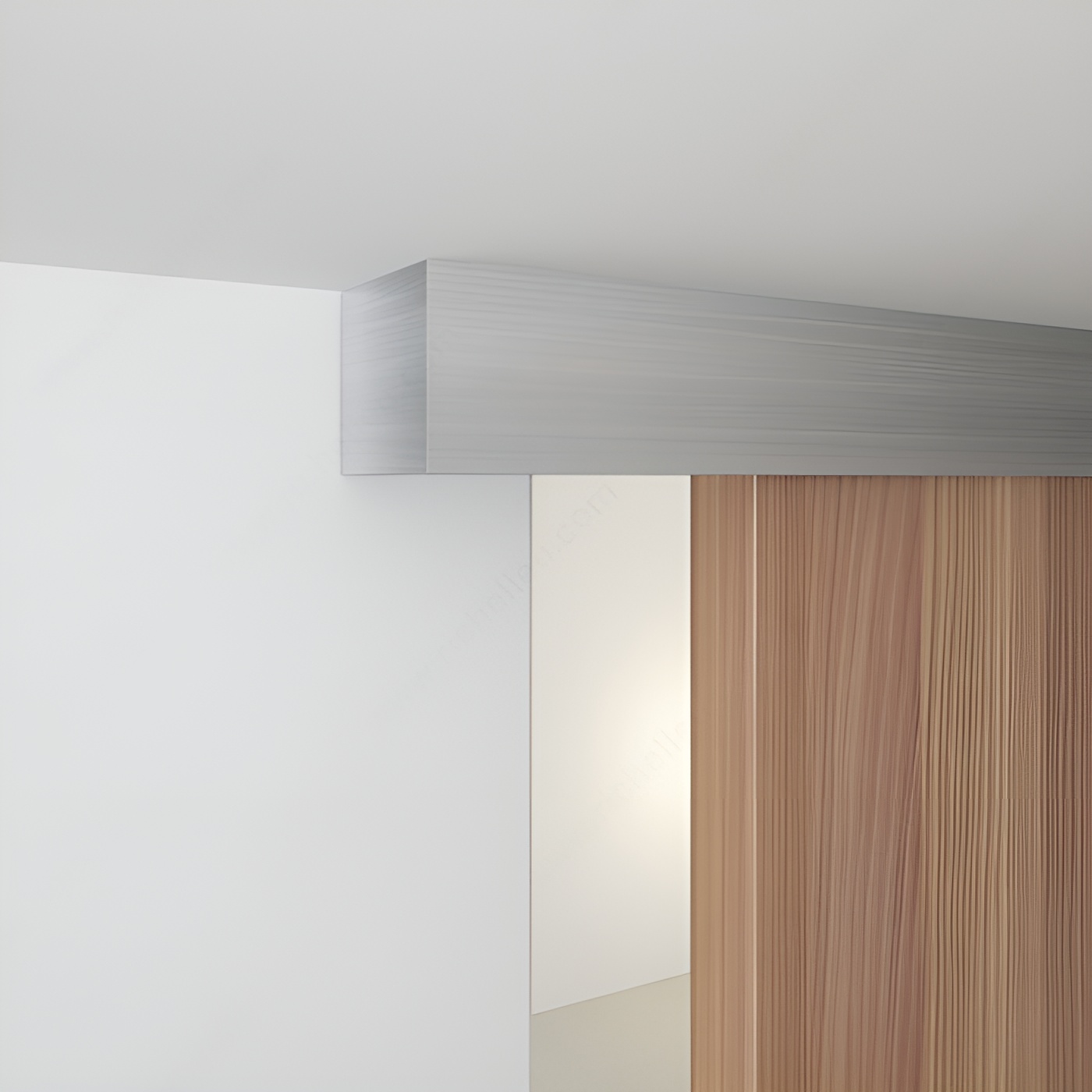

- System HC for wall mount including a clip-on anodized aluminum fascia

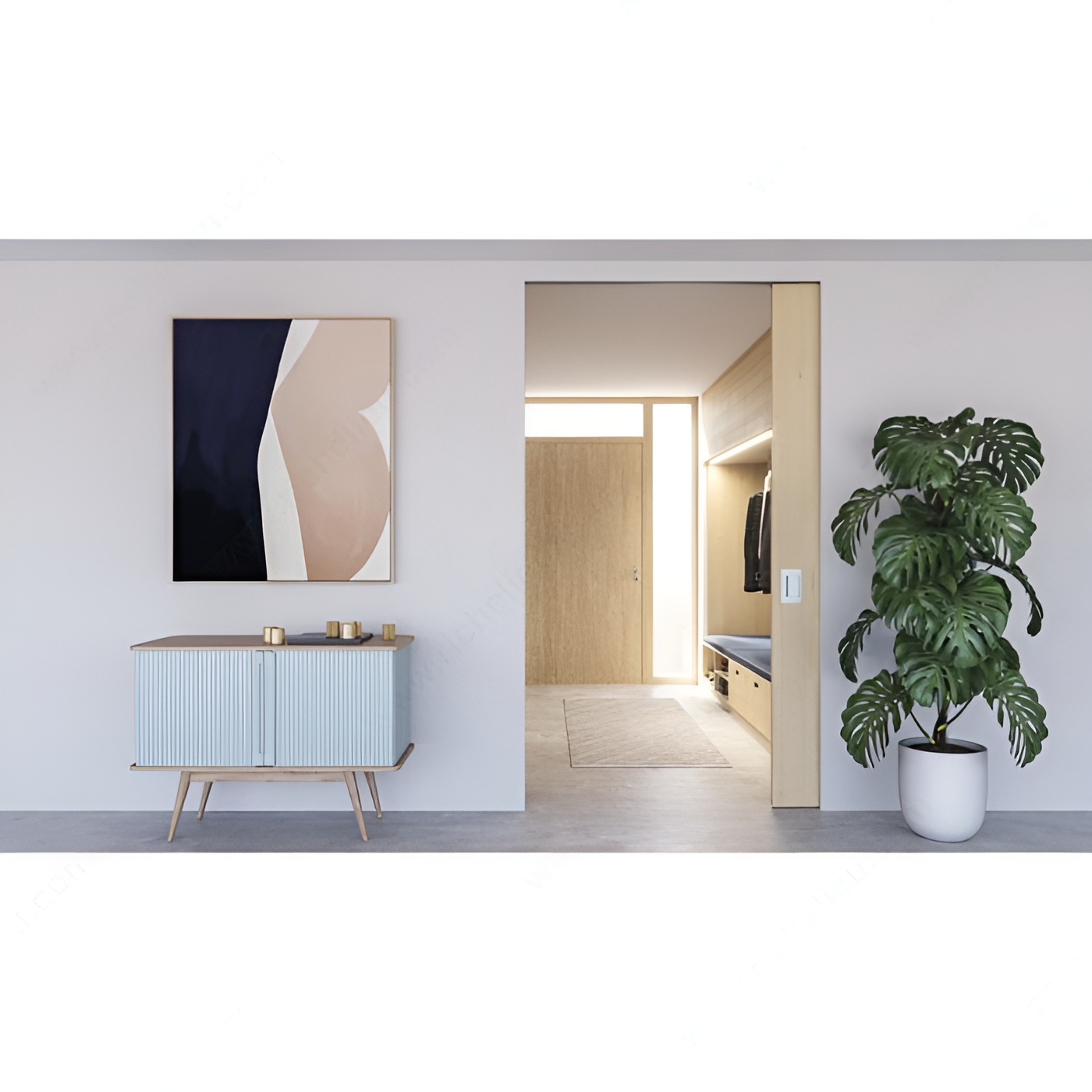

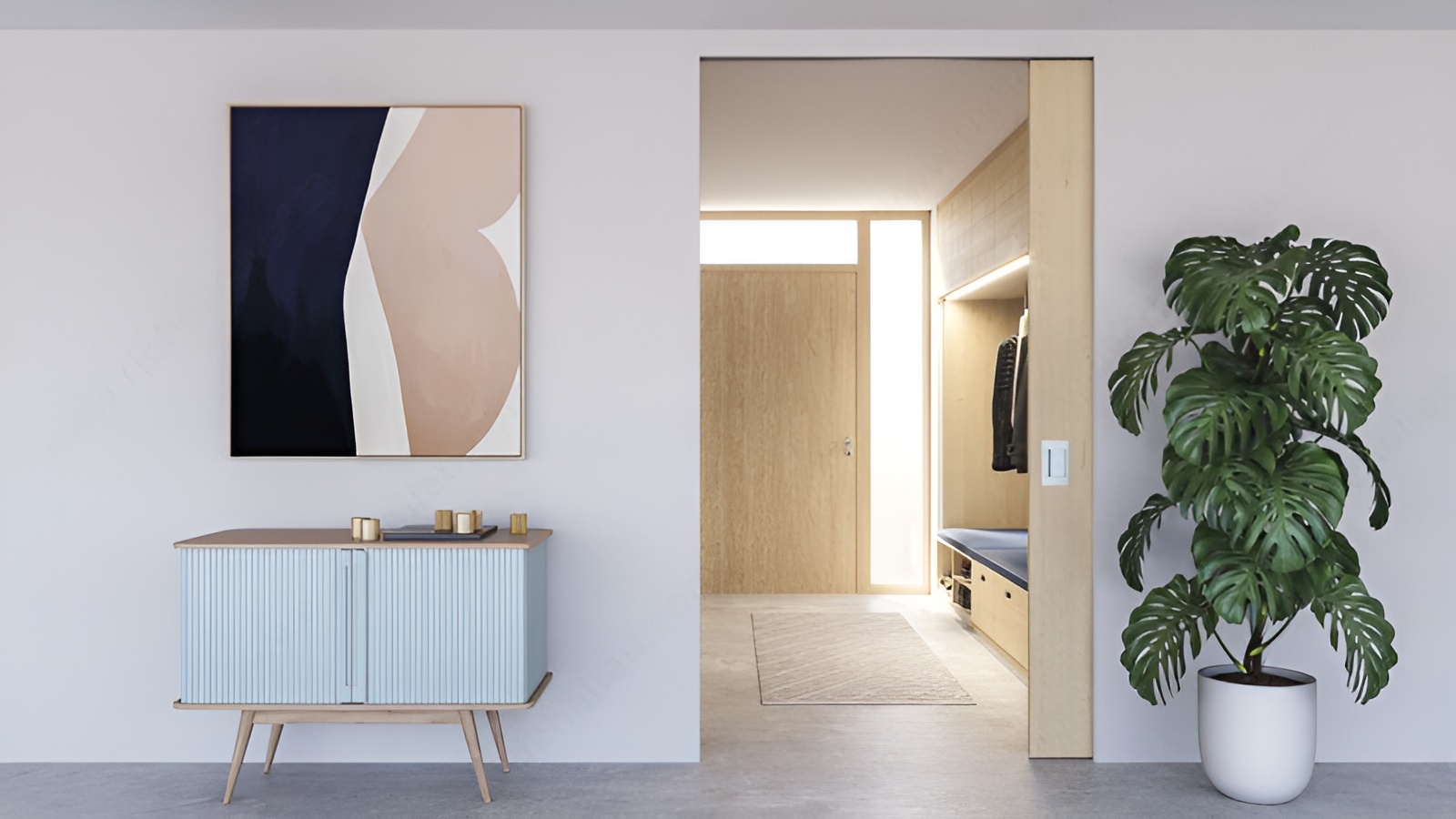

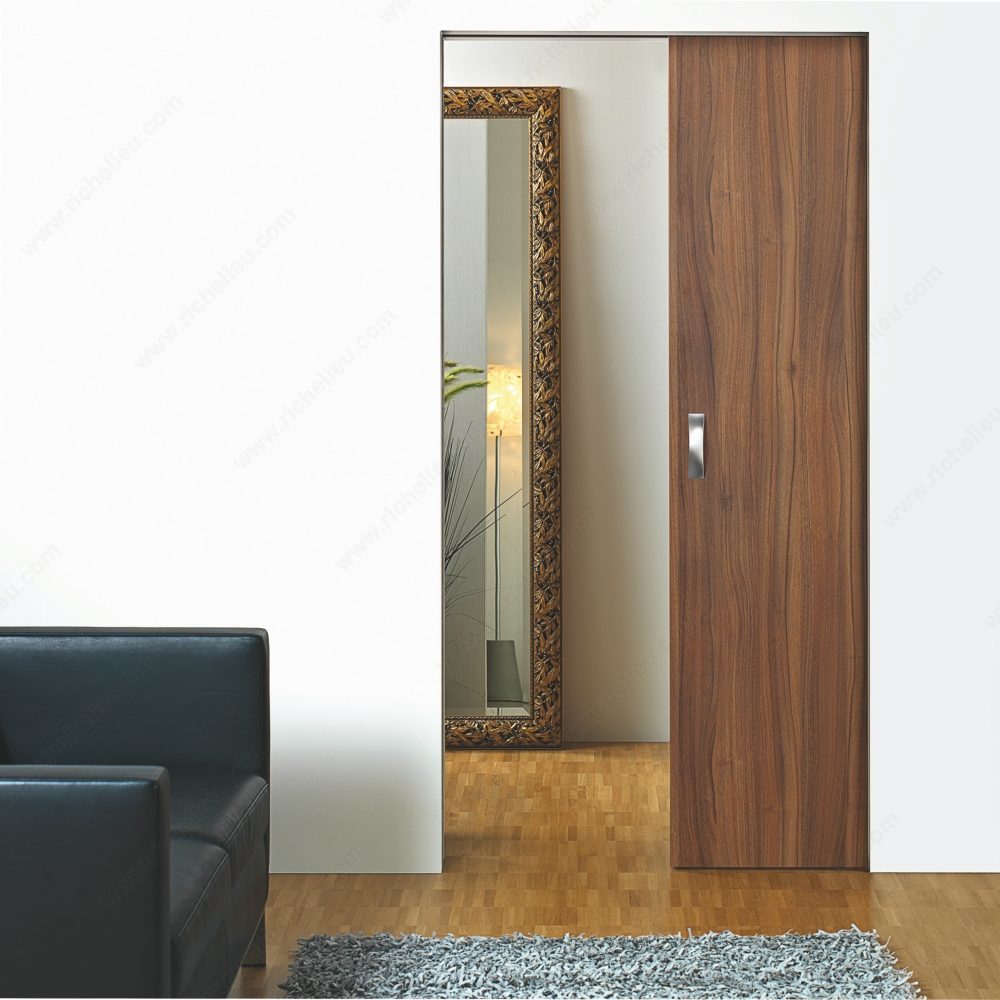

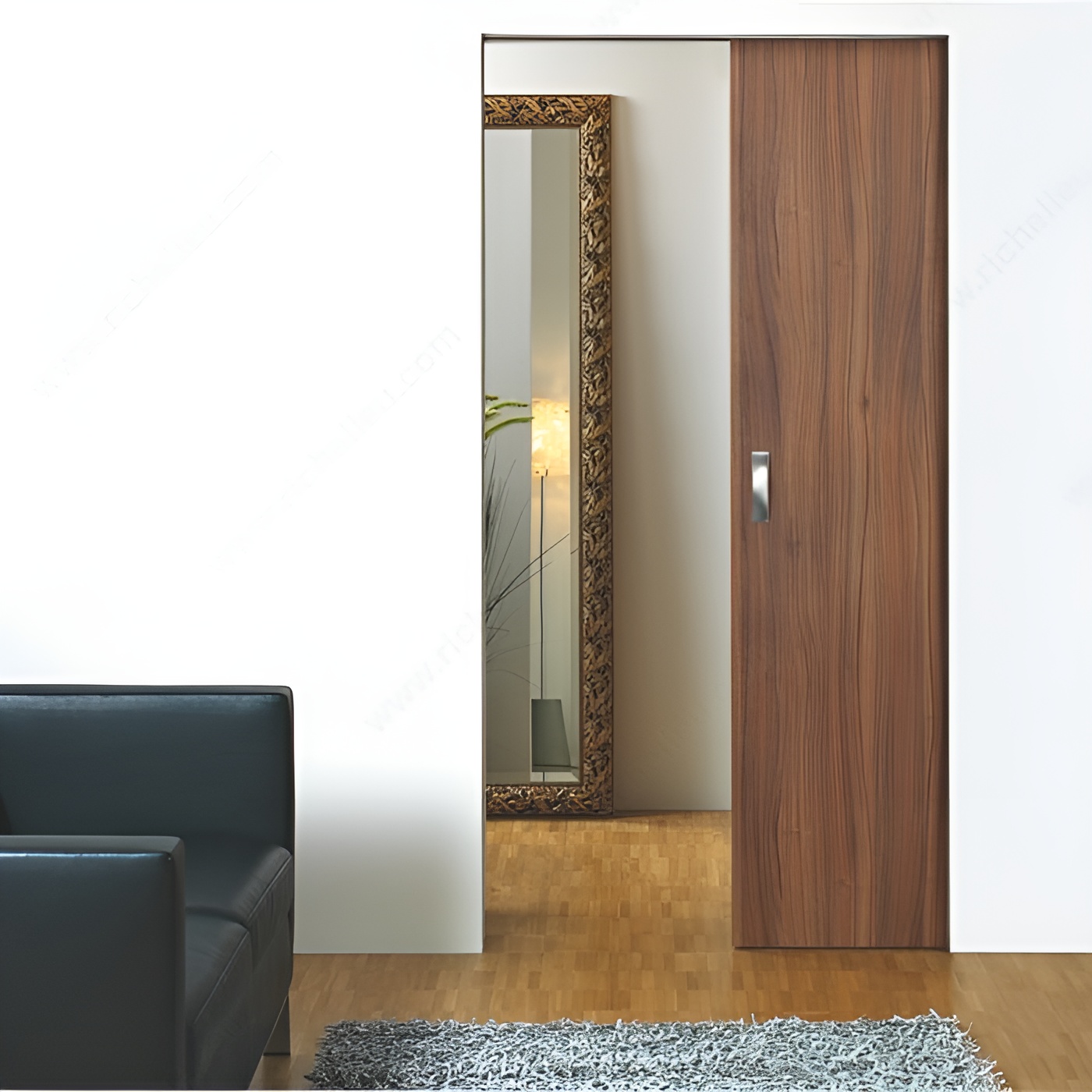

- System HMT for pocket door with soft-close mechanism and push-to-open device. With the HMT system, the door can be retracted completely into the pocket and with a push on the door edge, the door will spring forward.

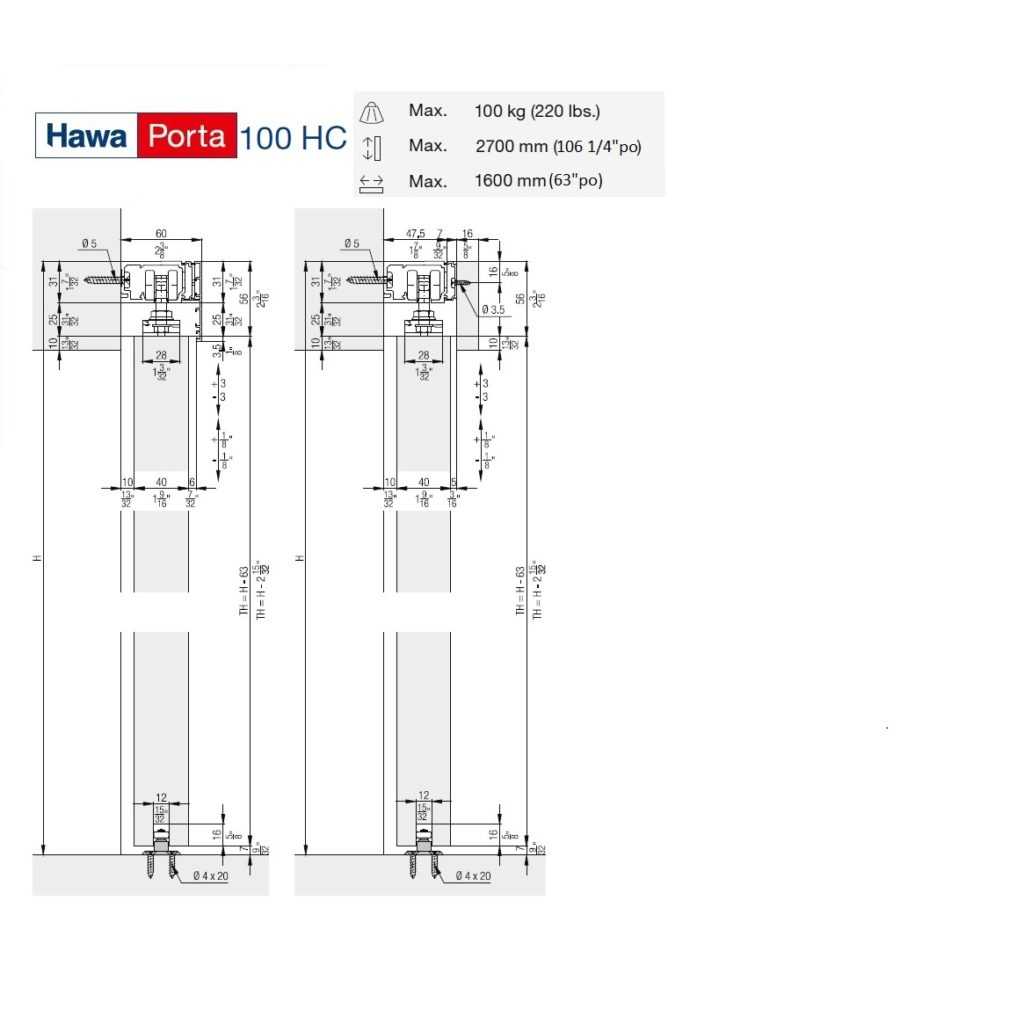

IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 12 mm x 16 mm at the bottom of the door for bottom guide.

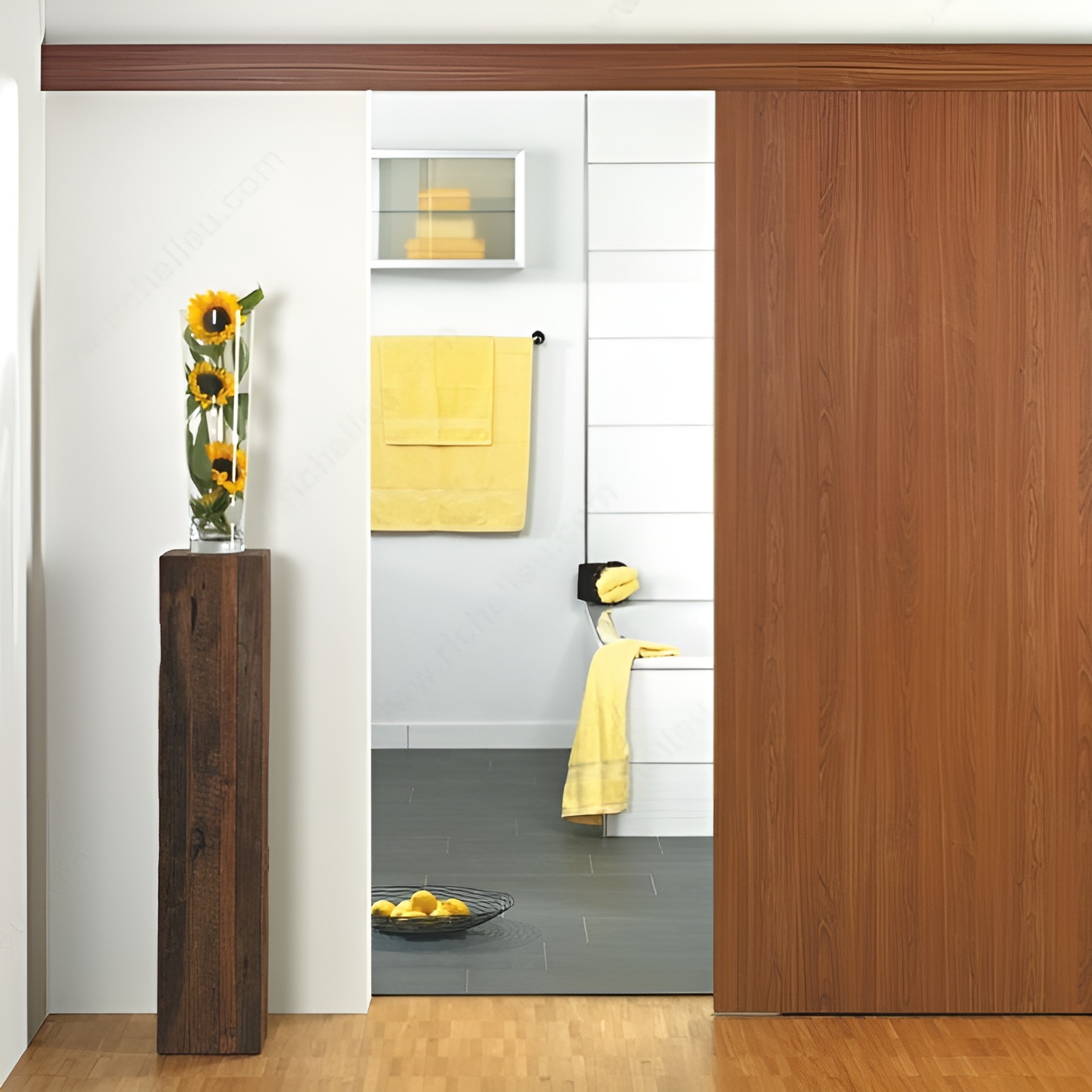

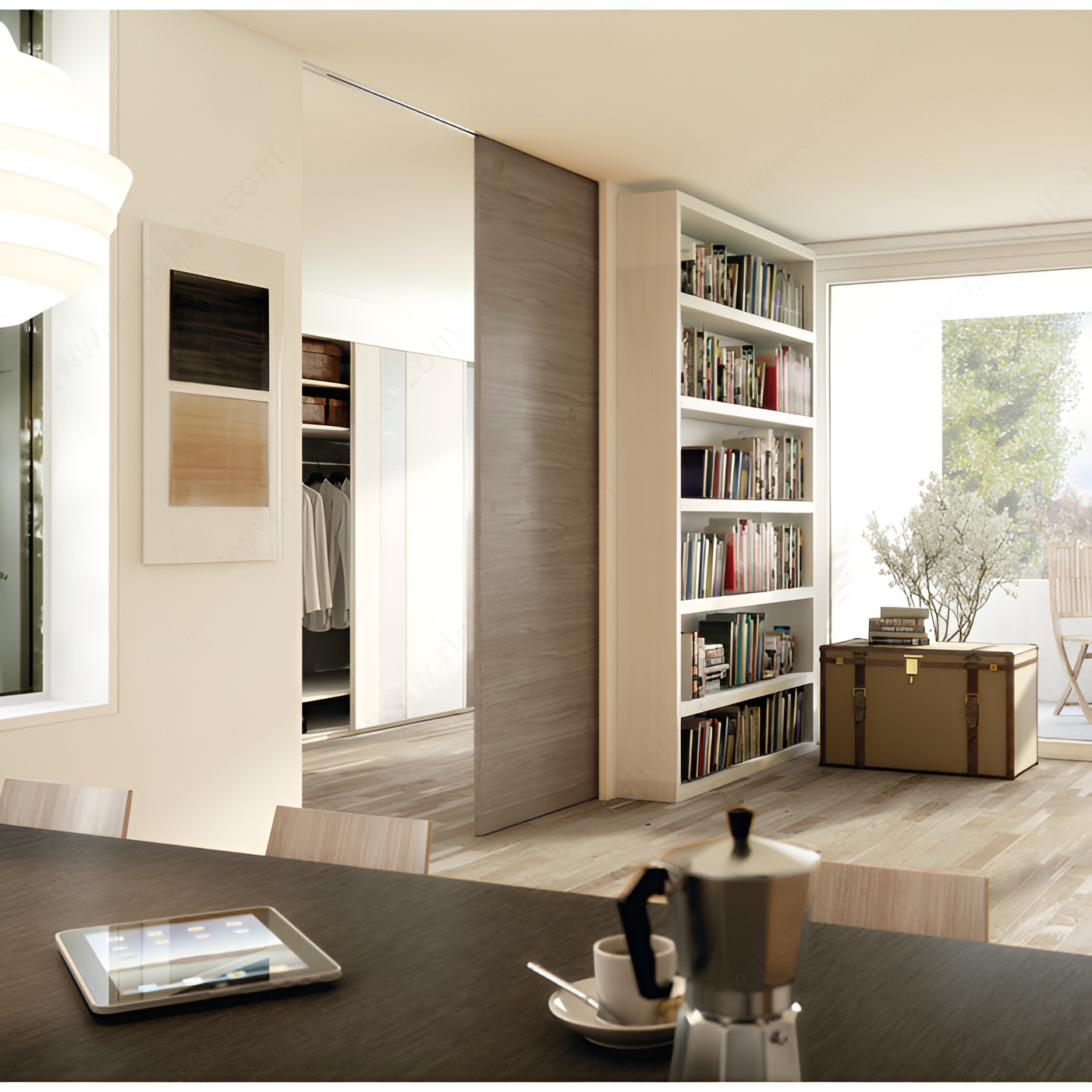

An ideal solution for residential and commercial applications for standard doorways, walk-in closets, and office entrance doors.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door, Pocket Door
Brand: Porta
Brand Model: Hawa Porta
Detailed Door Movement: Barn door
Door Height: Max. 2 700 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 40 mm
Door Width: 608 to 1 000 mm
Groove Depth: 16 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 132 to 220 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Number of Doors: 1
Overall Length: 2 000 mm
Packaging Format: Box
Product #: 893143K210
Product number: 893143K210
Product №: 893143K210
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Mounting: Wall Mount
Unit: Length
Weight Capacity per Door: 60 to 100 kg
