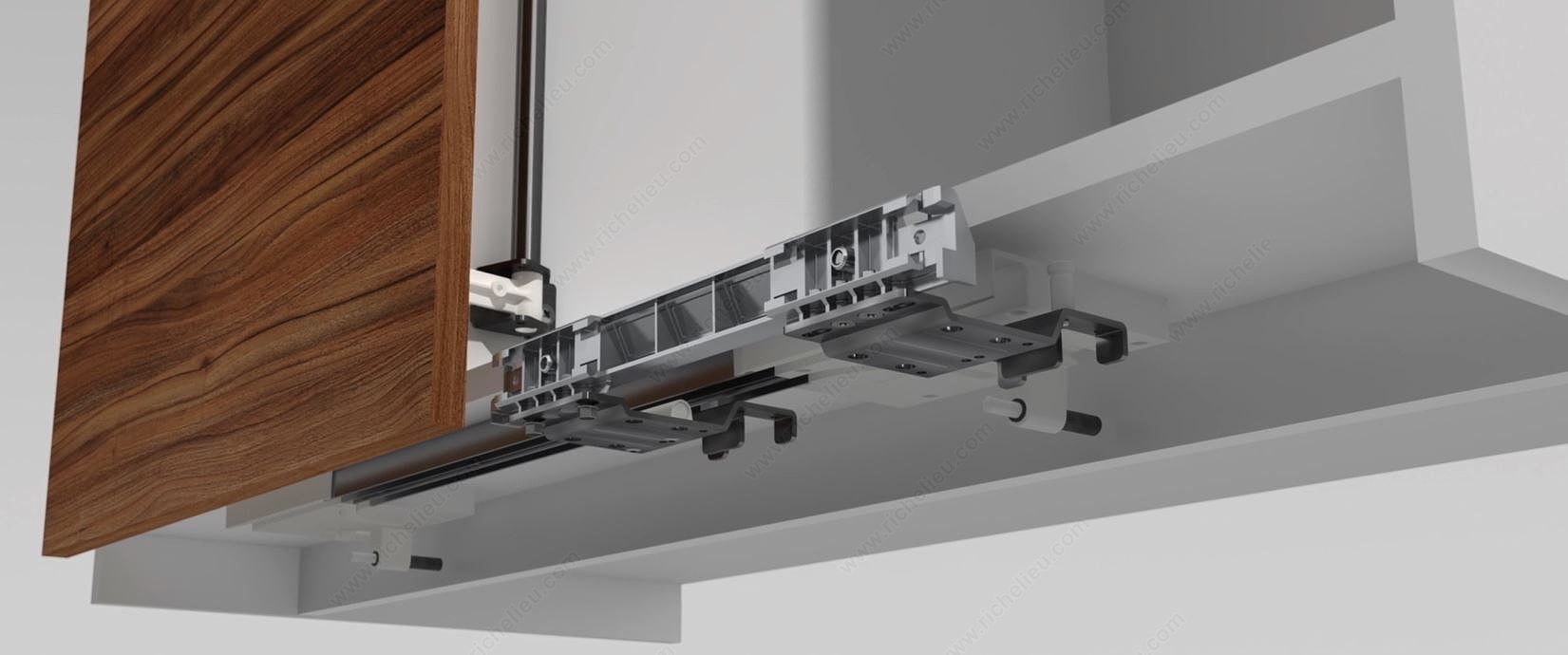

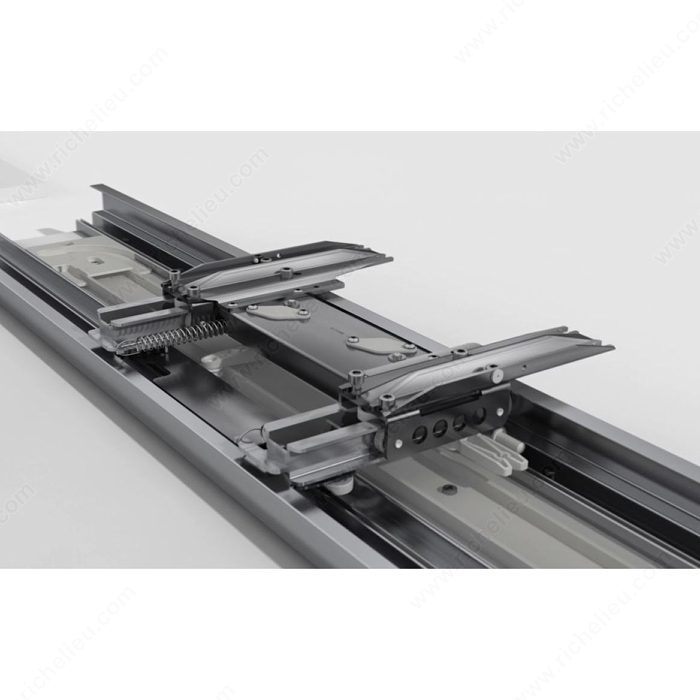

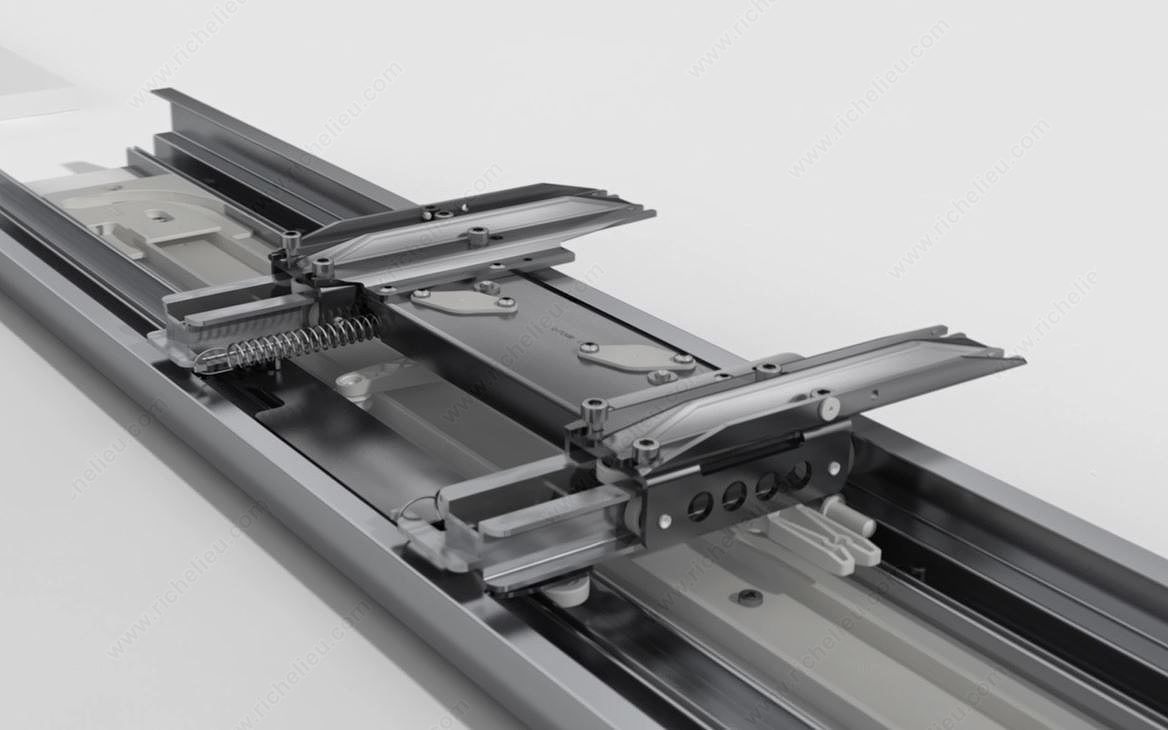

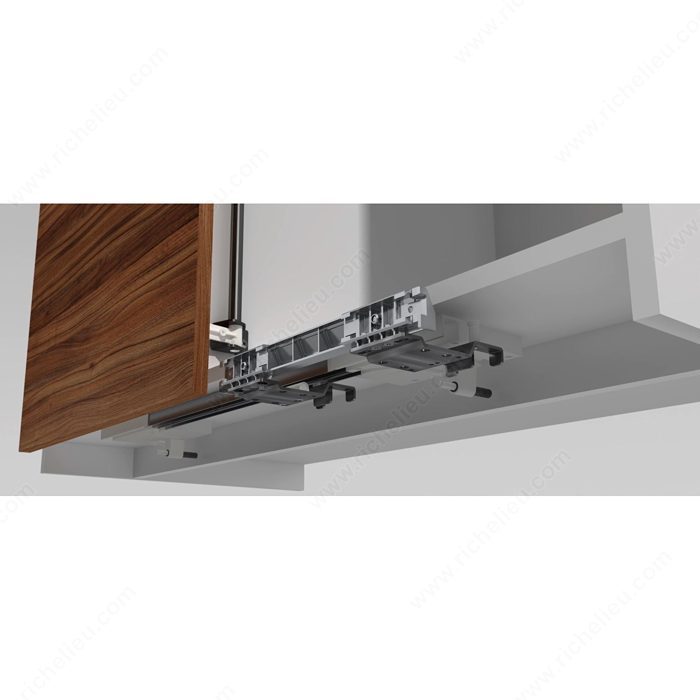

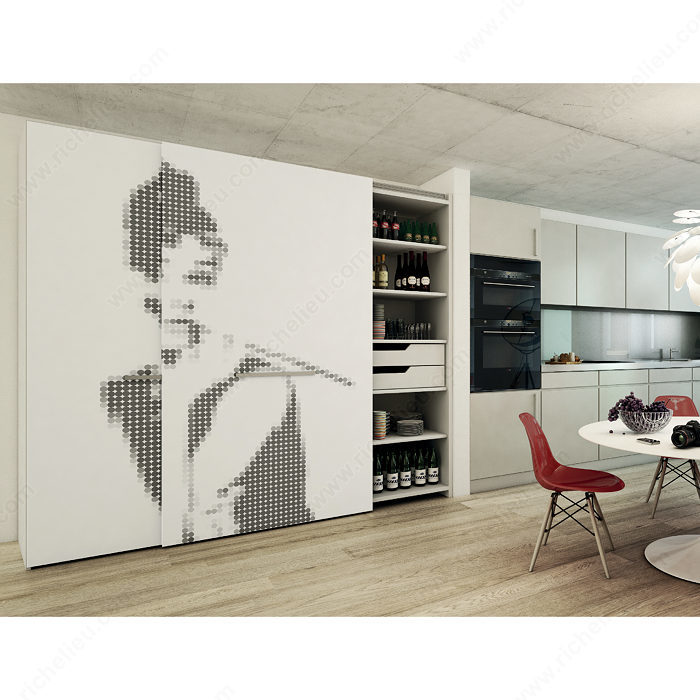

Richelieu 893320071 HAWA Frontino 40 H FS Coplanar Sliding SystemRichelieu 893320071 HAWA FRONTINO 40 H FS Coplanar Sliding System offers an innovative solution for modern spaces, accommodating two wooden coplanar doors with a maximum weight of 88 lb (40 kg) each. Designed for versatility, this system is ideal for wardrobes, pantries, storage solutions, and more, making it the perfect addition to living rooms, bedrooms, offices, and kitchens. This sliding door system features a robust aluminum construction with a sleek satin finish, ensuring durability and style. It supports doors with a thickness of 19 mm (3/4") and allows for a full overlay design, providing a seamless look. With adjustable door widths ranging from 23 5/8 to 35 3/8 inches and a cabinet width compatibility of 47 1/4 to 70 7/8 inches, customization is simple. The HAWA FRONTINO system incorporates an upper roller position with ball-bearing rollers for smooth operation, while the two-way soft-close feature ensures a gentle and quiet closing process. The system’s overall length is 70 7/8 inches, accommodating door heights up to 94 1/2 inches. With left and right-hand opening options, this versatile sliding door solution is designed to enhance functionality and aesthetic appeal in any space.
HAWA FRONTINO 40 H FS Coplanar Sliding System

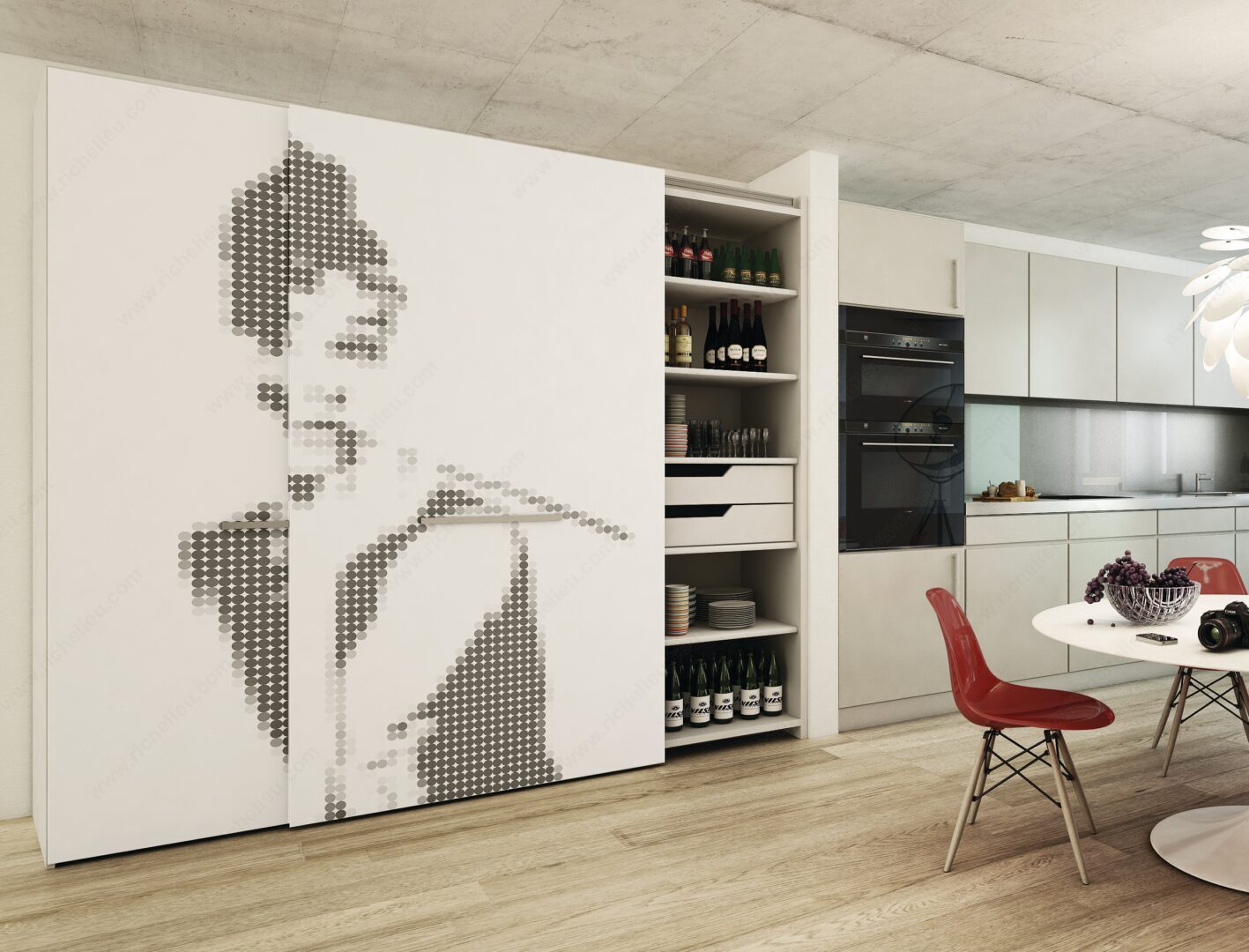

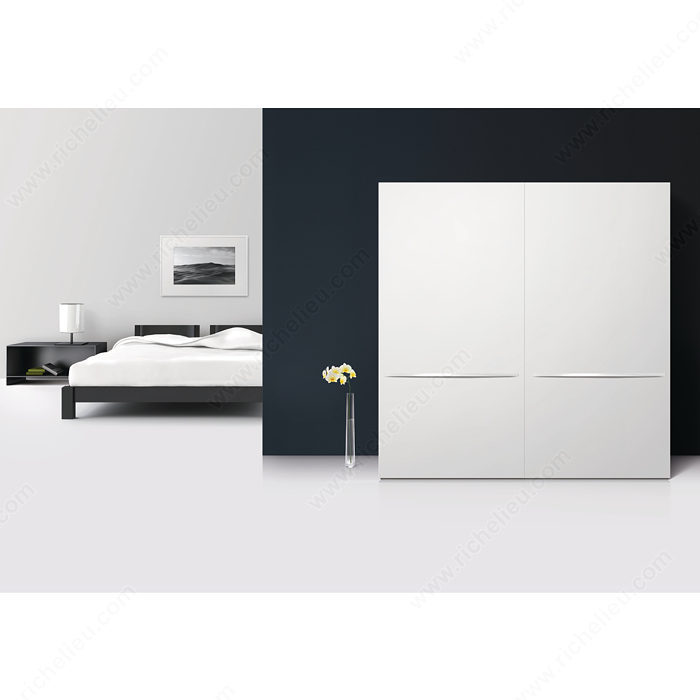

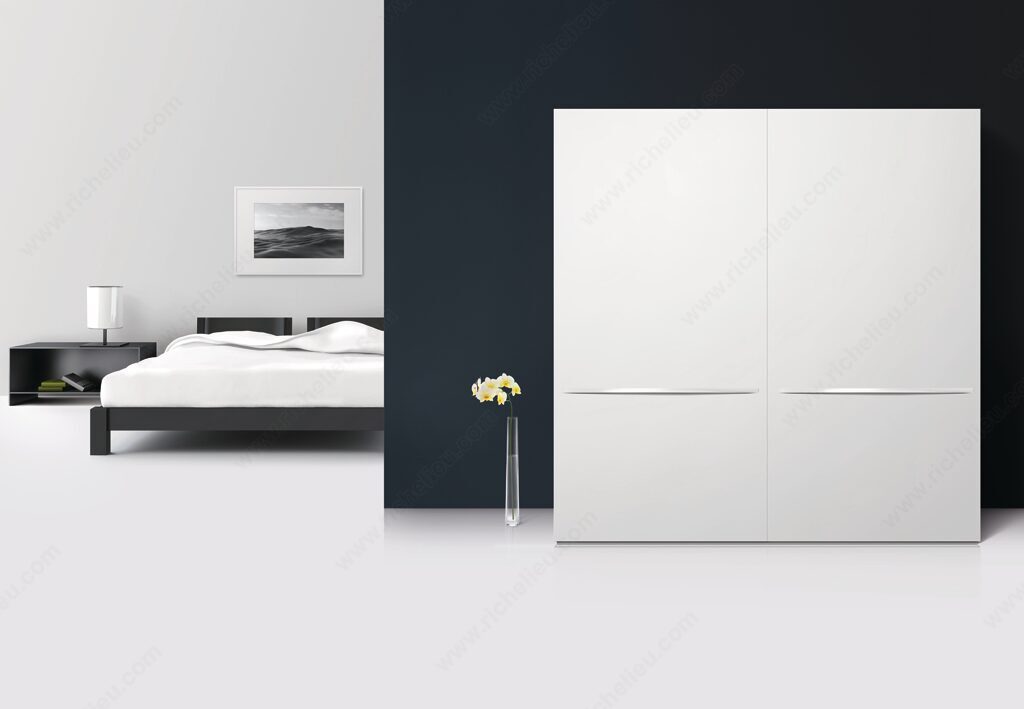

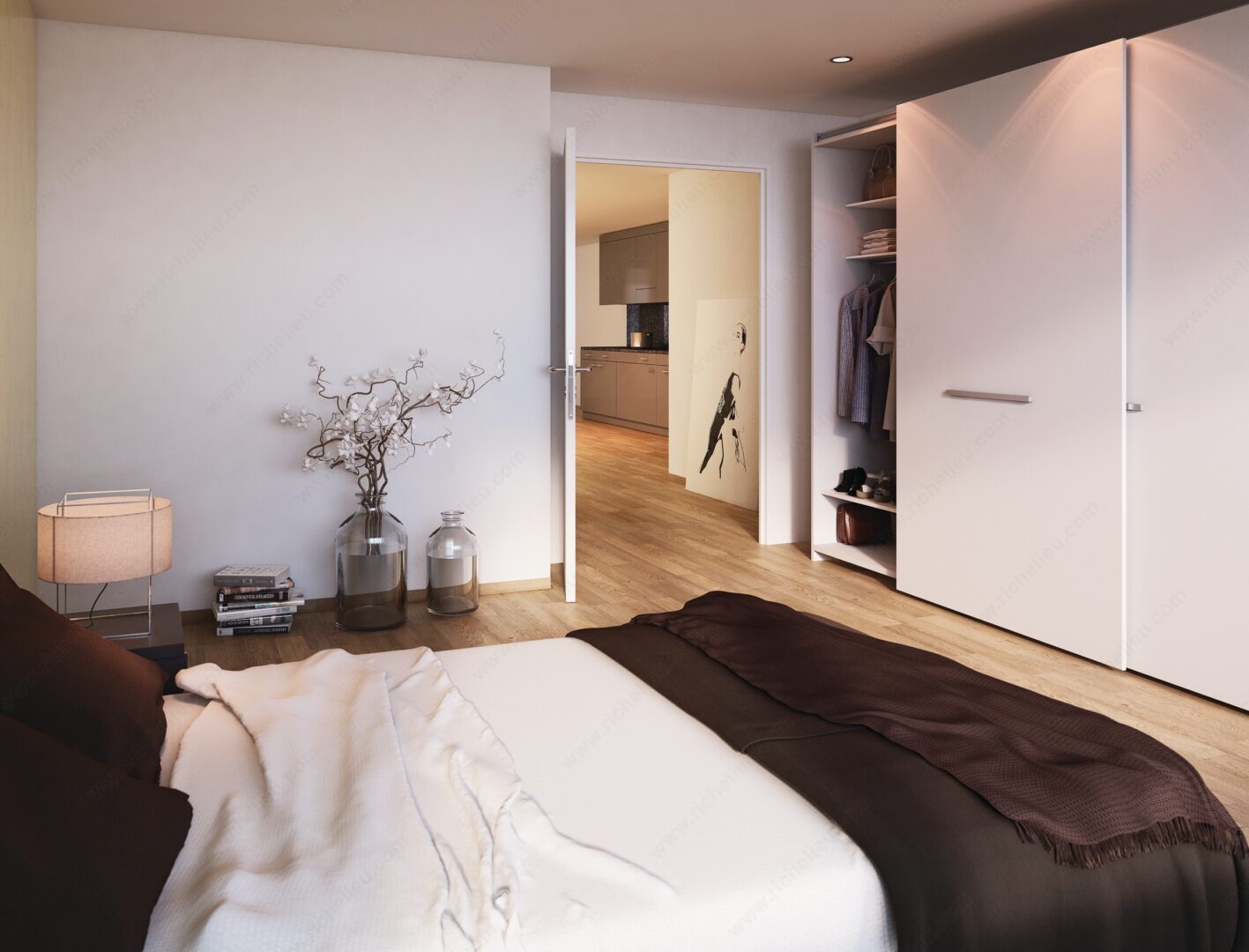

The HAWA FRONTINO 40 H FS is a sliding door solution for two wooden medium size coplanar doors weighing up to 88 lb (40 kg) each, guided by a top and bottom track/guide set and with a thickness of 19 mm (3/4''). Provides endless possibilities for furniture in the living room, bedroom, office area, and kitchen.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Wardrobe, Pantry, Storage
Brand: Hawa
Cabinet Width: 1 200 to 1 799 mm
Door Height: Max. 2 400 mm
Door Material: Wood
Door Movement: Coplanar
Door Overlap: 60 mm
Door Position: Full Overlay
Door Thickness: 19 mm
Door Thickness Including the Handle: Max. 49 mm
Door Width: 600 to 899 mm
Finish: Satin Aluminum
Length - Overall Dimensions: 70 7/8 in*
Load Capacity: Max. 88.2 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Opening: Left and Right-Hand Opening
Overall Length: 1 800 mm
Product #: 893320071
Product number: 893320071
Product №: 893320071
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two-Way Operation, Dampener Catch
Soft- Closing: Yes
Track Finish: Satin Aluminum
Track Length: 1 800 mm
Track Material: Anodized Aluminum
Unit: Set
Weight Capacity per Door: Max. 40 kg
