Richelieu 89K01317 Terno Classic Sync Hardware SetRichelieu 89K01317 TERNO CLASSIC SYNC Hardware Set is expertly crafted to synchronize two wood doors, allowing them to slide in opposite directions with a remarkable weight capacity of 80 kg (176 lb) each. This innovative hardware set features a direct mount suspension plate attached to the top of the doors, providing a clean and efficient installation. Equipped with pulleys that include standard stops and a retaining device, the system ensures a smooth and reliable operation. The integrated FLUID shock absorbers offer soft-close functionality, enhancing the user experience by preventing abrupt door movements. The sag-resistant cable within the pulley system guarantees durability and consistent performance. Designed for biparting door movement, the TERNO CLASSIC SYNC accommodates doors with a height range of 59 to 118 inches and a thickness between 1 3/16 to 1 31/932 inches. The adjustable features allow it to fit doors with widths from 23 5/8 to 47 1/4 inches. For installation, a groove of 10 x 20 mm is required at the bottom of the doors, although an optional two-part floor guide is available for those who prefer not to cut grooves. This hardware set is suitable for standard access doors and is mounted from the ceiling for optimal space utilization. Experience the quality and functionality of Richelieu’s TERNO CLASSIC SYNC Hardware Set for your next project.
TERNO CLASSIC SYNC Hardware Set
The TERNO CLASSIC SYNC hardware set is designed synchronize two wood doors to slide opposite direction for a weight capacity of 80 kg each.

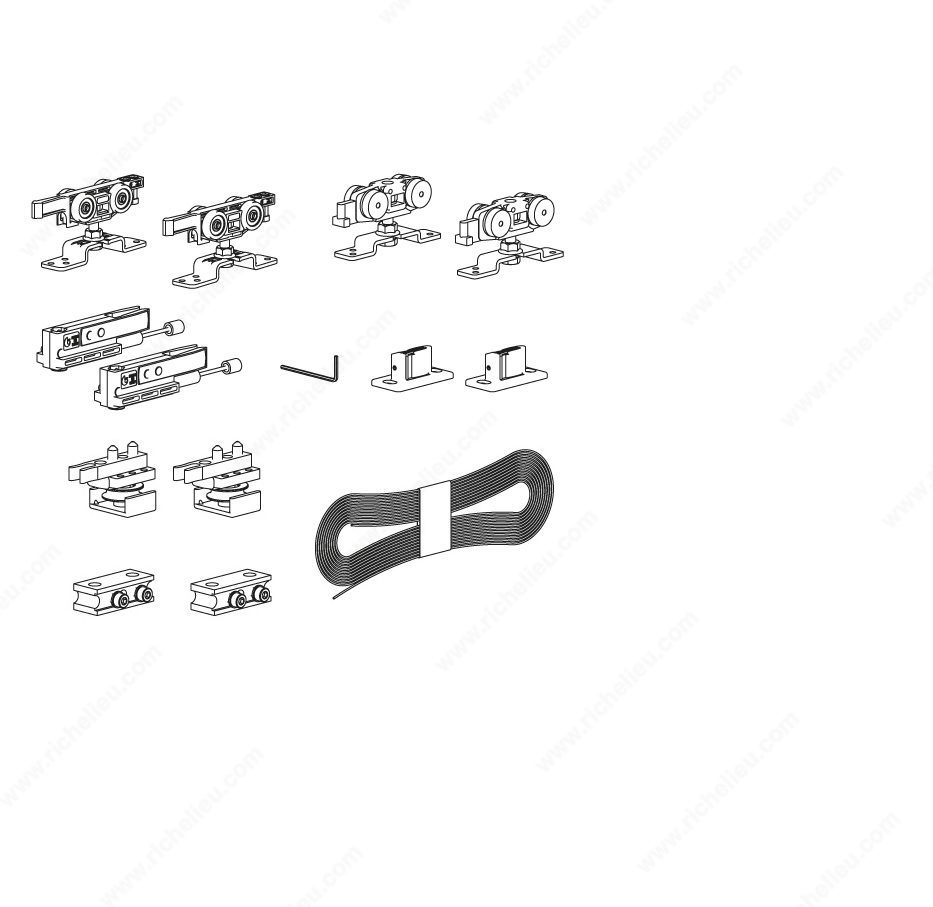

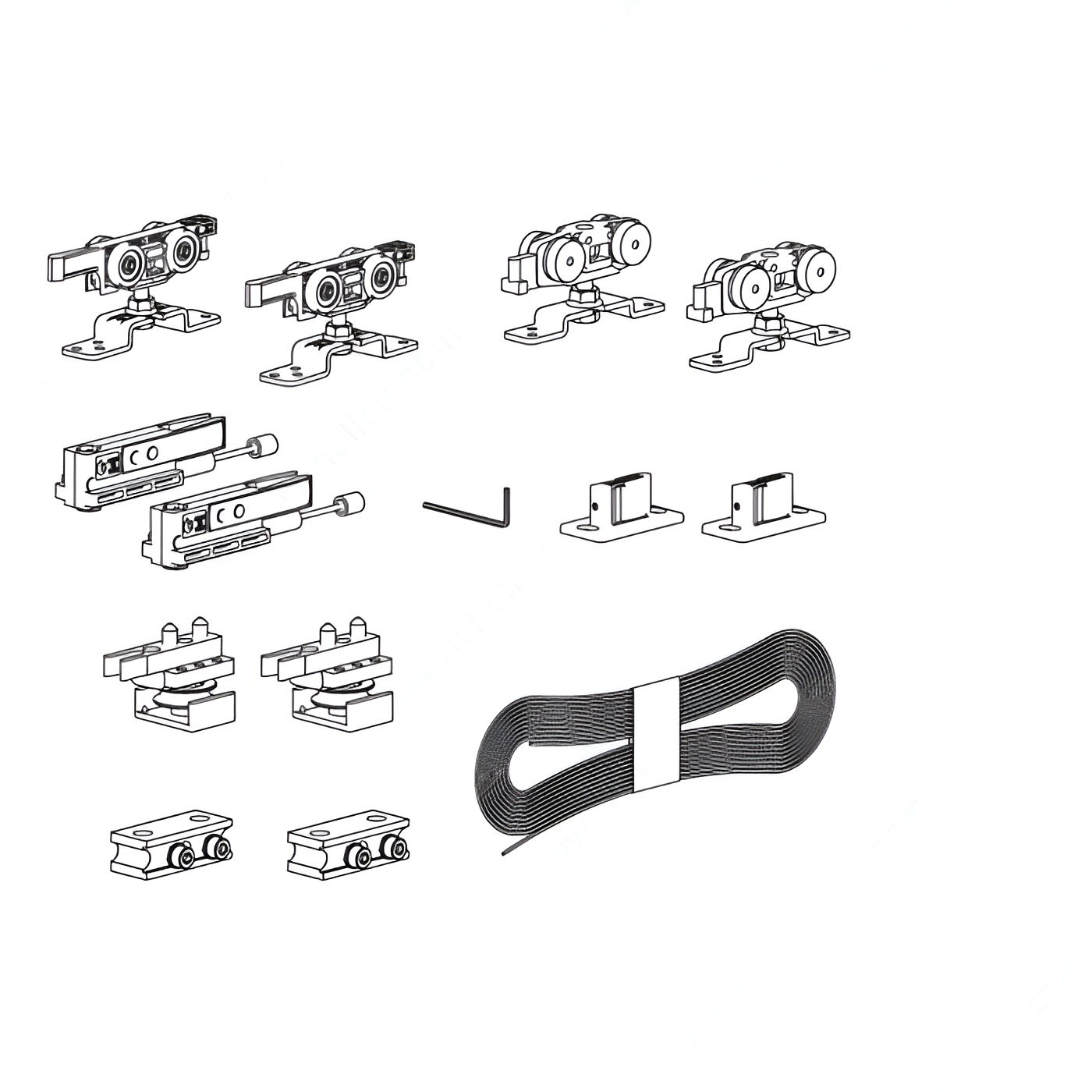

Features:

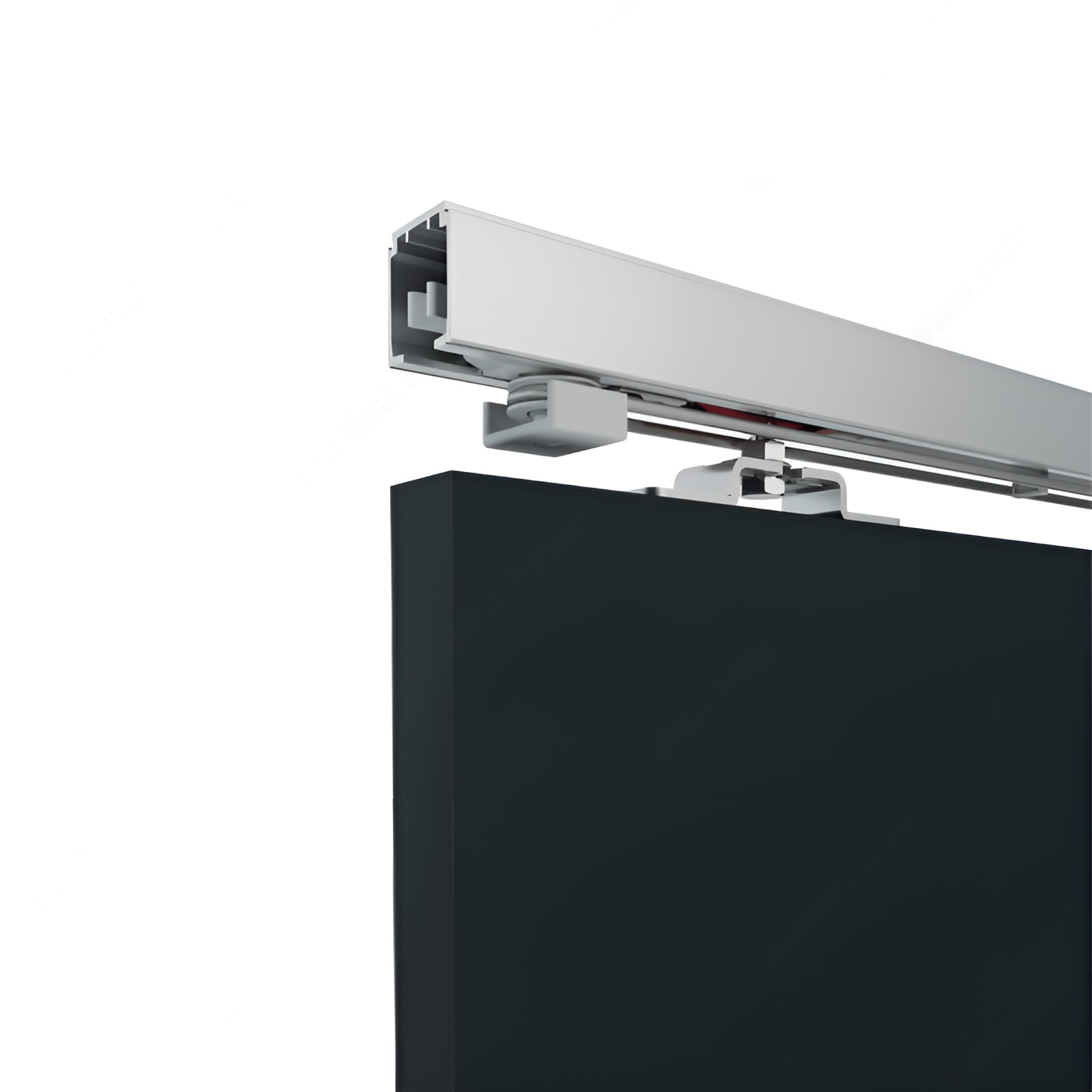

- Direct mount suspension plate to the top of the door
- Pulleys with standard stops and retaining device
- Stop with FLUID shock absorbers
- Pulley system with sag resistant cable
- All material sets run on the same tracks
- Simple and flexible installation
- Smooth operating
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required on the bottom of the door 10 x 20 mm.
Optional two-part floor guide can be purchased separately to avoid cutting a groove
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door
Detailed Door Movement: Biparting
Door Height: 1 500 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 50 mm
Door Width: 600 to 1 200 mm
Load Capacity: 88.2 to 176 lb*
Number of Doors: 2
Product #: 89K01317
Product type: Hardware Set
Product №: 89K01317
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: 2 Shock Absorber
Stopper: Four
Track Mounting: Ceiling Mount
Unit: Set
Weight Capacity per Door: 40 to 80 kg
