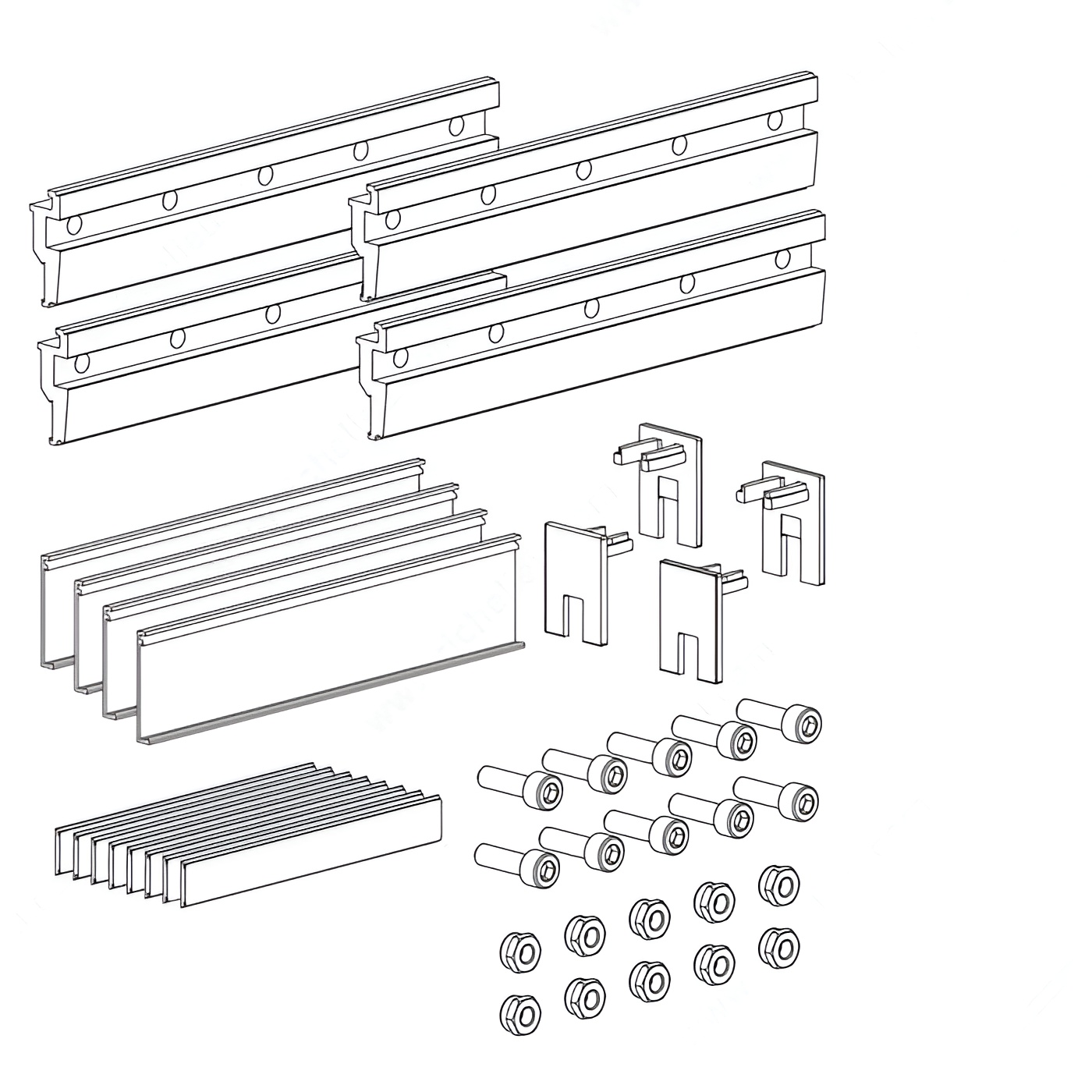

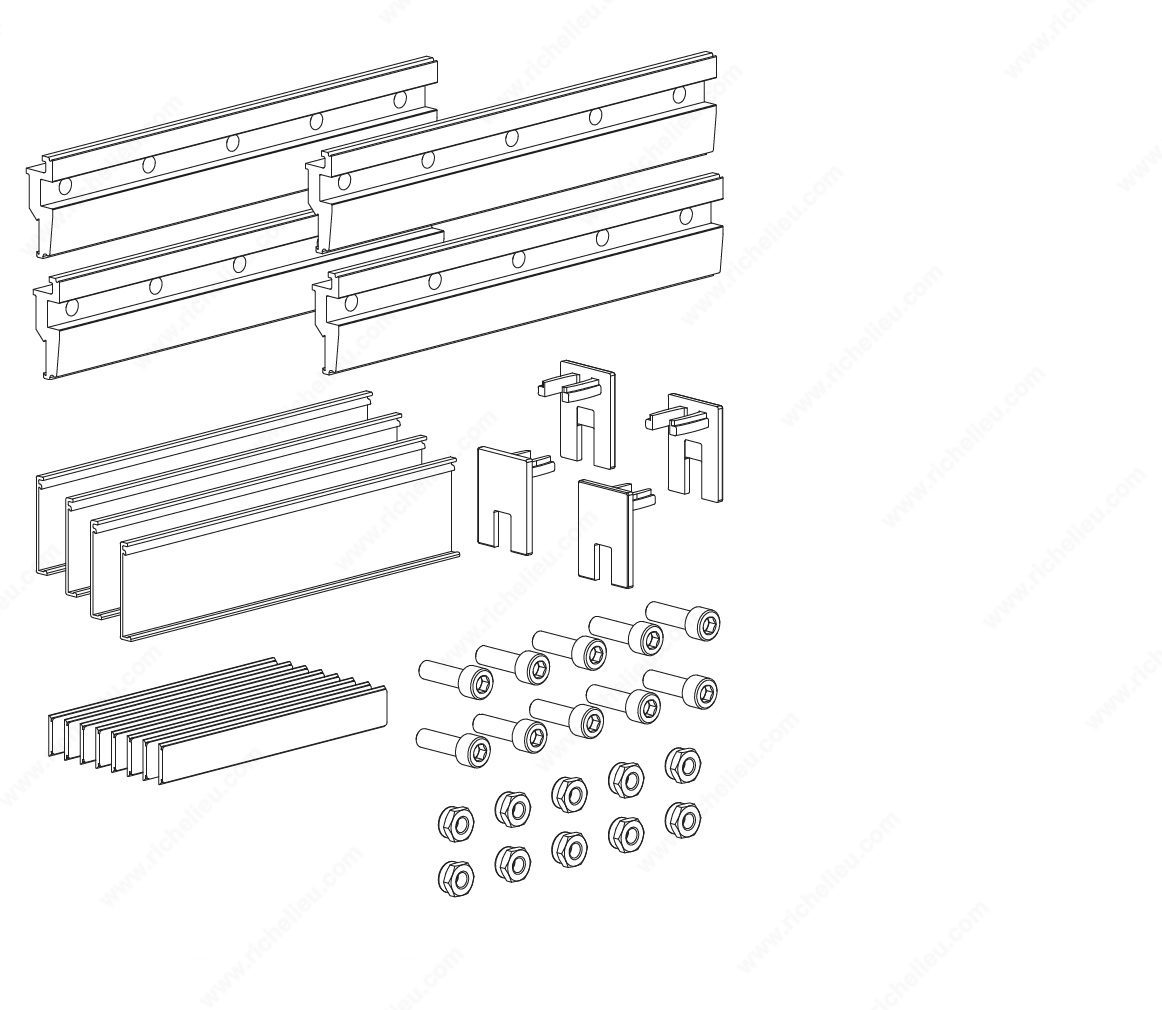

Richelieu 89K0328A12 TERNO VETRO 40 Clamp Shoes with Covers provide an elegant and functional solution for glass installations. Designed for glass thicknesses of 3/8 inch (10 mm) and 1/2 inch (12.7 mm), these clamp shoes offer a robust maximum weight capacity of 264 lb (120 kg) when used in pairs. Their low-profile design, standing at just 1 9/16 inches (40 mm) high, ensures a sleek appearance without compromising strength. The silver anodized finish not only enhances the aesthetic appeal but also ensures durability, making them suitable for a variety of environments. These clamp shoes are compatible with the TERNO VETRO hardware sets, making installation seamless and efficient. A standout feature is that they do not require glass drilling, simplifying the installation process and preserving the integrity of the glass. Ideal for standard access doors, these clamp shoes support single sliding movements and are designed for top-hung installations. With the capacity to accommodate door widths ranging from 23 5/8 inches to 47 1/4 inches and heights up to 8 ft 10 inches, they are versatile for different applications. Crafted from high-quality nylon, aluminum, and plastic, the TERNO VETRO 40 Clamp Shoes deliver on both performance and style.
TERNO VETRO 40 Clamp Shoes with Covers
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Detailed Door Movement: Single sliding
Door Height: 2 700 mm
Door Installation: Top Hung
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 12 to 12.7 mm
Door Width: 600 to 1 200 mm
Finish: Anodized aluminum
Load Capacity: Max. 265 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Number of Doors: 1
Packaging format: Set
Product #: 89K0328A12
Product number: 89K0328A12
Product type: Clamp for Glass
Product №: 89K0328A12
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Unit: Set
Unit 1: case - 5
Unit 2: case - 5
Weight Capacity per Panel: Max. 120 kg
