Richelieu 89K03366 TERNO VETRO 40 SYNC Hardware SetRichelieu 89K03366 TERNO VETRO 40 SYNC Hardware Set is expertly crafted for the seamless operation of two glass doors, each accommodating a weight capacity of up to 176 lb (80 kg). This hardware set is an ideal choice for professionals seeking a reliable solution for standard access doors. Designed for easy installation, the TERNO VETRO 40 SYNC features a clip-on suspension plate that allows for tool-free mounting. It is compatible with glass thicknesses of 1/2 in (12.7 mm) and includes a sophisticated pulley system supported by a sag-resistant cable, ensuring smooth operation. The low-profile silver anodized glass clamp, measuring 1 9/16 in (40 mm), not only adds a sleek aesthetic but also accommodates the robust functionality required for glass doors. This system supports biparting door movement and is top-hung for optimal space efficiency. With adjustable door widths ranging from 30 3/4 in to 43 1/4 in and a height of 8 ft 10 in, it suits various architectural designs. The roller type is ball bearing, providing quiet and effortless sliding, while the soft-closing feature adds an element of sophistication to your installations. For accurate installation, remember to use metric dimensions. Choose Richelieu for quality and innovation in architectural hardware solutions.

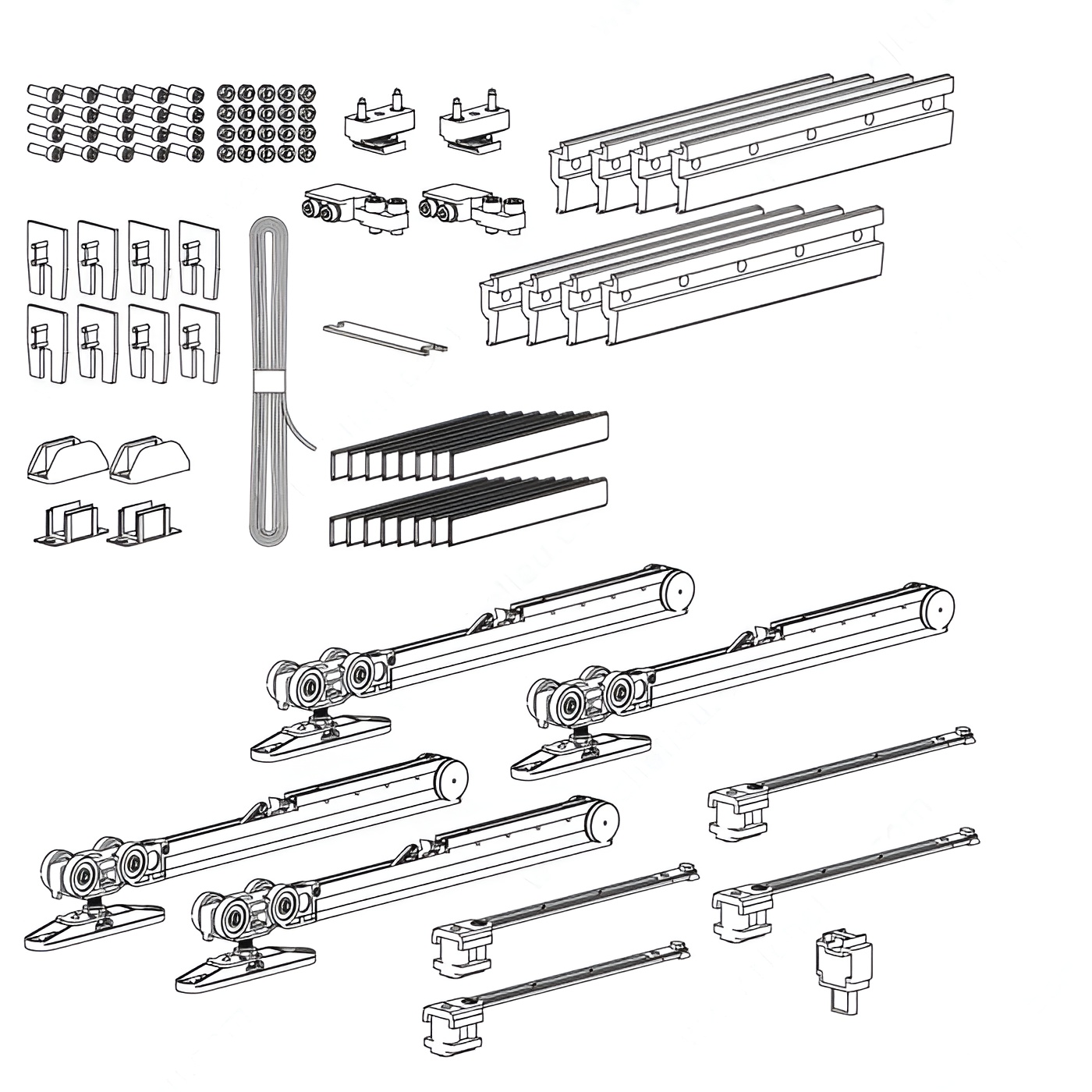

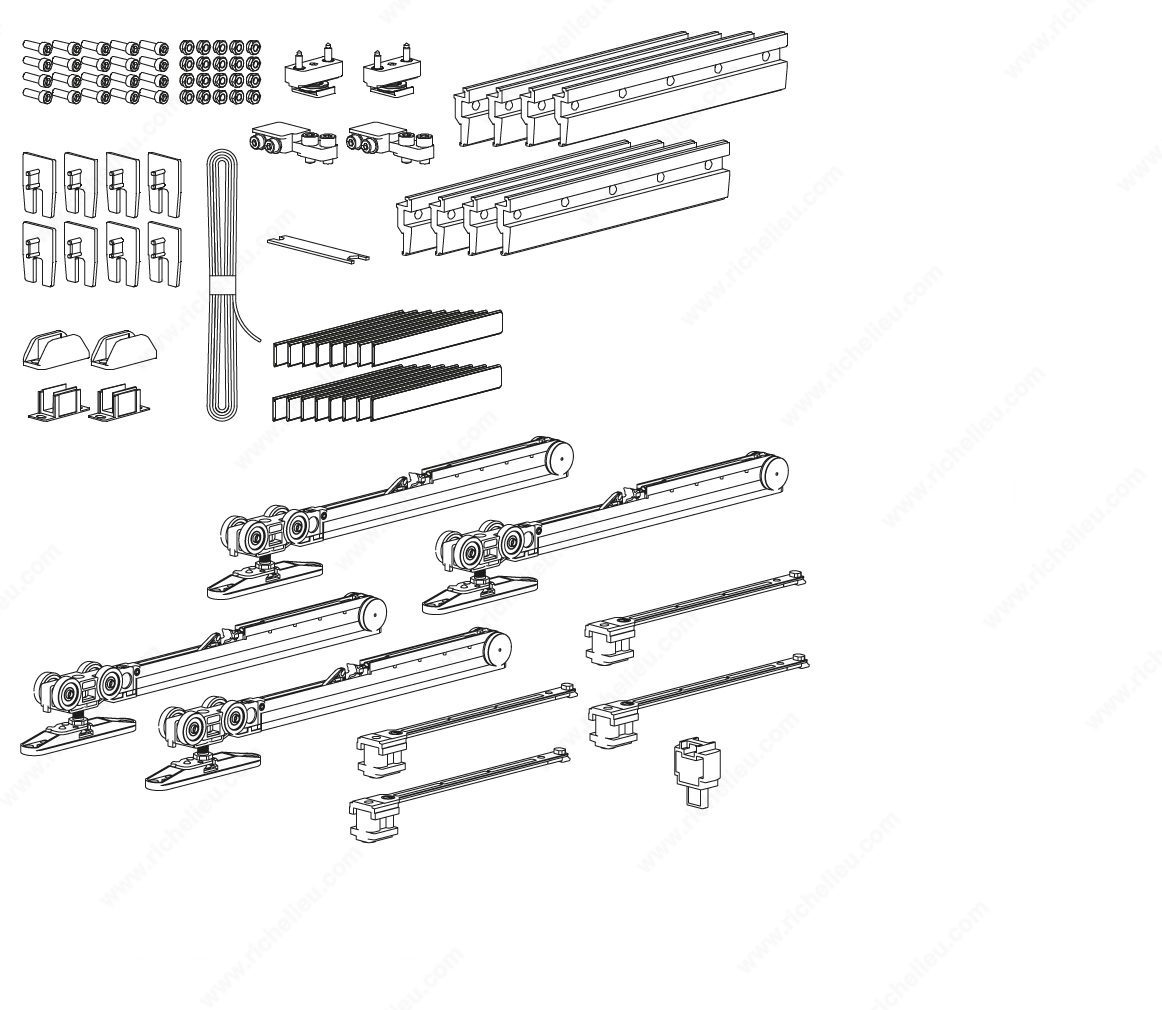

TERNO VETRO 40 SYNC Hardware Set
The TERNO VETRO 40 SYNC hardware set is designed for two glass doors for a weight capacity of 176 lb (80 kg) each.
Features:
- Clip-on suspension plate to mount the door without tools
- For glass thickness of 1/2 in (12.7 mm)
- Pulley system with sag resistant cable
- 1 9/16 in (40 mm) low profile silver anodized glass clamp
- All material sets run on the same tracks
- Simple and flexible installation
- Smooth operating
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Detailed Door Movement: Synchronized biparting
Door Height: 2 700 mm
Door Installation: Top Hung
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 12.7 mm
Door Width: 780 to 1 100 mm
Load Capacity: 88.2 to 176 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Number of Doors: 2
Product #: 89K03366
Product number: 89K03366
Product type: Hardware Set
Product №: 89K03366
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Unit 1: case - 5
Weight Capacity per Door: 40 to 80 kg
