Richelieu 89K12094S TERNO ECLETTICA FLUID Hardware Set with Shock Absorber offers an innovative solution for sliding wood doors, accommodating weights of up to 264 lbs (120 kg). This versatile hardware set is designed with a clip-on suspension plate, ensuring easy and secure door mounting. The inclusion of FLUID shock absorbers enhances user experience by providing a smooth and controlled operation, while the low pull force simplifies door opening. This system is tailored for single sliding movements, making it an ideal choice for various interior applications. With a minimum door width requirement of 23-5/8 in (600 mm) and a door height range of 59 to 118 in, it supports a variety of design specifications. The door thickness can range from 1 3/16 to 1 31/932 in, allowing for flexibility in material selection. Installation is made straightforward with direct-mount capabilities and compatibility across all hardware sets operating on the same tracks. For optimal results, a 1/4 in x 5/8 in (6.4 mm x 14 mm) groove must be cut at the bottom of the door for the floor guide. This product combines functionality with aesthetics, making it a reliable choice for building professionals and discerning homeowners alike.

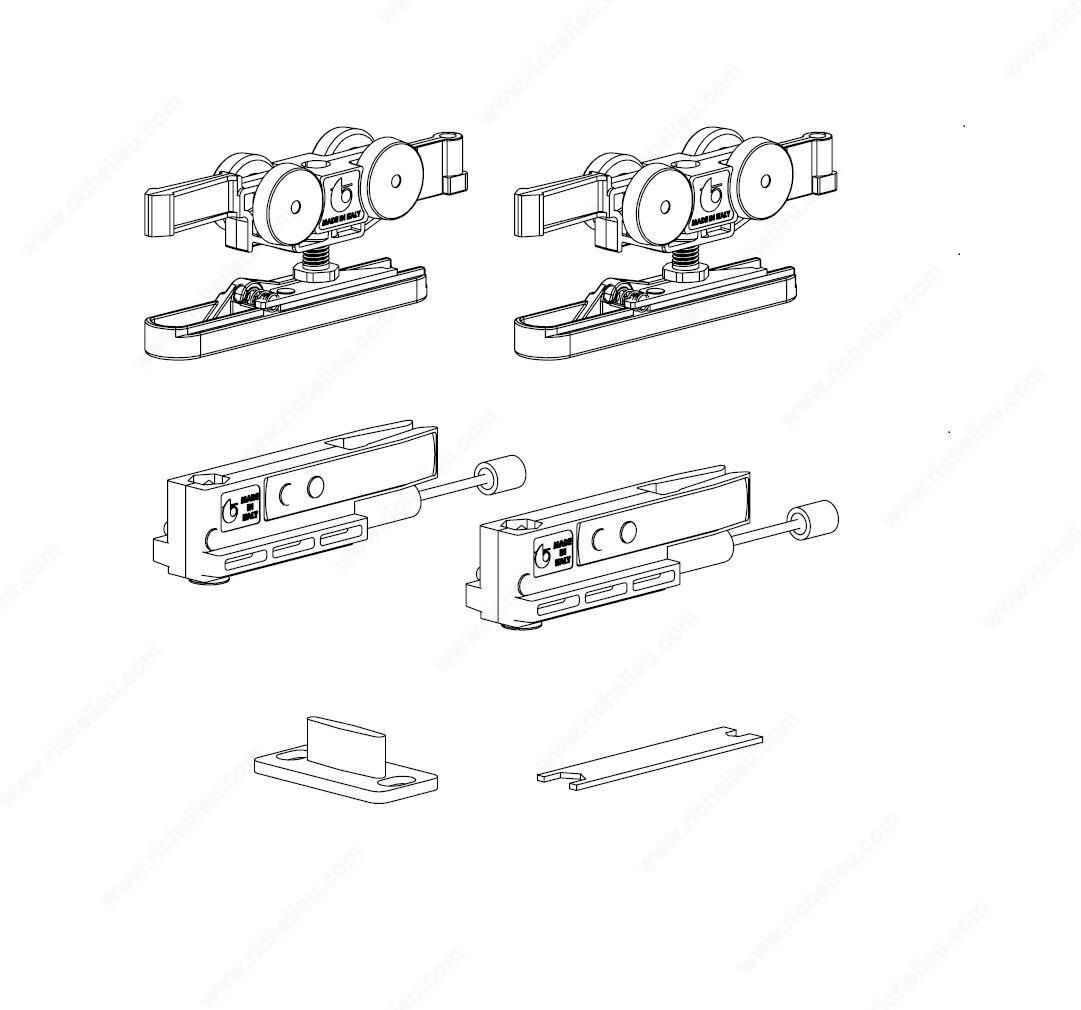

TERNO ECLETTICA FLUID Hardware Set with Shock Absorber
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Detailed Door Movement: Single sliding
Door Height: 59 to 118 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/16 to 1 31/32 in*
Door Width: 23 5/8 to 59 in*
Load Capacity: 176 to 265 lb*
Number of Doors: 1
Product #: 89K12094S
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID
Stopper: Two
Track type: Box Track
