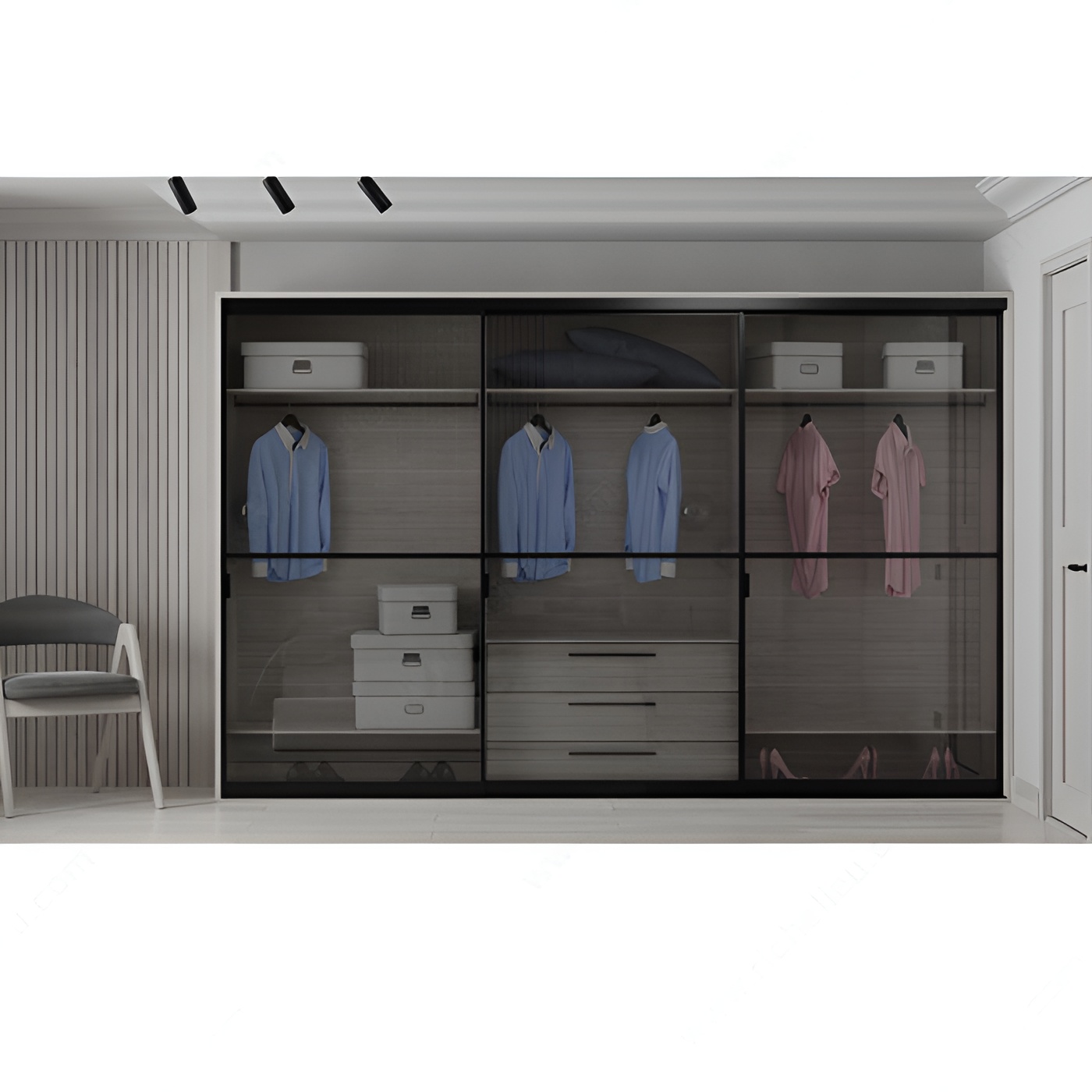

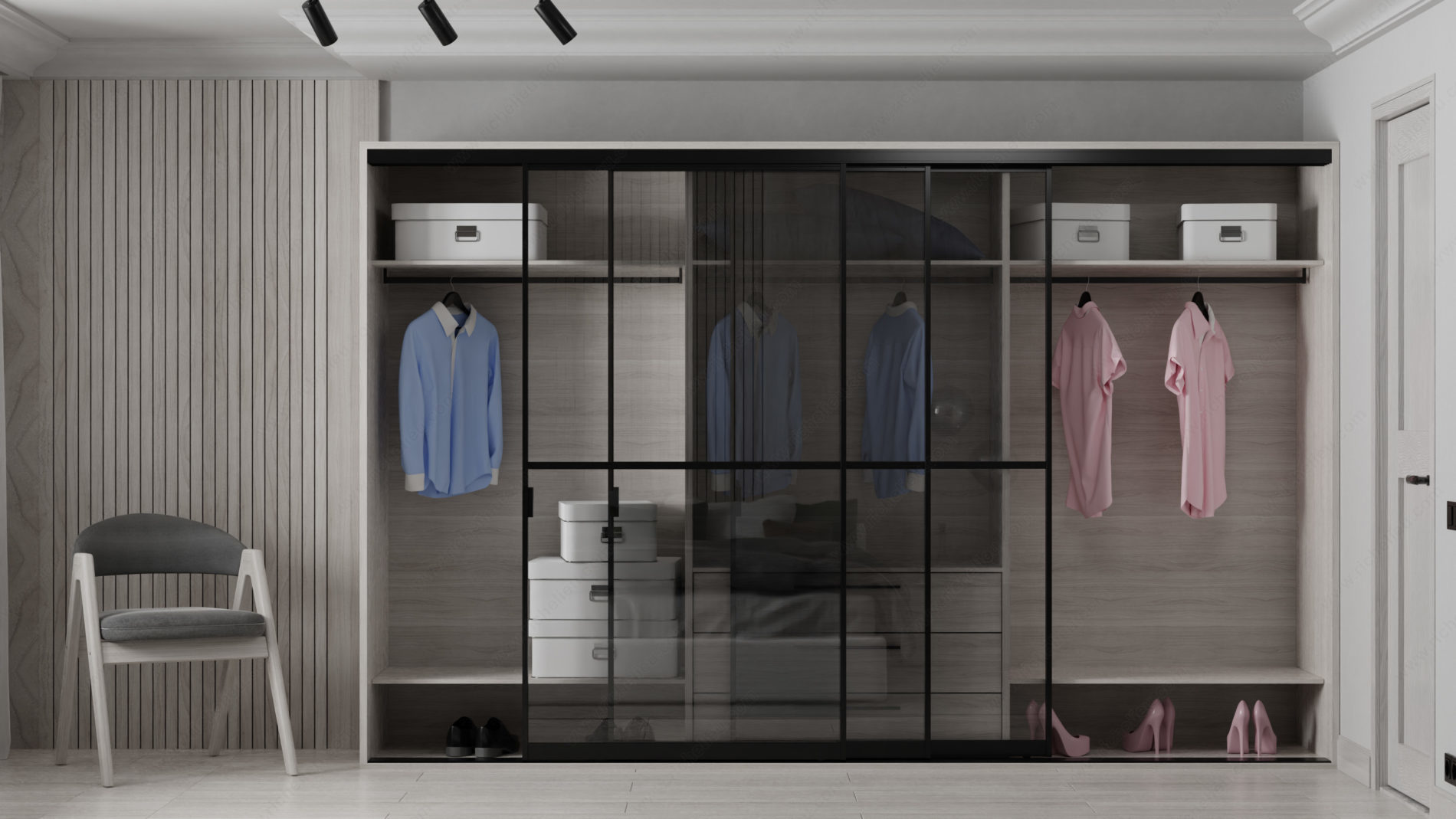

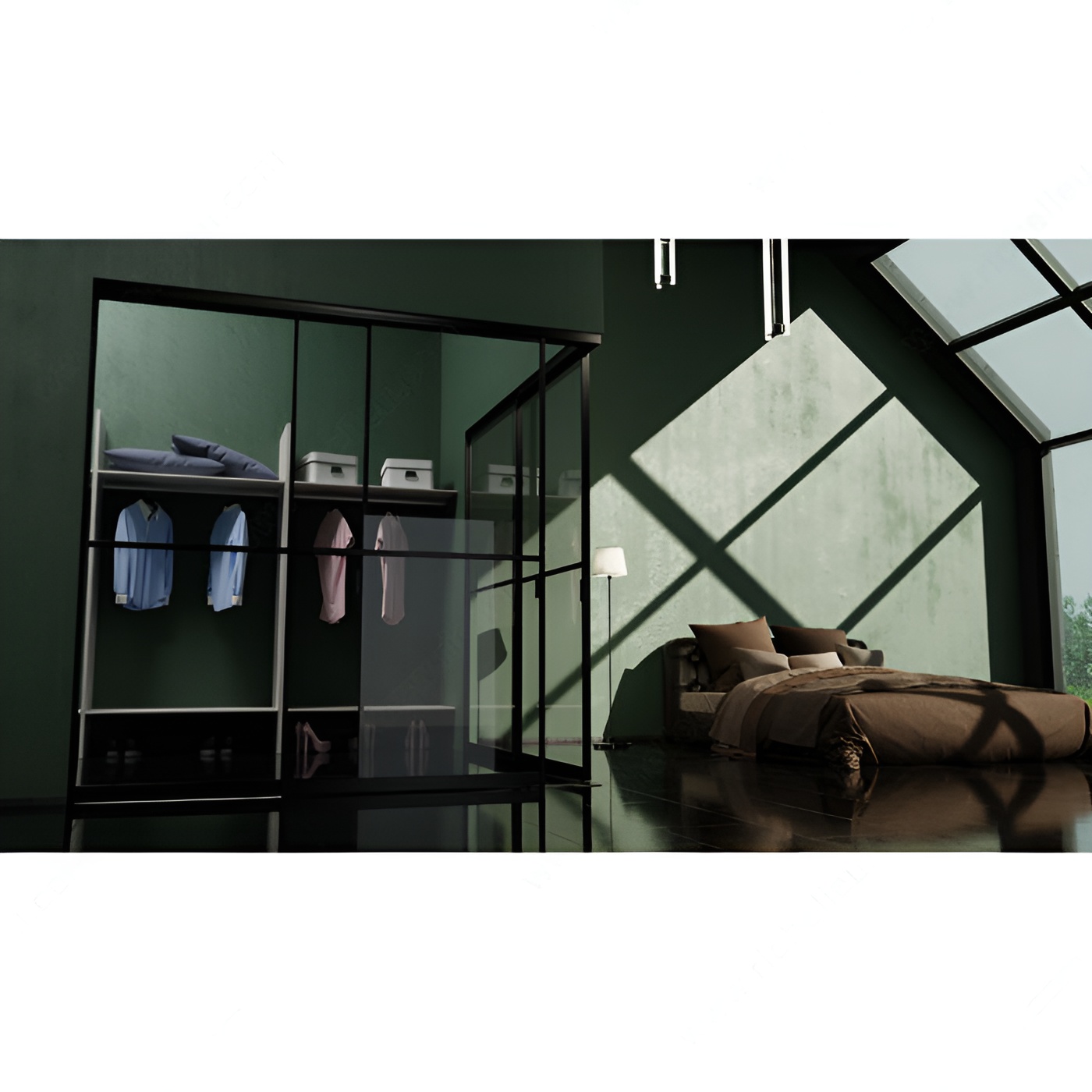

Richelieu 89K4083DR390 BRIDGE 500 Kit for Aluminum Sliding Door FramesRichelieu 89K4083DR390 Bridge 500 Kit for Aluminum Framed Sliding Doors is an ideal solution for creating stylish and functional sliding door systems. This bottom-running bypassing door kit supports doors weighing up to 60 kg (132 lbs) each, accommodating a maximum door size of 1000 x 2400 mm (39-3/8 x 94-1/2 in). Designed with versatility in mind, the aluminum frame profiles are available in Silver Anodized and Satin Black finishes, seamlessly blending with various interior styles. The kit includes easy-to-assemble knock-down aluminum frame profiles with a horizontal divider, suitable for 4 - 6 mm (3/16 - 1/4 in) thick glass or up to 10 mm (3/8 in) wood panels. It can be customized to fit desired door sizes, ensuring a perfect fit for your space. Choose between configurations for two doors with 2.0 m (78-3/4 in) double upper tracks or three doors with 3.0 m (118 in) triple tracks, all of which are surface mounted. Included in the package is a pull handle, and for three-door kits, a locator device for the middle door. The optional soft-close feature with an adjustable spring enhances usability. Perfect for closets, wardrobes, and storage spaces, this complete set is engineered for easy installation and lasting performance. Remember to use metric dimensions for precise fitting.
BRIDGE 500 KIT for Aluminum Framed Sliding Doors
The Bridge 500 bypassing aluminium frame door kit is a bottom-running sliding door system for doors weighing up to 60 kg (132 lbs) per door. Available in two finishes: Silver Anodized and Satin Black.
The kits include easy to assemble knock-down aluminium frame profiles with one horizontal divider. Maximum door size 1000 X 2400 mm (39-3/8 X 94-1/2 in).
The aluminium frame profiles are designed to work with 4 - 6 mm (3/16 - 1/4 in) thick glass with standard gasket or up to 10 mm (3/8") wood panels without a gasket. The aluminum frame profiles can be cut to suit the desired door sizes.

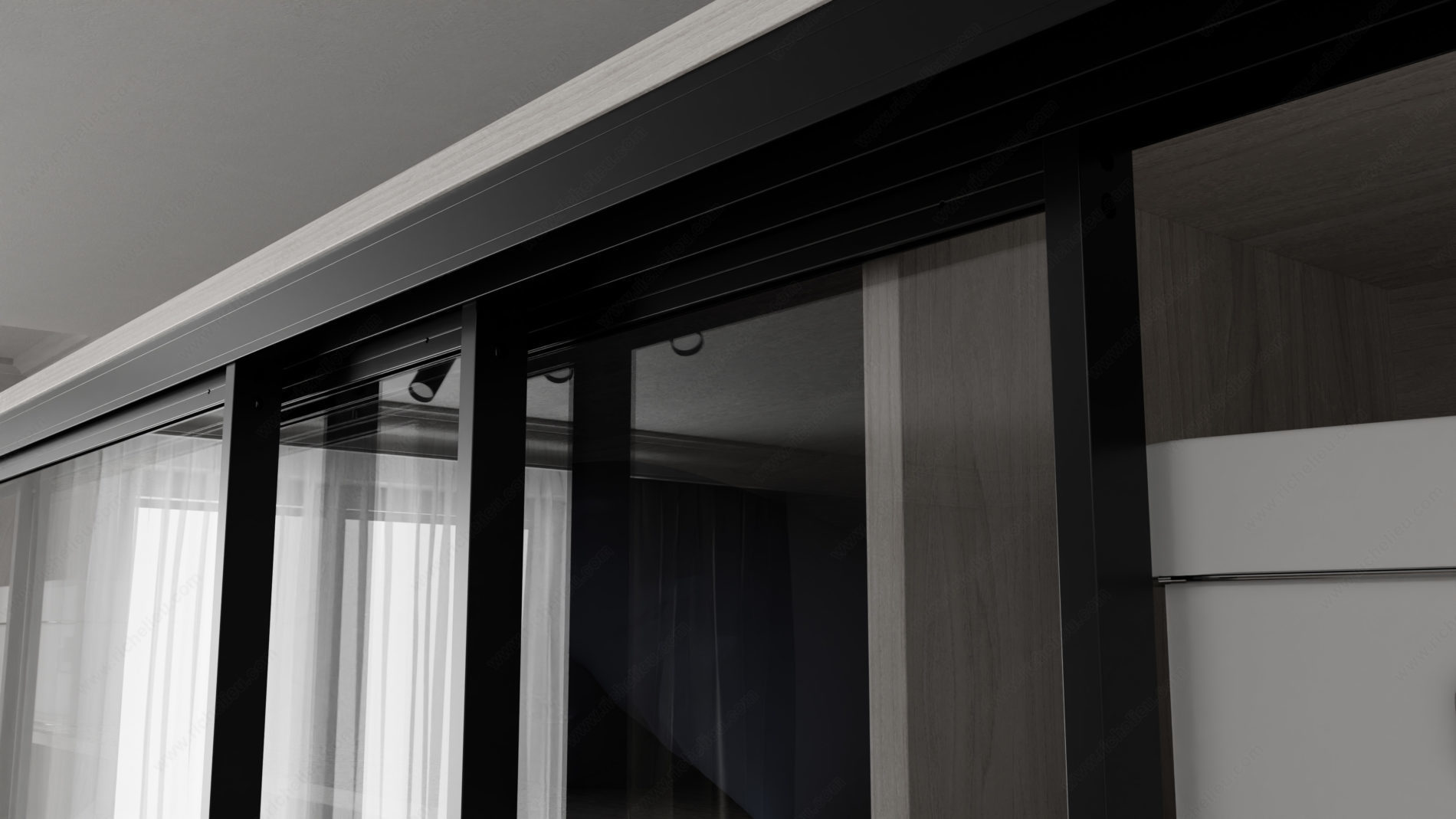

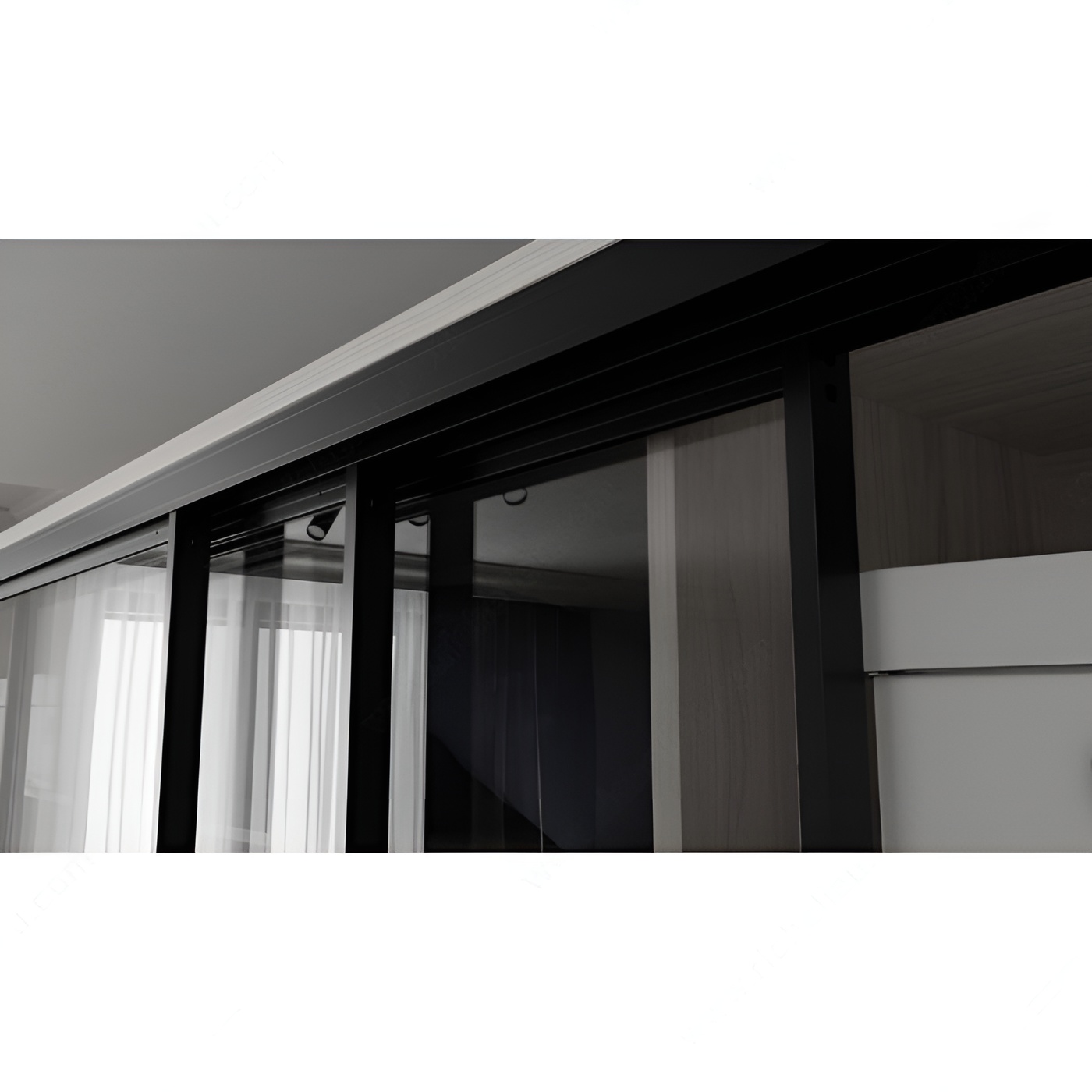

Select from Kits for two doors with 2.0 m (78-3/4 in) double upper tracks or three doors with 3.0 m (118 in) triple tracks. All tracks are surface mounted.
Includes pull handle.
Three-door kits include locator device for the middle door.
Optional soft-close with adjustable spring.
Important: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage
Brand: BRIDGE
Detailed Door Movement: Bypassing
Door Height: 2 400 mm

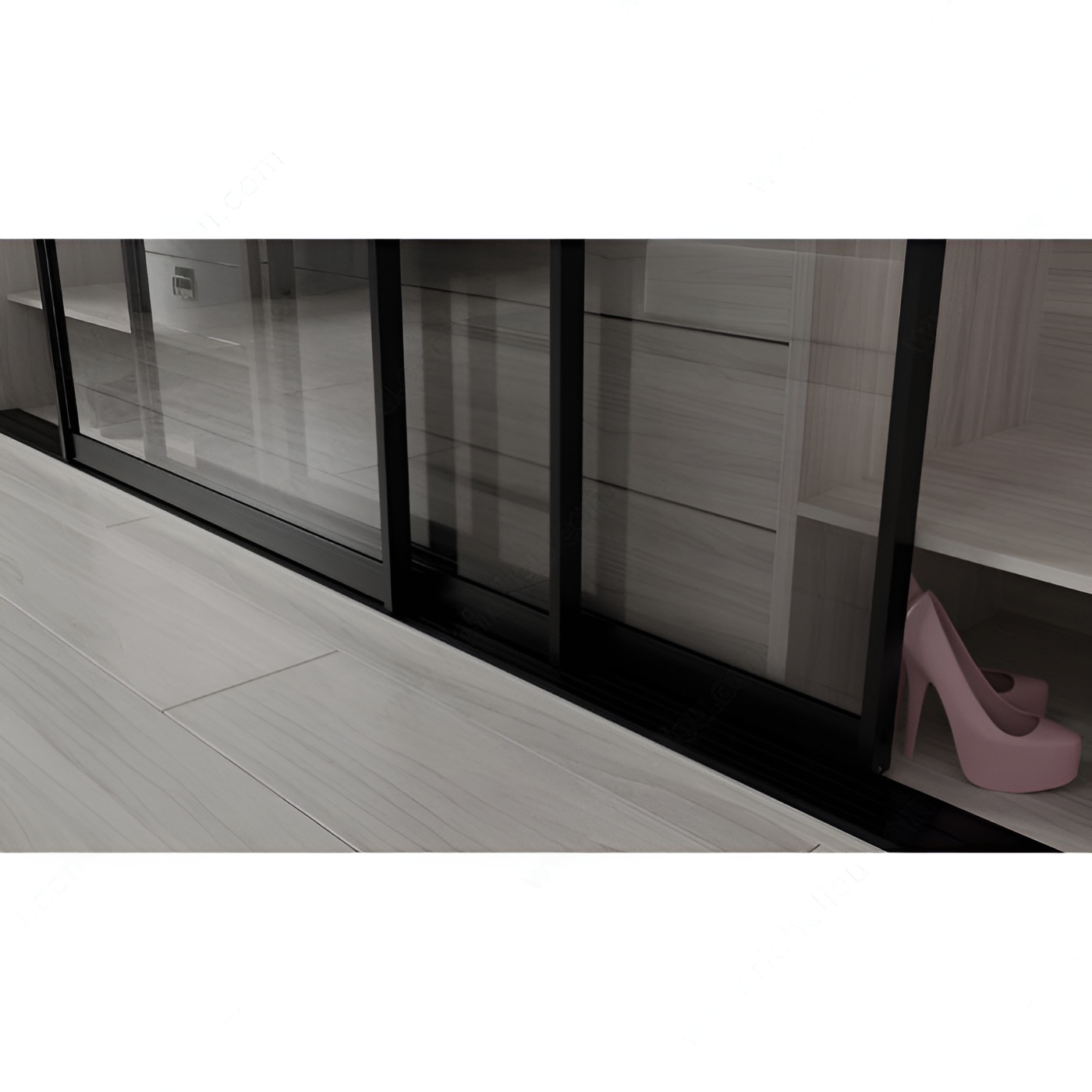

Door Installation: Bottom Running
Door Material: Aluminum/Metal Frame, Glass
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Width: 39 3/8 in*
Finish: Black (90)
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 44.1 to 132 lb*
Number of Doors: 3
Overall Length: 3 000 mm
Packaging format: Length
Product #: 89K4083DR390
Product type: Complete Set
Product №: 89K4083DR390
Roller Position: Lower
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Surface
Weight Capacity per Door: 44.1 to 132 lb*
